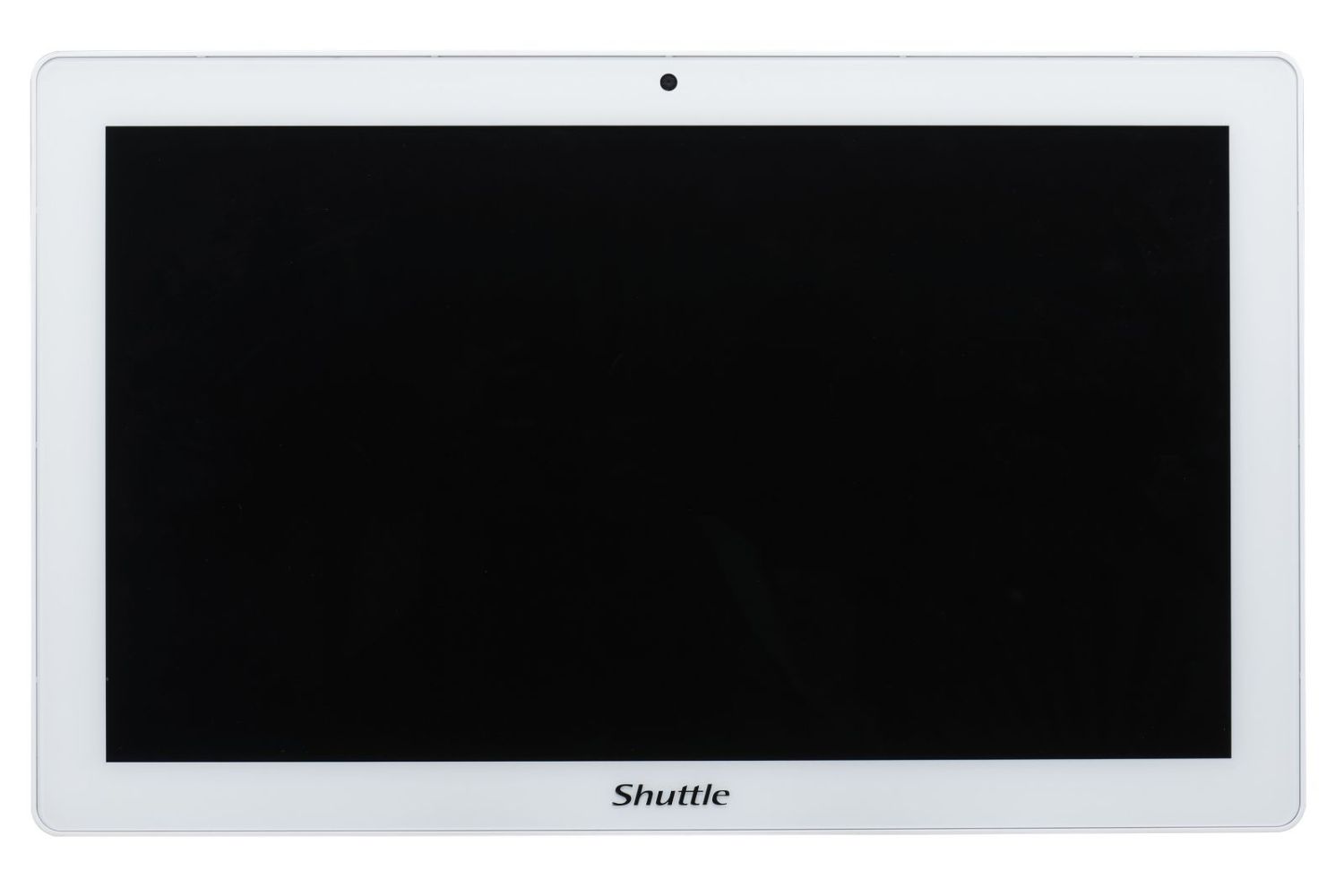

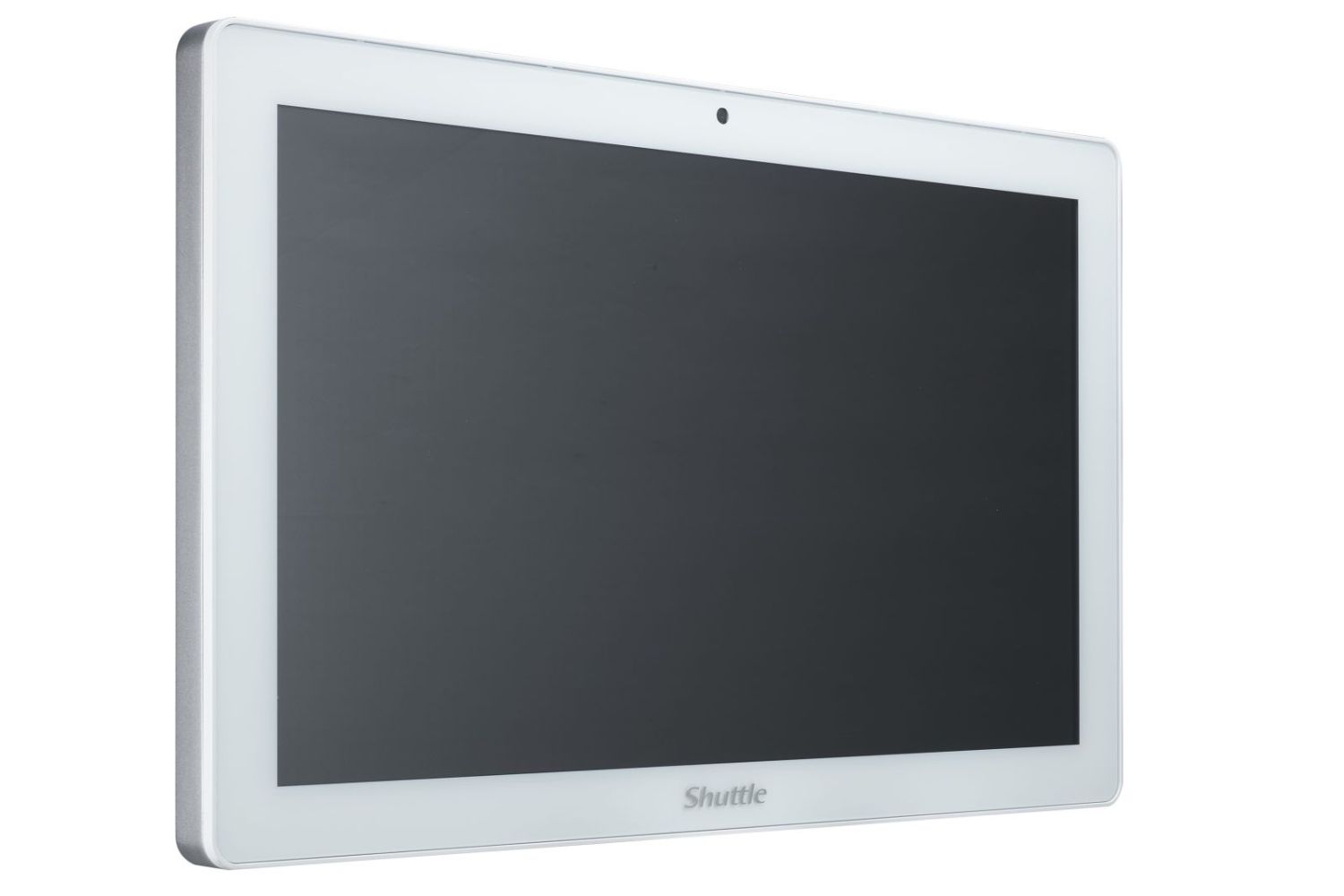

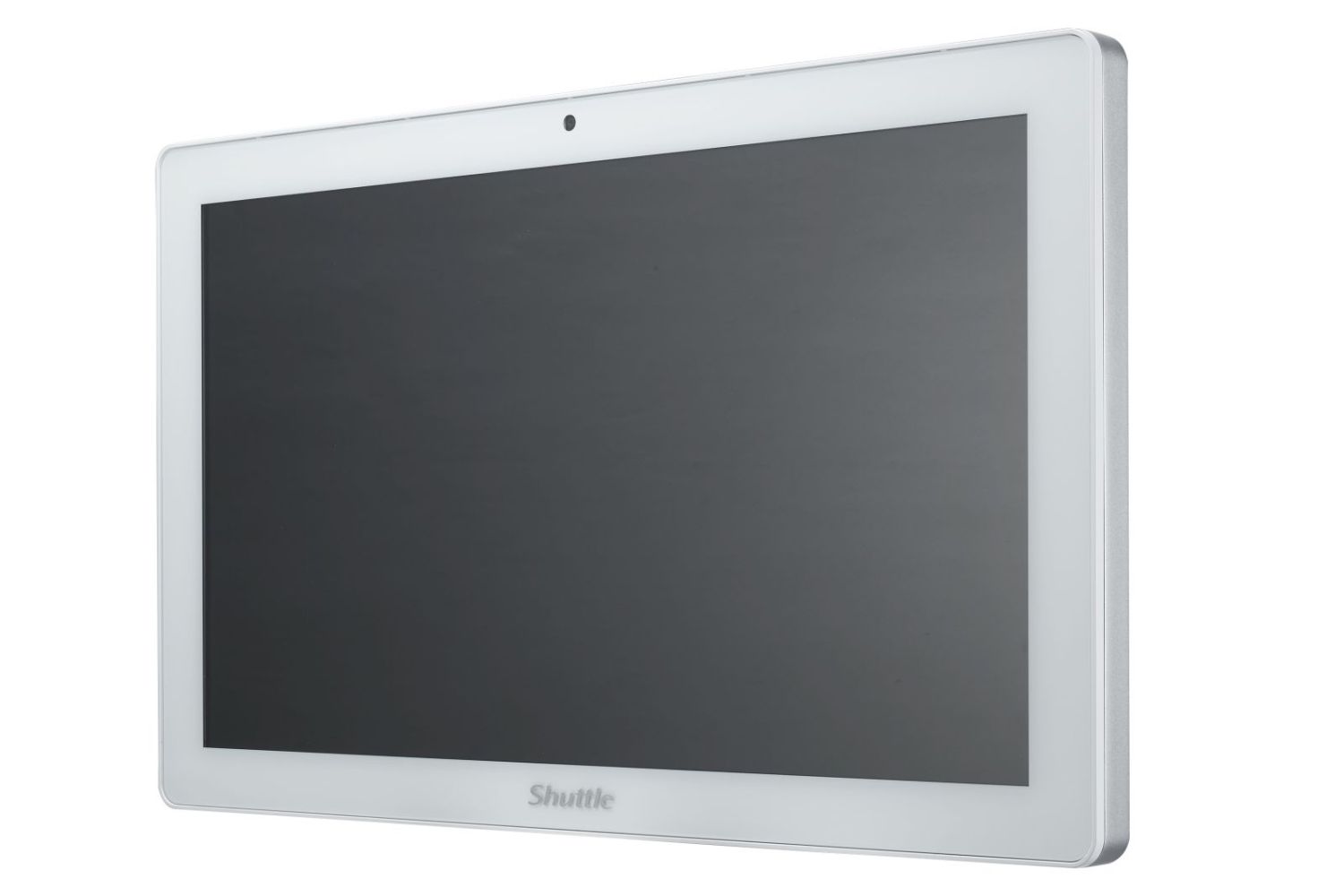

SHUTTLE Panel M21AL01-I5 Barebone 21.5Inch Intel Core i5-1235U 2xSODIMM DDR5 MAX 64GB
|
1.356,60 EUR |
|
|
( 1.614,35 EUR incl. VAT ) ≈ £1,146.33 | ≈ $1,516.68 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 02. Aug 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1634776 |
| Mfg Part No: | M21AL01-I5 |
| UPC/EAN: | 0887993007588 |
| Weight: | 0 kg |
| Audio | |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in speaker(s) | |
| Design | |
| Chassis type | All-in-One |
| Product colour | White |
| Cooling type | Passive |
| Housing material | Aluminium, Zinc |
| Panel mounting interface | 100 x 100 mm |
| Product type | All-in-One PC barebone |
| On/off switch | |
| VESA mounting | |
| Display | |
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Aspect ratio | 16:9 |
| Display brightness | 500 cd/m² |
| Panel type | TFT-LCD |
| Touchscreen | |
| Graphics | |
| Graphics card family | Intel |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card | |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 4800 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.1 V |
| Network | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN controller model | Realtek RTL8821CE |
| LAN controller | Intel I226-LM, Intel I226-V |
| Bluetooth version | 4.2 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Performance | |
| Motherboard chipset | Intel SoC |
| Number of processors supported | 1 |
| BIOS type | UEFI AMI |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio chip | Realtek ALC888S |
| Built-in camera | |
| Trusted Platform Module (TPM) | |

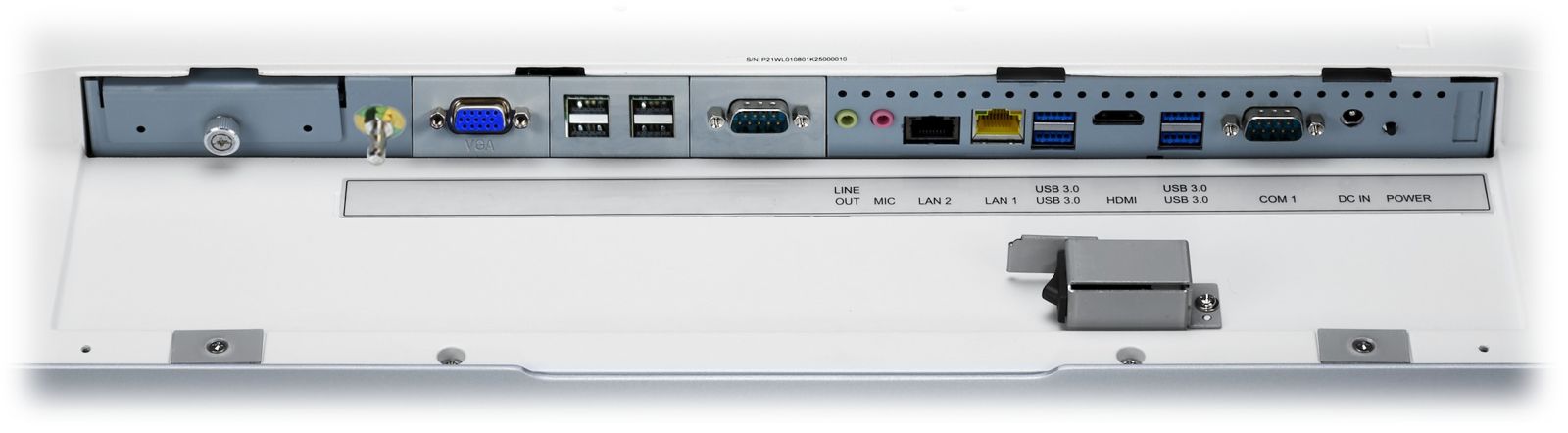

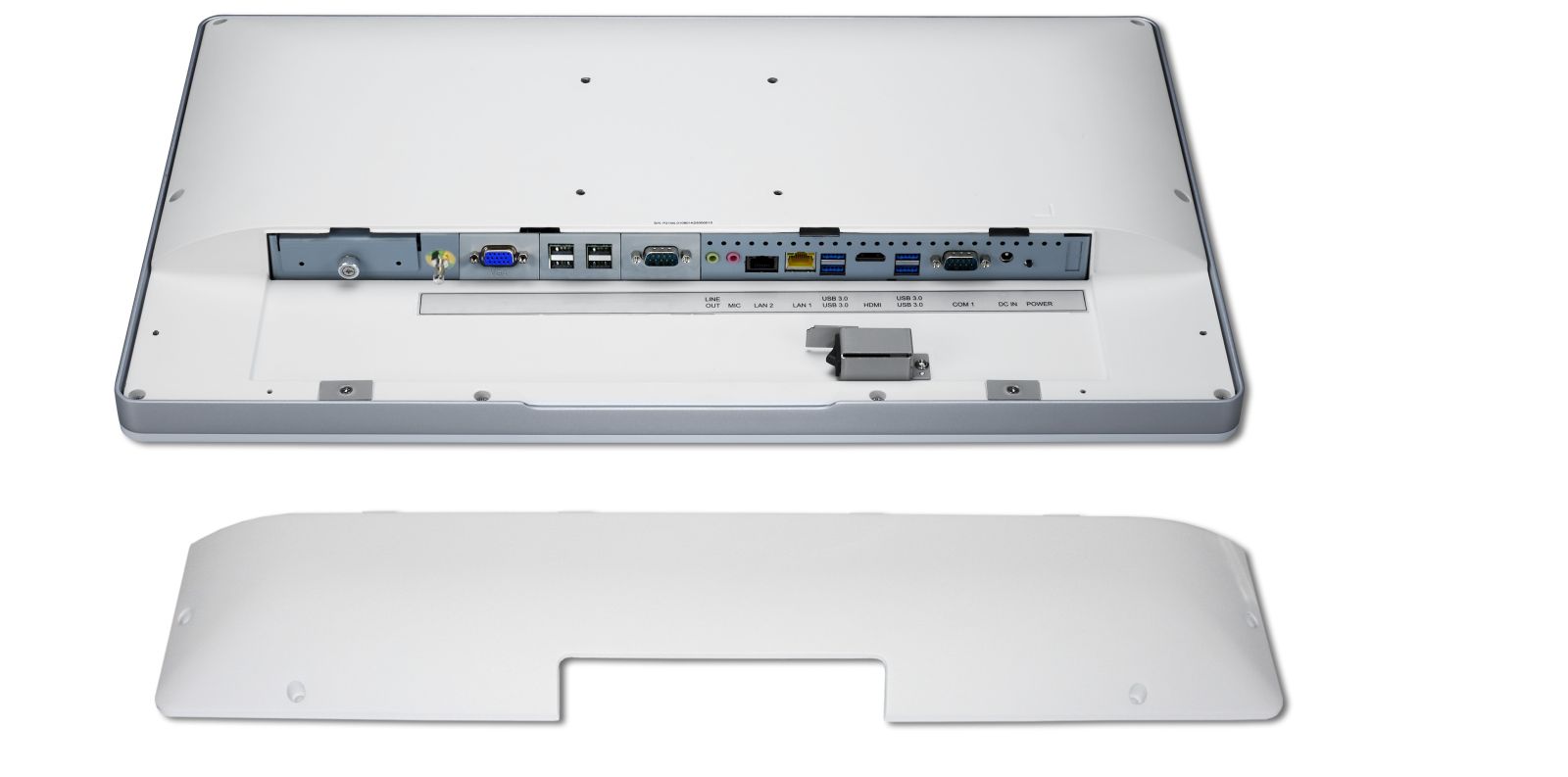

| Ports & interfaces | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Serial ports quantity | 2 |
| Microphone in | |
| DC-in jack | |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 90 W |
| Number of power supply units | 1 |
| AC input voltage | 90 - 264 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 4.74 A |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 12th gen Intel® Core™ i5 |
| Processor model | i5-1235U |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor boost frequency | 4.4 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Built-in processor | |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Linux operating systems supported | |
| Storage | |
| Supported storage drive types | SSD |
| Storage drive sizes supported | 2.5,M.2 |
| Storage drive interface | PCI Express, Serial ATA III |
| NVMe | |
| Technical details | |
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), IECEx, cTUVus |
| Weight & dimensions | |
| Width | 543 mm |
| Depth | 49.9 mm |
| Height | 334 mm |
| Weight | 7.6 kg |
Questions & answers
What is the delivery time of SHUTTLE Panel M21AL01-I5 Barebone 21.5Inch Intel Core i5-1235U 2xSODIMM DDR5 MAX 64GB?
The article SHUTTLE Panel M21AL01-I5 Barebone 21.5Inch Intel Core i5-1235U 2xSODIMM DDR5 MAX 64GB is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Shuttle M21AL01-I5 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you SHUTTLE Panel M21AL01-I5 Barebone 21.5Inch Intel Core i5-1235U 2xSODIMM DDR5 MAX 64GB always at the best possible price. We can give you a discount of 2% on SHUTTLE Panel M21AL01-I5 Barebone 21.5Inch Intel Core i5-1235U 2xSODIMM DDR5 MAX 64GB if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
