Shuttle Barebone slim DL30N /16GB/Intel N100
|
188,10 EUR 192,16 EUR |
|
|
( 223,84 EUR incl. VAT ) ≈ £158.94 | ≈ $210.30 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1212955 |
| Mfg Part No: | DL30N |
| UPC/EAN: | 0887993006093 |
| Weight: | 2.18 kg |
| Type: | BARE |
Product information for Shuttle DL30N:
HDMI DISPLAY-PORT COM-PORT GLN
| Audio | |
| Built-in speaker(s) | |
| Design | |
| Chassis type | 1.35L sized PC |
| Product colour | Black |
| Cooling type | Passive |
| LED indicators | HDD, Power |
| Housing material | Steel |
| Cable lock slot type | Kensington |
| Panel mounting interface | 100 x 75 mm |
| Product type | Mini PC barebone |
| On/off switch | |
| Cable lock slot | |
| VESA mounting | |
| Graphics | |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Discrete graphics card model | Not available |
| Maximum resolution | 4096 x 2160 pixels |
| Number of displays supported | 3 |
| On-board graphics card | |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 1 |
| Maximum internal memory | 16 GB |
| Supported memory clock speeds | 4800 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Single-channel |
| Memory voltage | 1.1 V |
| Internal memory installed | |
| ECC | |
| Non-ECC | |
| Network | |
| LAN controller | Intel I226-LM |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Power cord included | |
| AC adapter included | |
| Quick start guide | |
| Drivers included | |
| Performance | |
| Number of processors supported | 1 |
| BIOS type | UEFI AMI |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio chip | Realtek ALC888S |
| Trusted Platform Module (TPM) | |

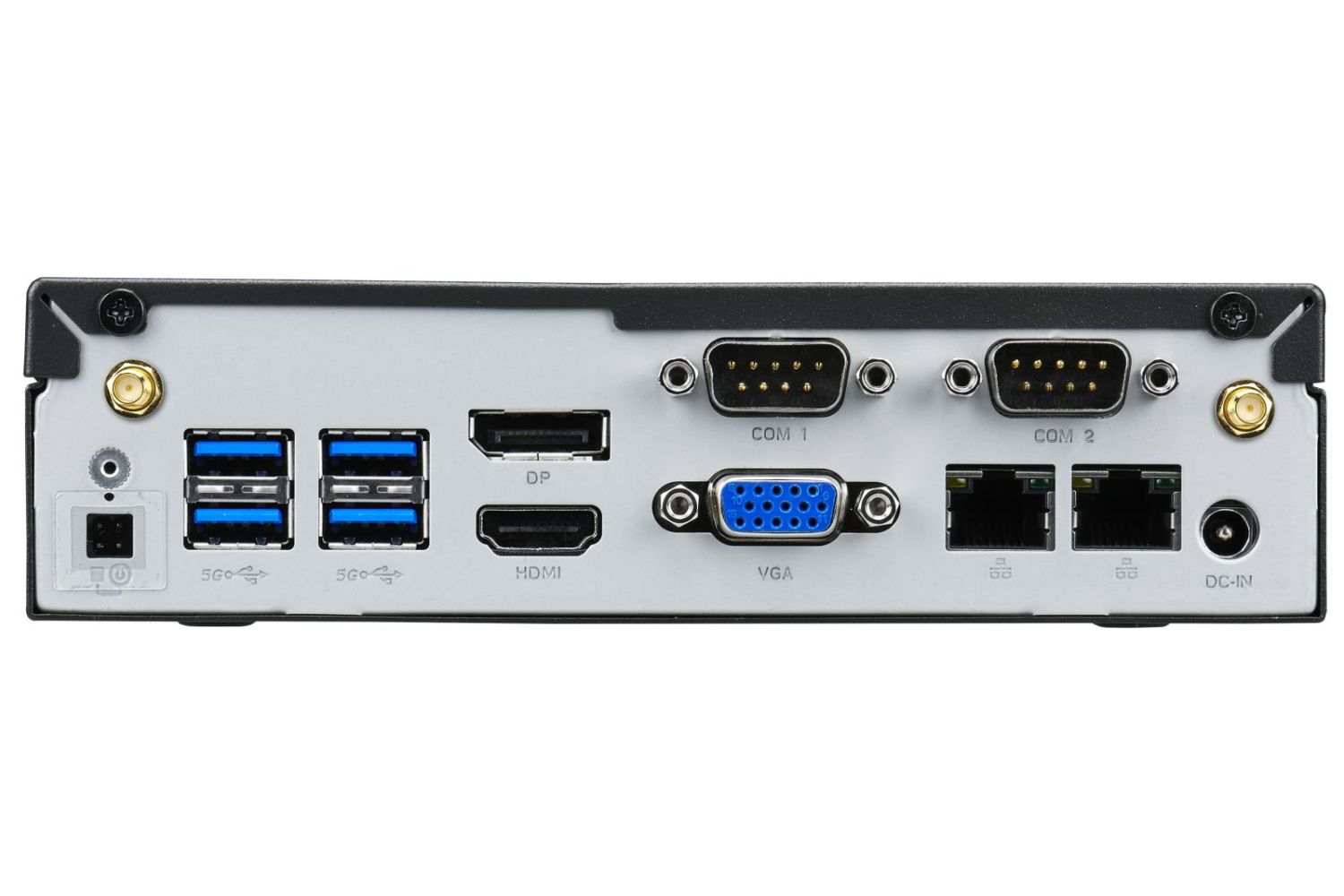

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4a |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Serial ports quantity | 2 |
| Microphone in | |
| DC-in jack | |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 65 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 3.42 A |
| Processor | |
| Processor manufacturer | Intel |
| Processor model | N100 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 3.4 GHz |
| Processor cache | 6 MB |
| Thermal Design Power (TDP) | 6 W |
| Built-in processor | |
| ECC supported by processor | |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 x64 |
| Linux operating systems supported | |
| Operating system installed | |
| Storage | |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| Storage drive interface | PCI Express, Serial ATA III |
| Number of storage drives supported | 2 |
| Storage drives installed | |
| NVMe | |
| Card reader integrated | |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, ErP |
| Sustainability compliance | |
| Technical details | |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI |
| Weight & dimensions | |
| Width | 165 mm |
| Depth | 190 mm |
| Height | 43 mm |
| Weight | 800 g |
| Package weight | 2.1 kg |
Questions & answers
What is the delivery time of Shuttle Barebone slim DL30N /16GB/Intel N100?
The article Shuttle Barebone slim DL30N /16GB/Intel N100 is currently in stock
According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Shuttle DL30N to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Shuttle Barebone slim DL30N /16GB/Intel N100 always at the best possible price. We can give you a discount of 2% on Shuttle Barebone slim DL30N /16GB/Intel N100 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
