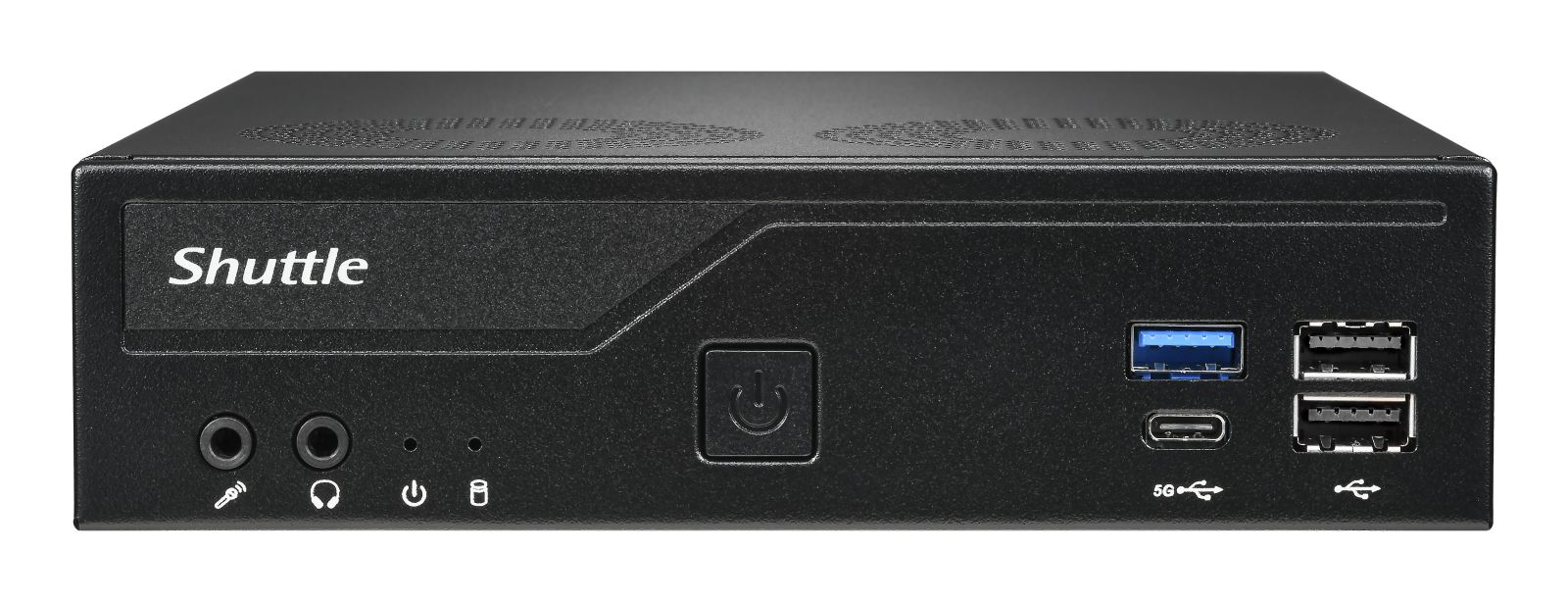

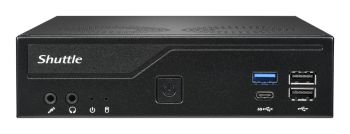

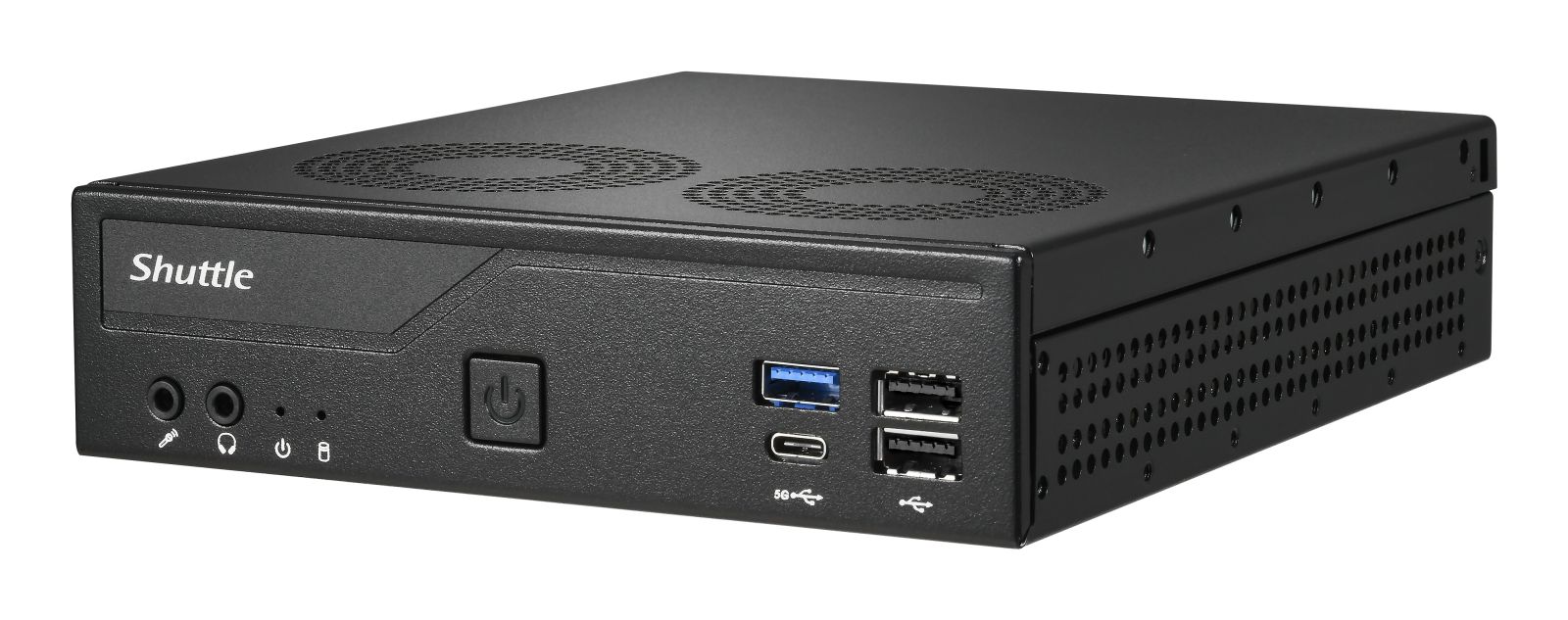

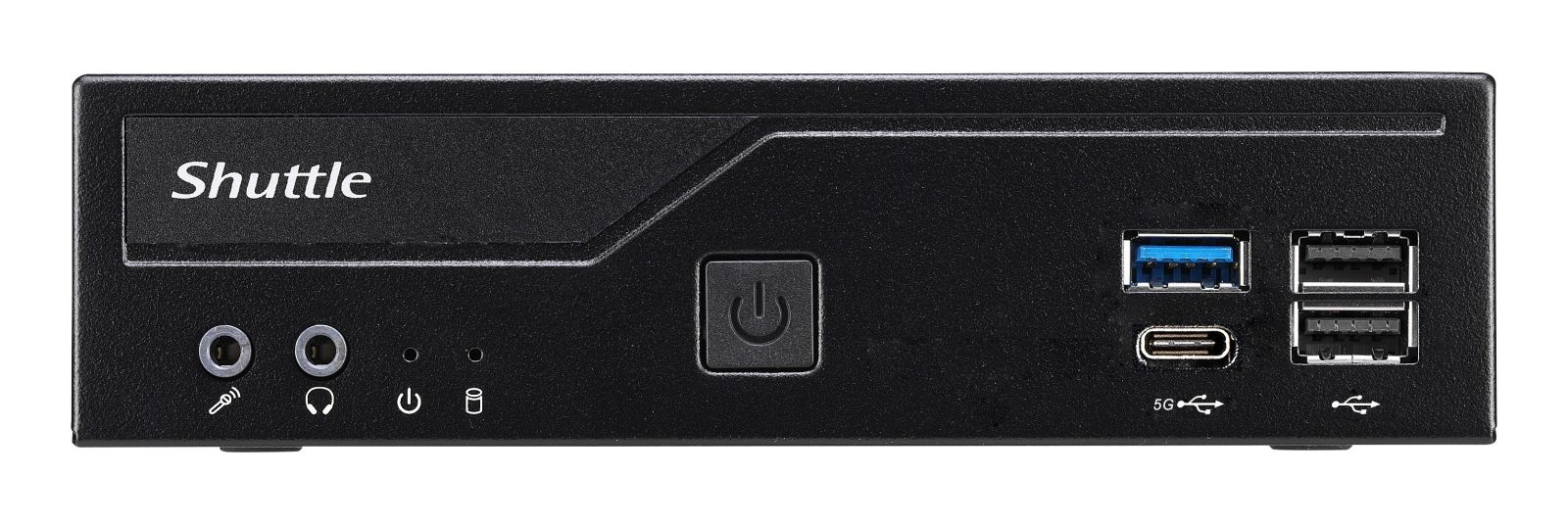

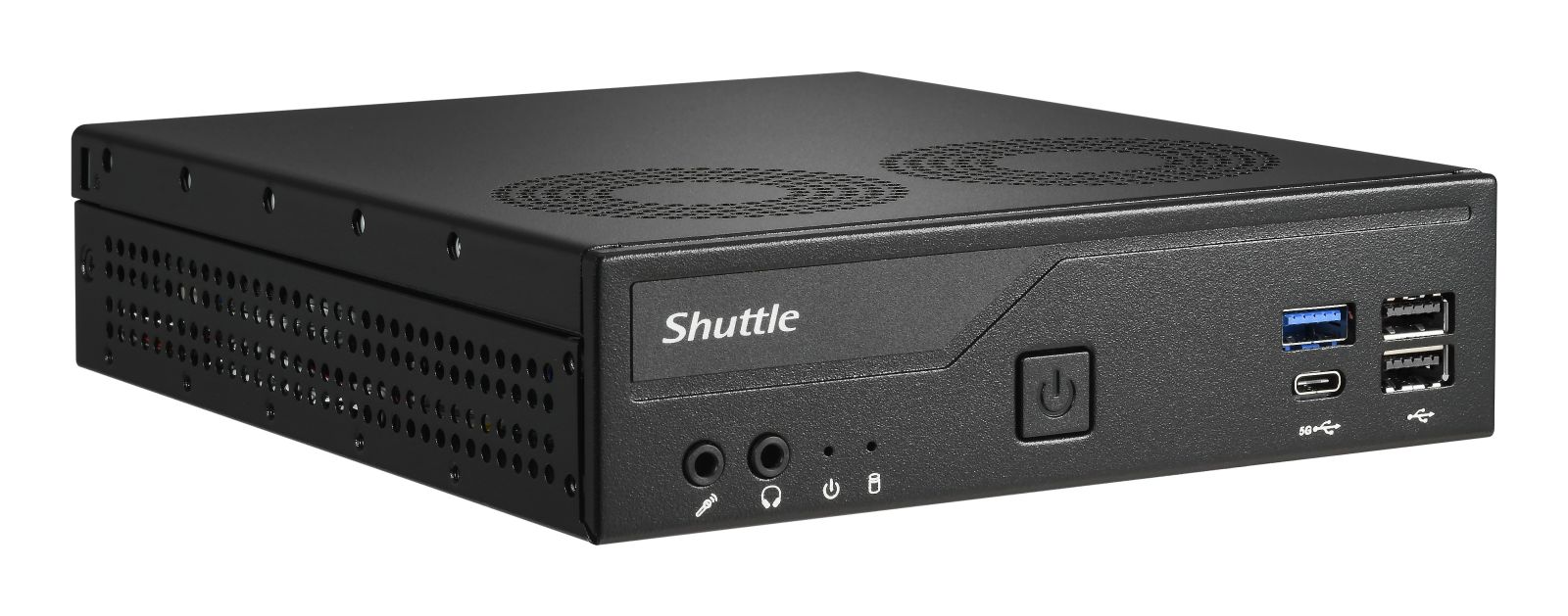

Shuttle DH610V2 Barebone XPC slim Black
|
249,48 EUR |
|
|
( 296,88 EUR incl. VAT ) ≈ £208.81 | ≈ $274.18 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 812211 |
| Mfg Part No: | DH610V2 |
| UPC/EAN: | 0887993008950 |
| Weight: | 2.635 kg |
| Type: | BARE |
Product information for Shuttle DH610V2:
Applications
The DH610V2 is particularly suitable for applications requiring a compact form factor with high connectivity and stable performance. These include digital display boards, cash registers and information stations, medical devices, as well as industrial control systems. The integrated VESA mounting allows flexible installation on monitors or walls, facilitating use in space-limited or specially designed work environments.
Functions and Equipment in Detail

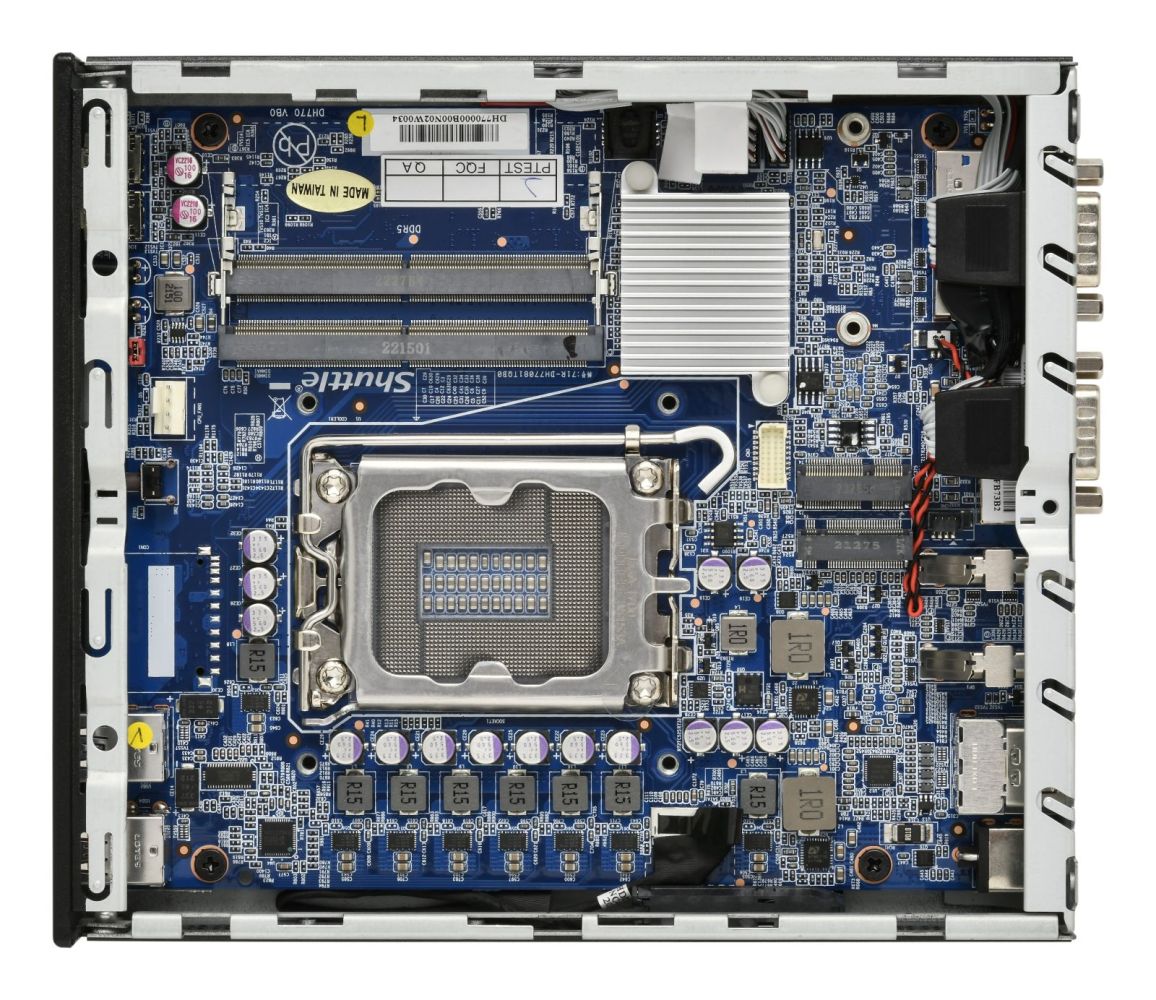

The system offers two SO-DIMM memory slots, which can be populated with DDR5-SDRAM modules up to a maximum capacity of 96 GB. The supported memory speed is 5600 MHz, with dual-channel operation. The memory voltage is 1.1 V, and ECC memory is not supported. For data storage, various options are available: a 2.5-inch drive bay and M.2 slots, including support for NVMe SSDs, allow for flexible configurations. The integrated graphics function is handled by the built-in graphics adapter.
Technology Explained Simply
The Intel H610 chipset provides a stable platform with sufficient performance for office and single applications. Power supply is via an external AC adapter with a power rating of 120 W, supporting an input voltage of 100 to 240 V and a frequency of 50/60 Hz. The output voltage is 19 V at an output current of 6.32 A. The integrated audio function is based on the Realtek ALC888S chip, ensuring clear sound reproduction. The BIOS is of type AMI, and a TPM 2.0 module is integrated, enhancing system security.
Compatibility and Accessories

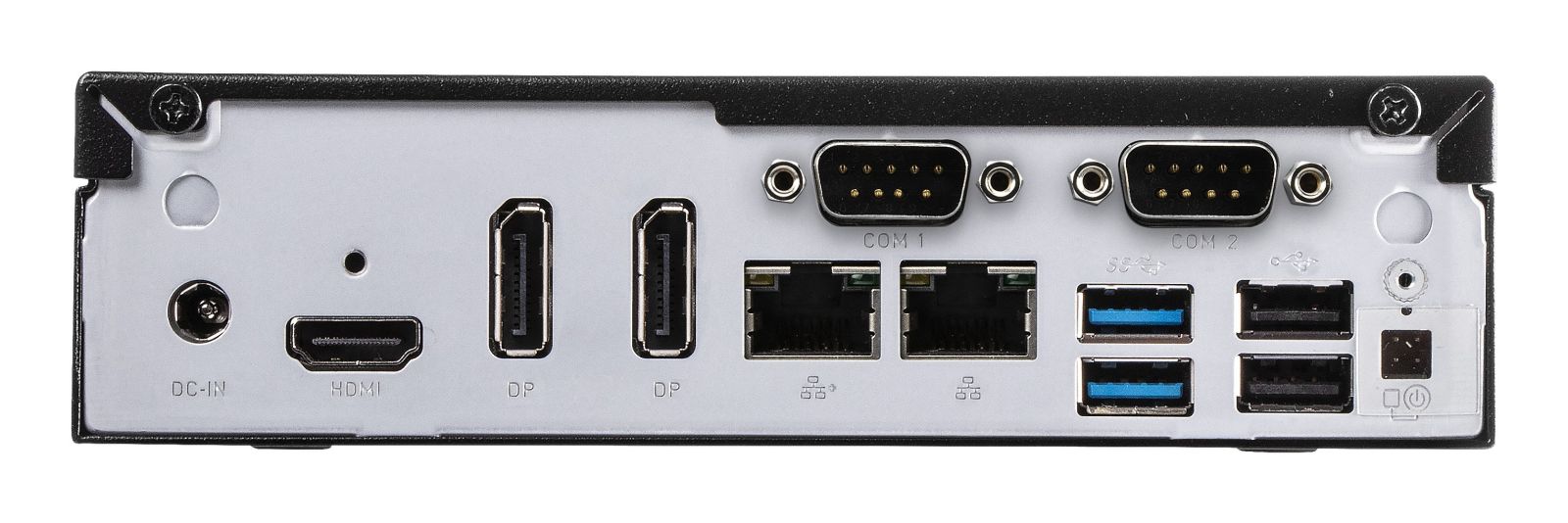

The device supports operating systems such as Windows 10 and Windows 11, as well as Linux systems. Network functions include two RJ-45 LAN ports, one of which is equipped with an Intel I226 controller for 2.5 Gbit/s, and the other with an Intel I219V controller for 1 Gbit/s. The connectivity includes four USB 2.0 ports, three USB 3.2 Gen 1 (Type A) and one USB 3.2 Gen 1 (Type C). For video output, there is one HDMI port (version 2.0b) and two DisplayPort ports (version 1.4), enabling simultaneous driving of up to three Ultra HD displays. Additionally, two serial COM ports, a microphone input, and a headphone output are available.
Mounting and Installation

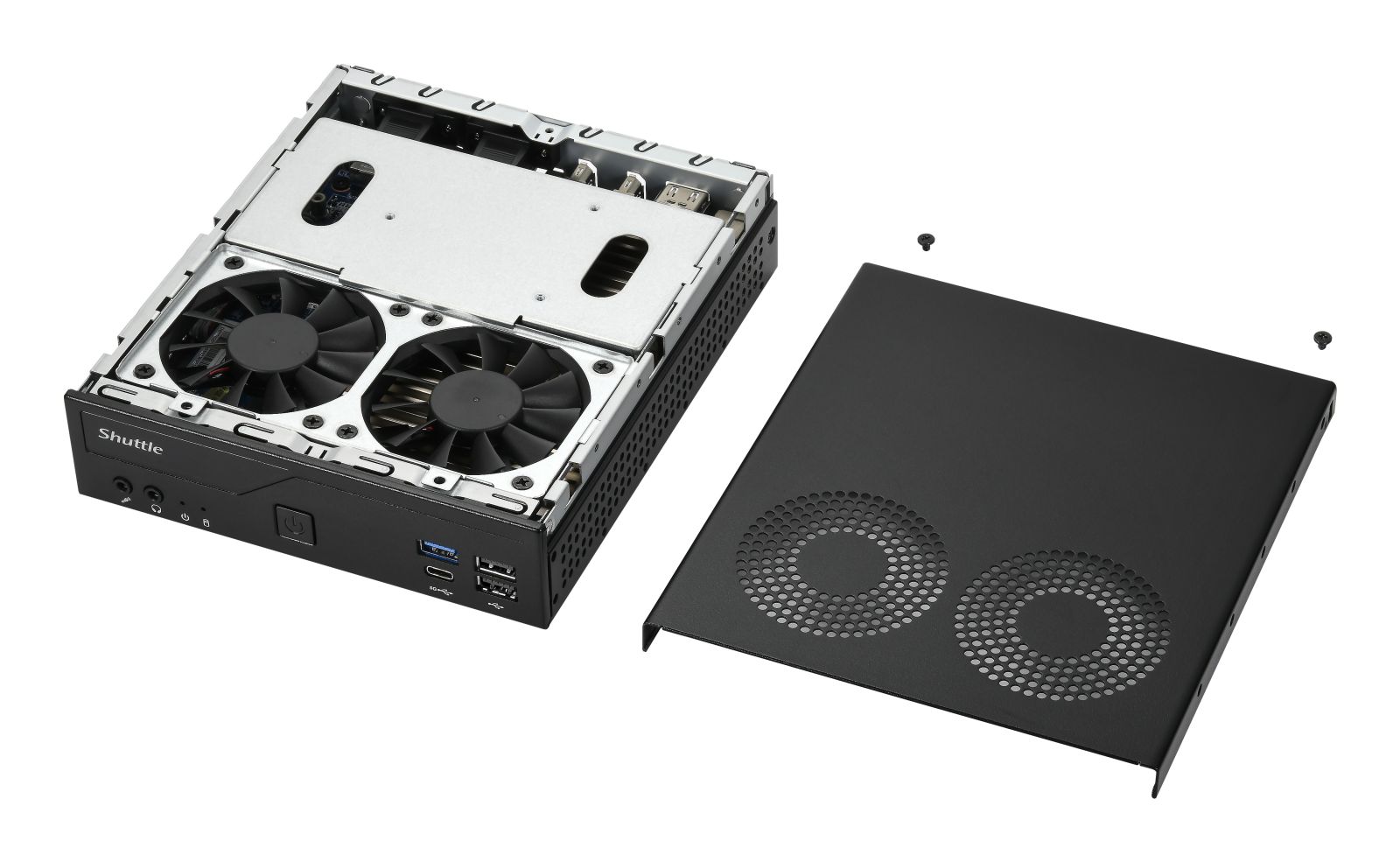

Installation involves installing a processor and memory into the respective slots. The memory and drive modules are mounted according to the instructions included in the package. The device features a power on/off switch and LED indicators for power supply and hard drive activity. The cable lock slot with Kensington slot enables physical security of the device. The VESA mounting and panel mounting interfaces (75 x 75 mm, 100 x 100 mm) facilitate mounting on various surfaces.
Advantages in Operation
The DH610V2 offers high connectivity in a compact format, making it ideal for space-limited or specially designed workstations. The external power supply reduces heat generation inside the housing and enables quieter operation. Support for NVMe SSDs and 2.5-inch drives provides flexibility in storage choices. The integrated VESA mounting and robust metal construction increase reliability in professional environments. Compliance with standards such as CE, FCC, RoHS and ENERGY STAR ensures reliable and environmentally friendly use.
The package includes the power cable, AC power adapter, quick start guide, and drivers.
| Audio | |
| Built-in speaker(s) | |
| Design | |
| Chassis type | 1.35L sized PC |
| Product colour | Black |
| Cooling type | Active |
| LED indicators | Power, HDD |
| Housing material | Metal |
| Cable lock slot type | Kensington |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
| On/off switch | |
| Cable lock slot | |
| VESA mounting | |
| Graphics | |
| On-board graphics card | |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 96 GB |
| Supported memory clock speeds | 5600 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.1 V |
| Internal memory installed | |
| ECC | |
| Non-ECC | |
| Network | |
| LAN controller | Intel I226, Intel I219V |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Power cord included | |
| AC adapter included | |
| Quick start guide | |
| Drivers included | |
| Performance | |
| Motherboard chipset | Intel H610 |
| Processor socket | LGA 1700 |
| Number of processors supported | 1 |
| BIOS type | AMI |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio chip | Realtek ALC888S |
| Trusted Platform Module (TPM) | |
| Ports & interfaces | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Serial ports quantity | 2 |
| Microphone in | |
| DC-in jack | |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 120 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 6.32 A |
| Processor | |
| Built-in processor | |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Linux operating systems supported | |
| Storage | |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| Storage drives installed | |
| NVMe | |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, ErP |
| Technical details | |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), RCM, VCCI, ETL, CB, RoHS |
| Weight & dimensions | |
| Width | 165 mm |
| Depth | 190 mm |
| Height | 43 mm |
| Weight | 1.3 kg |
| Package weight | 2.1 kg |
