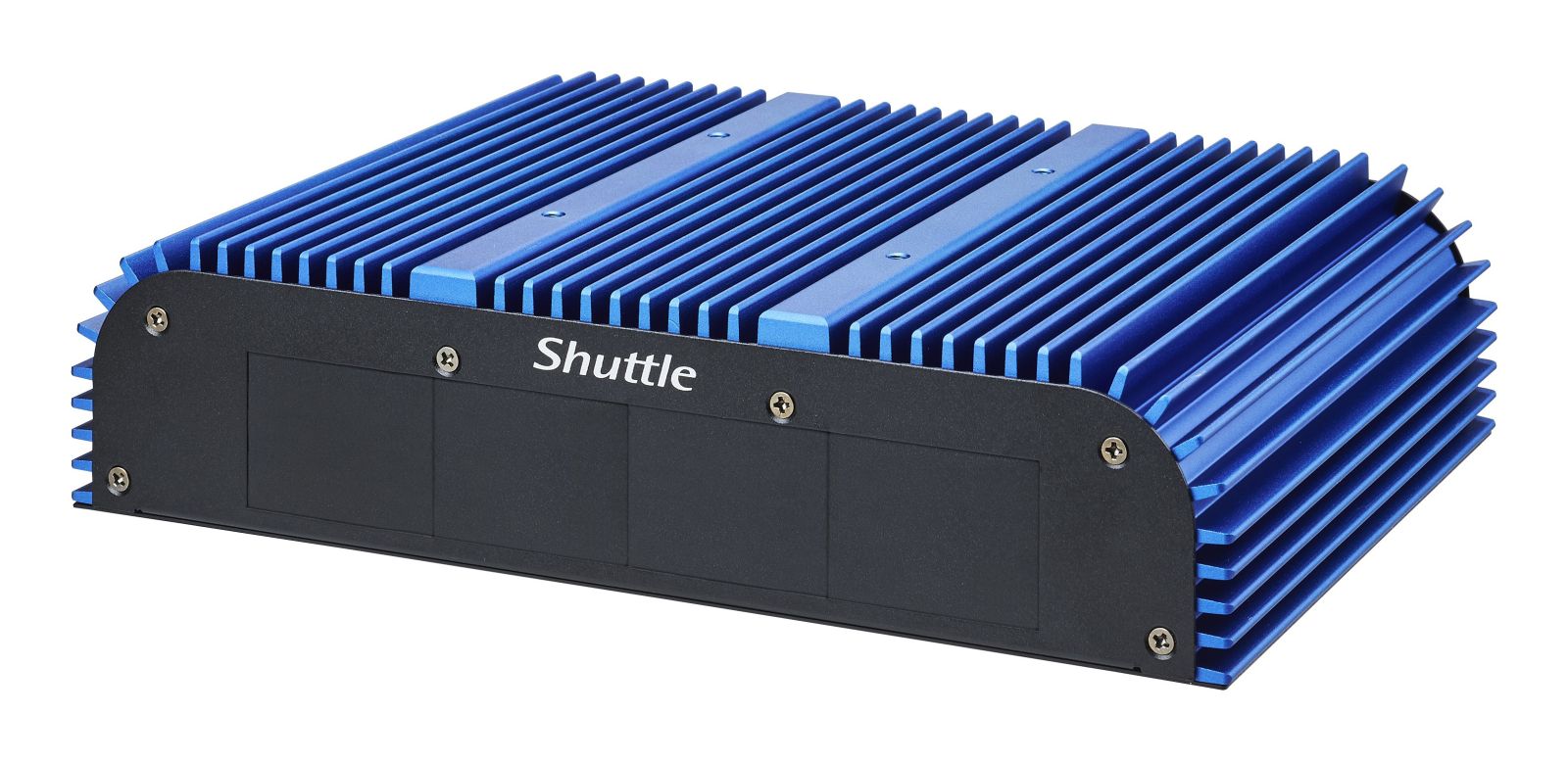

Shuttle BPCW02-I5WA I5-8365UE 90W
|
1.110,85 EUR 1.115,82 EUR |
|
|
( 1.321,92 EUR incl. VAT ) ≈ £938.67 | ≈ $1,241.94 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1204122 |
| Mfg Part No: | BPCW02-I5WA |
| UPC/EAN: | 4046047103669 |
| Weight: | 4.02 kg |
| Type: | SYST |
Product information for Shuttle BPCW02-I5WA:
8192MB 250GB SSD WIN10IOT
| Audio | |
| Audio chip | Realtek ALC662 |

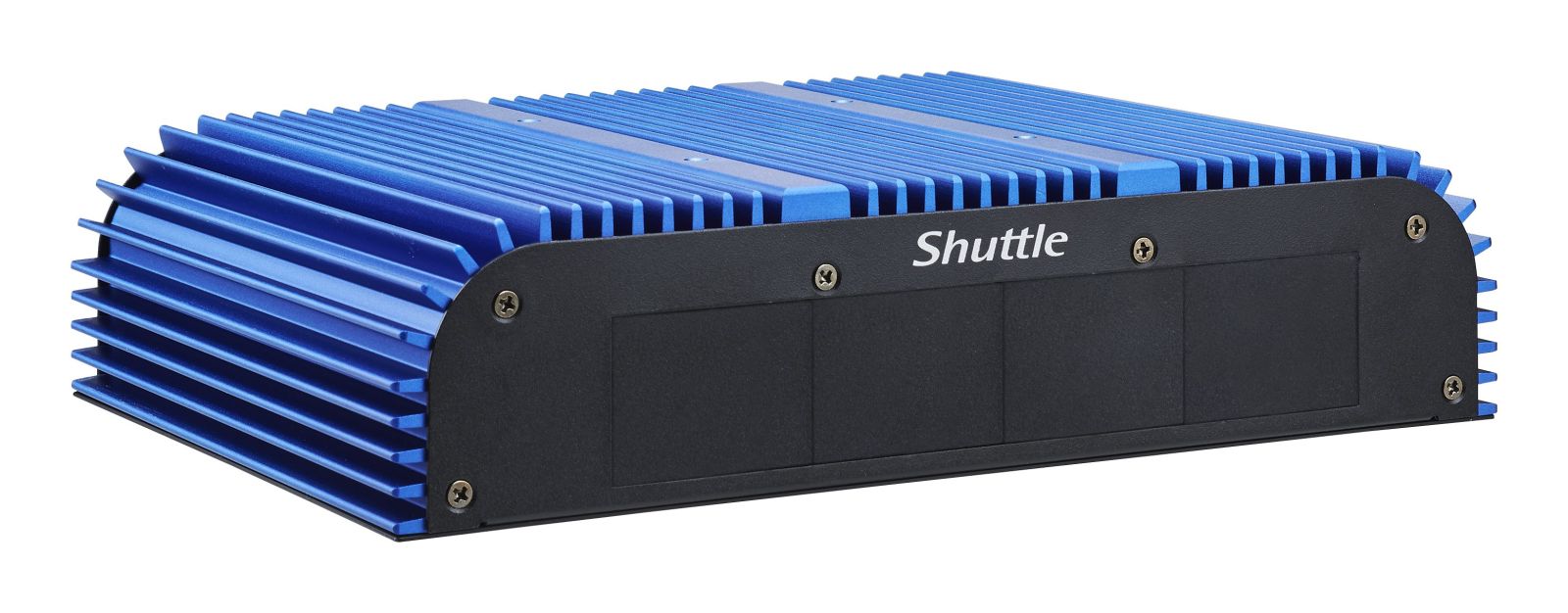

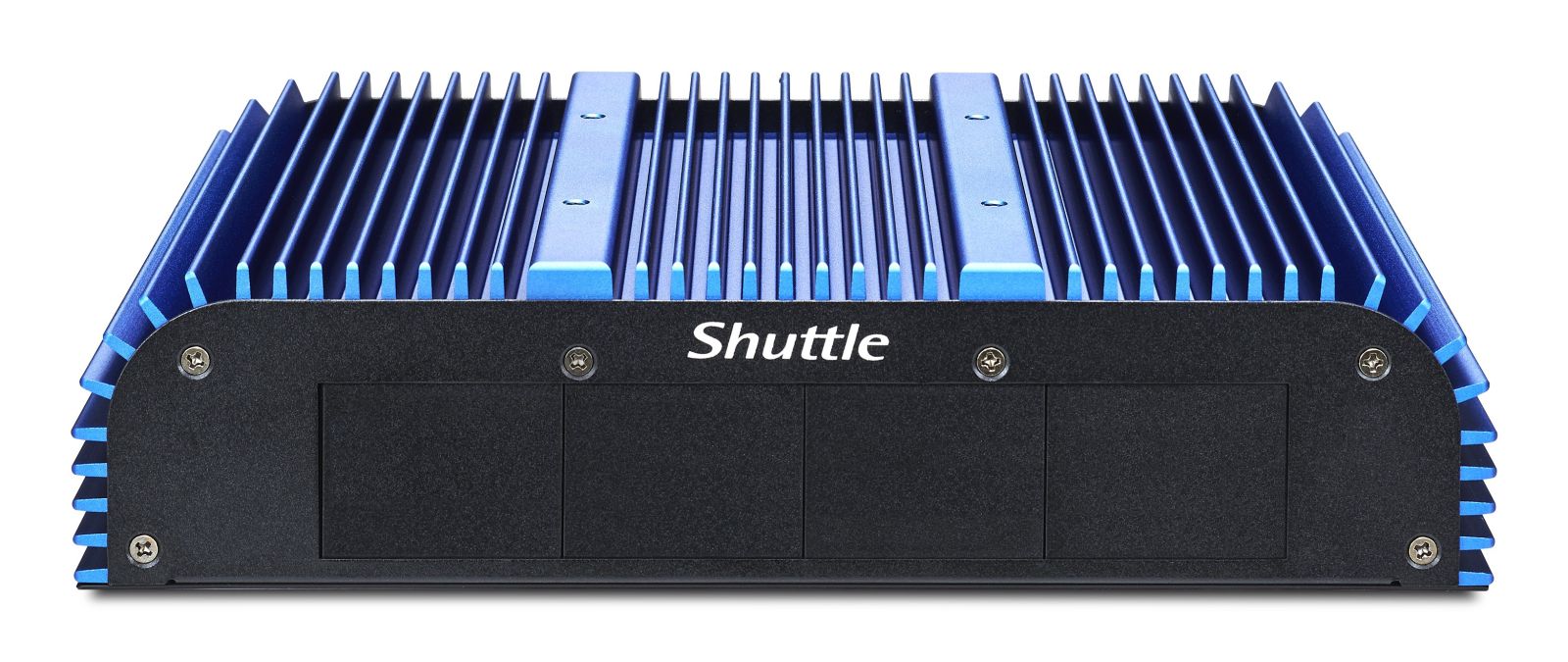

| Design | |
| Chassis type | Mini PC |
| Placement supported | Horizontal/Vertical |
| Product colour | Black, Blue |
| Housing material | Aluminium, Steel |

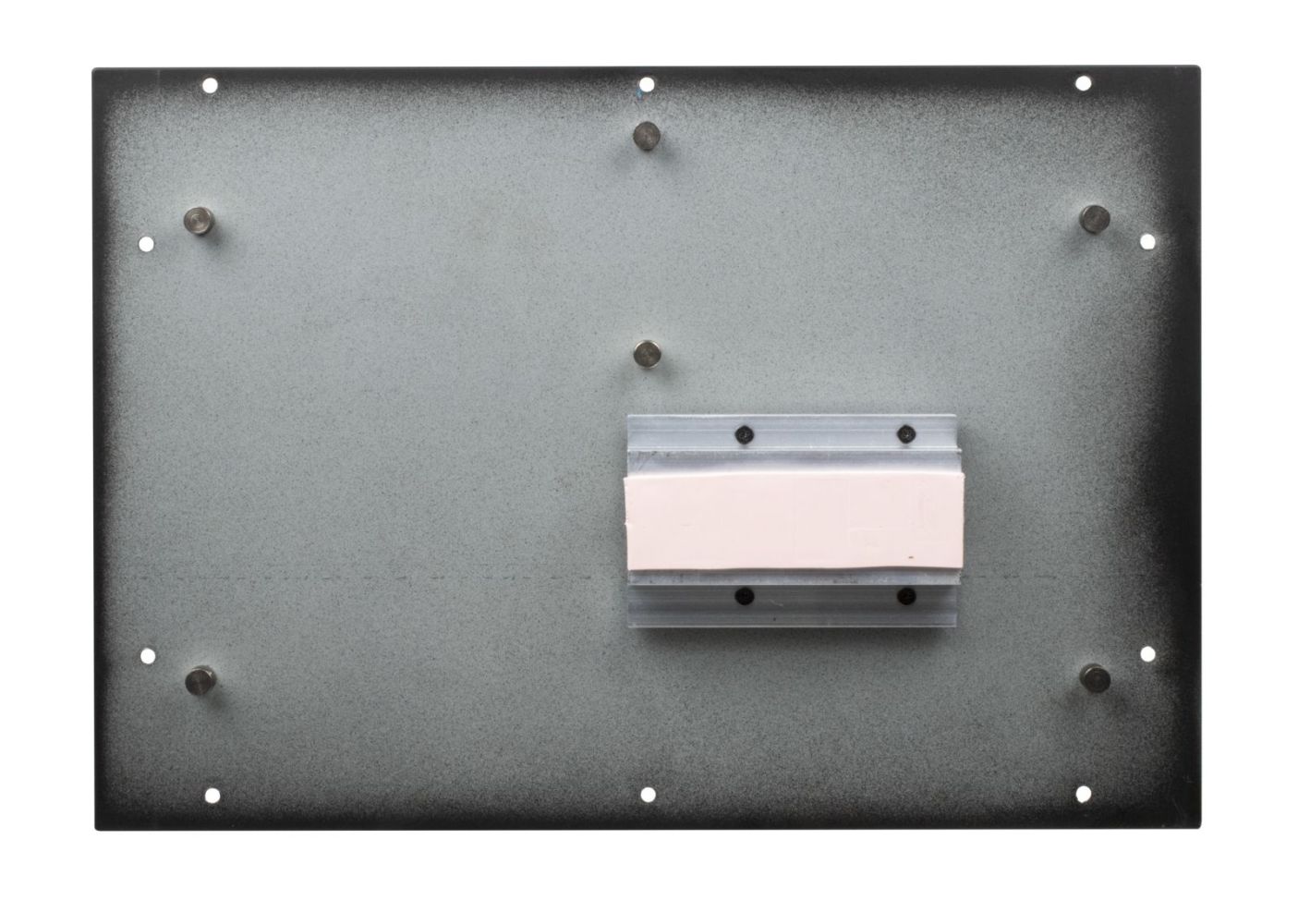

| VESA mounting | |
| Display | |
| Display included | |
| Graphics | |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 620 |
| Discrete graphics card | |
| On-board graphics card | |
| Memory | |
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 4 GB |
| Network | |
| Ethernet LAN data rates | 1000 Mbit/s |
| LAN controller | Intel® I211, Intel® I219-LM |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Performance | |
| Market positioning | Business |
| BIOS type | AMI |
| Product type | Mini PC |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | |

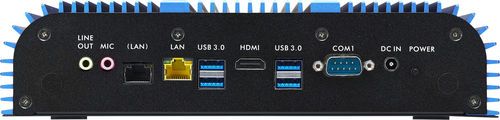

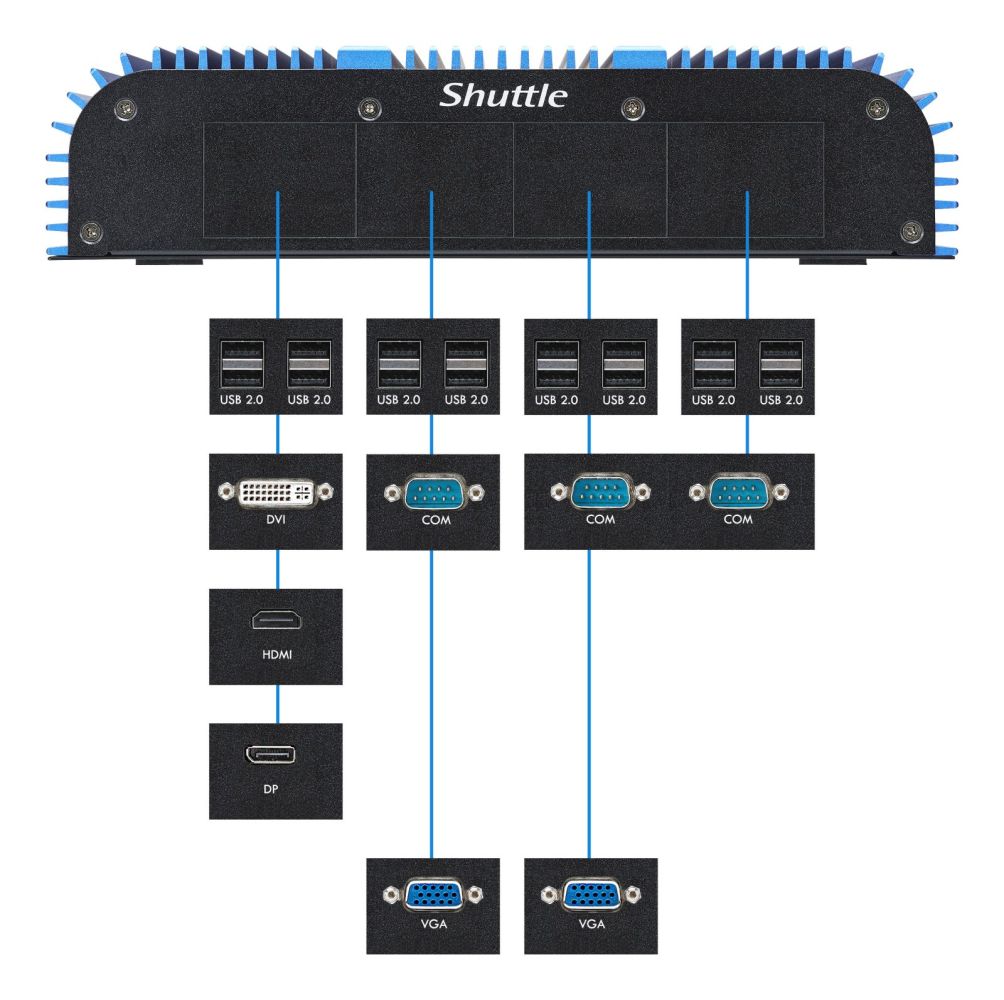

| Ports & interfaces | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Number of rear USB ports | 4 |
| Number of front USB ports | 4 |
| Line-in | |
| Microphone in | |
| DC-in jack | |
| RS‐232/422 port | |
| Power | |
| Power supply | 90 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |

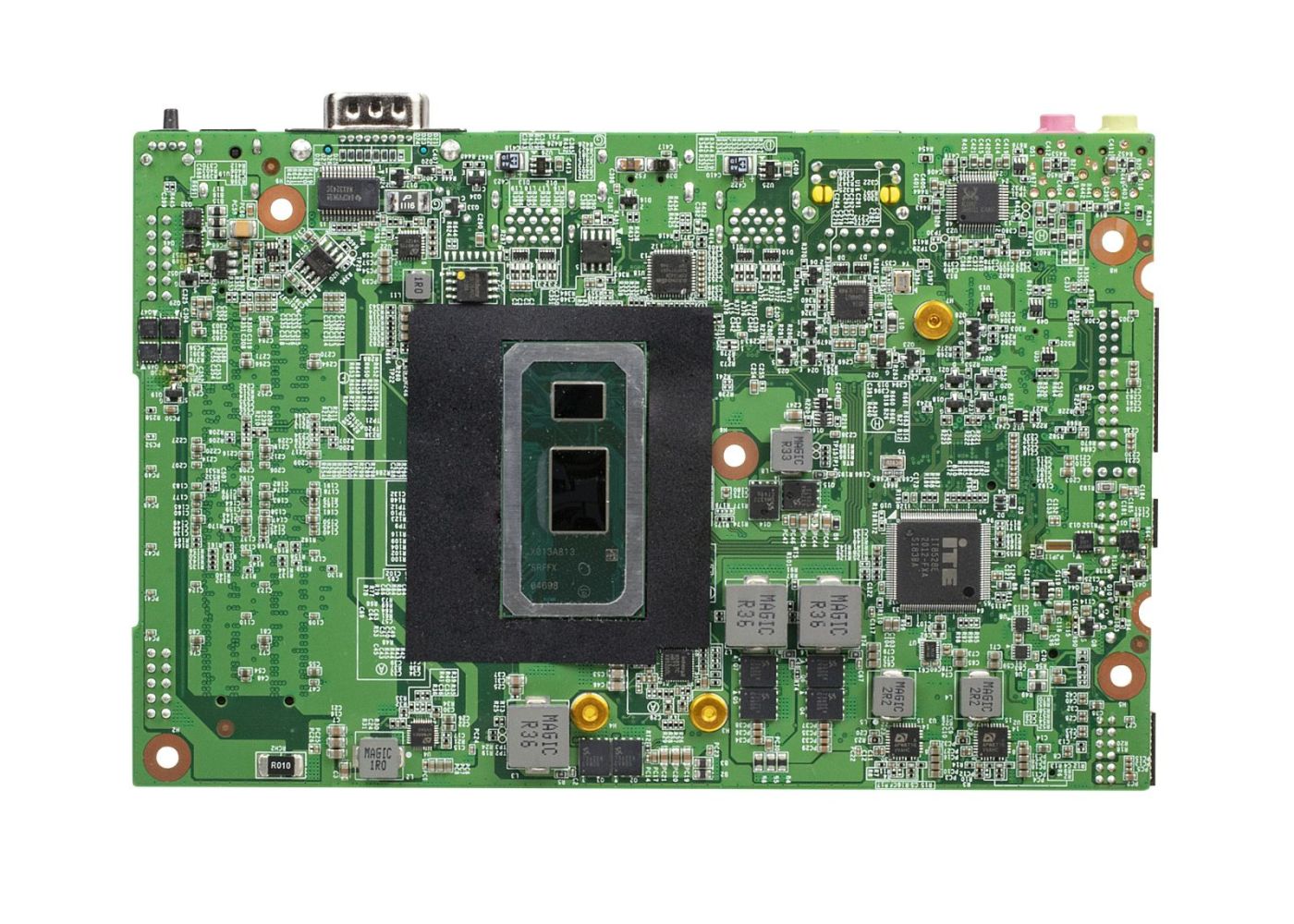

| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor model | i5-8365UE |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor frequency | 4.1 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor base power | 15 W |
| Maximum turbo power | 25 W |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 IoT Enterprise |
| Storage | |
| Total storage capacity | 250 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 250 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 250 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Optical drive type | |
| NVMe | |
| Weight & dimensions | |
| Width | 245 mm |
| Depth | 169 mm |
| Height | 57 mm |
| Weight | 2.85 kg |
Questions & answers
What is the delivery time of Shuttle BPCW02-I5WA I5-8365UE 90W?
The article Shuttle BPCW02-I5WA I5-8365UE 90W is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Shuttle BPCW02-I5WA to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Shuttle BPCW02-I5WA I5-8365UE 90W always at the best possible price. We can give you a discount of 2% on Shuttle BPCW02-I5WA I5-8365UE 90W if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
