SHUTTLE Barebone BPCRL02 Intel Core i7-1355U 2xSODIMM DDR5 1xM.2
|
684,70 EUR |
|
|
( 814,79 EUR incl. VAT ) ≈ £578.57 | ≈ $765.49 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2113757 |
| Mfg Part No: | BPCRL02-I7 |
| UPC/EAN: | 0887993008318 |
| Weight: | 3.2 kg |
| Audio | |
| Built-in speaker(s) | |
| Design | |
| Chassis type | 2.6L sized PC |
| Product colour | Black, Blue |
| Cooling type | Passive |
| Housing material | Aluminium, Metal |
| Product type | Mini PC barebone |
| LED indicators | |
| Graphics | |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card | |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 96 GB |
| Supported memory clock speeds | 6400 MHz |
| Internal memory installed | |
| Network | |
| LAN controller | Intel I226-V |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Performance | |
| Motherboard chipset | Intel SoC |
| Processor socket | BGA 1744 |
| Number of processors supported | 1 |
| BIOS type | UEFI AMI |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio chip | Realtek ALC888S |
| Trusted Platform Module (TPM) | |

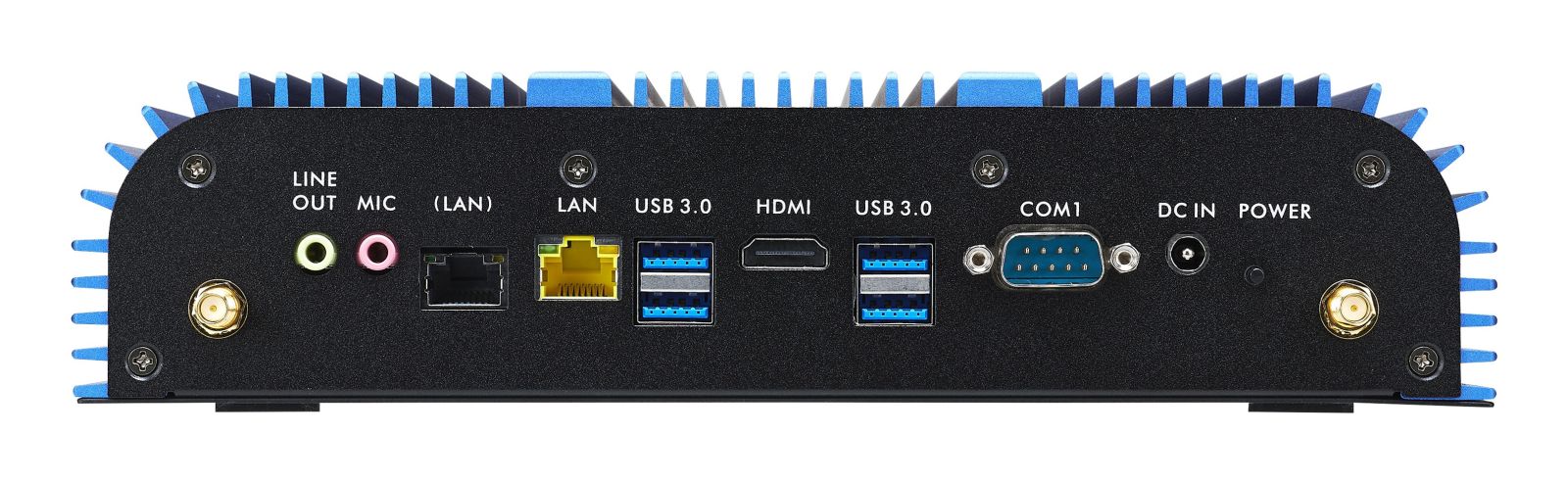

| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Serial ports quantity | 1 |
| Microphone in | |
| DC-in jack | |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 90 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 4.74 A |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor model | i7-1355U |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor boost frequency | 5 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.7 GHz |
| Processor cache | 12 MB |
| Built-in processor | |
| Storage | |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Storage drive interface | PCI Express, Serial ATA |
| Storage drives installed | |
| NVMe | |
| Weight & dimensions | |
| Width | 169 mm |
| Depth | 245 mm |
| Height | 57 mm |
| Weight | 2.85 kg |
Questions & answers
What is the delivery time of SHUTTLE Barebone BPCRL02 Intel Core i7-1355U 2xSODIMM DDR5 1xM.2?
The article SHUTTLE Barebone BPCRL02 Intel Core i7-1355U 2xSODIMM DDR5 1xM.2 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Shuttle BPCRL02-I7 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you SHUTTLE Barebone BPCRL02 Intel Core i7-1355U 2xSODIMM DDR5 1xM.2 always at the best possible price. We can give you a discount of 2% on SHUTTLE Barebone BPCRL02 Intel Core i7-1355U 2xSODIMM DDR5 1xM.2 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
