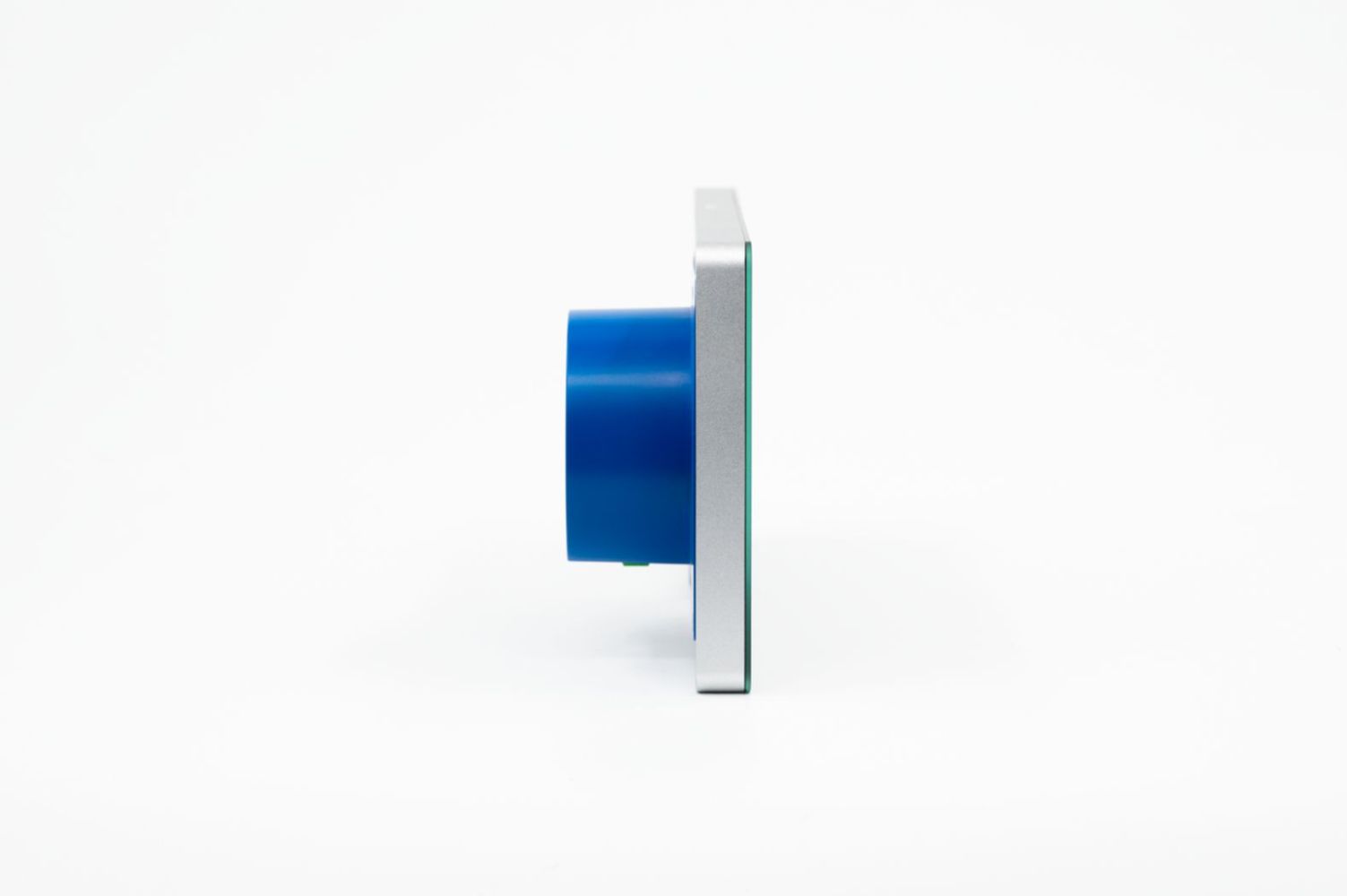

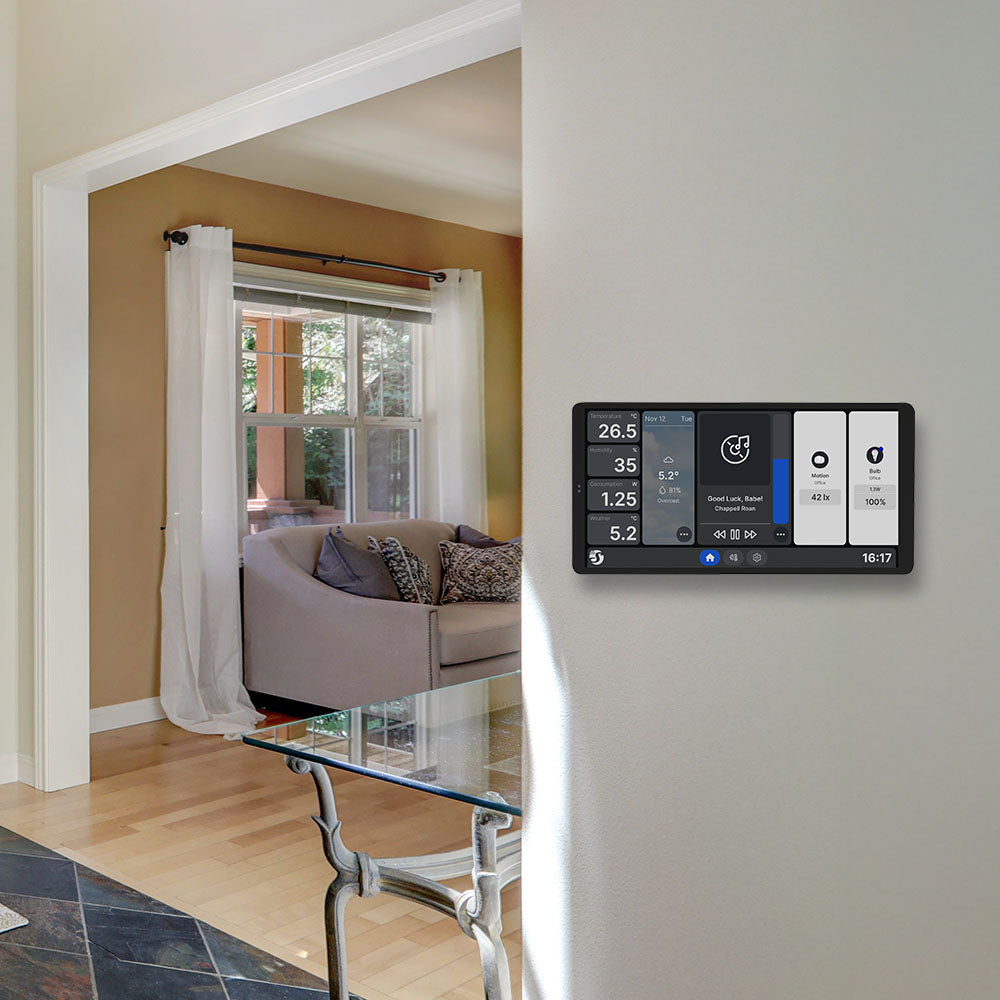

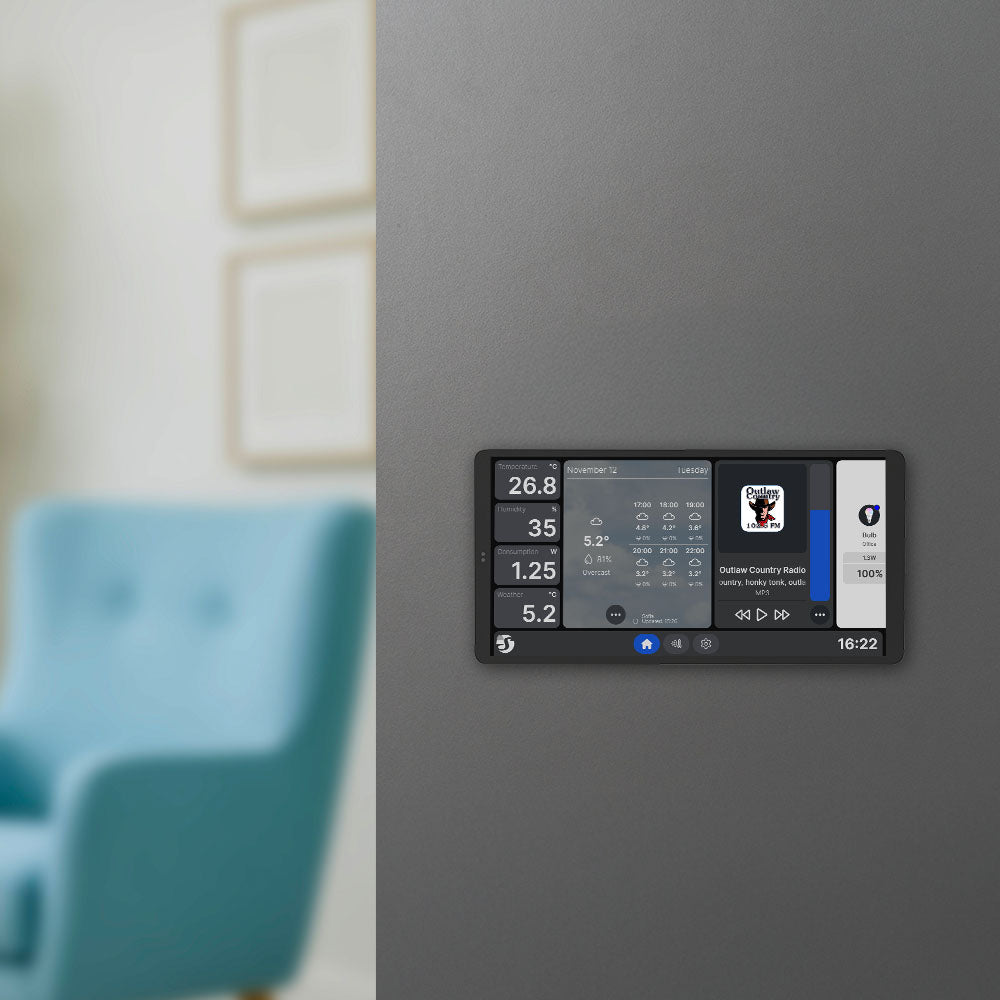

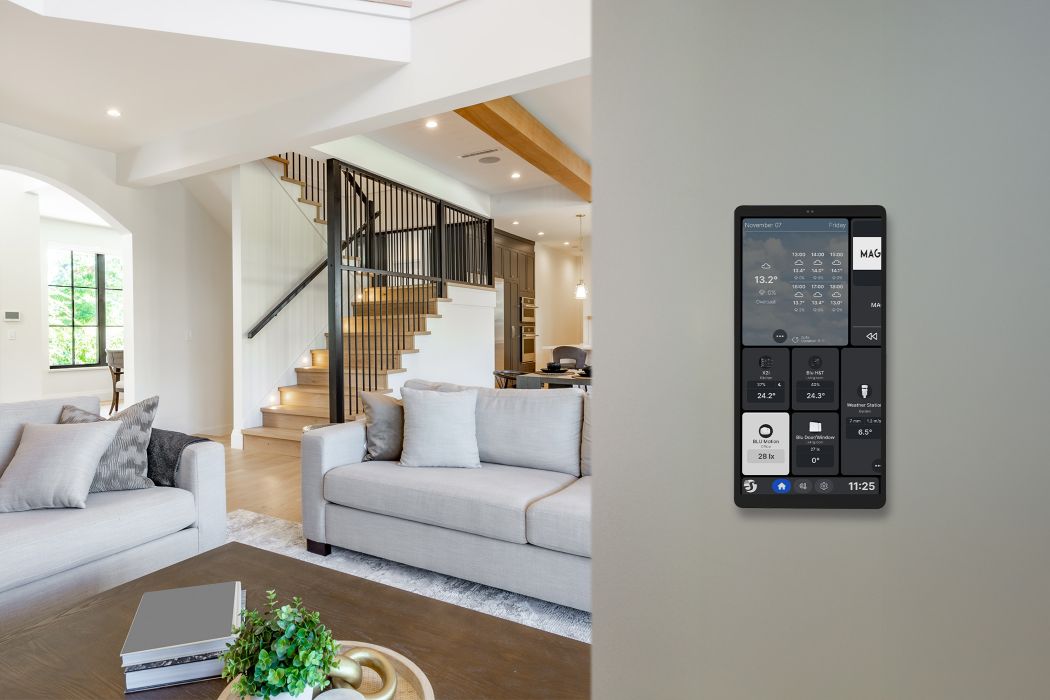

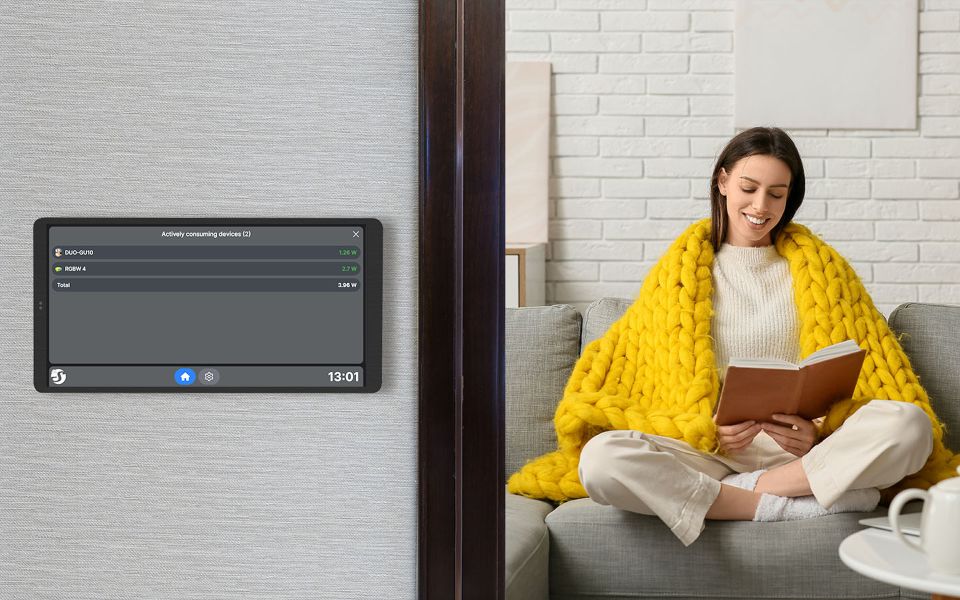

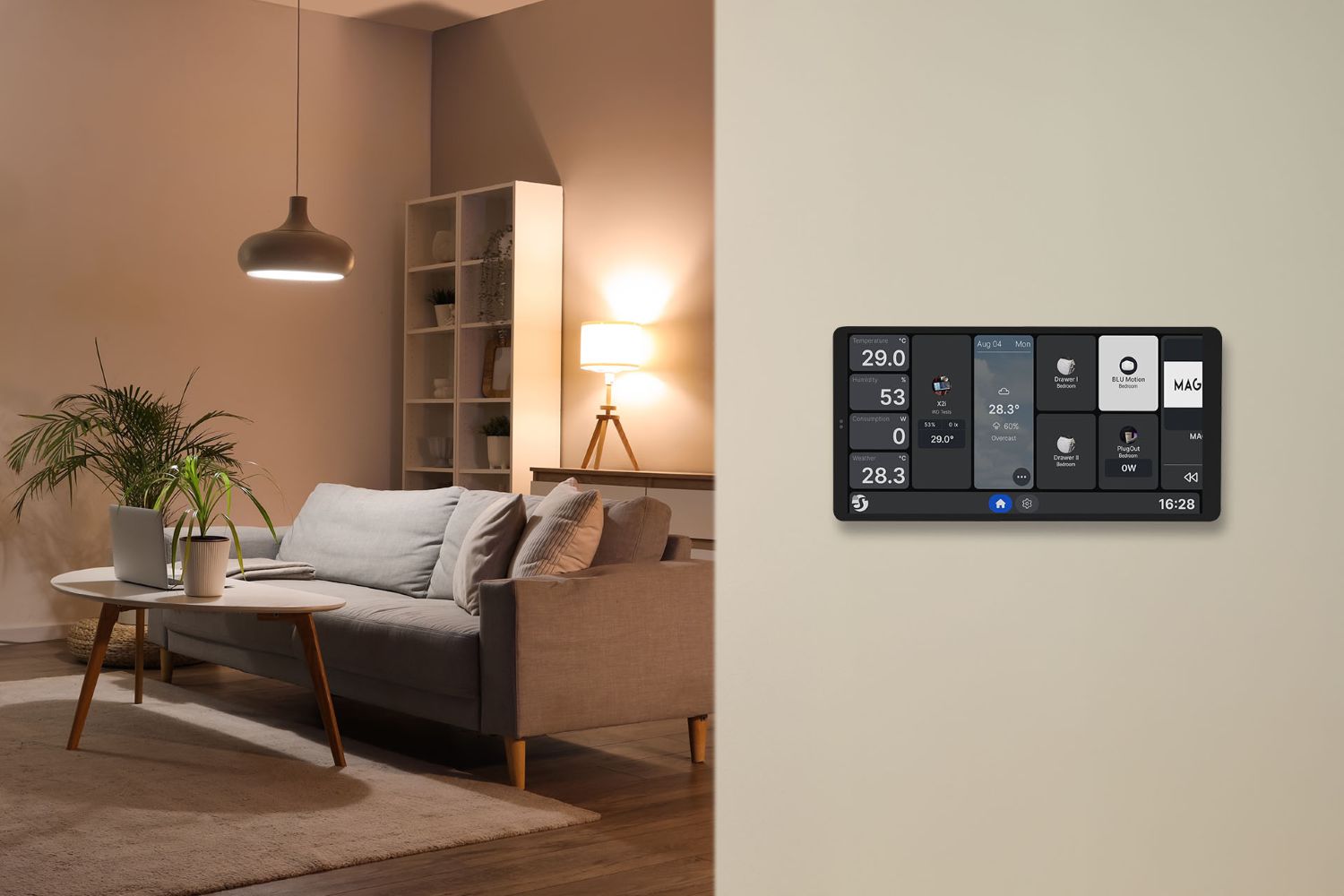

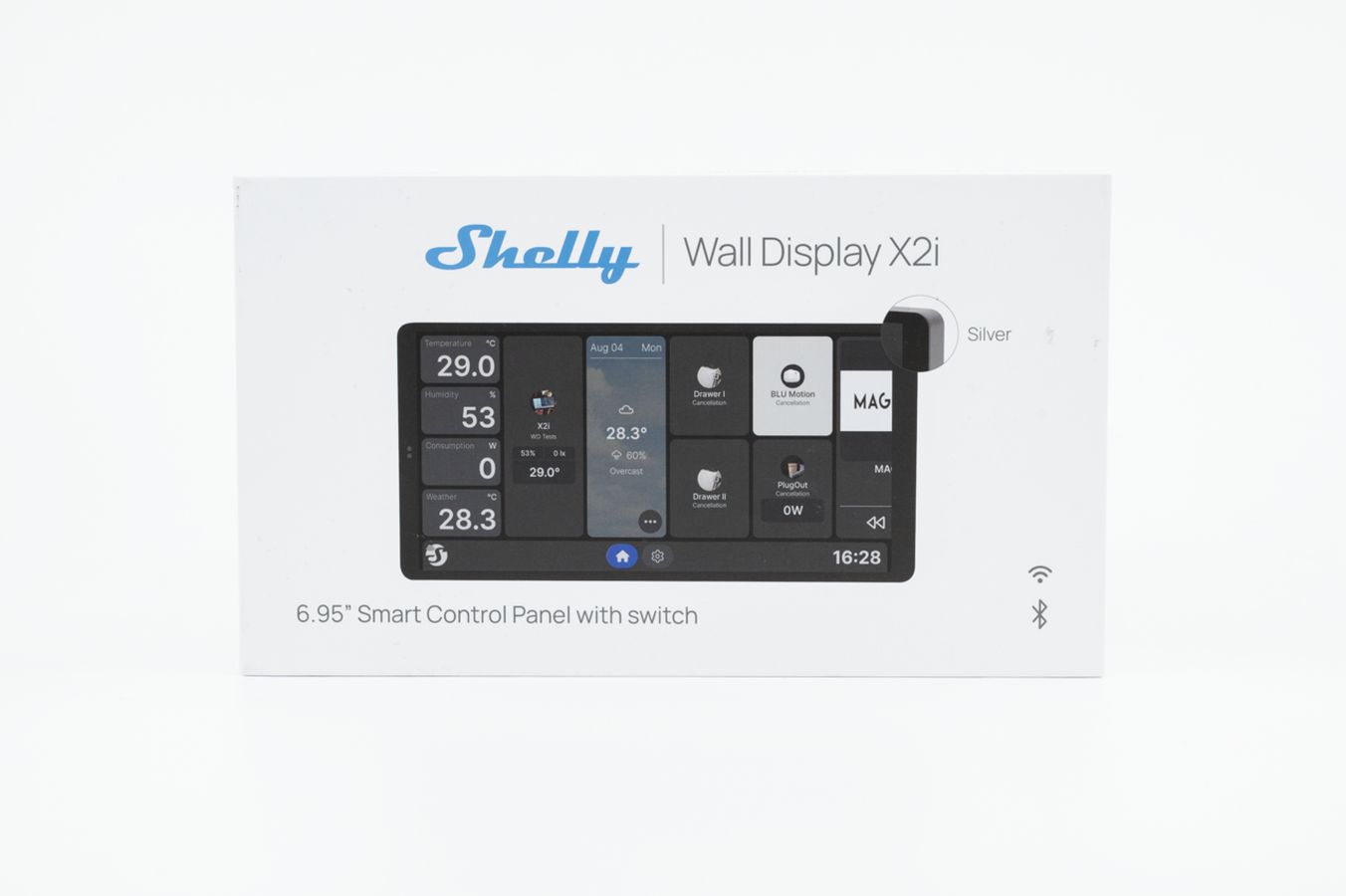

Shelly Shelly_WD_X2_i_s
Unterputz · Wall Display X2i Silver · WLAN · Silber
|
131,13 EUR |
|
|
( 156,04 EUR incl. VAT ) ≈ £109.76 | ≈ $146.73 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Lieske Part No.: | 226510 |
|---|---|
| Mfg Part No: | Shelly WD X2 i s |
| UPC/EAN: | 3800238072773 |
| Weight: | 0.505 kg |
Product information for Shelly Shelly_WD_X2_i_s:
| Bluetooth - | |
| Protocol (Bluetooth -) | 5.0 |
| RF band (Bluetooth -) | 2402 - 2480 MHz |
| Max. RF power (Bluetooth -) | < 4 dBm |
| Range (Bluetooth -) | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors , (Depends on local conditions) |
| Electrical | |
| Power supply | 100-240 V~, 50/60Hz |
| Power consumption | < 5 W |
| USB TYPE-C power supply | 5 V⎓, 1 A |
| Environmental | |
| Ambient working temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Firmware capabilities | |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 2 URLs per hook… |
| Scripting | |
| MQTT | |
| Microcontroller unit | |
| CPU | Rockchip RK3326-S Quad core Cortex-A35 1.5GHz |
| RAM | 2 GB |
| Flash | 8 GB |
| System | Android 11 |
| Output circuits ratings | |
| Max. switching voltage | 240 ~ |
| Max. switching current | 5 A |
| USB TYPE-C, voltage | 5 V⎓ |
| USB TYPE-C, current | 0.5 A |
| Physical | |

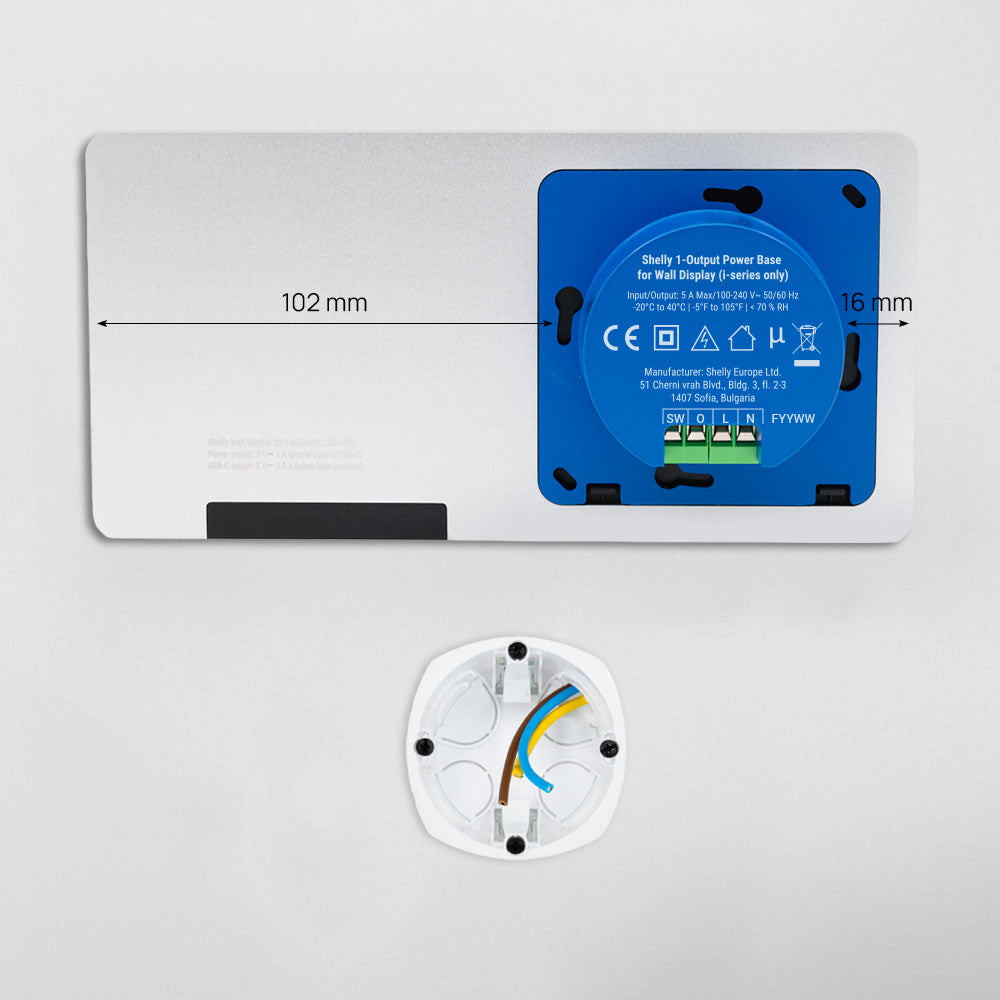

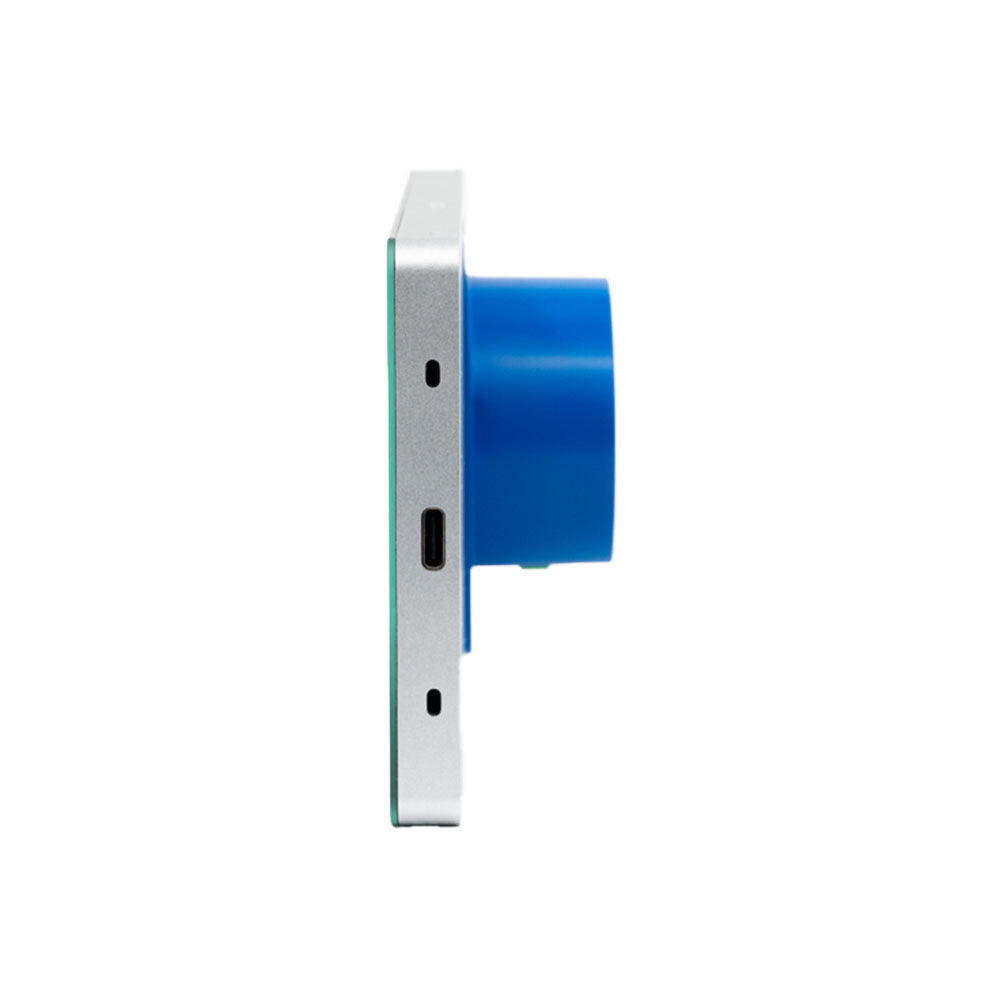

| Size (HxWxD) | With power base: 87x178x36 mm / 3.43x7x1.42 inch Without power base: 87x178x11 / 3.43x7x0.43 inch |
| Weight | With power base: 292 g / 10.3 oz Without power base: 246 g / 8.68 oz |

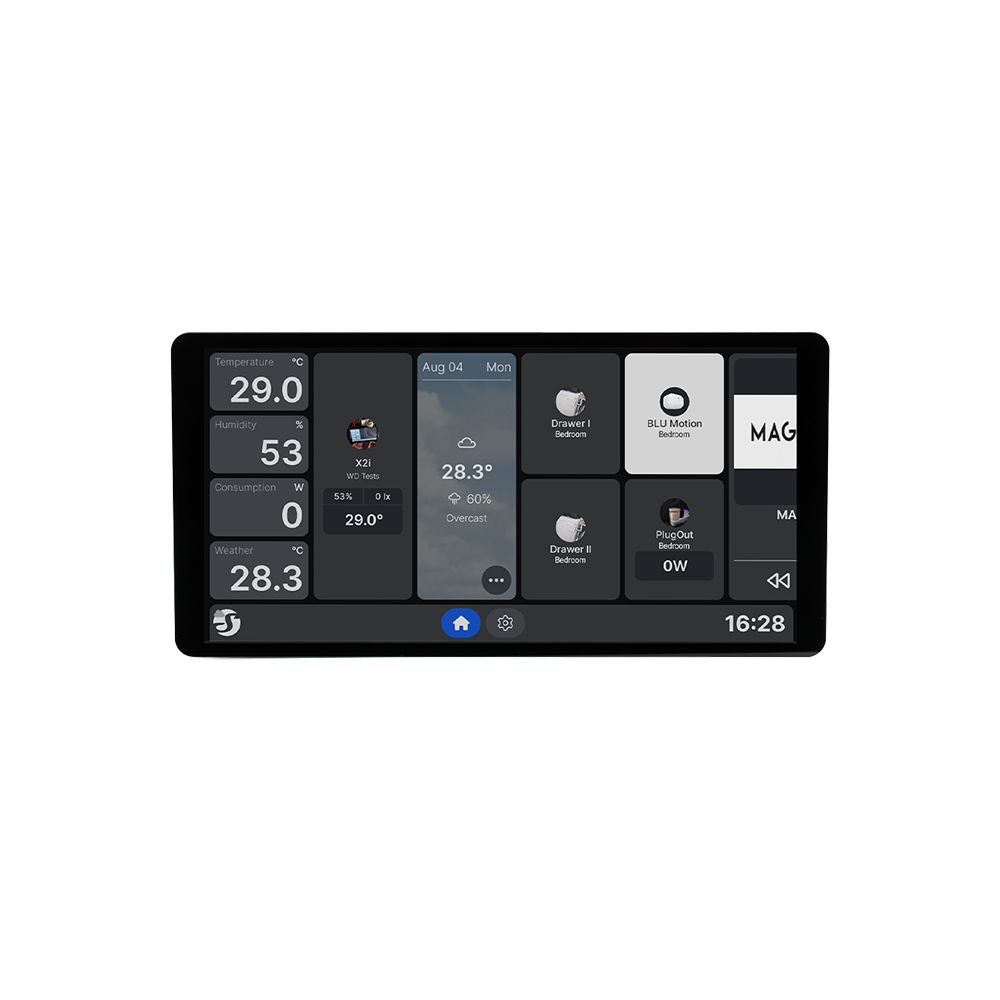

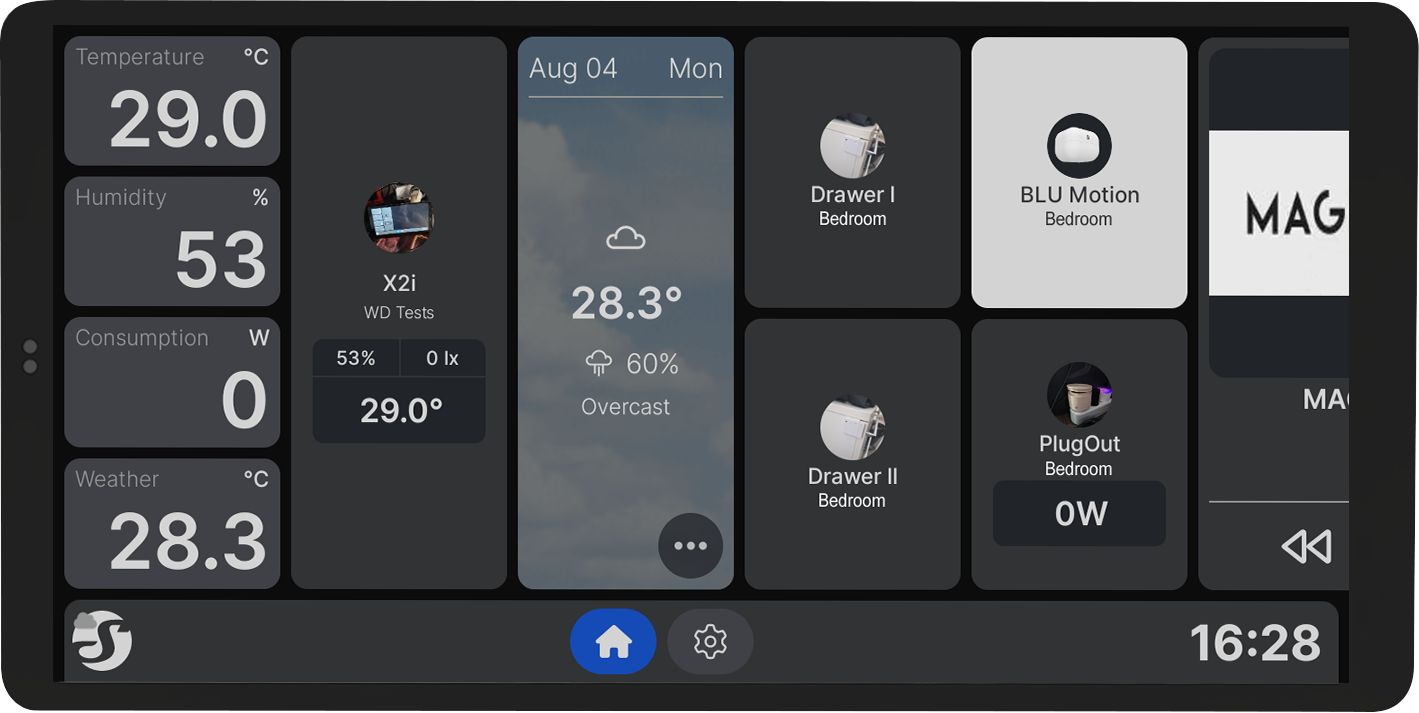

| Touch Screen | 5-point capacitive |
| Screen resolution, px | 1440x720p |
| Screw terminals max torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.75 to 2.5 mm² / 18 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 inch |

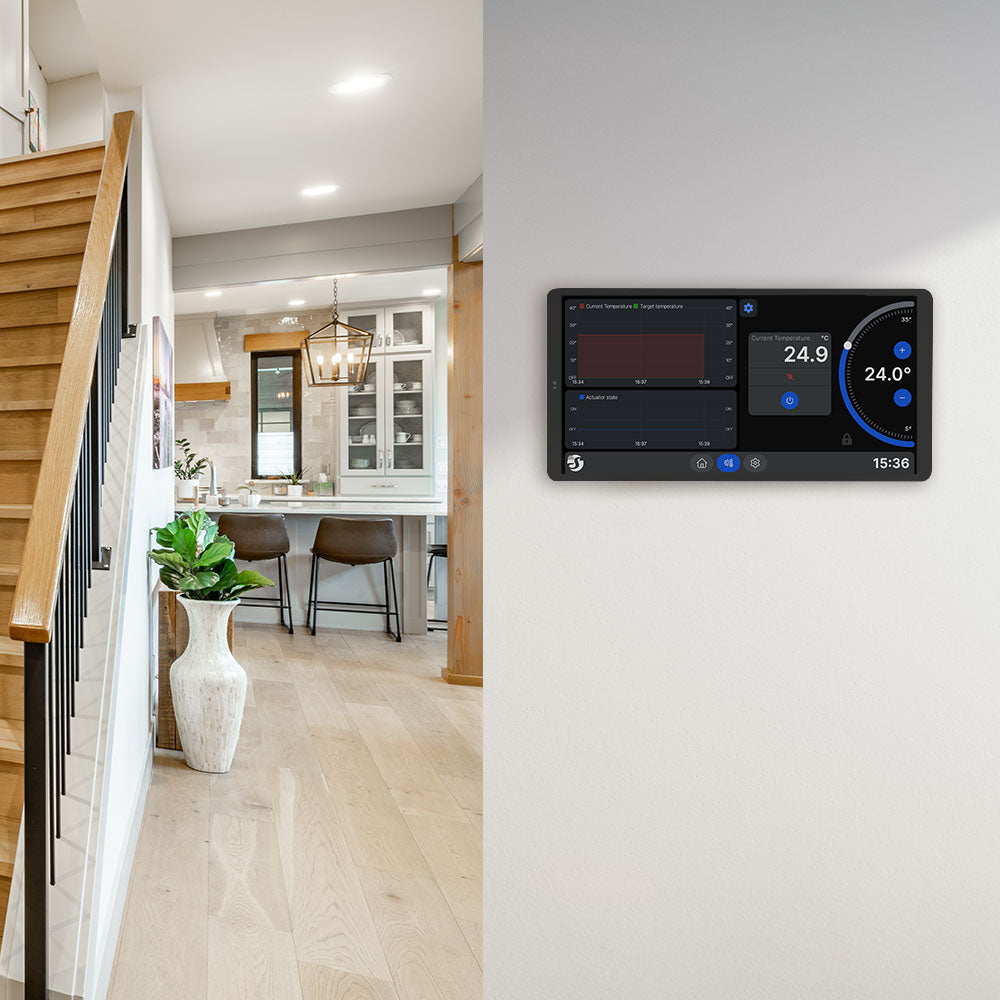

| Mounting | Wall box |
| Shell material | Plastic, aluminum, glass |

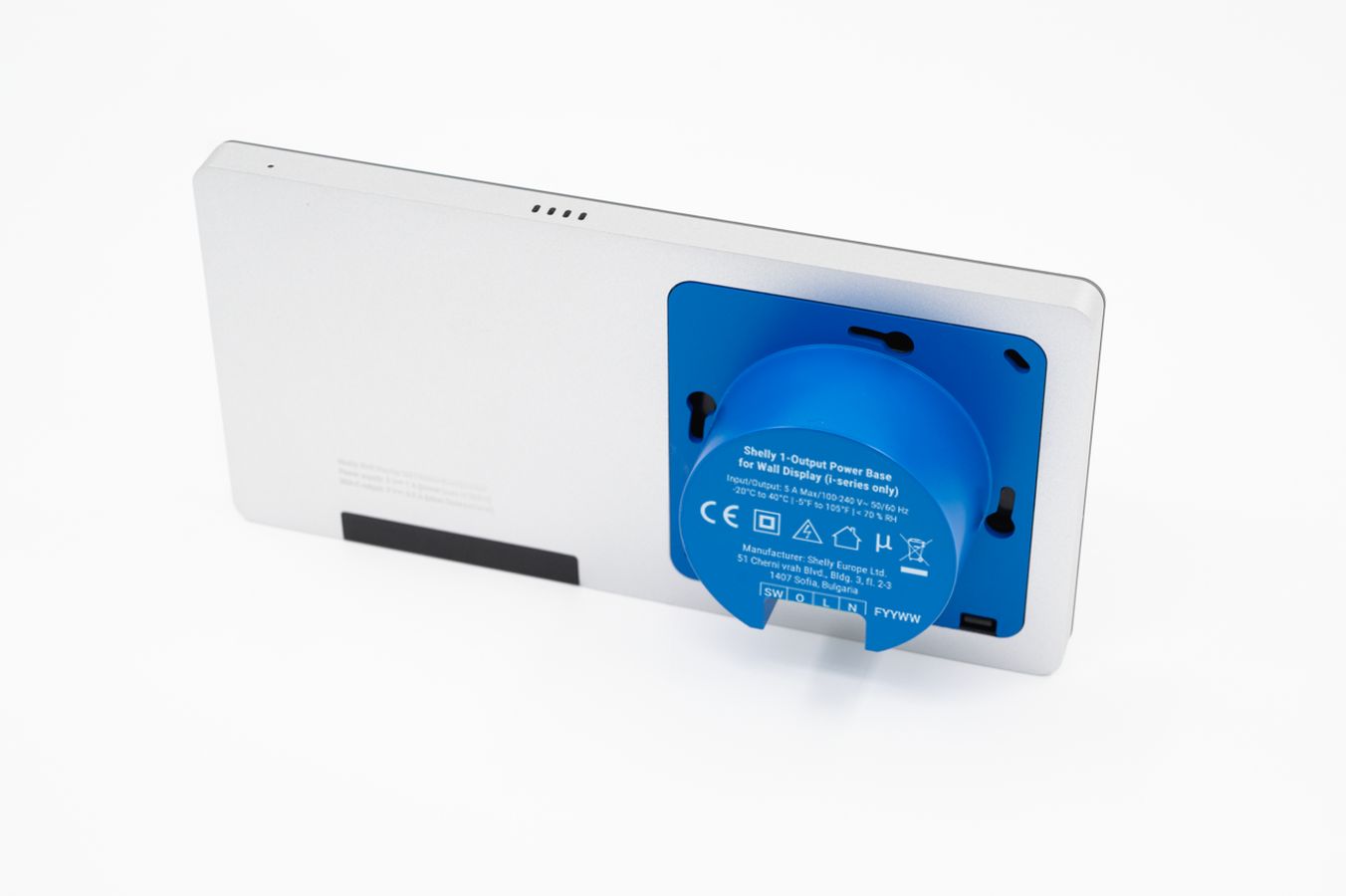

| Shell color | Display: Black, Silver 1-Output Power base: Blue (CMYK: C-95%; M-53%; Y-0%; K-0%) |
| Speaker | 0.8W*1 |
| Sensors, meters | |
| Light sensor | |
| Microphone | |
| G-sensor | |
| Proximity sensor | |
| Wi-Fi | |
| Protocol | Wi-Fi 6 Dual Band |
| RF band | 2412 – 2472 MHz 5150 – 5850 MHz |
| Max. RF power | < 20 dBm |
| Range | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors , (Depends on local conditions) |
