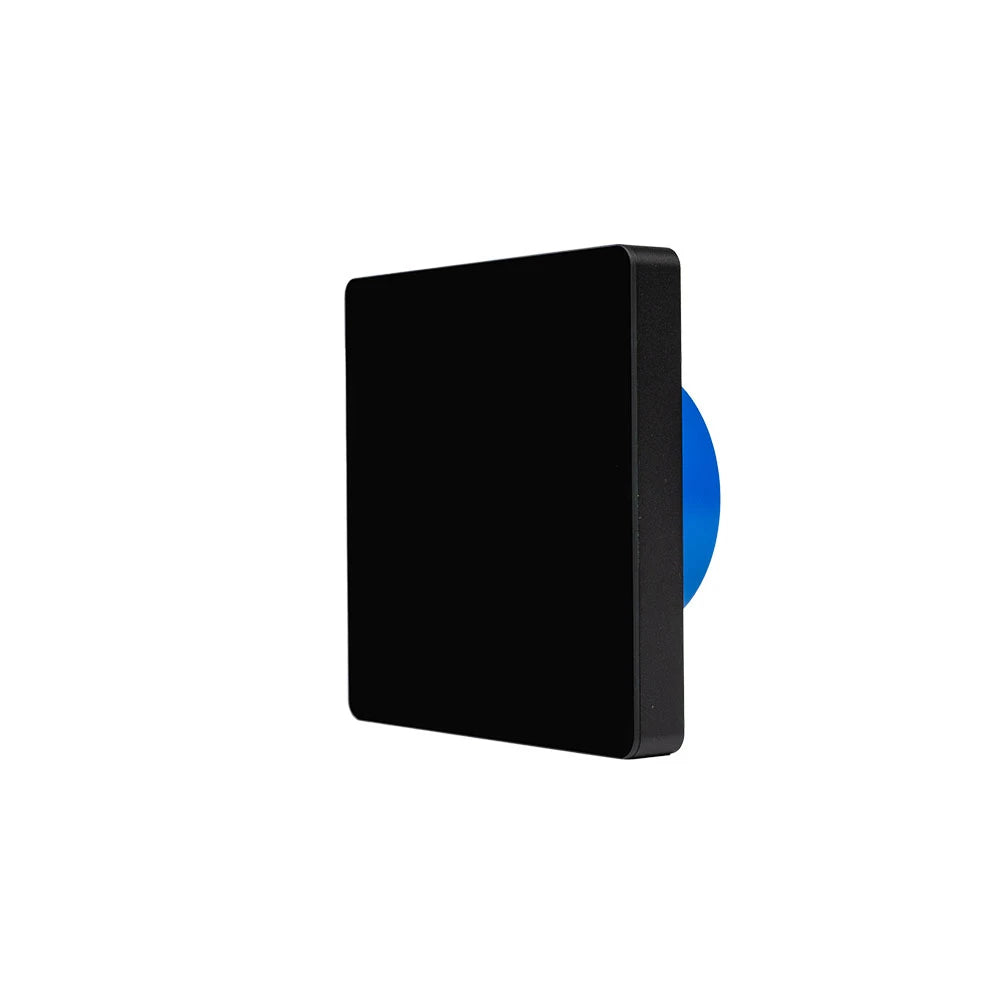

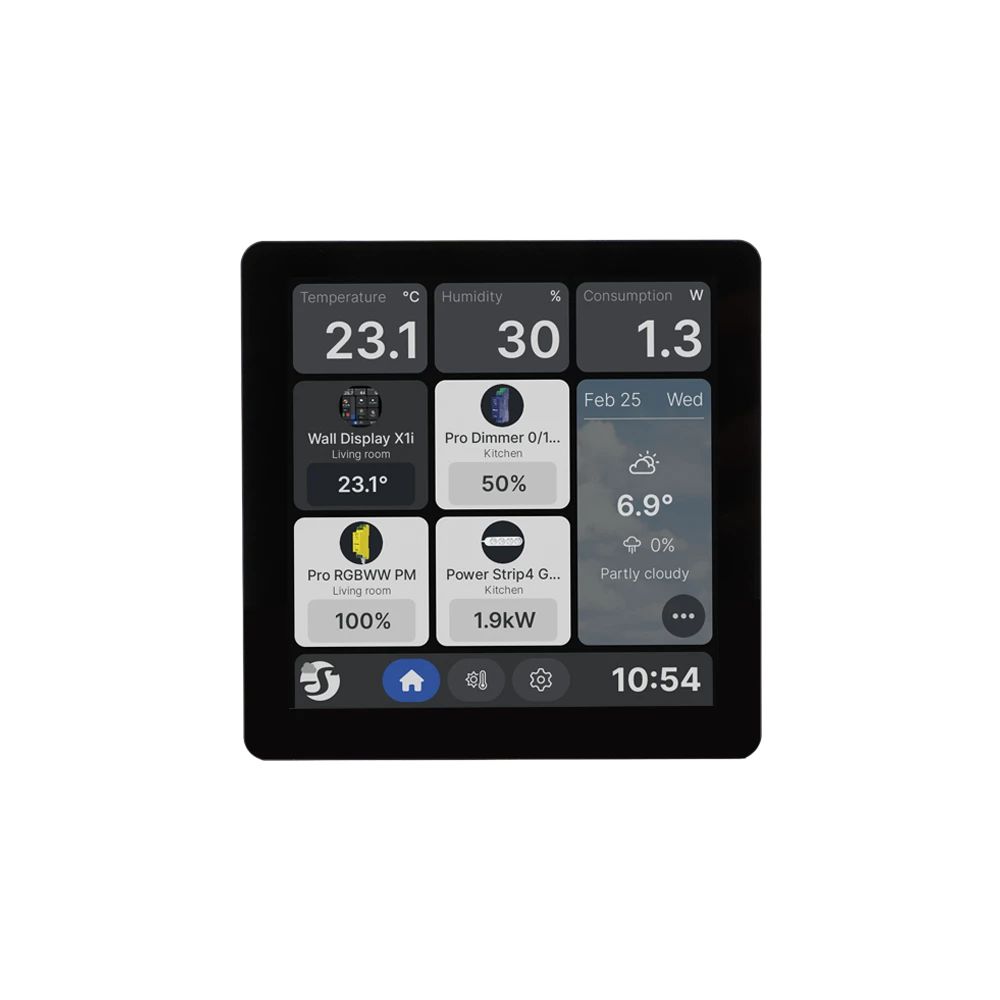

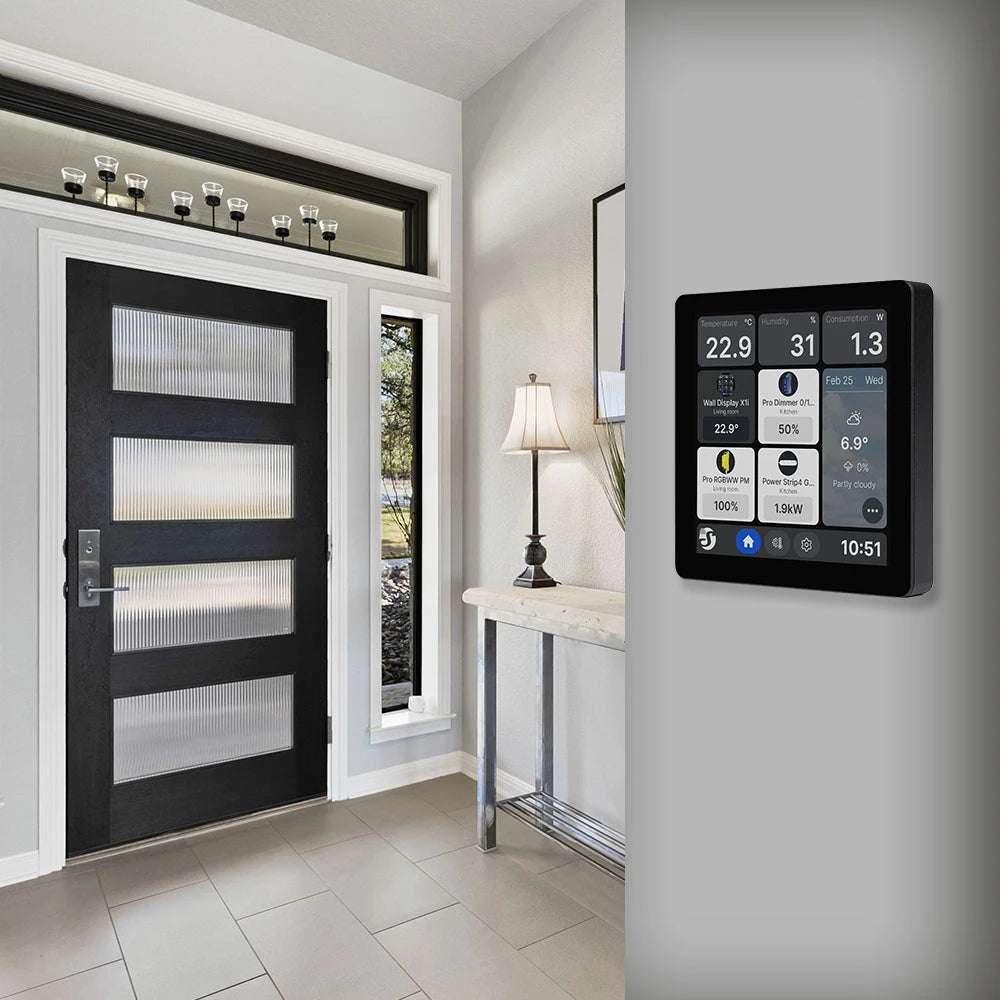

SHELLY Wall Display X1i Black Quad-Core Processor 4-inch Color Touchscreen Display
|
135,12 EUR |
|
|
( 160,79 EUR incl. VAT ) ≈ £113.10 | ≈ $151.20 plus delivery charges: 55,00 € |
|
| Made to order · Delivery date not yet confirmedinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 449755 |
| Mfg Part No: | Shelly WD X1i s |
| UPC/EAN: | 3800238073039 |
| Weight: | 0.268 kg |
| Bluetooth | |
| Protocol (Bluetooth) | 5.0 |
| RF band (Bluetooth) | 2402 - 2480 MHz |
| Max. RF power (Bluetooth) | < 4 dBm |
| Range (Bluetooth) | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors , (Depends on local conditions) |
| Electrical | |
| Power supply | 100-240 V~, 50/60Hz |
| Power consumption | < 5 W |
| USB TYPE-C power supply | 5V⎓, 1A |
| Environmental | |
| Ambient working temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Firmware capabilities | |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 2 URLs per hook |
| Scripting | |
| MQTT | |
| Microcontroller unit | |
| CPU | Rockchip RK3326-S Quad core Cortex-A35 1.5GHz |
| RAM | 1 GB |
| Flash | 8 GB |
| System | Android 11 |
| Output circuits ratings | |
| Max. switching voltage | 240 ~ |
| Max. switching current | 5 A |
| USB TYPE-C, voltage | 5 V⎓ |
| USB TYPE-C, current | 0.5 A |
| Physical | |

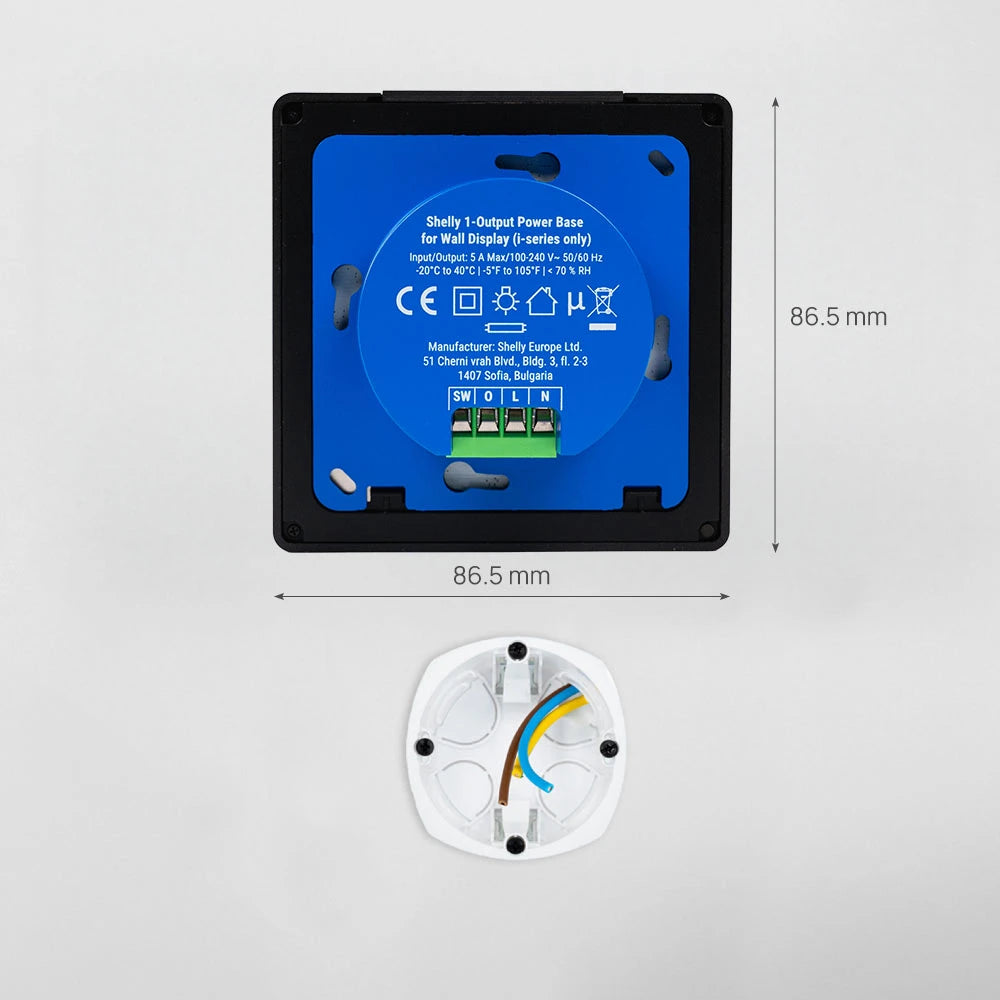

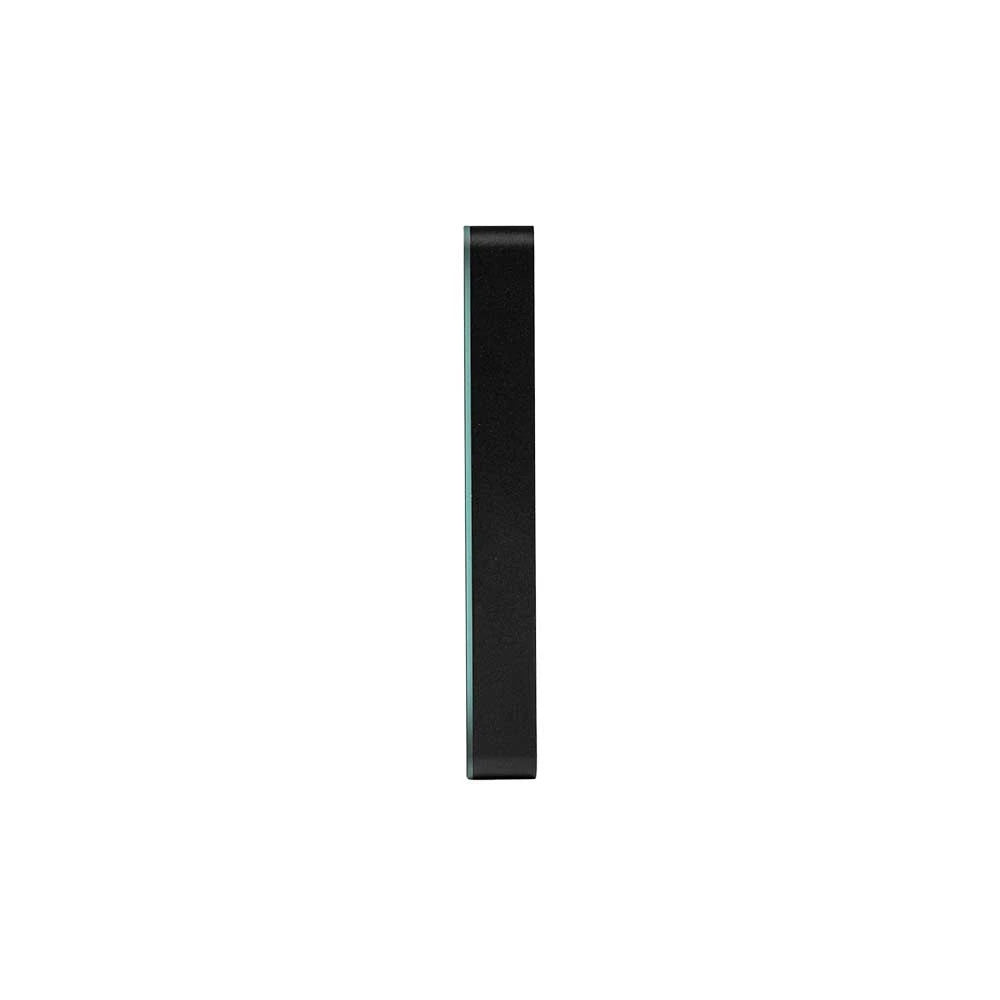

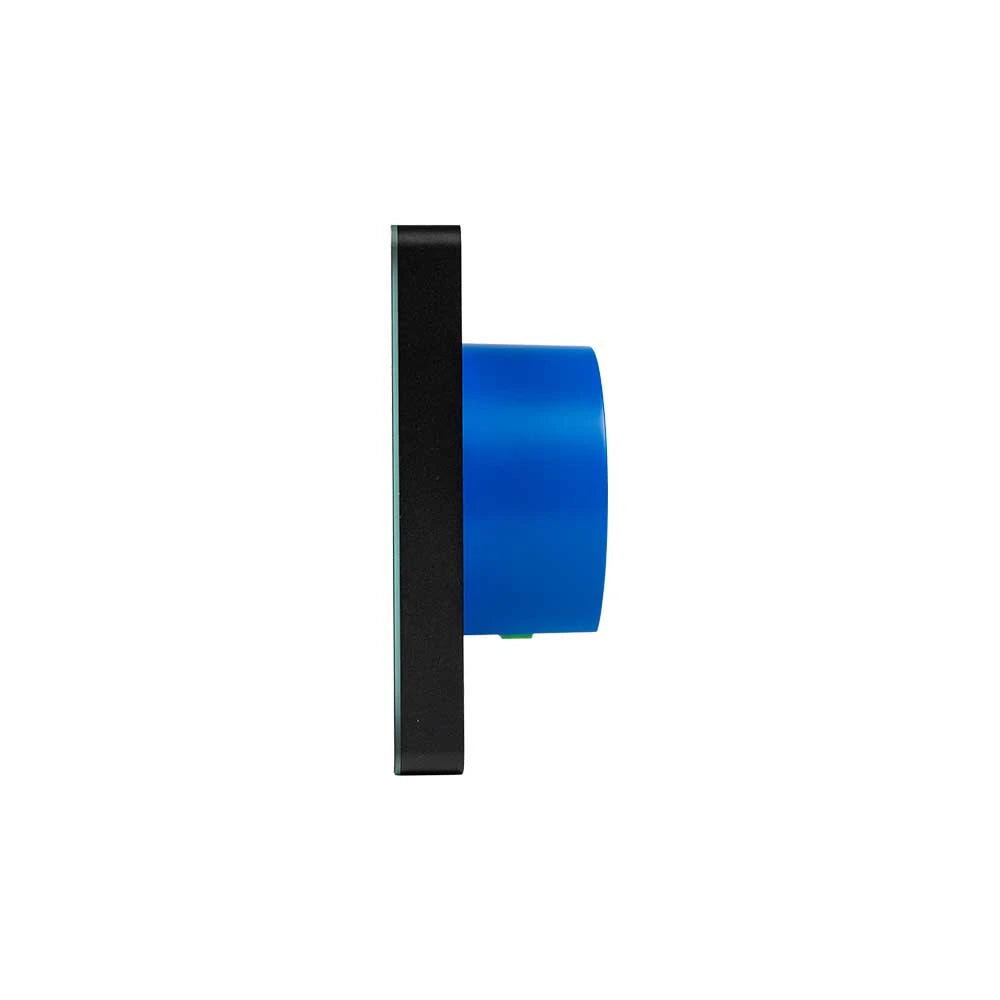

| Size (HxWxD) | With power base: 86.5х86.5х35.7 mm / 3.40x3.40x1.40 inch Without power base: 86.5х86.5х11 mm / 3.40x3.40x0.43 inch |
| Weight | With power base: 163 g / 5.75 oz Without power base: 113 g / 3.99 oz |
| Touch Screen | 5-point capacitive |
| Screen resolution, px | 720x720p |
| Screw terminals max torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.75 to 2.5 mm² / 18 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 inch |
| Mounting | Wall box |
| Shell material | Plastic, aluminum, glass |
| Shell color | Display: Black, Silver 1-Output Power base: Blue (CMYK: C-95%; M-53%; Y-0%; K-0%) |
| Speaker | 1 W |
| Sensors, meters | |
| Light sensor | |
| Microphone | |
| Proximity sensor | |
| Wi-Fi | |
| Protocol | Wi-Fi 6 Dual Band |
| RF band | 2412 – 2472 MHz 5150 – 5850 MHz |
| Max. RF power | < 20 dBm |
| Range | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors , (Depends on local conditions) |
