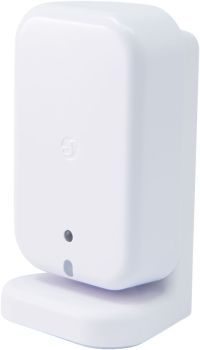

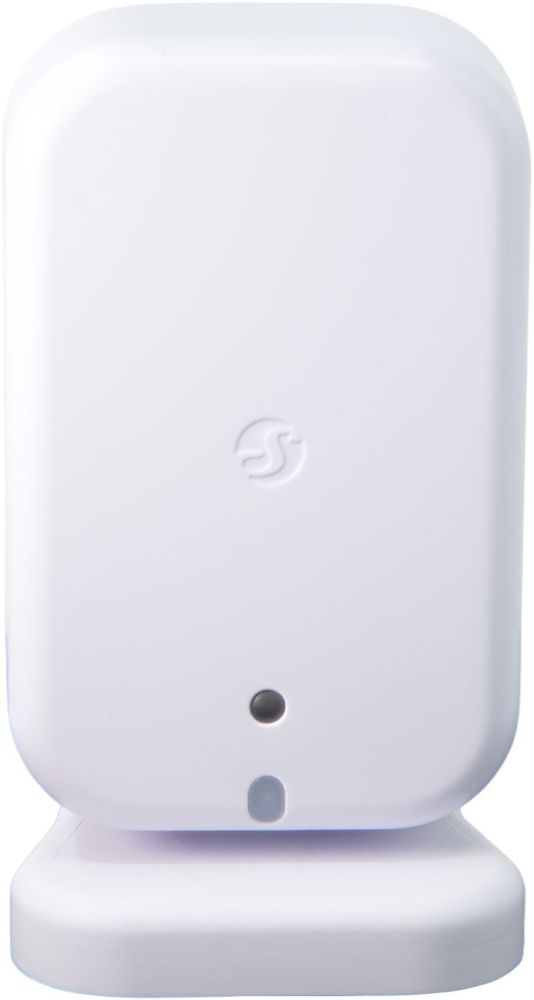

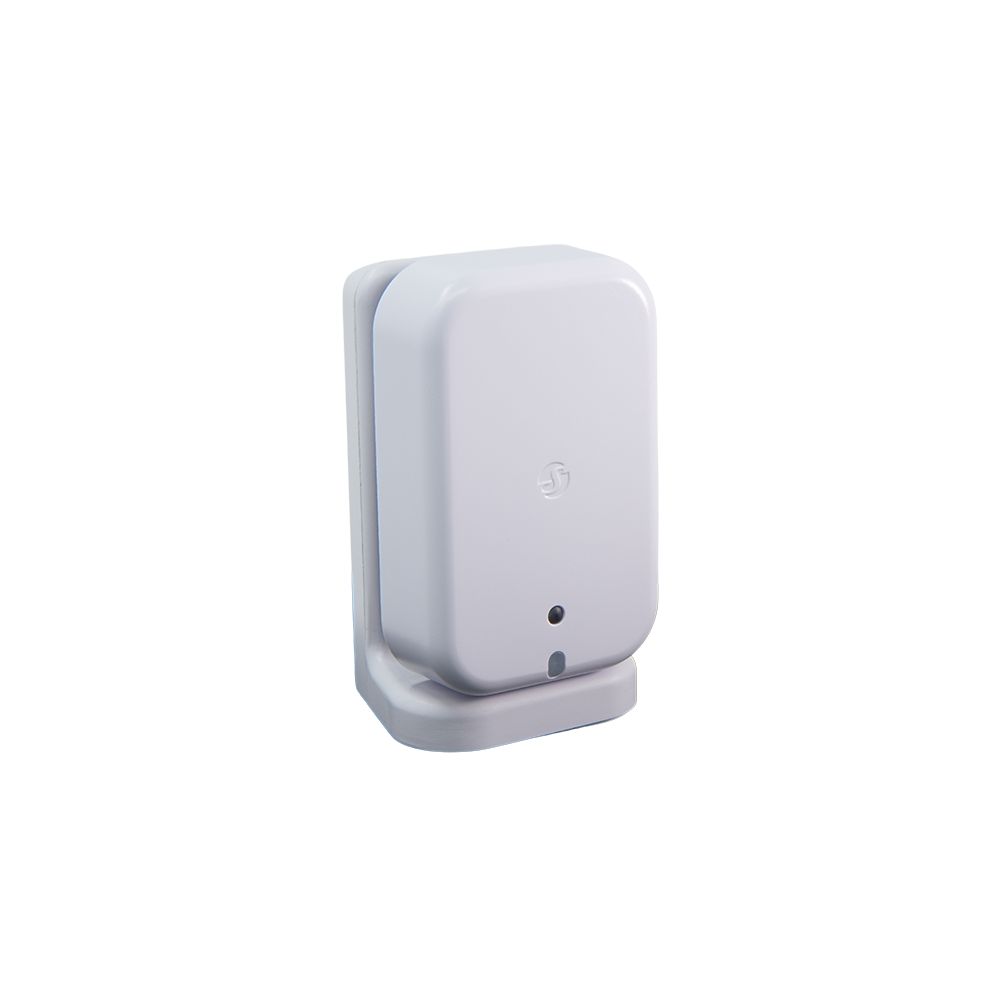

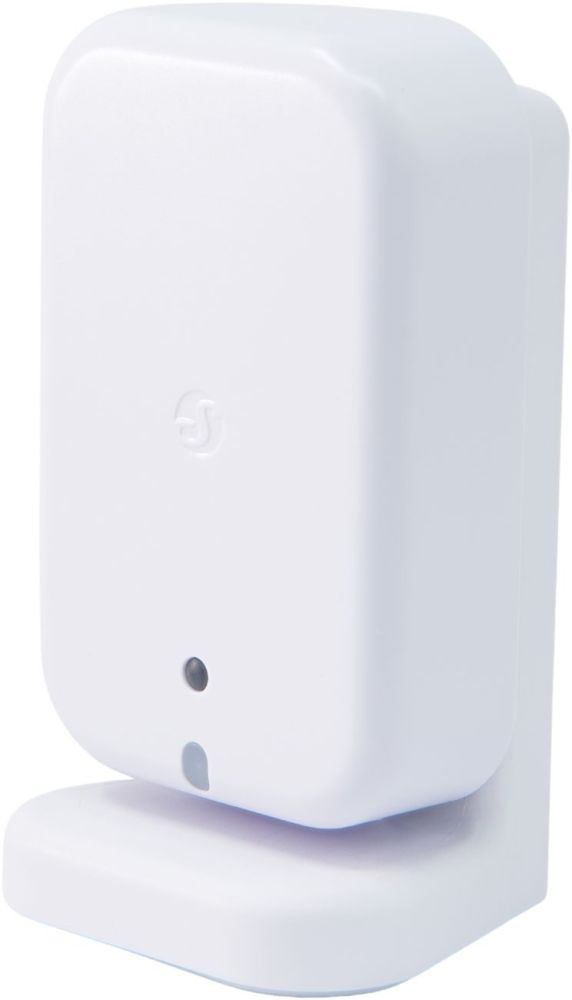

SHELLY Presence Gen4 White Matter WiFi Zigbee Bluetooth mmWave Presence Sensor
|
-14% 55,87 EUR 64,81 EUR |
|
|
( 66,49 EUR incl. VAT ) ≈ £47.15 | ≈ $62.85 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 10 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Lieske Part No.: | 226514 |
|---|---|
| Mfg Part No: | Shelly PS Gen4 w |
| UPC/EAN: | 3800238072391 |
| Weight: | 0.15 kg |
Product information for Shelly Shelly_PS_Gen4_w:
Erkennt echte Anwesenheit – selbst ohne Bewegung. Verfolgt bis zu sechs Personen in zehn Zonen für präzise und zuverlässige Automatisierungen. Verhindert Fehlalarme, spart Energie und lässt sich problemlos mit smartem Licht, Heizung und Haustechnik kombinieren. -Multi-Protokoll-Verbindung: WLAN, Zigbee, Bluetooth -Matter-zertifiziert -Erweiterte Präsenzerkennung: Erkennt selbst kleinste Bewegungen für wirklich reaktive Automatisierungen -Mehrpersonen-Verfolgung: Verfolgt bis zu sechs Personen gleichzeitig -Zonenbasierte Erfassung: Unterstützt bis zu zehn anpassbare Erfassungszonen, deckt Flächen bis zu 42 m² ab -Präsenzerkennung: Erkennt Menschen auch, wenn sie sitzen oder stillstehen -Einstellbare Empfindlichkeit: Kann so konfiguriert werden, dass Bewegungen von Kindern, Haustieren oder Saugrobotern ignoriert werden -Kompaktes Format: Lässt sich unauffällig in jedem Raum installieren -Flexible Platzierung: Für Wandmontage, Regale, Tische oder sogar Schränke geeignet -Integrierter Lichtsensor: Erkennt Umgebungslicht mit drei Stufen – dunkel, halbdunkel und hell Häufige Verwendungsarten: -Präsenzerkennung
| Bluetooth | |
| Protocol (Bluetooth) | 5 (LE) |
| RF band (Bluetooth) | 2402 - 2480 MHz |
| Max. RF power (Bluetooth) | < 20 dBm |
| Range (Bluetooth) | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors , (Depends on local conditions) |
| Electrical | |

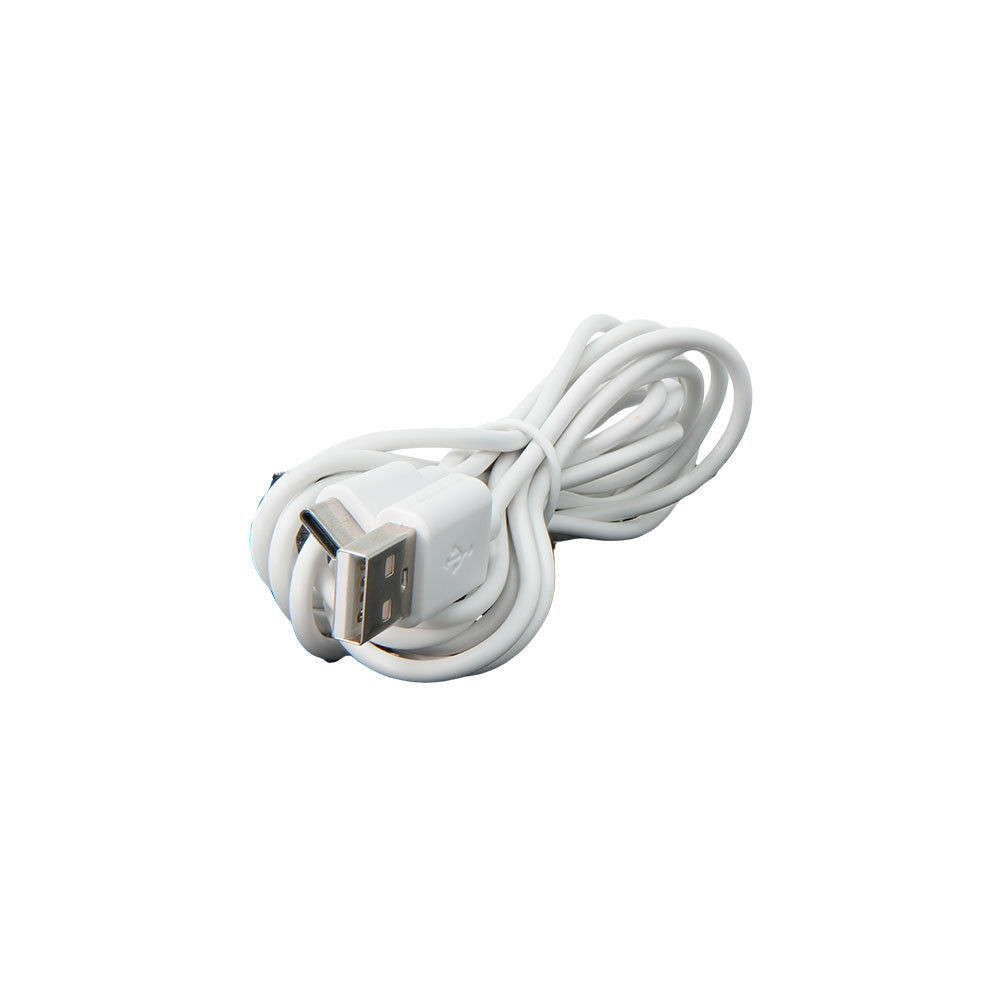

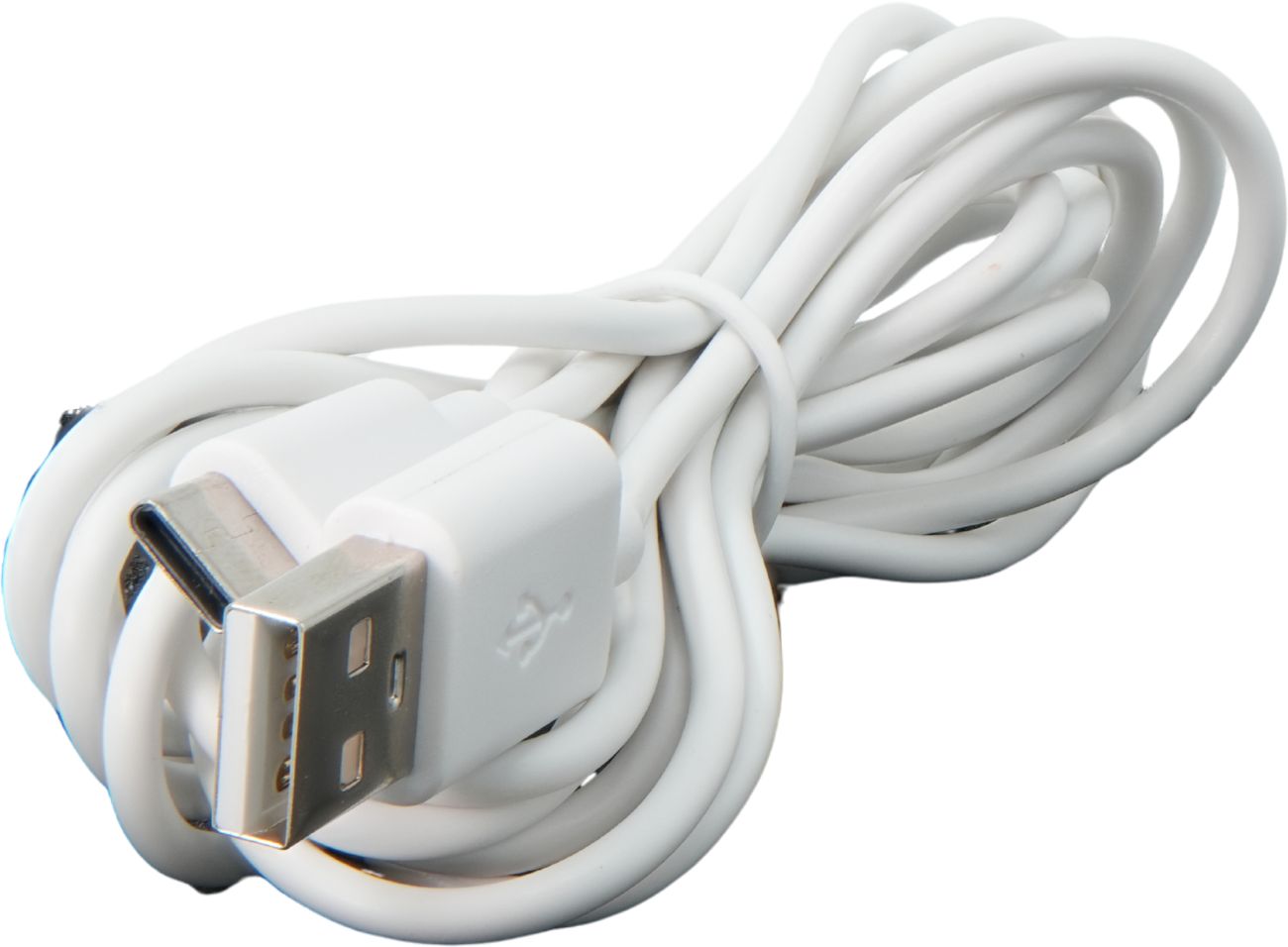

| Power supply | 5 VDC via USB-C, 1 A |
| Power consumption | 2.5 W (nominal) 3.5 W (max) |
| Environmental | |
| Ambient working temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Firmware capabilities | |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 5 URLs per hook |
| Advanced schedules | |
| Scripting | |
| MQTT | |
| UDP | |
| Encryption | |
| KVS (Key-Value Store) | |
| Microcontroller unit | |
| CPU | ESP-Shelly-C68F |
| Flash | 8 MB |
| Physical | |

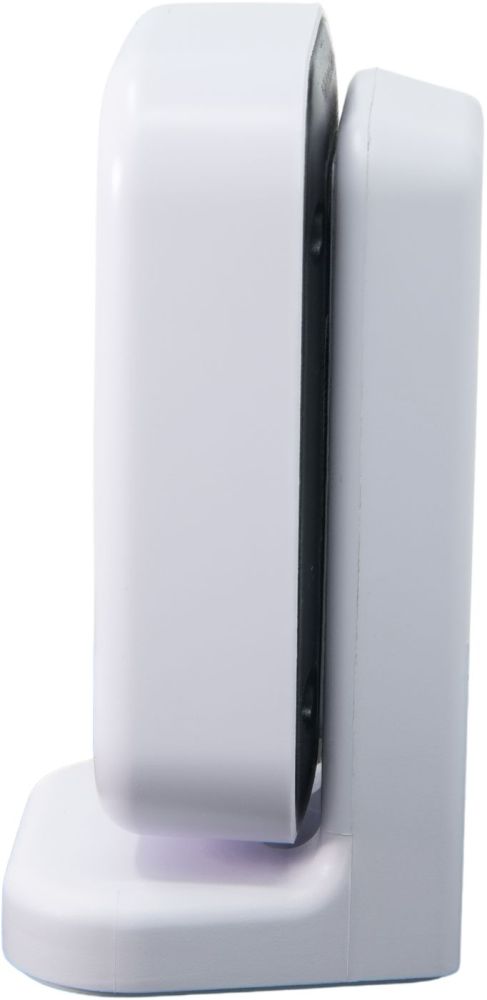

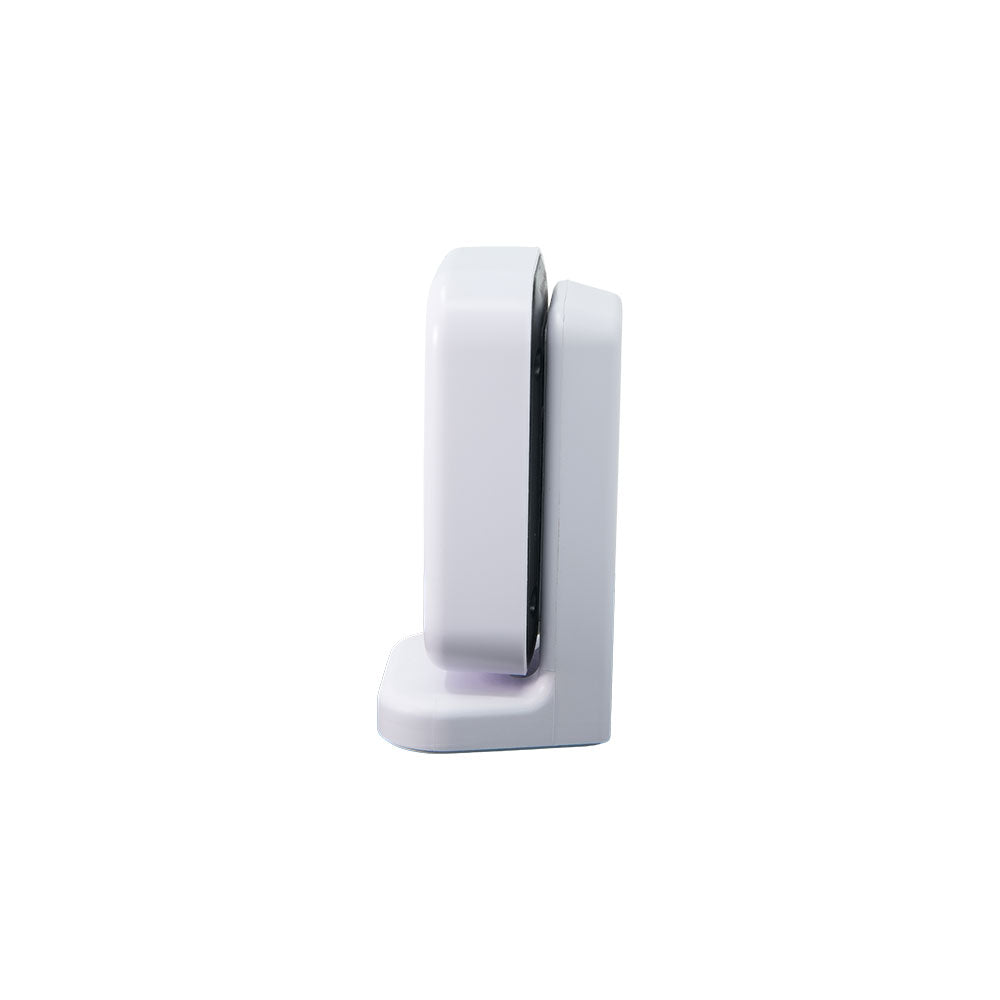

| Size (HxWxD) | 64x41x26 mm / 2.49x1.59x1.02 inch (without stand) 73x41x37 mm / 2.87x1.61x1.46 inch (with stand) |
| Weight | 42 g / 1.48 oz (without stand) 85 g / 3.00 oz (with stand) |

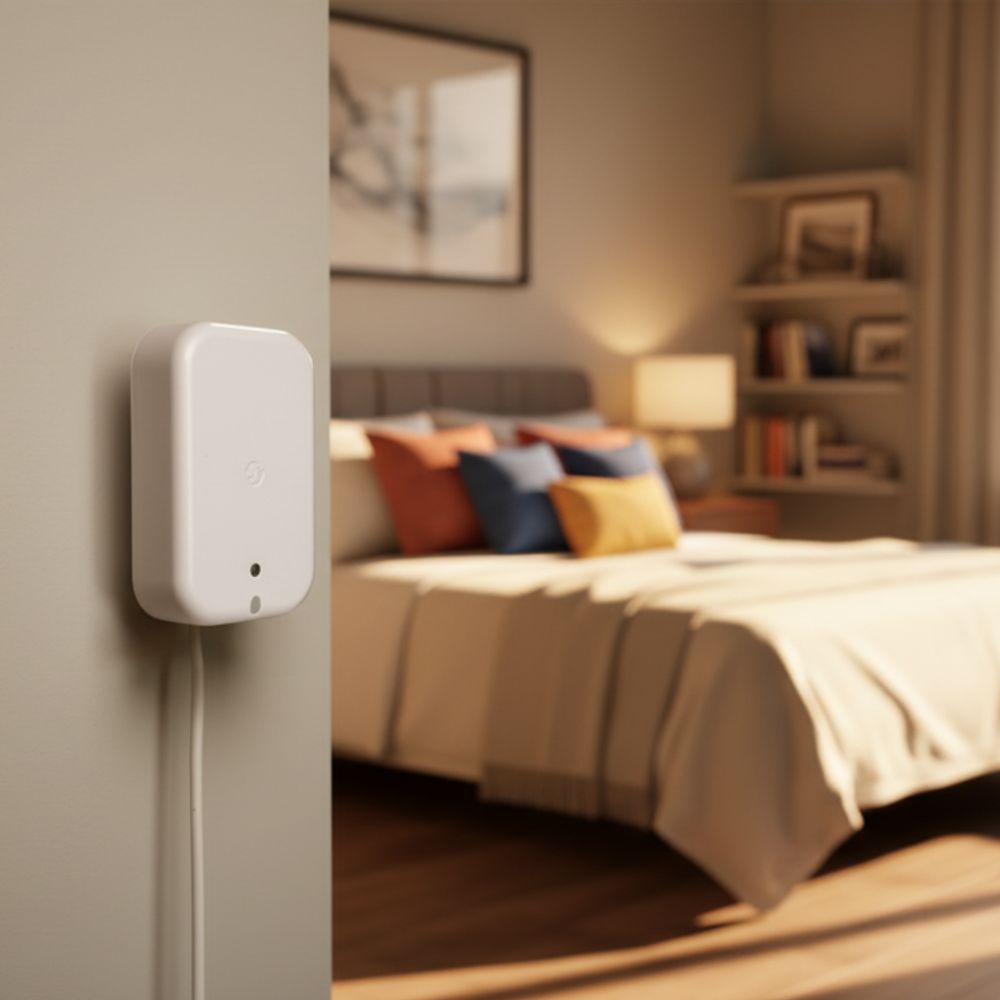

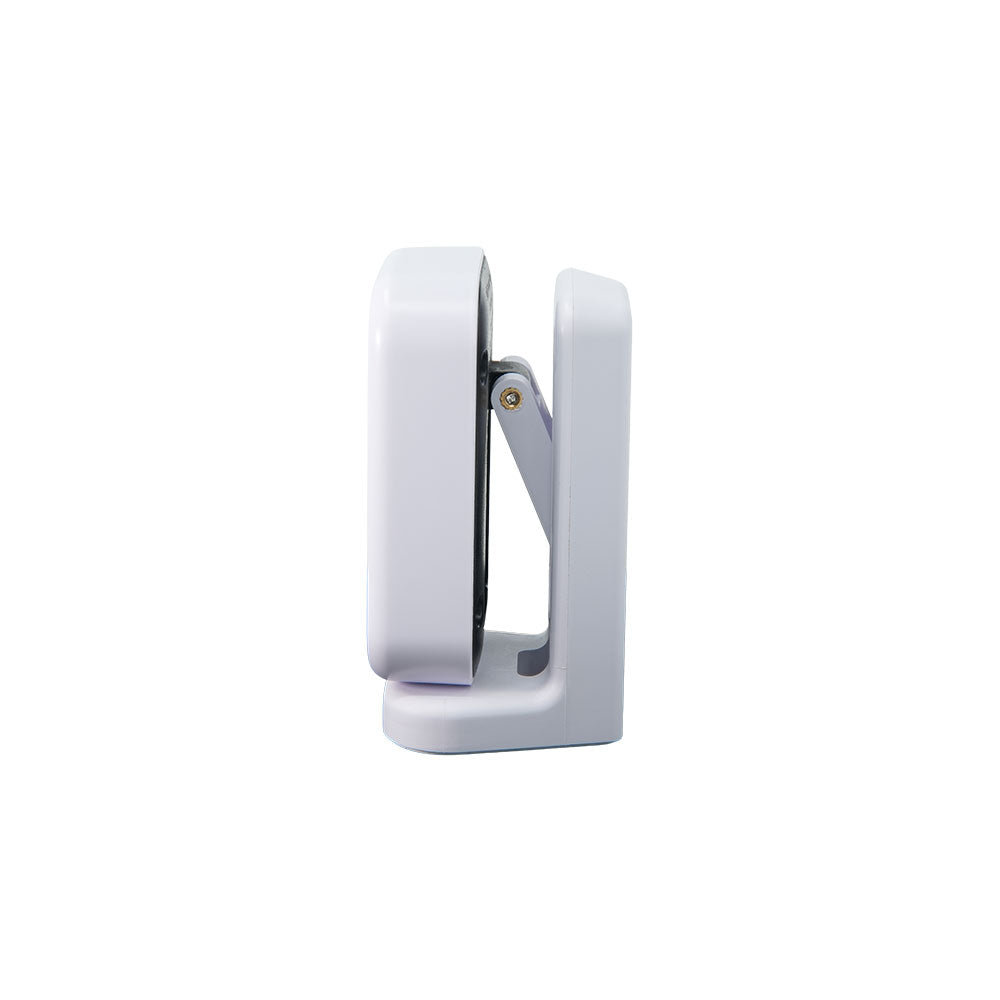

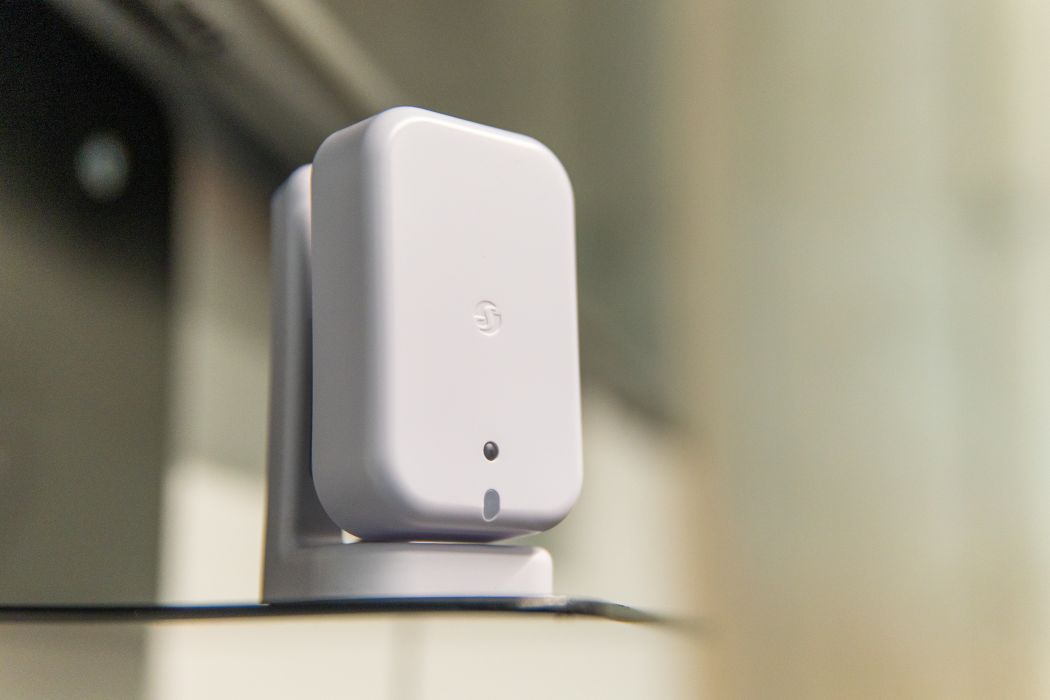

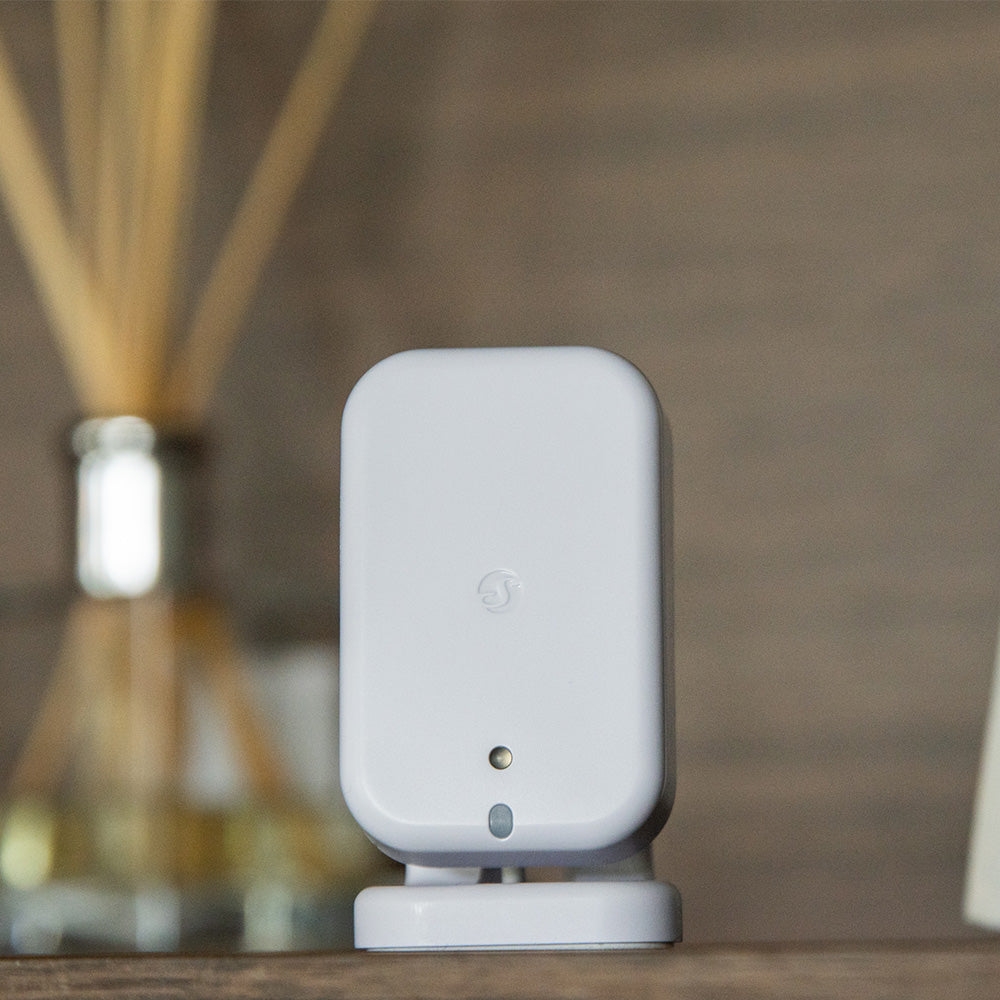

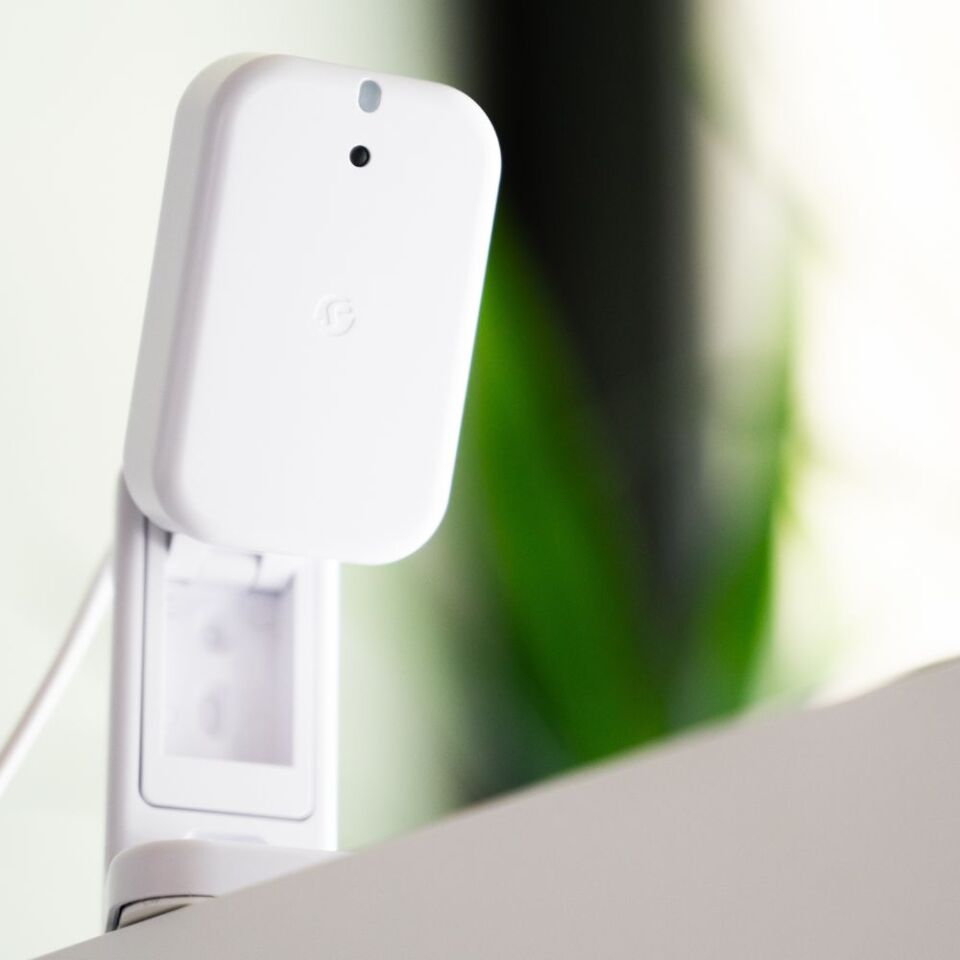

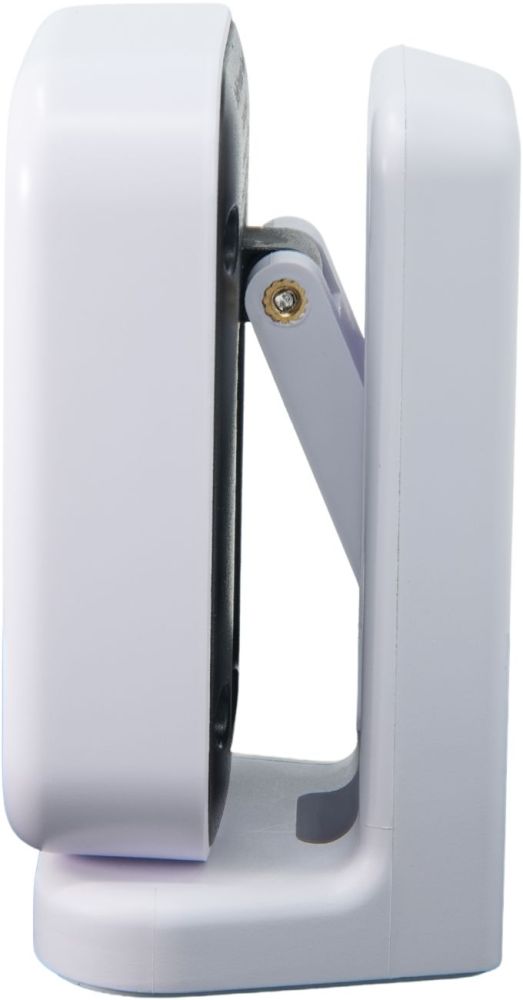

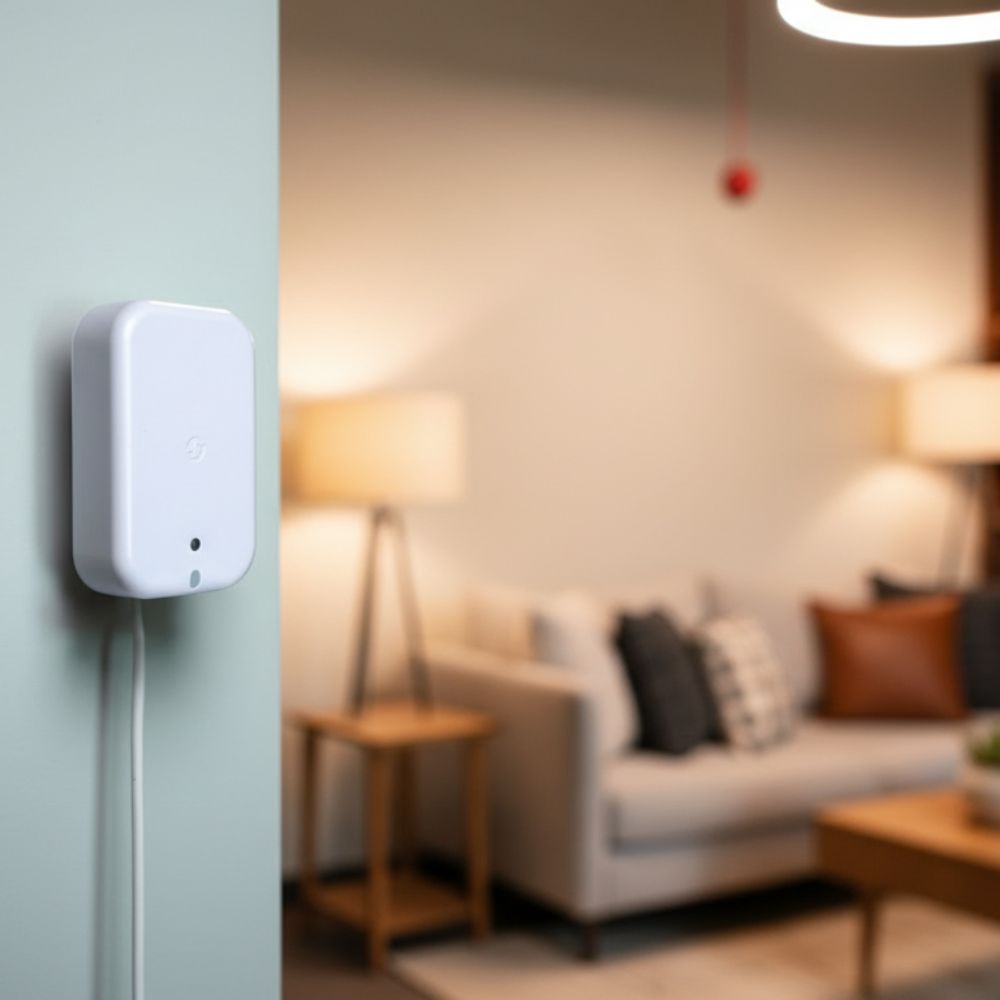

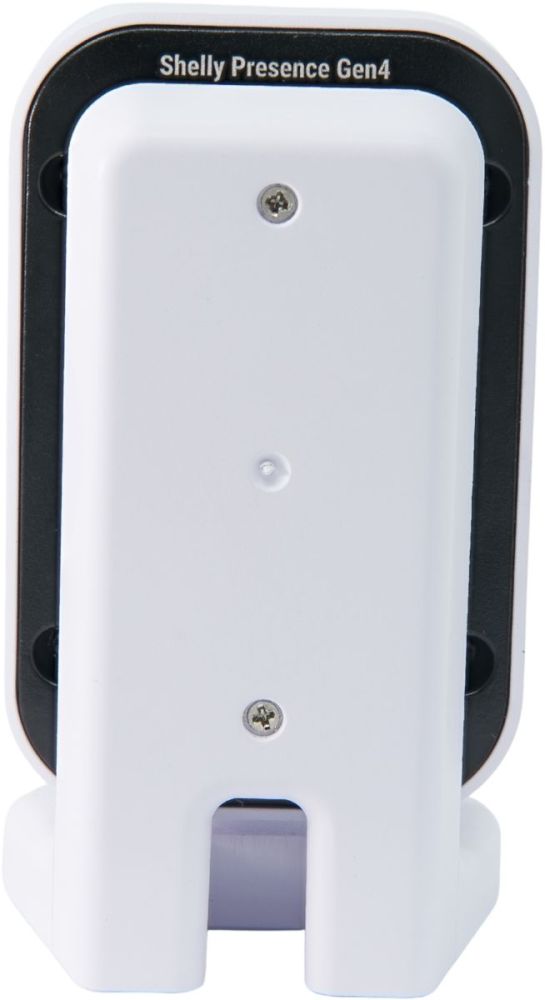

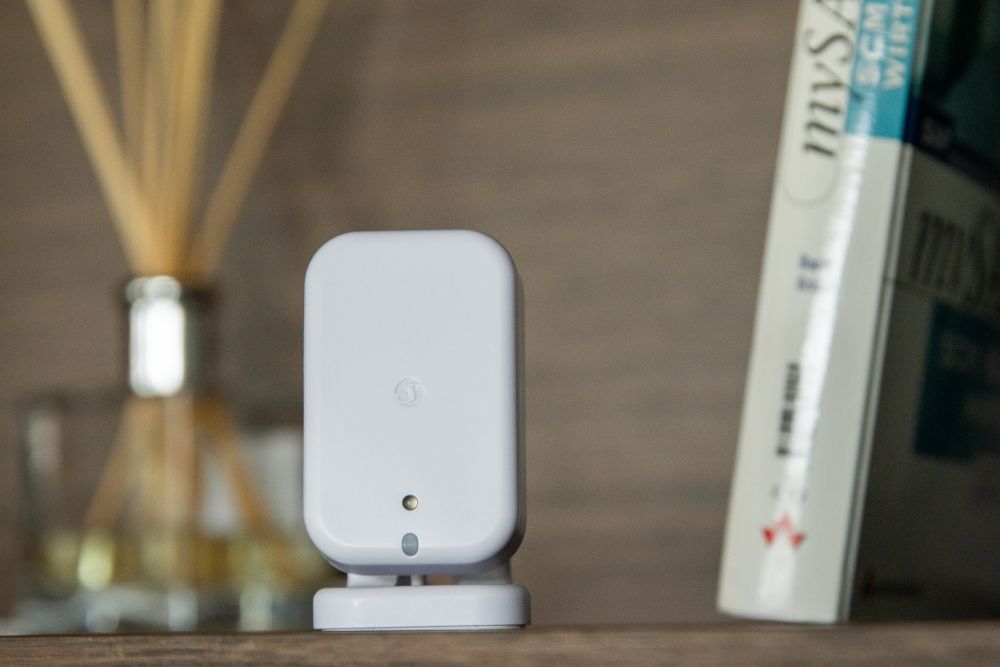

| Mounting | Freestanding base - for horizontal placement on shelves, tables, or wardrobes Adhesive tape - for tool-free installation on flat surfaces Screws and wall plugs - for installation on walls or other solid surfaces |
| Shell material | Plastic with aluminum back |
| Shell color | White Black |
| Radar specific | |
| Radar frequency | 60-64 GHz |
| Object detection | Yes, up to 6 objects (people) |
| Wall mount coverage | 140 degrees horizontal (70 degrees on each side), 8 x 8 m 120 degrees vertical |
| Corner mount coverage | 90 degrees (45 degrees on each side), 7 x 7 m |
| Still detection | Yes, up to 3 m |
| Sensors, meters | |
| Light sensor | |
| Radar sensor | |
| Wi-Fi | |
| Protocol | 802.11 b/g/n/ax |
| RF band | 2401 - 2483 МHz |
| Max. RF power | < 20 dBm |
| Range | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors , (Depends on local conditions) |
| Zigbee | |
| Protocol (Zigbee) | 802.15.4 |
| RF bands | 2405 to 2480 MHz |
| Max. RF power (Zigbee) | < 20 dBm |
| Range (Zigbee) | Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions) |
