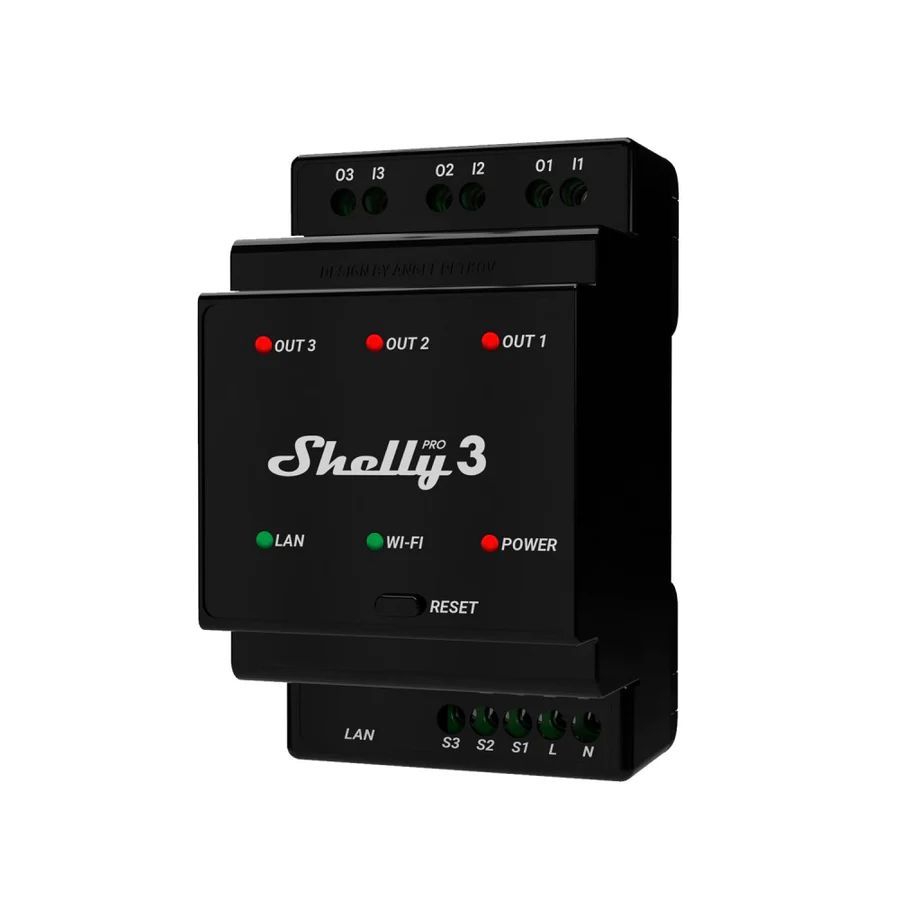

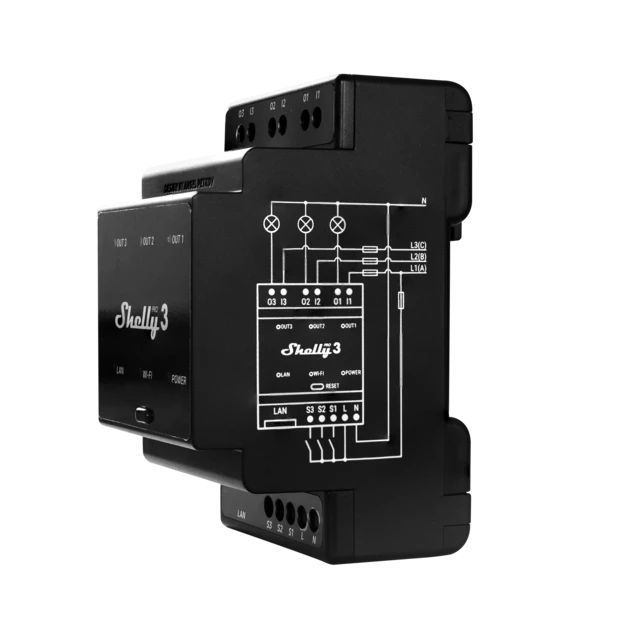

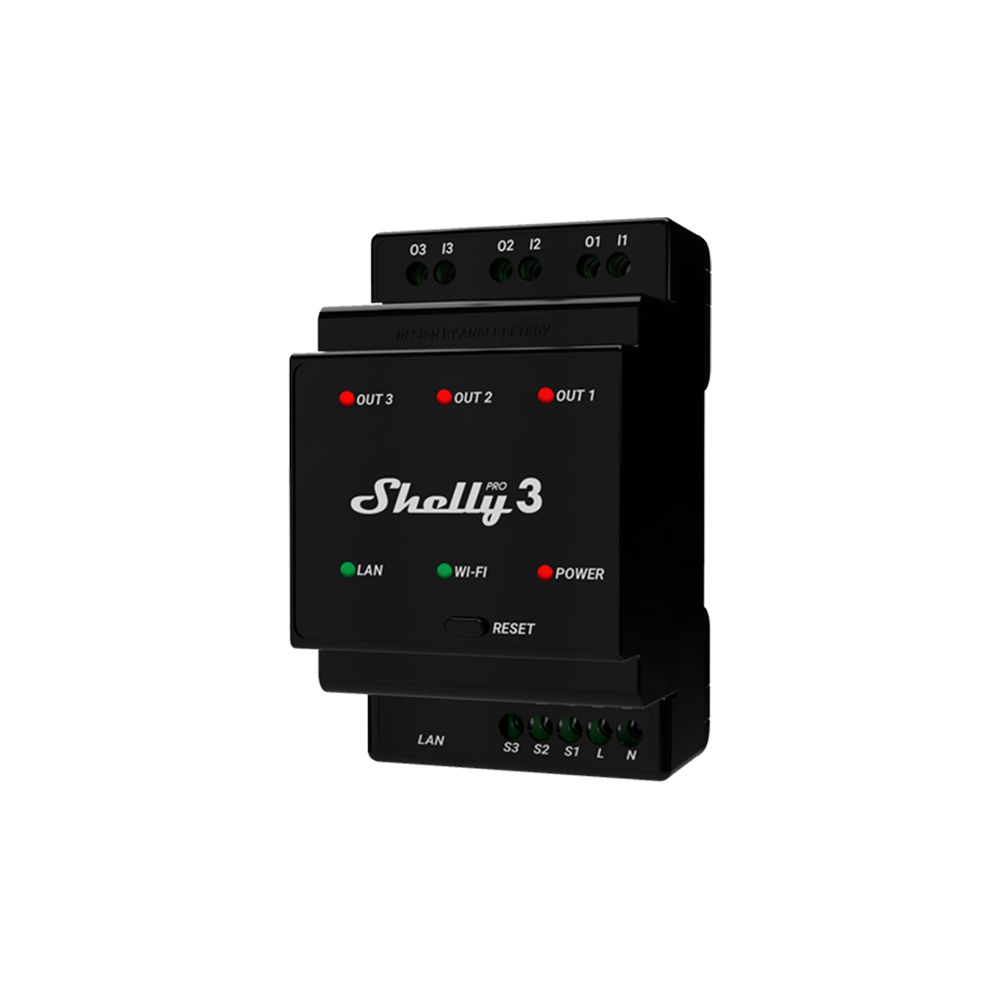

Shelly · DIN rail · Pro 3 · Relay · max. 48A · 3 phases · 3 channels · WLAN · LAN · BT content_copy

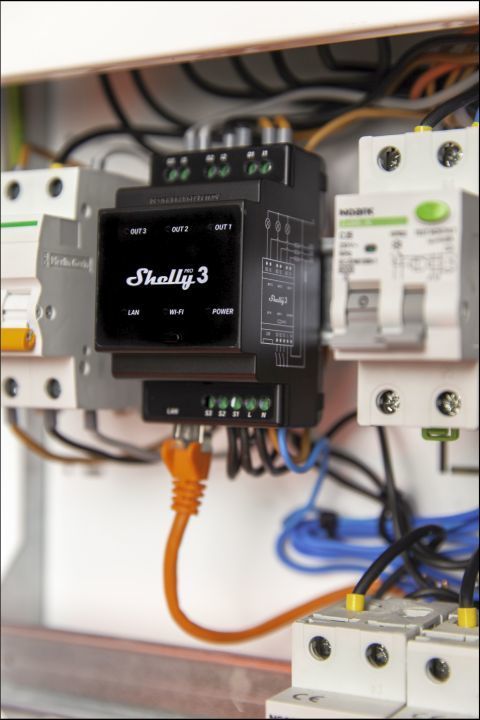

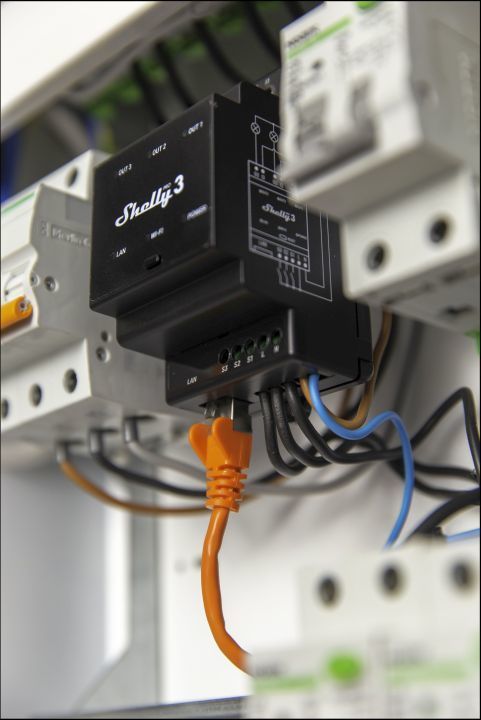

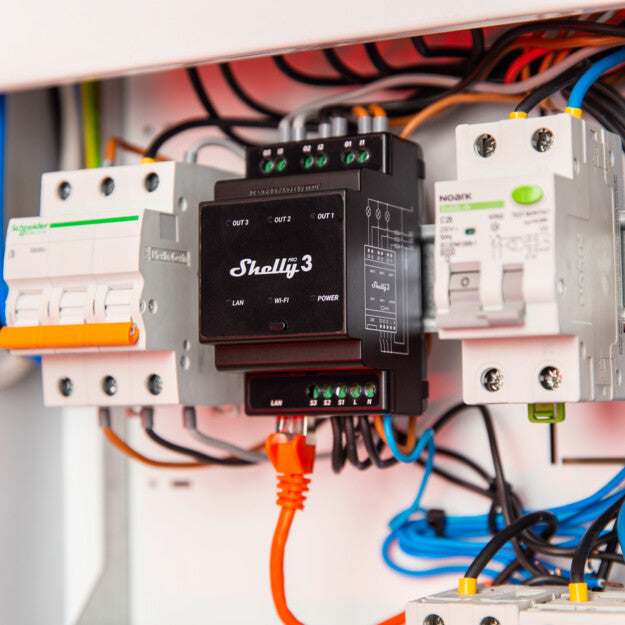

Professional 3-channel smart relay With WiFi, LAN and Bluetooth connection, suitable for home and building automation with remote control. Mounts on DIN rail in a breaker box. Improved security features and compatibility with most popular home automation platforms.
LAN, WLAN and Bluetooth connection 3 outputs, 16 amps each. Maximum total device output of 48 amps Dry contacts DIN rail mountable 3 phase control WHY SHELLY PRO 3? Smart home solution for new residential and commercial buildings Shelly Pro 3 is a three-phase, 3-channel relay that supports up to 48A for professional lighting and appliance automation for residential or commercial use. It is equipped with potential-free outputs (dry contacts) that offer high flexibility in voltage support and applications. Different types of actions, scenarios and schedules can be set to synchronize your environment with your daily activities or business needs. In addition, Shelly Pro 3 has scripting capabilities for custom automation scenarios based on external data or various events. Shelly Pro Series The Shelly Pro Series is enhanced with temperature, overload and over-voltage load protection and is designed for installation in the fuse box (DIN). The Shelly Pro series enables complete intelligent automation without additional wires or cabling and is perfect for homes, offices, shops, commercial and manufacturing facilities as well as new buildings. FEATURES LAN, WiFi and Bluetooth connectivity
LAN connection for high security and Reliability. Simultaneous WLAN and LAN use as a backup if necessary.
1 Channel, 16A
Shelly Pro 1 has a total device rating of 16A.
Dry (potential free) contacts
Use a wide range of output voltage levels. Supports low voltages
Low and high voltage support
Use it to control a variety of AC devices and devices
Enhanced security
Enhanced security features and TLS 1.2 support, enabling a wide range of secure cloud-connected and on-premises integrations.
Script functions
Set custom scenarios by combining Shelly Pro 1 with your other Shelly devices. Endless applications CONTROL ROOM TEMPERATURE IN COMMUNAL AREAS In guest rooms, reception areas, restaurants or meeting rooms, a comfortable temperature contributes significantly to the well-being of guests and employees. However, it is difficult to maintain an optimal temperature without wasting energy. To achieve this, the cooling/heating systems in hotels should adapt to changing temperatures over the course of the seasons. Use Shelly Pro 3 to control the motorized valves in your water distribution box and control heating, cooling or other motorized valves in your building. Intelligent schedules combined with temperature and humidity sensors as well as precise weather data ensure dynamic control of the heating system and thus an optimal indoor climate. LIGHT AUTOMATION OF COMMON SPACES Reduce unnecessary monthly costs with Shelly's intelligent lighting solutions. Shelly Pro 3 can control three separate lighting circuits, giving you full control of common areas such as halls, garages and storage rooms where the lights are usually on all the time. Now you can make them energy efficient with Shelly Pro 3's built-in scheduling and scripting features. To fully automate your space, add Shelly Motion2 to automatically turn on the lights when someone enters. The preset intelligent timer turns the lights off again as soon as the premises are empty again. CONNECTIVITY Wi-Fi
Operates on a 2.4 GHz Wi-Fi network and supports Access Point (AP) and Client Mode (CM) options .
Bluetooth
Now add devices quickly and easily via a Bluetooth connection with the Shelly Cloud app
LAN
LAN connection for high security and reliability. Simultaneous Wi-Fi and LAN use, backup if needed SECURITY Overheat protection
Overload protection (PM devices)
Surge protection (PM devices)
Flame retardant (V-0)FEATURES HTTP/HTTPS webhooks
Sunrise/sunset actions with offsets
Weekly scheduling
Custom scripts (mJs)
grouping
Scenarios PRO SERIES FEATURES HTTP/HTTPS webhooks for fast connection The Shelly Pro series is enhanced with HTTP/HTTPs webhooks and can easily connect to, notify or control other compatible devices or third-party automation systems.Smart actions that follow the sunrise/sunset The Shelly Pro series can turn the power on and off depending on the sunset/sunrise hour, allowing dynamic control of electrical equipment depending on the season. Automation with weekly scheduling With the Shelly Pro series you can control up to 20 Set up actions based on your daily or weekly schedule without the need for an external hub or server. Scripting for custom automation The Shelly Pro Series fully supports mjS scripting, allowing you to create your own features and functionality.

General
Type	Value
Electrical
Power supply voltage AC	110 - 240 V
Power supply voltage DC	N/A
Power consumption	< 3 W
Neutral not needed
Environmental
Ambient temperature	-20 °C to 40 °C / -5 °F to 105 °F
Humidity	30 % to 70 % RH
Max. altitude	2000 m / 6562 ft
Firmware capabilities
Schedules	20
Webhooks (URL actions)	20 with 5 URLs per hook
Scripting
MQTT
CoAP
MCU
CPU	ESP32-D0WDQ6
Flash	8 MB
Output circuits ratings
Max switching voltage AC	240 V
Max switching voltage DC	30 V
Max switching current AC	16 A per channel, 48 A total
Max switching current DC	16 A per channel, 48 A total
Physical
Size (HxWxD)	96x53x59 ±0.5 mm / 3.78x2.01x2.32 ±0.02 in
Radio
RF band	24010- 2495 MHz
Max. RF power	<20 dBm
Wi-Fi protocol	802.11 b/g/n
Wi-Fi Range	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors , (Depends on local conditions)
Bluetooth Protocol	4.2
Bluetooth Range	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors , (Depends on local conditions)
Sensors, meters
Internal-temperature sensor
Weight:
Mounting	DIN rail
Screw terminals max torque	0.4 Nm / 4.43 lbin
Conductor cross section	0.5 to 2.5 mm² / 20 to 14 AWG
Conductor stripped length	6 to 7 mm / 0.24 to 0.28 in
Shell material	Plastic
Color	Black

---
