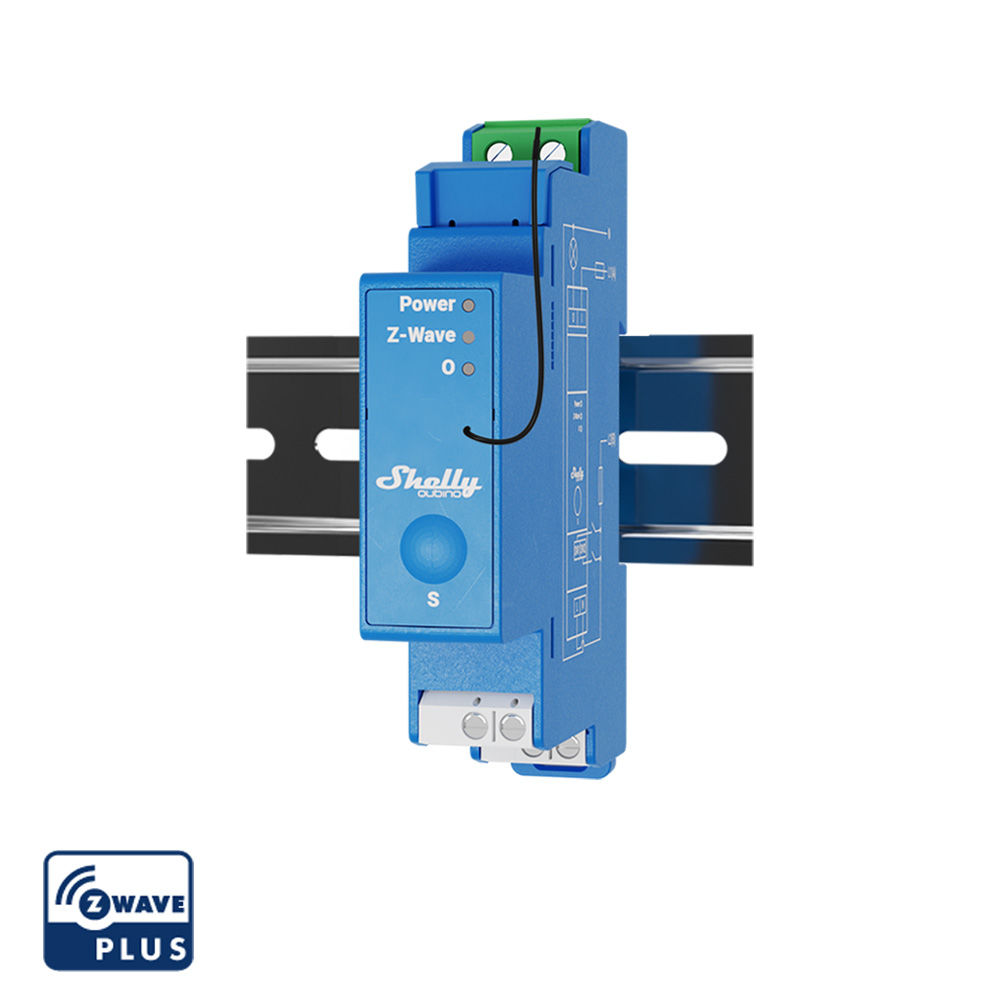

Shelly · DIN rail · Wave Pro 1 · Relay · max. 16A · 1 phase · 1x 16A · Z-Wave

Professional 1-channel DIN rail Z-Wave® Smart Switch with dry contacts? Suitable for home and building automation with remote control. Can be mounted on a DIN rail in the fuse box. Enhanced safety features.?1 output, 16A? Dry contacts (potential free contacts)? DIN rail mounting? Ultra low power consumption: WHY WAVE PRO 1? The best solution for new residential buildings and commercial establishments
Wave Pro 1 is a single-phase 1-channel relay that supports up to 16A for professional lighting and appliance automation in residential and commercial applications. It is equipped with dry contacts (potential free outputs) and offers high flexibility in voltage support and applications. Different types of actions, scenarios and schedules can be set to synchronize your environment with your daily activities or business needs. INTRODUCING Z-WAVE Shelly Qubino works on Z-Wave By using Z-Wave, smart home products can communicate seamlessly with each other, regardless of their brand or platform, thanks to a central smart hub! Shelly Qubino devices work with the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes worldwide.

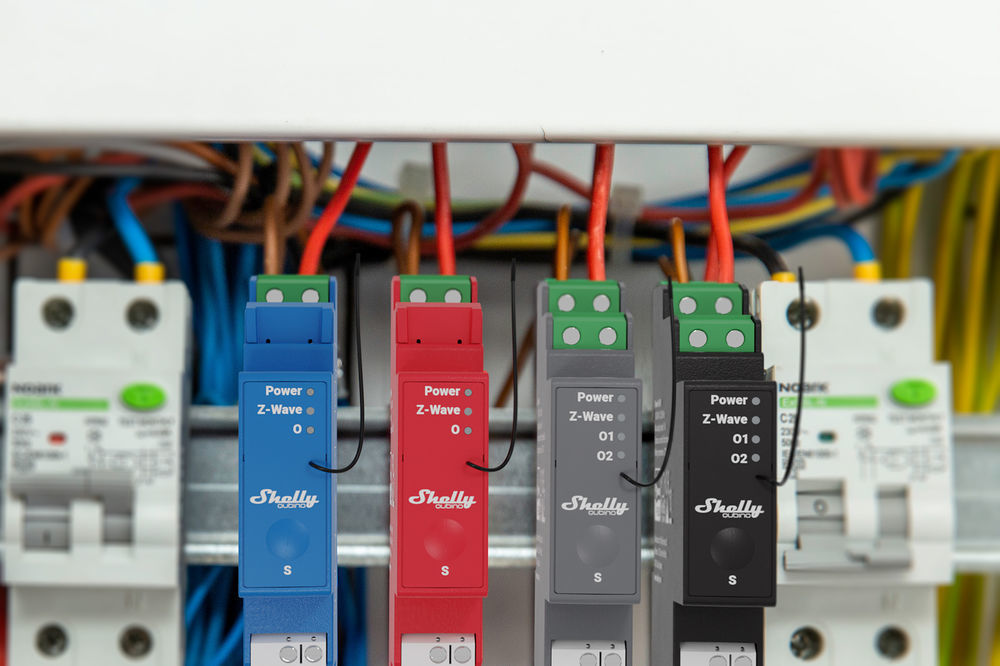

Works with any Z-Wave gateway The Wave Pro series is designed to be installed on the DIN rail in the circuit breaker box. After installation, add the device to your Z-Wave network (Z-Wave gateway is required) and control connected devices from anywhere using your smartphone or tablet. Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways. Functionalities Z-Wave powered
Add Wave Pro 1 to your Z-Wave network and control it remotely. It is compatible with all certified Z-Wave gateways.
1 channel , 16 A
It has a total device rating of 16 A.
Dry contacts
This device supports low and high voltage and allows you to control a wide range of AC devices and appliances.

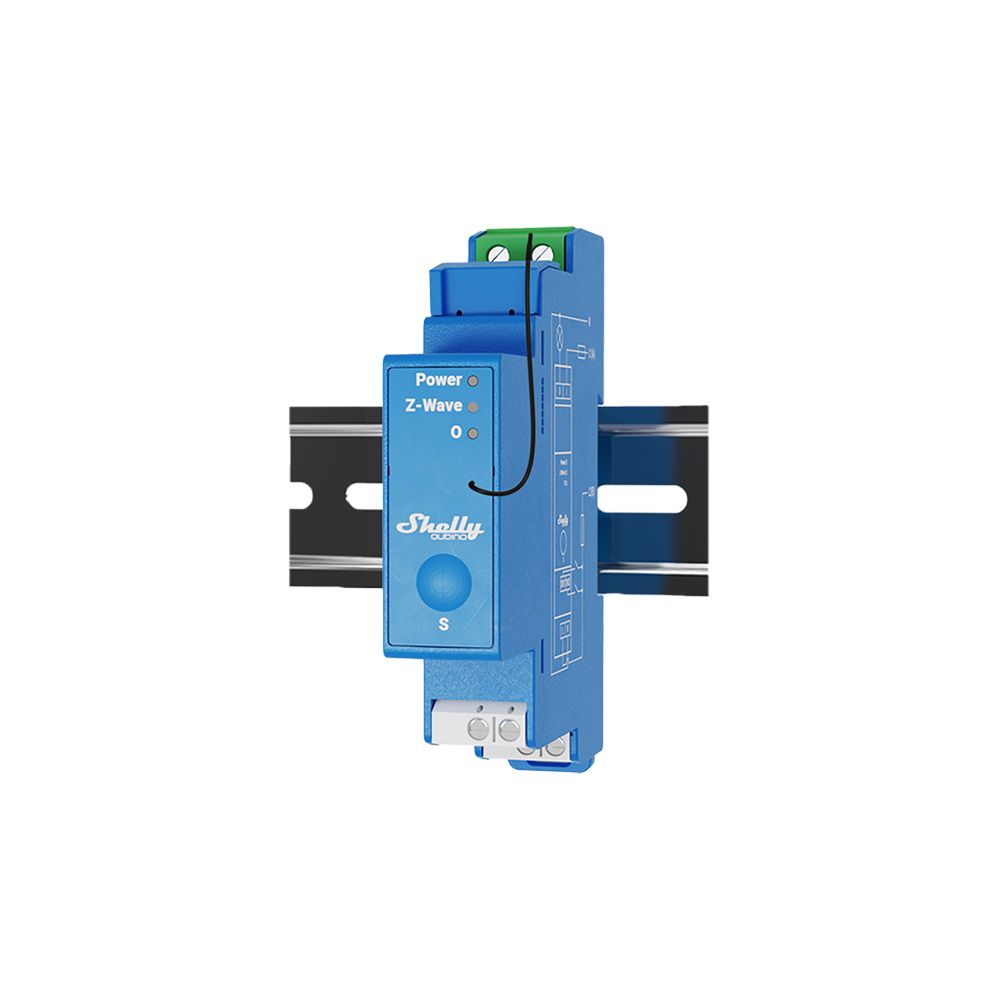

DIN- mountable
Is designed for installation in the breaker box and complies with the worldwide DIN rail standardization.
Associations
Set up direct communication between devices in your local Z-Wave network and set actions without the need for a hub!
The highest level of security
Integrate the device as Security 2 Authenticated for encrypted communication and top security of your Z-Wave network. USE CASESDynamic lighting control for improved efficiency Automate your lighting and optimize its energy consumption through smart schedules, scenes, actions, etc. With Wave Pro 1, you can automate the lighting on each floor separately and set individual schedules for each floor. Set all the lights in the office to turn off when everyone has left the premises and never worry about wasting energy during non-working hours. Socket automation for efficient energy use Make sure no energy is wasted by automating the power supply to sockets with Wave Pro 1 and set smart schedules to turn off the power to all electrical devices between 7 p.m. and 7 a.m. on weekdays, and between 10 a.m. on Friday and 7 a.m. on Monday. This will halve the energy consumption of these devices, resulting in a significant optimization of monthly energy costs. Shared space automation In common spaces such as hallways, garages and storage rooms, the lights are usually always on, resulting in inefficient energy use and unnecessary monthly costs. Set the actions so that the motion sensor* triggers the Wave Pro 1 to turn the lights on when someone enters the building and turn them off once the premises are empty. This ensures the most efficient use of lighting in the common spaces.
Any Z-Wave motion sensor can be used with Wave Pro 1Wave Pro Series The Wave Pro Series has temperature, overload and overvoltage protection* and is designed for installation in the circuit breaker box (DIN). The Pro range enables complete smart automation without additional cables or wires and is perfect for homes, offices, shops, commercial and manufacturing facilities and new buildings.
Overpower and overvoltage functions are only available for devices with power measurement. Safety features Overheat protection If unsafe temperature levels or rapid temperature rise occur, the device switches off the outputs and sends a notification. Specifications Power supply 110-240 VAC, 50/60 Hz Power consumption Max. switching voltage AC 240 V Max. switching current AC 16 A Max. switching voltage DC N/A Max. switching current DC N/A Overheat protection Yes Power measurement (W) NO Distance Up to 40 m indoors (depending on local conditions) Z-Wave repeater Yes CPU Z-Wave S800 Z-Wave frequency bands 868.4 MHz Maximum transmitted radio frequency power in frequency curve(s) Size (H x W x D) 94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in Weight 60 g / 2.12 oz. Mounting DIN rail screw terminals Max. torque 0.4 Nm / 3.54 lbs Conductor size 0.5 to 2.5 mm / 20 to 14 AWG (green connector) 0.5 to 1.5 mm / 20 to 16 AWG (white connector) Stripped conductor length 6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (white connector) Shell material Plastic Color Blue Ambient temperature -20 °C to 40 °C / -5 °F to 105 °F Humidity 30 % to 70 % relative humidity Max. altitude 2000 m / 6562 ft.
