Shelly · DIN rail · Pro Dimmer 1PM · LEDs & light bulbs · 1 channel · Measuring function · WLAN · LAN · BT

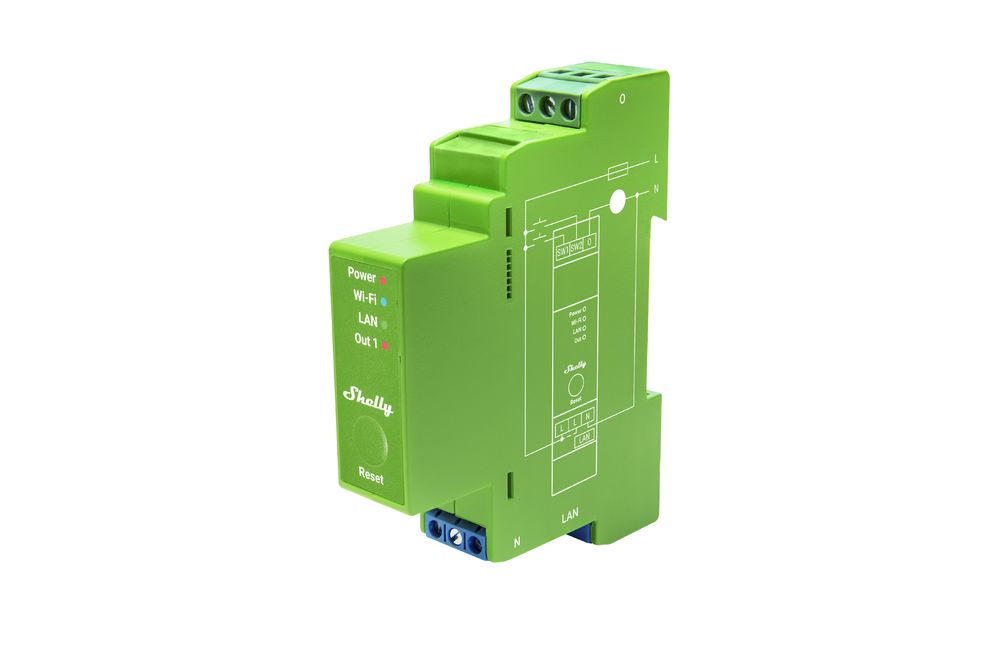

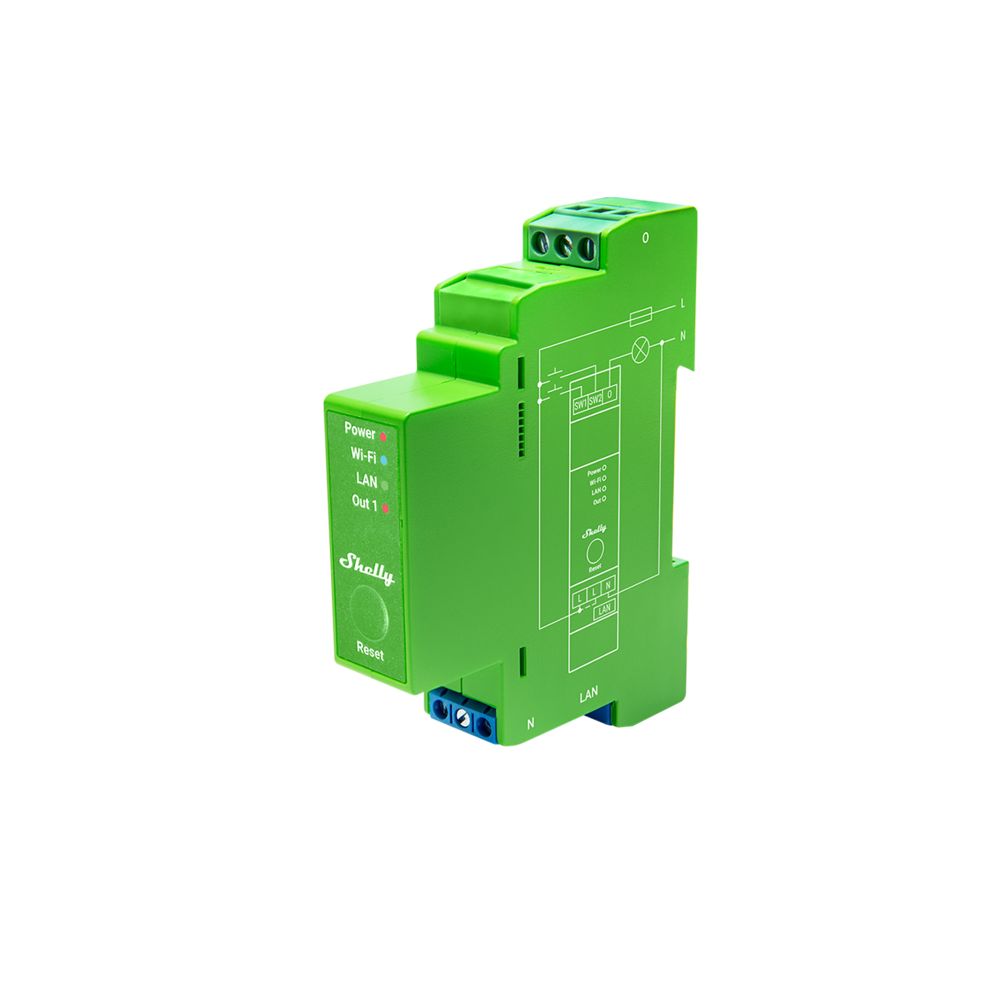

Professional 1 Channel DIN Rail Smart Dimmer with Power Monitoring LAN, WiFi and Bluetooth connection Power measurement and free storage data Night mode for lower brightness during night hours Automatic calibration of dimming type and load Multiple dimming types for different types of bulbs – leading and trailing edge Switch/button input mode Use with your existing switches (single/double button control) Adjustable min/max brightness Adjustable button fade rate and transition time No hub required! Easy control via Shelly Smart Control app, most platforms and protocols, and voice assistants. Use it with Alexa, Home Assistant or your favorite automation platform Wi-Fi range extender and BLE gateway Extremely fast processor for instant response – ESP32 Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates WHY SHELLY PRO DIMMER 1 PM? The best dimming solution for new residential and commercial establishments Shelly Pro Dimmer 1PM is a DIN rail mountable single channel smart dimmer with power monitoring. Use it to control, dim and power meter a wide range of halogen lamps, dimmable LEDs and ferromagnetic transformers between 110-240V. Different types of actions, scenarios and schedules can be set to adapt your lighting environment to your daily activities or business needs. Shelly Pro Series The Shelly Pro series is equipped with temperature, overload and overvoltage protection and is designed for installation in the circuit breaker box (DIN). The Shelly Pro range enables complete smart automation without additional cables or wires and is perfect for homes, offices, shops, commercial and manufacturing facilities and new buildings.Functionalities LAN, Wi-Fi and Bluetooth connectivity LAN connection for high security and reliability. Simultaneous WiFi and LAN use, as a backup when needed.Light intensity adjustment The dimming function allows you to adjust the brightness of your lighting to your liking. Power monitoring Shelly Pro Dimmer 1PM offers precise monitoring of power consumption. Flexible input control Use it with your existing switches, whether they are single or double switches.Increased security and protection Improved security features and TLS 1.2 support enable a wide range of secure, cloud-connected and local integrations. Smart scenes Set custom scenes by combining Shelly Pro Dimmer 1PM with your other Shelly devicesUse cases Brightness that suits your activities Shelly Pro Dimmer 1PM gives you fine-tuned control to perfectly adjust your lighting.Set the minimum and maximum brightness to suit both your personal preferences and the capabilities of your bulbs to ensure the lighting in your home is always just right. But the Shelly Pro Dimmer 1PM offers more than just customized brightness. It also lets you preset your favorite lighting scenes for different activities and moods. Whether you want to set the atmosphere for a relaxing evening or ensure the best brightness for focused tasks, simply use your existing wall switch to quickly switch between your chosen atmosphere. Lights that follow the sun Add a beautiful exterior to your property and ensure the safety you need by controlling your outdoor and driveway lighting. Shelly Pro Dimmer 1PM can help you reduce energy consumption by dimming appliances down to 30% after 10 p.m. Optimized energy consumption Shelly Pro Dimmer 1PM is an ideal solution for various dimming and power metering needs - from sprawling multi-room homes to the demanding requirements of hotels or large office spaces. As part of the Professional Line series, the device is designed for seamless integration into a DIN rail housing, allowing you to precisely control and monitor lighting in different rooms. This allows you to better plan your business expenses and strategically optimize energy consumption to increase efficiency and profitability.As part of the Professional Line series, the device is designed for seamless integration into a DIN rail enclosure, allowing you to precisely control and monitor lighting in different rooms. This allows you to better plan your business expenses and strategically optimize energy consumption to increase efficiency and profitability.As part of the Professional Line series, the device is designed for seamless integration into a DIN rail enclosure, allowing you to precisely control and monitor lighting in different rooms. This allows you to better plan your business expenses and strategically optimize energy consumption to increase efficiency and profitability.
Pro Line FeaturesConnectivity Wi-Fi
Works with a 2.4 GHz Wi-Fi network and supports Access Point (AP) and Client Mode (CM) options.
Bluetooth
Add devices quickly and easily via Bluetooth connection with the Shelly Cloud App
LAN

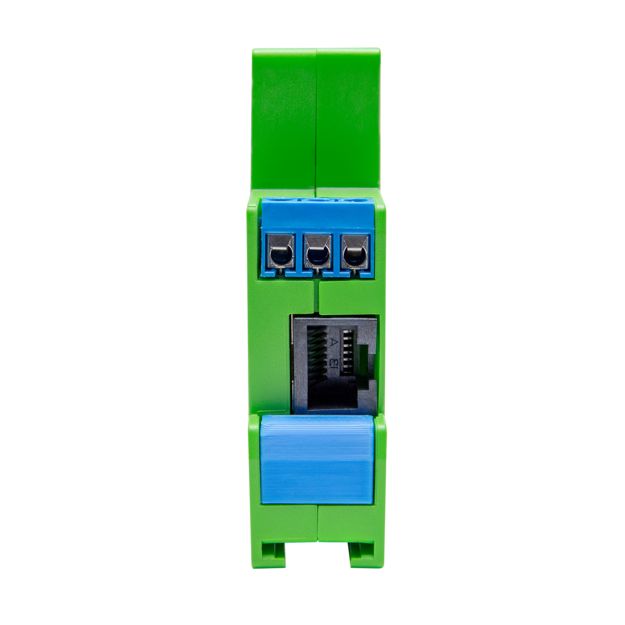

LAN connection for high security and reliability. Simultaneous Wi-Fi and LAN use as backup when needed.Safety Temperature protection
Surge protection (PM devices)
Surge load protection (PM devices)
Flame retardant (V-0)Features HTTP/HTTPS webhooks
Sunrise/sunset actions with offsets
Weekly scheduling
Custom scripts (mJs)
Scene grouping
Pro Series Features
HTTP/HTTPS webhooks for quick connection Equipped with HTTP/HTTPs webhooks, Shelly Pro series can easily connect, notify or control other compatible devices or third-party automation systems.Smart actions that follow sunrise/sunset Shelly Pro series can turn the power on/off according to the sunset/sunrise hour, allowing dynamic control of electrical equipment according to the season.
Automation with weekly scheduling
The Shelly Pro range allows you to set up up to 20 actions based on your daily or weekly schedule without the need for an external hub or server.Scripting for custom automation The Shelly Pro range fully supports mjS scripting, allowing customers to create their own features and functionalities.Full compatibility Shelly devices are compatible with Alexa, Google Home, Android and iOS . Together with the voice assistant, you can control Shelly devices using only your voice! SMART HOME CONTROL, PERFECTED. Shelly Smart Control –

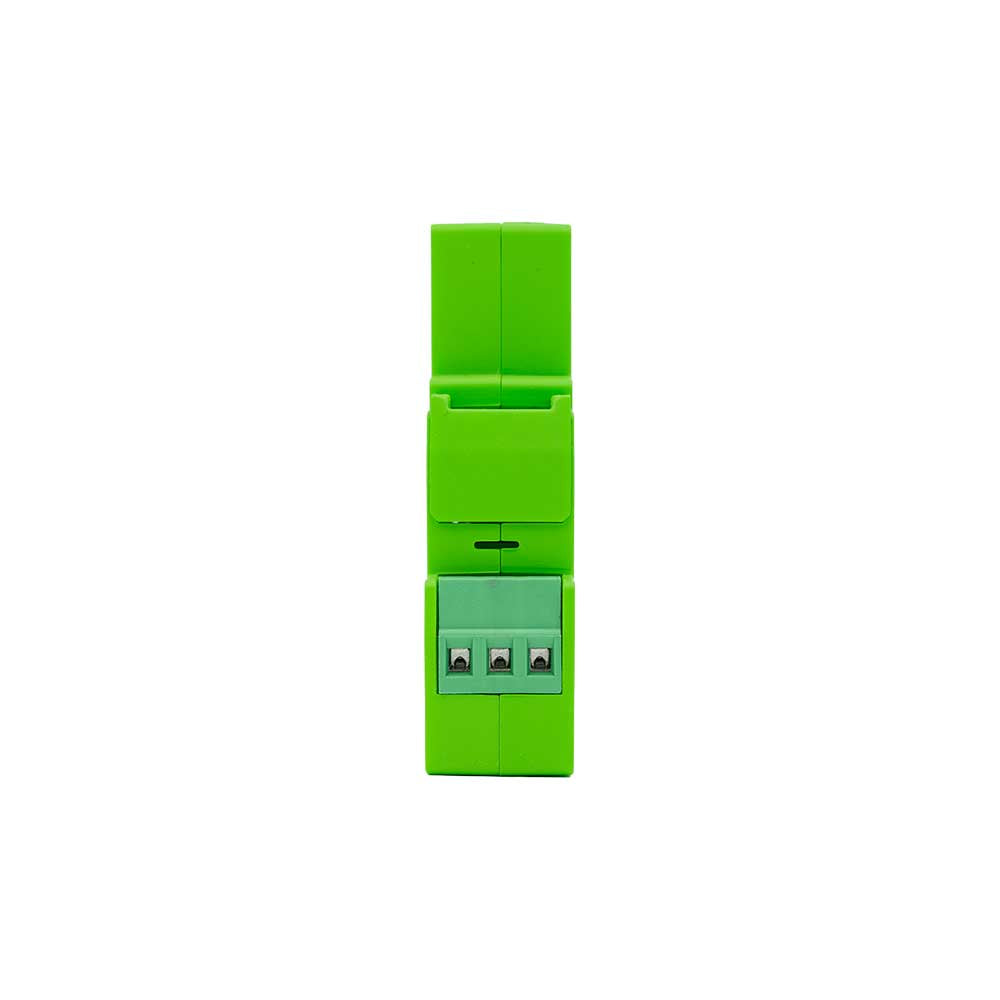

an app to control your rooms, your energy consumption and your expenses. Specifications SUPPORTED LOAD TYPES HV LED Lamps (Dimmable) 200W Dimmable Electronic Transformers 180W HV LED Lamps (Non-Dimmable) 110W (On/Off Mode) Incandescent Lamps 200W HV Halogen Lamp 200W Wound Transformer 200VA CFL 50W PHYSICAL Dimensions (LxWxH) 94 x 19 x 69mm / 3.70 x 0.75 x 2.71in Weight 75g / 2.7oz Ambient Temperature -20°C to 40°C / -4°F to 104°F Humidity 30% to 70% RH Max Altitude 2000m / 6562ft Maximum Screw Terminal Torque 0.4Nm / 3.5lbs Conductor Cross Section 0.5 to 2.5mm2 / 20 to 14 AWG (green terminals)0.5 to 1.5 mm2 / 20 to 16 AWG (blue terminal) (solid, stranded and ferrule) Stripped conductor length 6 to 7 mm / 0.24 to 0.28 in. (green terminals) 5 to 6 mm / 0.20 to 0.24 in. (blue terminal) Power supply 110-240 V~ 50/60 Hz Power consumption External protection max. 10 A, trip characteristic B or C, 6 KA BREAKING POWER, ENERGY LIMITATION CLASS 3 Max. output power 200 W Dimming type Leading edge, trailing edge Supported loads Incandescent DIMMABLE LED AND CFL - DIMMABLE ELECTRONIC TRANSFORMERS RF band 2400 - 2495 MHz Max. RF power Wi-Fi protocol 802.11 b/g/n Wi-Fi range (depending on local conditions) up to 50 m / 160 ft outdoors, up to 30 m / 100 ft indoors Bluetooth protocol 4.2 Bluetooth range (depending on local conditions) up to 30 m / 100 ft outdoors, up to 10 m / 33 ft indoors CPU ESP32-D0WDQ6 Flash 8 MB Schedules 20 Webhooks (URL actions) 20 with 5 URLs per hook Scripting Yes MQTT Yes
