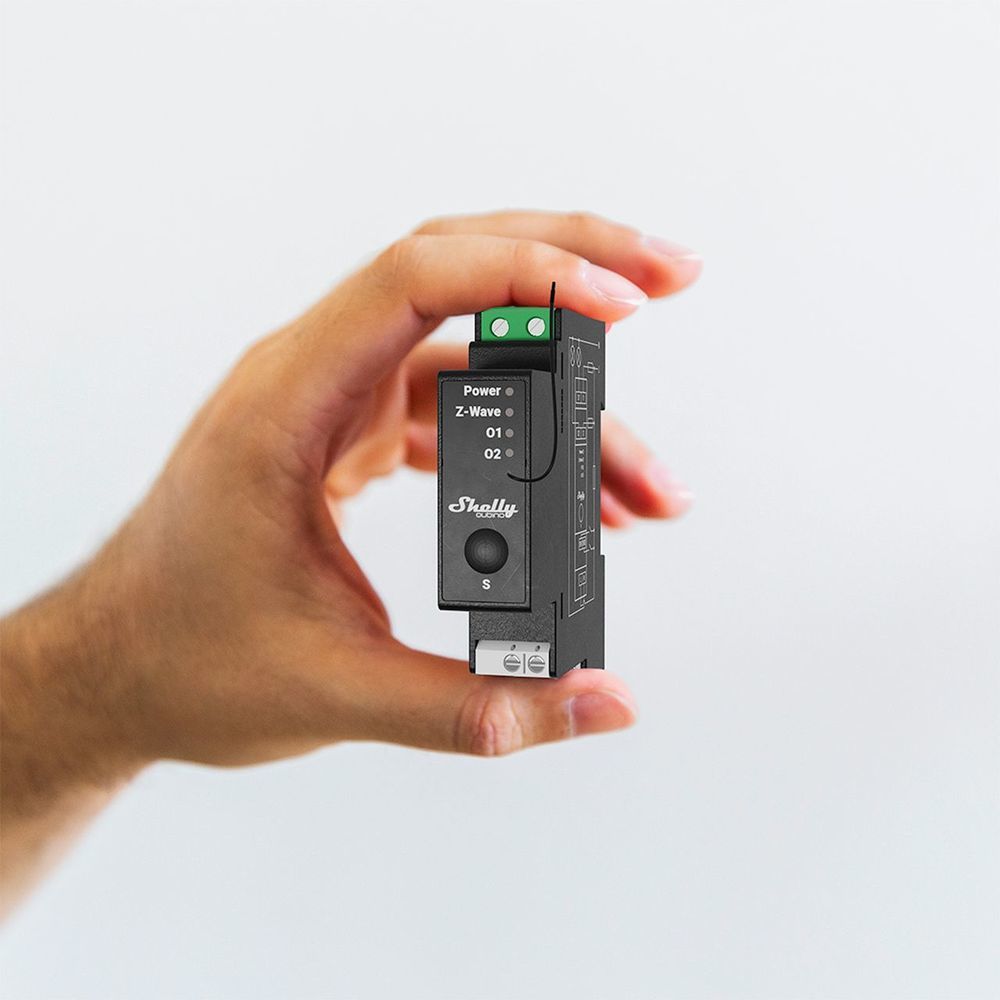

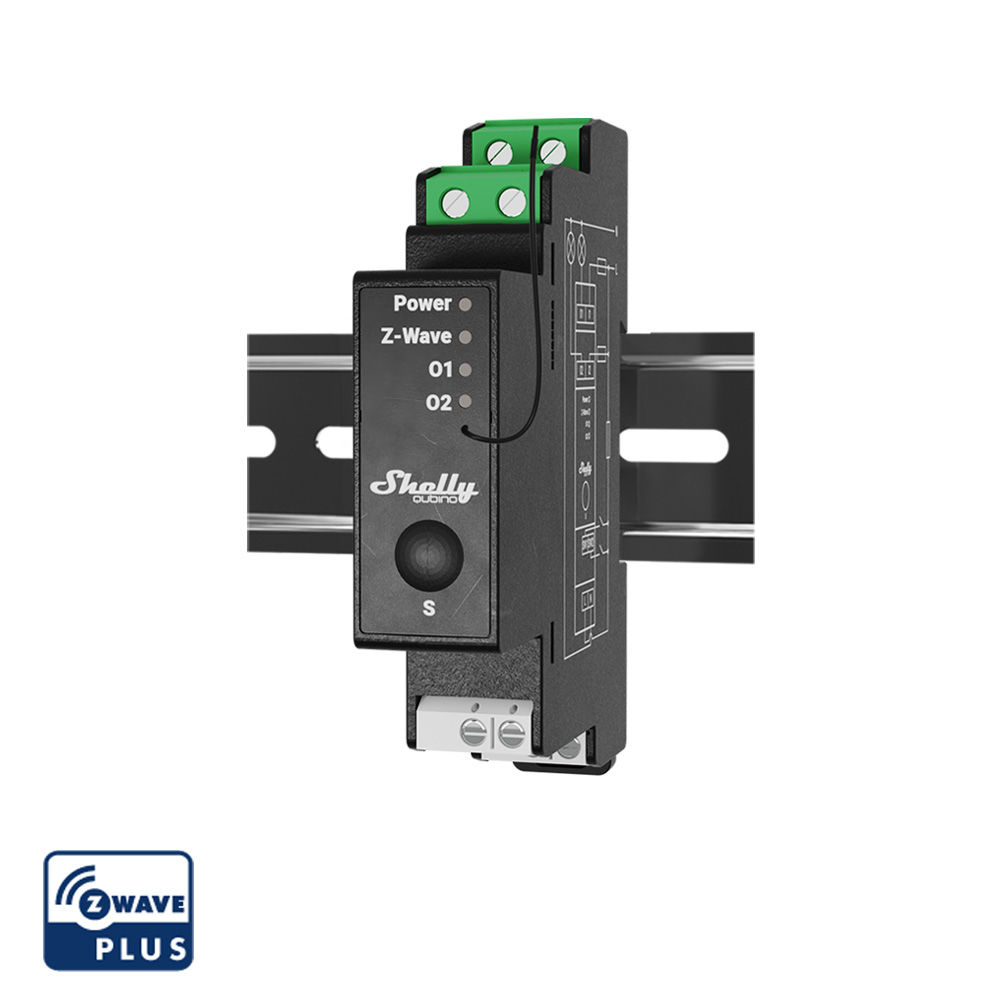

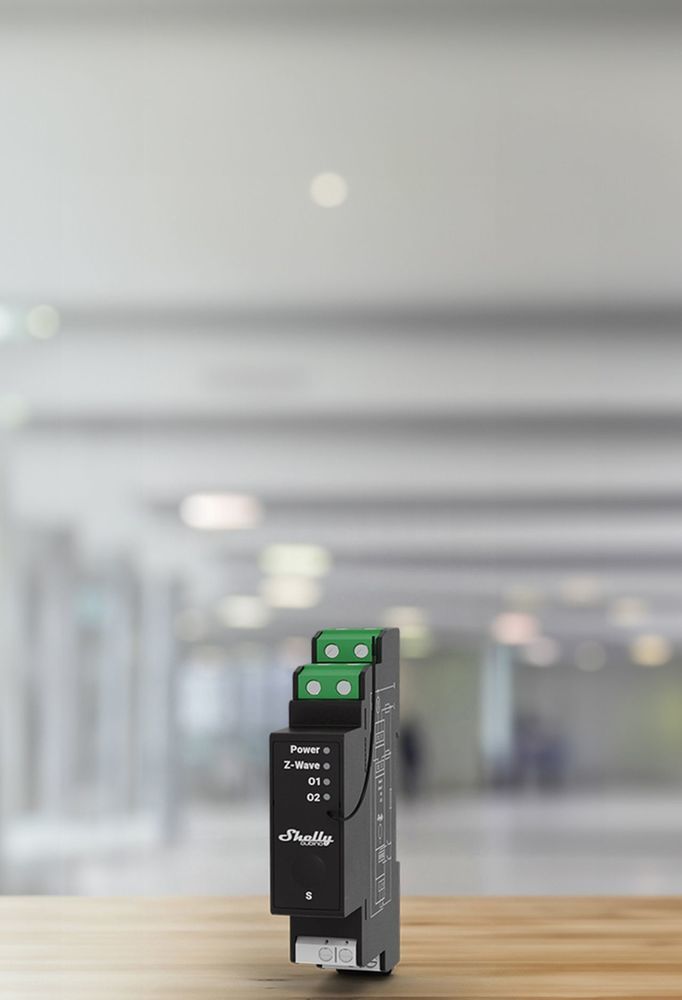

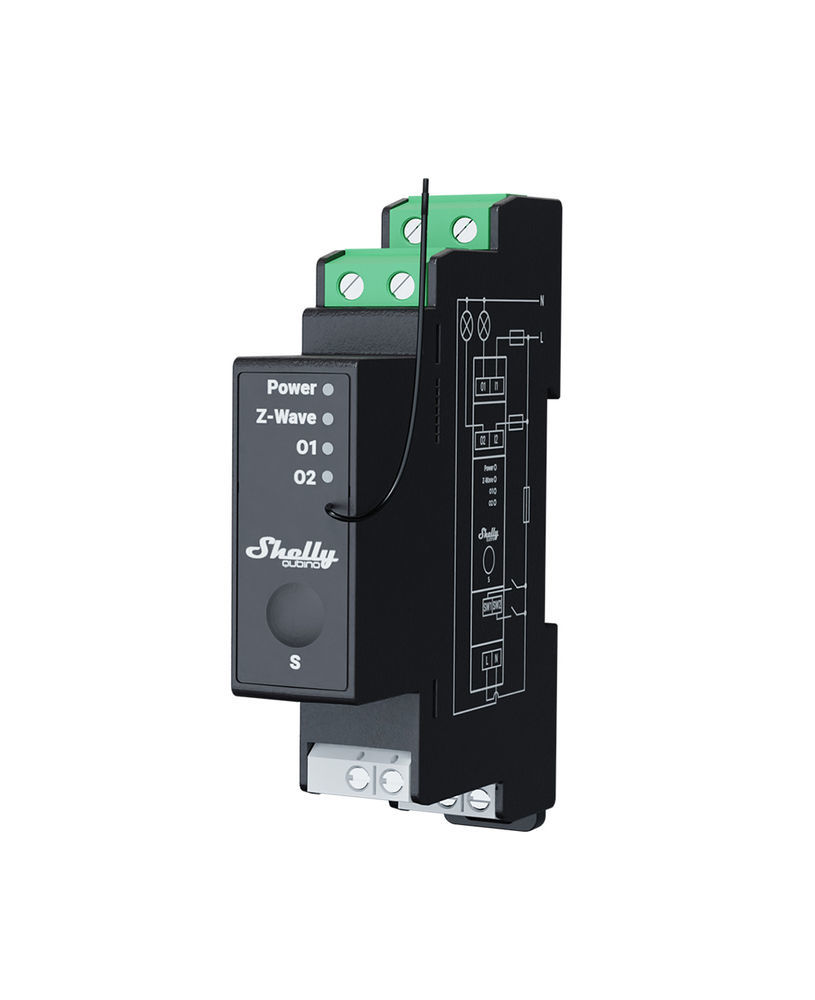

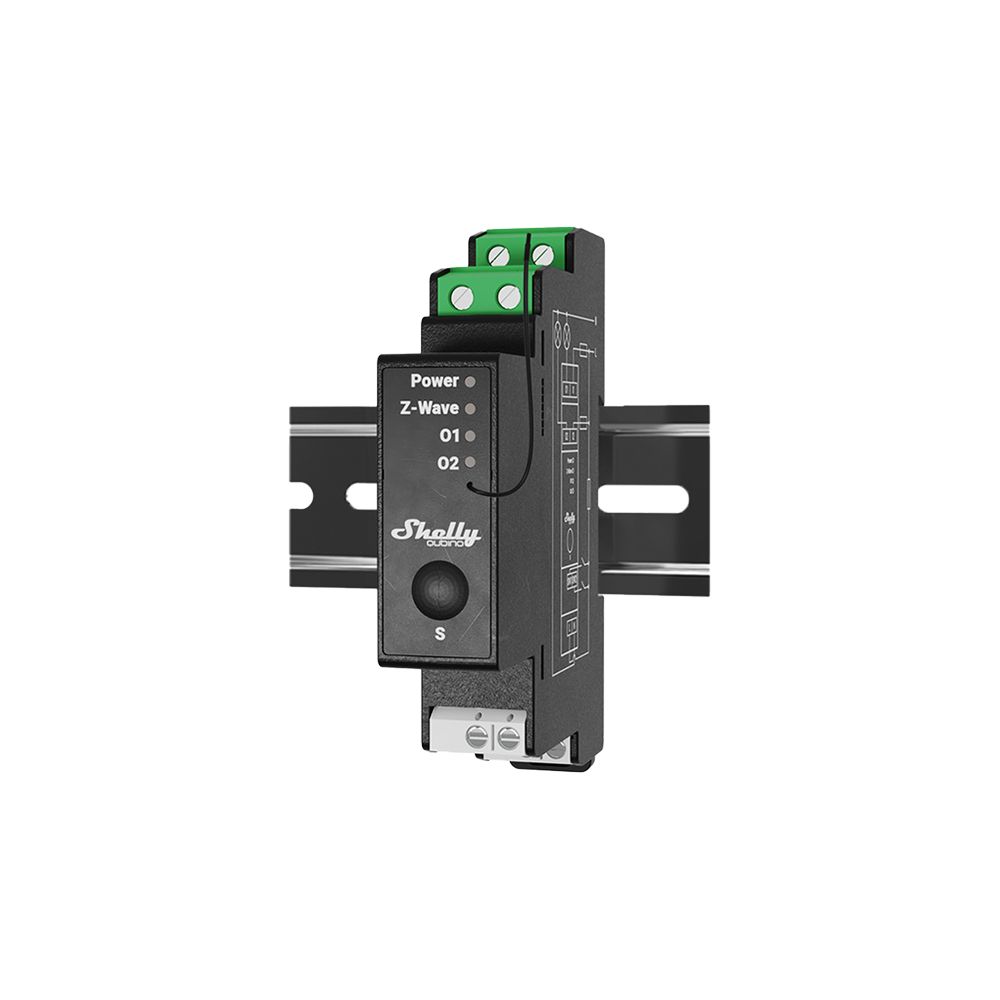

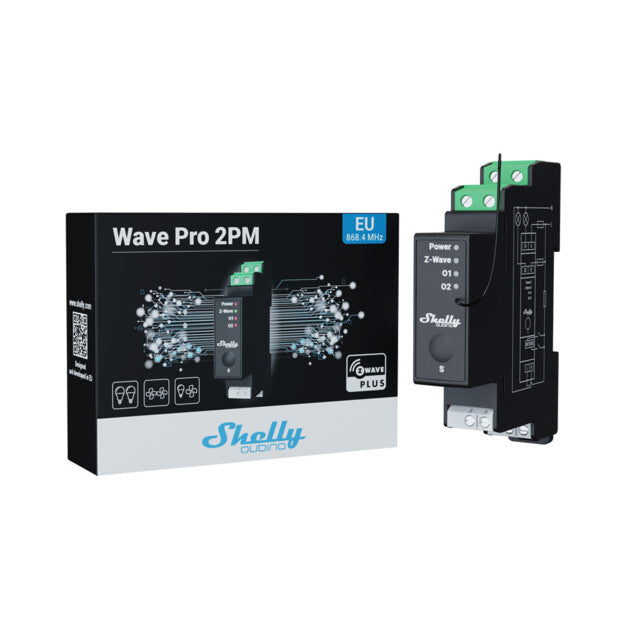

Shelly · DIN rail · Wave Pro 2PM · Relay · max. 25A · 1 phase · 2x 16A · Measuring function · Z-Wave

Professional 2-channel DIN rail Z-Wave® smart switch with power measurement Suitable for home and building automation with remote control. DIN rail mounting in a circuit breaker box. Advanced security features.2 outputs, 16 A each. Total device maximum 25 A. Power measurement on each channel individually and together DIN rail mounting possible 1-phase control Extremely low power consumption: Z-Wave frequency band: 868.4 MHz (CEPT countries). Latest technology: Z-Wave 800 series Automatic setup with SmartStart Security 2 Authenticated for highest security Over-the-air firmware updates Works with Z-Wave certified gateways and over 4,000 Z-Wave devices A gateway (smart hub) is not included. A gateway (smart hub) is required to configure the device.WHY WAVE PRO 2 PM? The best solution for new residential buildings and commercial establishments
Wave Pro 2PM is a single-phase 2-channel relay that supports up to 16A per channel with a total device capacity of 25A. It is equipped with two integrated power meters that allow customers to control and monitor consumption for each channel separately and/or together. Different types of actions, scenarios and schedules can be set to synchronize your environment with your daily activities or business needs. INTRODUCING Z-WAVE Shelly Qubino works on Z-Wave By using Z-Wave, smart home products can communicate seamlessly with each other, regardless of their brand or platform, thanks to a central smart hub! Shelly Qubino devices work with the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes worldwide.

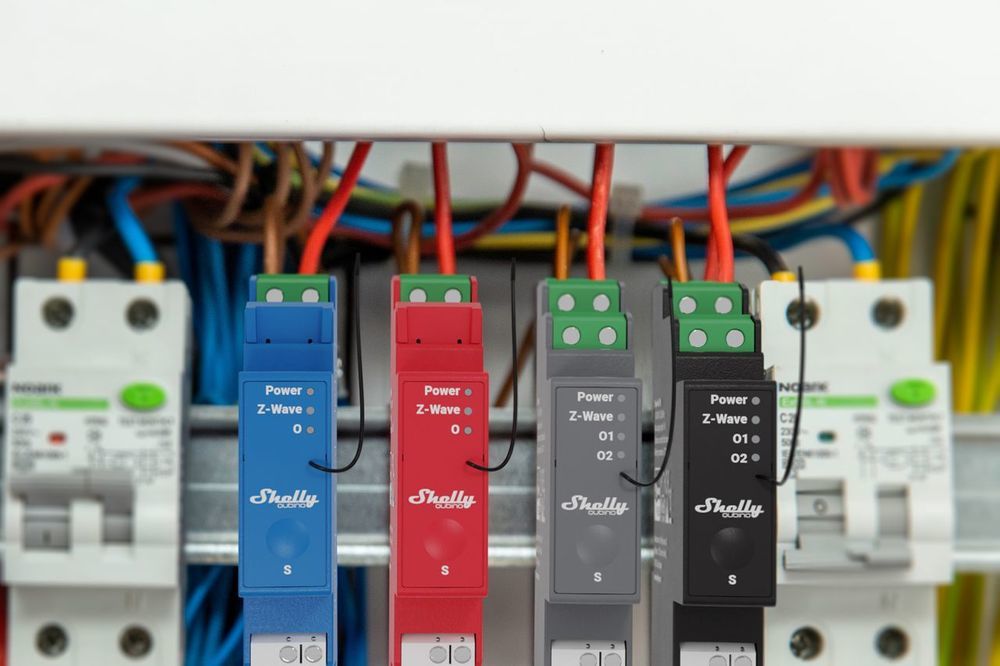

Works with any Z-Wave gateway Wave Pro series is designed to be installed on the DIN rail in the circuit breaker box. After installation, include it in your Z-Wave network (Z-Wave gateway is required) and control connected devices from anywhere using your smartphone or tablet. Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways. Functionalities Z-Wave powered Add Wave Pro 2PM to your Z-Wave network and control it remotely. It is compatible with all certified Z-Wave gateways.2 outputs of 16A each Wave Pro 2PM has a total device power of 25A. Power measurement Wave Pro 2PM offers precise monitoring of power consumption on each channel (W) or together (W, kWh).Wide range of voltage support Use it to control a wide variety of AC devices and appliances. Associations Set up direct communication between devices in your local Z-Wave network and set actions without the need for a hub! The highest level of security Integrate the device as Security 2 Authenticated for encrypted communication and the highest security of your Z-Wave network.USE CASES Endless use cases Dynamic light control for greater efficiency Automate your lighting and optimize its energy consumption through smart schedules, scenes, actions, etc. With Wave Pro 2PM you can automate the lighting on each floor separately and set individual schedules for each floor. Set all the lights in the office to turn off when everyone has left the premises and don't worry about wasting energy during non-working hours.Smart conference room Automate the conference rooms so they are fully ready for your business meetings. Establish local (direct) communication between Z-Wave devices in your network and execute actions without a Z-Wave gateway. The motion sensor causes the Wave Pro 2PM to turn on the lights and projector, so the conference room is instantly ready for your presentation!
Any Z-Wave motion or door sensor can be used with Wave Pro 2PMTrack and optimize your energy consumption Keep an eye on real-time consumption of devices and prevent unnecessary energy consumption in the office on weekends! With Wave Pro 2PM, you can precisely measure power consumption for each channel individually (W) and together (W, kWh). There are many devices that employees forget to turn off when leaving the office on Friday, such as monitors, plugged-in chargers, desk lamps or printers, which puts an unnecessary burden on monthly bills. Use smart schedules to cut power to office devices on the weekend and restore it before employees arrive at the office. Preventative management When an electrical device is damaged, it doesn't just stop working. It usually increases the amount of energy consumed to balance the operating capacity. Since there is no visible difference in performance, it can take months before you notice a problem, resulting in inefficiency and wasted energy. Wave Pro 2PM, on the other hand, immediately reports the increase in energy consumption and saves you additional costs for repairs or replacement of equipment.Wave Pro Series The Wave Pro series has temperature, overload and overvoltage protection* and is designed for installation in the circuit breaker box (DIN). The Pro range enables complete intelligent automation without additional cables or wires and is perfect for homes, offices, shops, commercial and manufacturing plants and new buildings.
Safety devices
Overheating protection
If the temperature level is unsafe or the temperature rises rapidly, the device shuts off the outputs and sends a notification. The internal temperature sensor measures the heat every 100 ms. Specifications Power supply 110-240 VAC, 50/60 Hz Power consumption Power metering (W) Yes Max. switching voltage AC 240 V Max. switching current AC 16 A per channel, 25 A total Max. switching voltage DC N/A Max. switching current DC N/A Overheat protection Yes Overvoltage protection Yes Overcurrent protection Yes Distance Up to 40 m indoors (depending on local conditions) Z-Wave repeater: Yes CPU Z-Wave™ S800 Z-Wave frequency bands 868.4 MHz Maximum transmitted radio frequency power in frequency bands Size (H x W x D) 94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in Weight 75 g / 2.65 oz. Mounting DIN rail screw terminals Max. torque 0.4 Nm / 3.54 lbs Conductor cross section 0.5 to 2.5 mm² / 20 to 14 AWG (green terminals) 0.5 to 1.5 mm² / 20 to 16 AWG (white terminals) Stripped conductor length 6 to 7 mm² / 0.24 to 0.28 in (green terminals) 5 to 6 mm / 0.20 to 0.24 in (white terminals) Shell material Plastic Color Black Ambient temperature -20 °C to 40 °C / -5 °F to 105 °F Humidity 30 % to 70 % relative humidity Max. altitude 2000 m / 6562 ft.
