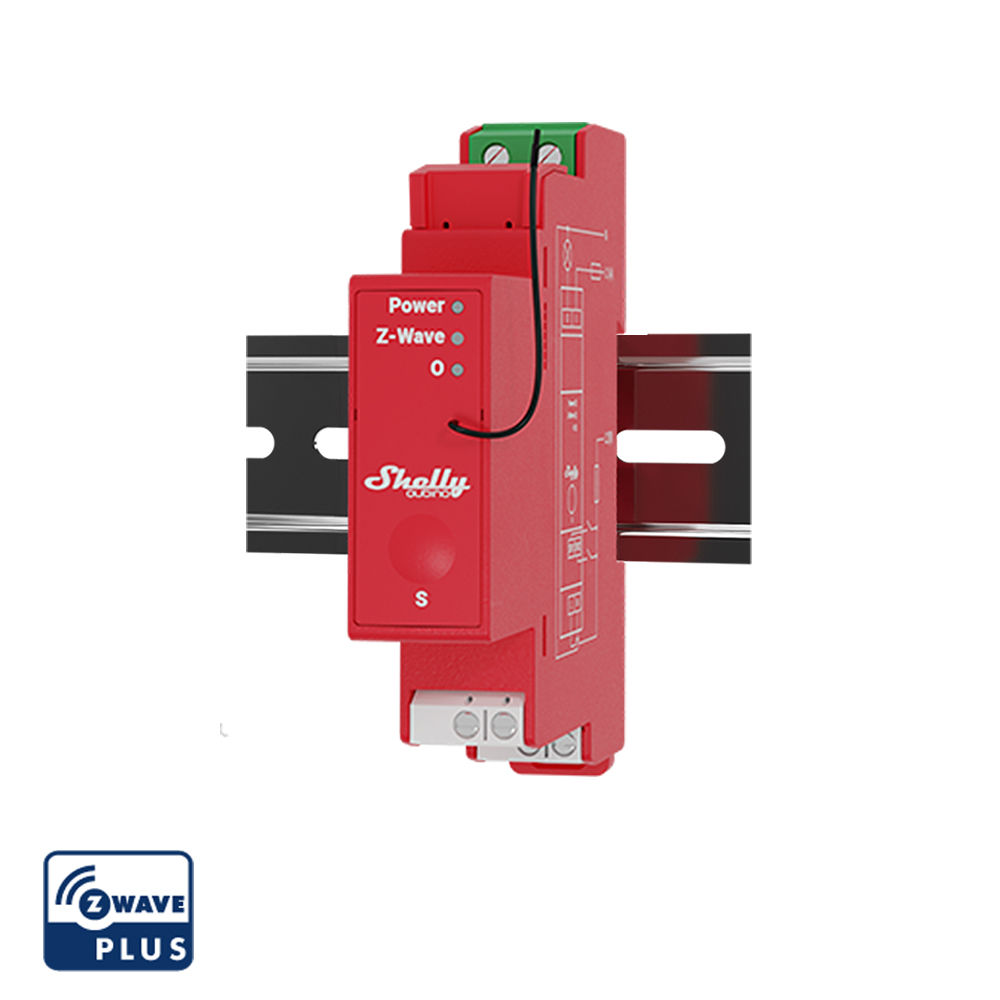

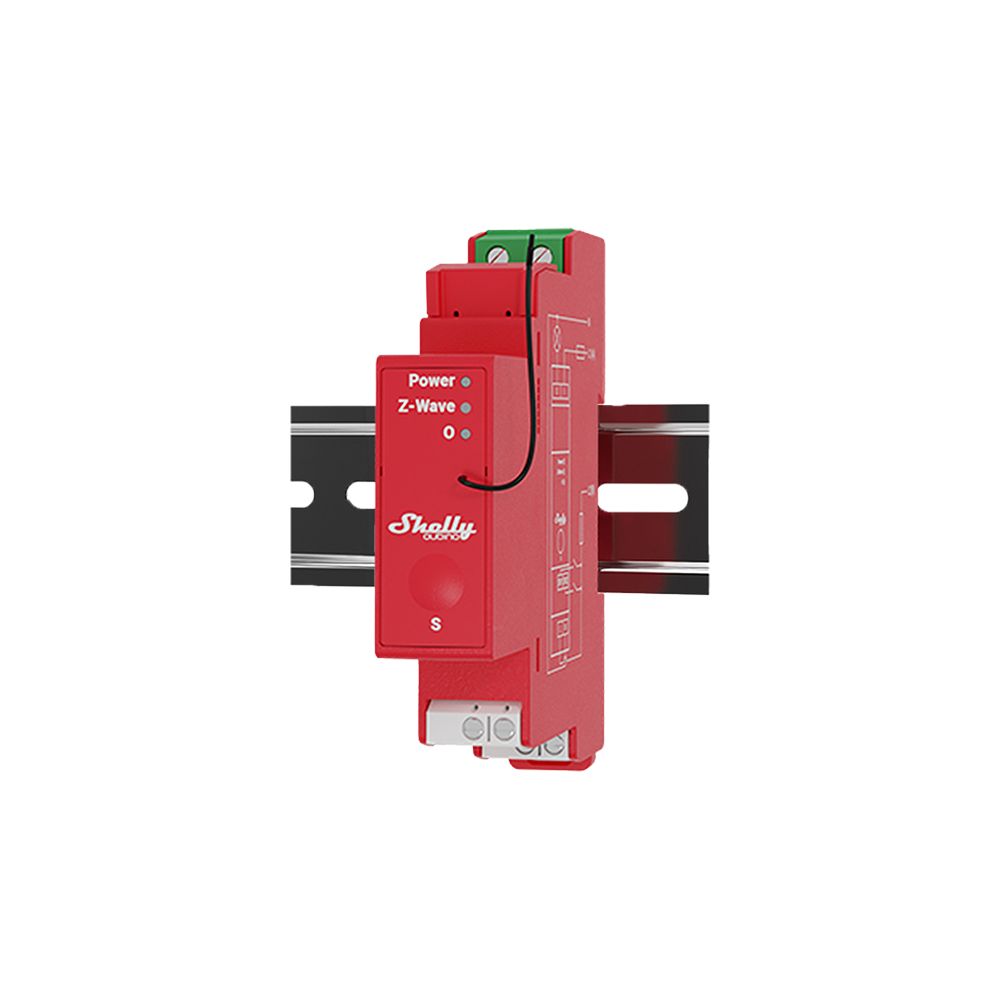

Shelly · DIN rail · Wave Pro 1PM · Relay · max.16 A · 1 phase · 1x 16A · Measuring function · Z-Wave

Professional 1-Channel DIN Rail Z-Wave® Smart Switch with Power Metering?
Suitable for home and building automation with remote control. Can be mounted on a DIN rail in the fuse box. Enhanced safety features.1 Output, 16A Power Metering DIN Rail Mounting Ultra Low Power Consumption: WHY WAVE PRO 1PM?
The best solution for new residential buildings and commercial establishments
Wave Pro 1PM is a single-phase, 1-channel relay supporting up to 16A. Equipped with an integrated power meter, Wave Pro 1PM allows you to measure the power consumption of any automated lights or heavier equipment. Different types of actions, scenarios and schedules can be set to adapt your environment to your daily activities or business needs.Works with any Z-Wave gateway The Wave Pro Series is designed to be installed on the DIN rail in the fuse box. After installation, add the device to your Z-Wave network (a Z-Wave gateway is required) and control connected devices with your smartphone or tablet from anywhere. Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways.
FEATURES Z-Wave powered:
Include Wave Pro 1PM in your Z-Wave network and control it remotely. It is compatible with all certified Z-Wave gateways.
1 channel, 16 A:
It has a total output power of 16 A.
Power monitoring:
Wave Pro 1PM offers precise monitoring of energy consumption.
Wide voltage support:
Use it to control a variety of AC devices and appliances.
Associations:
Establish direct communication between devices in your local Z-Wave network and create actions without a hub!
Highest level of security:
Include the device as Security 2 Authenticated to ensure encrypted communication and the highest security of your Z-Wave network.
Control and monitoring of devices
Forecast monthly costs and plan your expenses better! Automate the electrical devices in the restaurant and track their energy consumption wherever you are. Get a notification in case an appliance is forgotten and left running outside of the restaurant's business hours, so you can turn it off to avoid wasting energy. In addition, you can set smart schedules to cut off the power to all unused electrical devices during the night and turn them back on just before the next use.
Avoid unnecessary energy consumption by controlling the power supply to office equipment
Stop unnecessary energy consumption in the office on weekends! Computers and monitors that someone forgot to turn off, plugged-in chargers, lit desk lamps, printers and copiers left on, etc. - all of these devices consume energy when no one is in the office, adding unnecessary strain to monthly bills. Avoid this by setting the Wave Pro 1PM to cut off the power supply to office equipment on weekends to save energy. Use smart scheduling features to restore power before employees arrive at the office.
Preventative Management
When an electrical device is damaged, it doesn't just stop working. Typically, it increases energy consumption in an attempt to balance its operating capacity. Since there are no visible differences in performance, it can take months before you identify a problem, wasting energy. The Wave Pro 1PM, on the other hand, immediately reports the increase in energy consumption, saving you additional costs for repairs or replacing equipment.
Technical specificationsPower supply 110-240 V AC, 50/60 Hz Power consumption < 0.3 W Power measurement (W) Yes Max. switching voltage AC 240 V Max. switching current AC 16 A Max. switching voltage DC N/A Max. switching current DC N/A Overheat protection Yes Overload protection Yes Overvoltage protection Yes Distance Up to 40 m indoors (131 ft.) (depending on local conditions) Z-Wave repeater Yes CPU Z-Wave S800 Z-Wave frequency bands 868.4 MHz Maximum transmitted radio frequency power in frequency band(s) < 25 mW Size (H × W × D) 94 x 19 x 69 ±0.5 mm / 3.7 x 0.75 x 2.71 ±0.02 in Weight 61 g / 2.15 oz. Mounting DIN rail screw terminals Max. torque 0.4 Nm / 3.54 lbin Conductor cross section 0.5 to 2.5 mm² / 20 to 14 AWG (green terminal) 0.5 to 1.5 mm² / 20 to 16 AWG (white terminals) Stripped conductor length 6 to 7 mm / 0.24 to 0.28 in (green terminal) 5 to 6 mm / 0.20 to 0.24 in (white terminals) Housing material Plastic Color Red Ambient temperature -20 °C to 40 °C/-5 °F to 105 °F Humidity 30% to 70% RH Max. altitude 2000 m / 6562 ft.
