Shelly DIN rail Pro 1PM Relay max. 16A 1 phase 1 channel Measuring function WLAN LAN BT content_copy

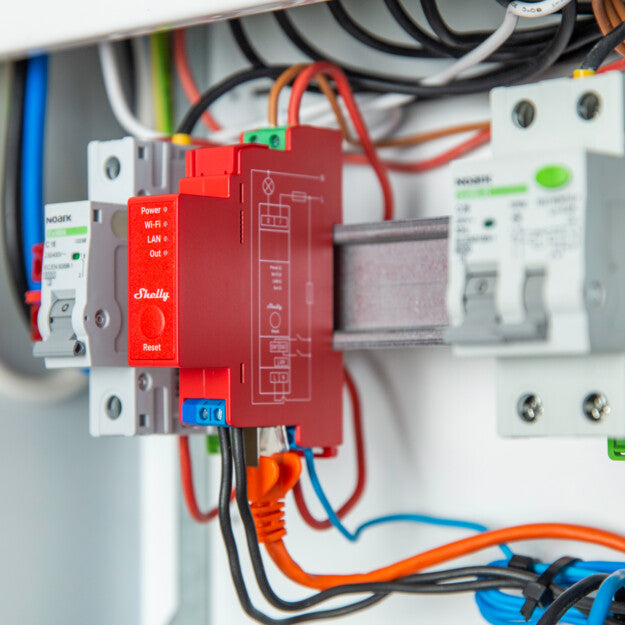

WHY SHELLY PER 1PM? Smart home solution for new residential and commercial buildings Shelly Pro 1PM is a single phase 1 channel relay that supports up to 16A. Equipped with an integrated power meter, Shelly Pro 1PM allows its users to accurately measure the power consumption of any automated lighting or larger installation. Different types of actions, scenarios and schedules can be set to synchronize your environment with your daily activities or business needs. In addition, Shelly Pro 1PM has scripting capabilities for custom automation scenarios based on external data or various events. Shelly Pro Series The Shelly Pro Series is enhanced with temperature, overload and over-voltage load protection and is designed for installation in the fuse box (DIN). The Shelly Pro series enables complete intelligent automation without additional wires or cabling and is perfect for homes, offices, shops, commercial and manufacturing facilities as well as new buildings. FEATURES LAN, WiFi and Bluetooth connectivity
LAN connection for high security and Reliability. Simultaneous WLAN and LAN use, as a backup if necessary.

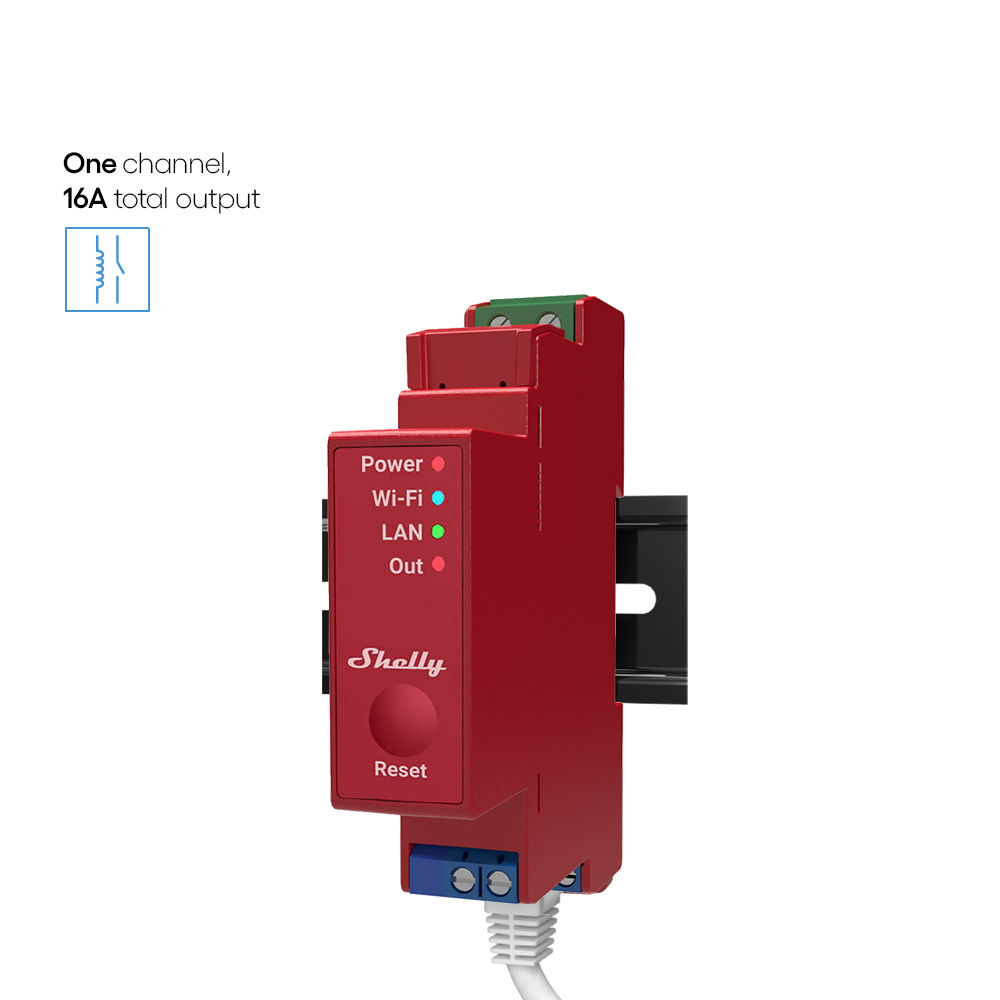

1 channel, 16 A
Shelly Pro 1PM has a total device output of 16 A.
Precise power measurement
Shelly Pro 1PM ensures precise monitoring of power consumption.
Wide range of voltage support
Use it to control a variety of devices and assets
Enhanced security
Enhanced security features and TLS 1.2 support, enabling a wide range of secure cloud-connected and on-premises integrations
Scripting capabilities
Shelly Pro 1PM fully supports mjS scripting so you can create more features and functions. Endless application possibilities AVOID WASTING ENERGY BY MONITORING POWER CONSUMPTION IN THE OFFICE No more unnecessary energy consumption in the office on the weekend! Computers and monitors that someone forgot to turn off, chargers left plugged in, desk lamps left on, printers and copiers left on, etc. - all of these devices use energy even when no one is in the office, adding unnecessary value to your monthly electricity bill. Avoid this by setting Shelly Pro 1PM to cut off power to office equipment over the weekend to save energy. Use intelligent scheduling features to reactivate power before employees return to work.EFFICIENT UNDERFLOOR HEATING CONTROLSEnsure that the room temperature in your business or home is always comfortable - whether it's a yoga studio, a changing room, etc Gym, a spa center or your own living room!
Control your underfloor heating based on the current weather forecast or create a scenario with Shelly Pro 1PM and Shelly Flood and have the underfloor heating turn on when a drop in floor temperature is detected. CONTROL AND MONITORING EQUIPMENT Predict monthly costs and plan your expenses better ! Automate your restaurant's electrical appliances and track their energy consumption from anywhere - wherever you are. Shelly will inform you if a device is forgotten and left running outside of restaurant opening hours and prompts you to turn it off to avoid power consumption. Additionally, you can set smart schedules and have Shelly turn off the power to all unused electrical appliances during the night and turn them back on just before the kitchen opens. PREVENTIVE MANAGEMENT When an electrical appliance is damaged, it doesn't just stop working. Typically, it increases energy consumption to compensate for its operating capacity. Because there is no visible difference in performance, it can take months before you notice a problem, leading to inefficiency and wasted energy. Shelly Pro 1PM immediately detects the increase in energy consumption and notifies you, saving you additional costs for repairs or replacement of devices. CONNECTIVITY Wi-Fi
Works on a 2.4 GHz Wi-Fi network and supports Access Point (AP) and options Client Mode (CM).
Bluetooth
Now add devices quickly and easily via a Bluetooth connection with the Shelly Cloud app
LAN
LAN connection for high security and reliability. Simultaneous Wi-Fi and LAN use, backup if needed SECURITY Overheat protection
Overload protection (PM devices)
Surge protection (PM devices)
Flame retardant (V-0)FEATURES HTTP/HTTPS webhooks
Sunrise/sunset actions with offsets
Weekly scheduling
Custom scripts (mJs)
Grouping
scenarios

General
Type	Value
Electrical
Power supply voltage AC	110 - 240 V
Power supply voltage DC	N/A
Min. operating voltage AC	90 V
Max. operating voltage: AC	264 V
Power consumption	< 3 W
Neutral not needed
Environmental
Ambient temperature	-20 °C to 50 °C / -5 °F to 122 °F
Humidity	10 % to 90 % RH
Max. altitude	2000 m / 6562 ft
Firmware capabilities
Schedules	20
Webhooks (URL actions)	20 with 5 URLs per hook
Scripting
MQTT
CoAP
MCU
CPU	ESP32-D0WDQ6
Flash	8 MB
Output circuits ratings
Max switching voltage AC	240 V
Max switching voltage DC	N/A
Max switching current AC	16 A
Max switching current DC	N/A
Physical
Size (HxWxD)	94x19x69 mm±0.5 mm / 3.70x0.75x2.71 ±0.02 in
Weight	65 g
Mounting	DIN rail
Screw terminals max torque	0.4 Nm / 3.54 lbin
Conductor cross section	0.5 to 2.5 mm² / 20 to 14 AWG (green connector) , 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors)
Conductor stripped length	6 to 7 mm / 0.24 to 0.28 in (green connector) , 5 to 6 mm / 0.20 to 0.24 in (blue connectors)
Shell material	Plastic
Color	Red
Radio
RF band	2400 - 2495 MHz
Max. RF power	<20 dBm
Wi-Fi protocol	802.11 b/g/n
Wi-Fi Range	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors , (Depends on local conditions)
Bluetooth Protocol	4.2
Bluetooth Range	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors , (Depends on local conditions)
Sensors, meters
Voltmeter (AC)
Ammeter (AC)
Internal-temperature sensor

---
