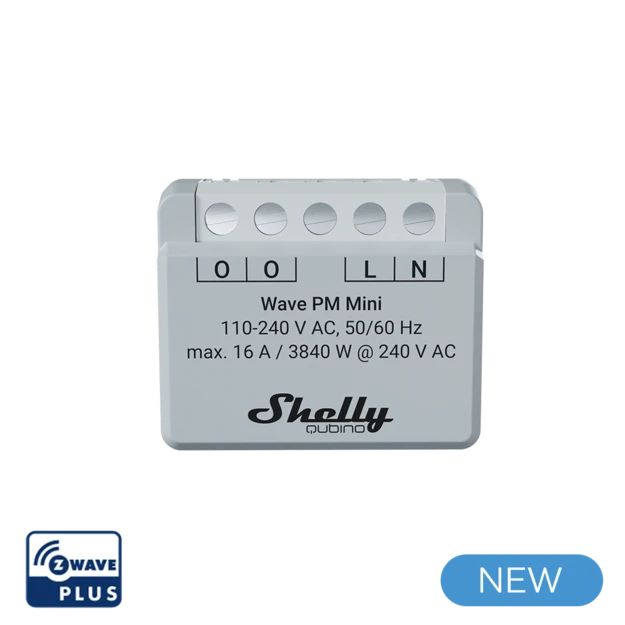

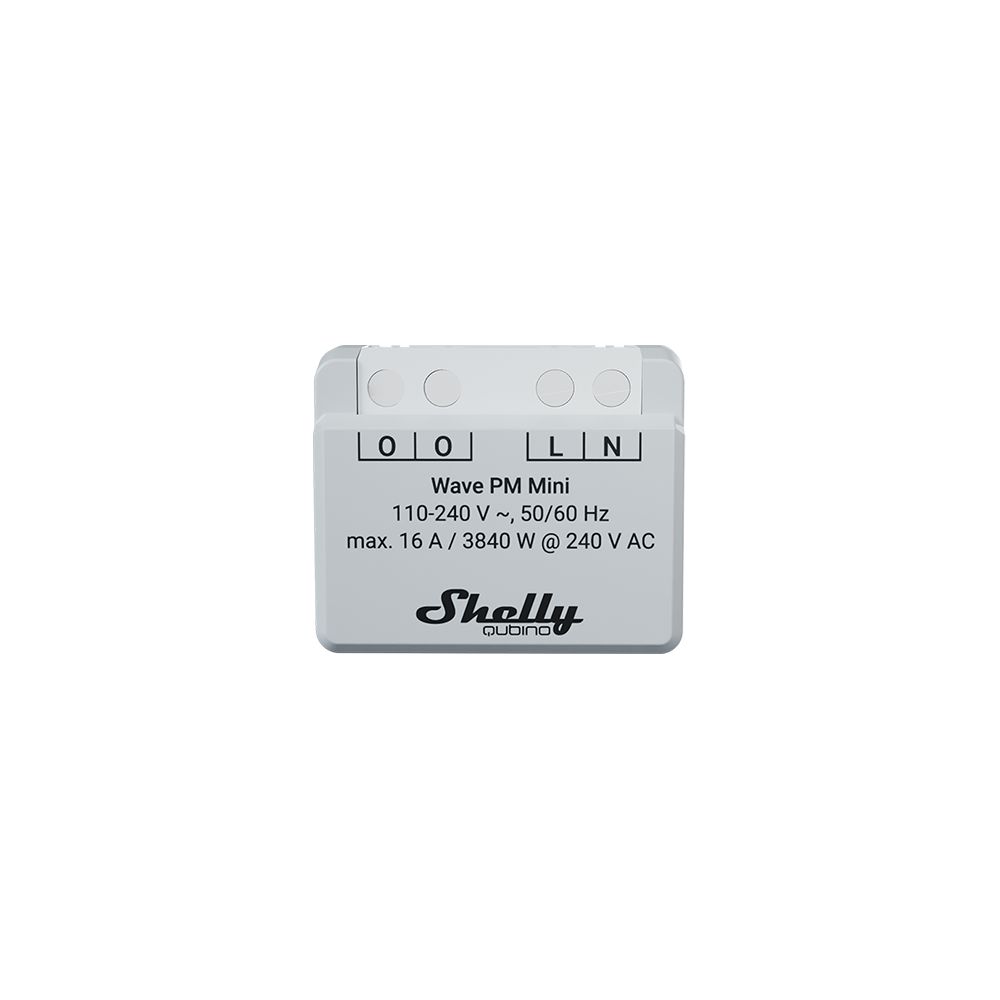

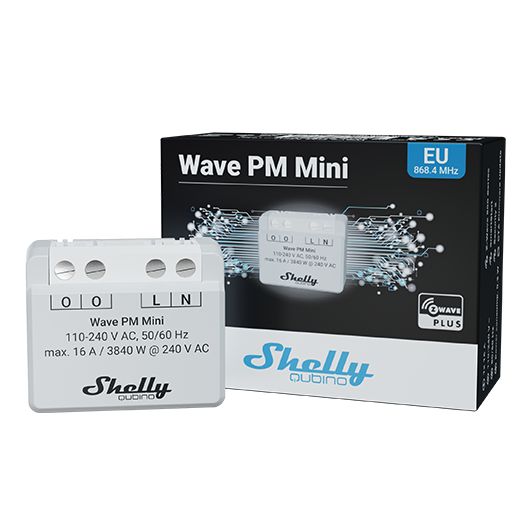

Shelly · Flush-mounted · Wave PM Mini · Relay · max. A · 1 channel · Z-Wave

Smart Z-Wave® Power Meter, 1 Channel 16A The world's smallest Z-Wave power meter for precise power monitoring. Monitor the power consumption of electrical devices from anywhere and optimize your energy consumption. Thanks to its compact retrofit design, it is so small that it can fit even in the tightest spaces and electrical boxes.
*This is only a power meter and not a relay. Supports up to 16A at 240V AC power measurement Extremely low power consumption: *A gateway (smart hub) is not included. A gateway (smart hub) is required to configure the device.
WHY WAVE PM MINI?
Mini size, mini price
Designed with convenience in mind, this mini power meter has the powerful ability to monitor energy consumption. All in a compact and space-saving form. Wave PM Mini is perfect for tight spaces where conventional devices simply wouldn't fit. Despite their small size, Wave Mini devices make no compromises in terms of performance or functionality. Shelly Qubino works with Z-Wave By using Z-Wave, smart home products can communicate seamlessly with each other, regardless of their brand or platform, thanks to a centralized smart hub! Shelly Qubino devices work with the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes worldwide.
Works with any Z-Wave gateway Wave Mini devices are designed to fit behind any switch or socket, or can be built directly into the device, making it an instant smart device. Once installed, add it to your Z-Wave network (a Z-Wave gateway is required) and control connected devices from anywhere using your smartphone or tablet.
Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways.
FEATURES:
Z-Wave controlled
Add the Wave PM Mini to your Z-Wave network and control it remotely. It is compatible with all certified Z-Wave gateways.
Supports up to 16A
The device can measure the current consumption of a load of up to 16A
Power monitoring
Wave PM Mini provides precise monitoring of power consumption.
Supports a variety of different voltages
Use a wide range of output voltages
Associations
Set up direct communication between devices in your local Z-Wave network and set custom actions, even without a hub!
Smart scenes
Set custom scenes by combining the Wave PM Mini with other Z-Wave devices (gateway required).

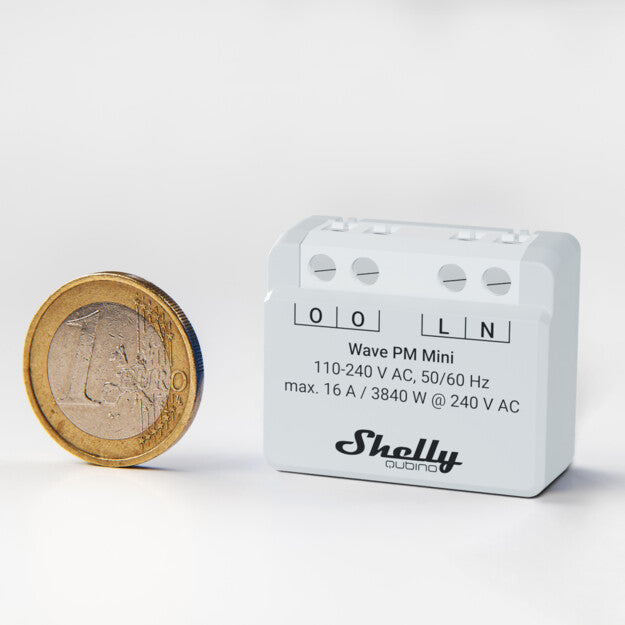

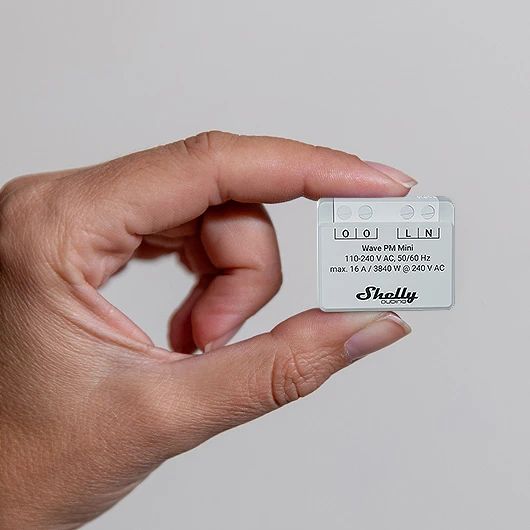

Size matters

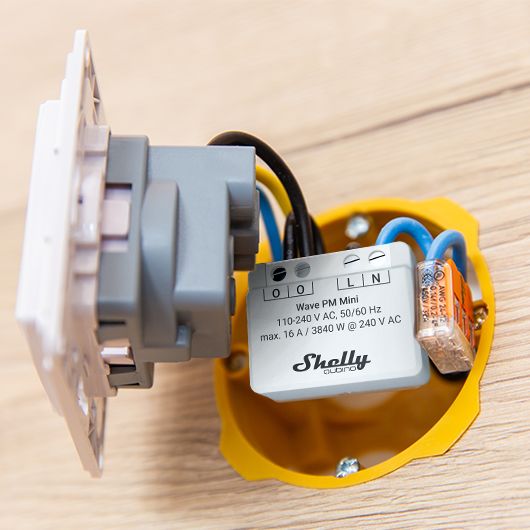

Wave Mini devices open up a world of possibilities and allow you to integrate them seamlessly into even the tightest spaces and control boxes. Thanks to the reduced size, Wave Mini devices fit effortlessly into all types of electrical control boxes, including Danish sockets. In addition, they can be discreetly installed directly in the device you want to control or monitor.
Predictive management
When an electrical device is damaged, it does not simply stop working. It usually increases energy consumption to compensate for its operating capacity. Since there is no visible difference in performance, it can take months before you notice a problem, resulting in inefficiency and energy waste. Wave PM Mini, on the other hand, reports the increase in energy consumption immediately, saving you additional costs for repairs or replacing devices.
Monitor your electricity consumption and live more cost-efficiently
Sometimes we forget to turn off all the lights or leave an appliance we don't need on at night, generating unnecessary energy. Wave PM Mini's electricity monitoring makes it possible to detect and eliminate excessive energy consumption in your home. Together with smart scenes, you can use the Wave PM Mini's data to create scenarios such as turning off appliances during a power surge to protect them or during the night to save energy.
TECHNICAL DATA: Power supply: 110-240 V AC, 50/60 Hz Power consumption: < 0.3 W Power measurement (W): Yes External protection: 16 A, tripping characteristic B or C, 6 kA breaking capacity, energy limitation class 3 Max. measuring power: 3840 W Max. measuring current: 16 A Overheating protection: Yes Distance: Up to 40 m indoors (131 ft.) (depending on local conditions) Z-Wave® Repeater: Yes CPU: Z-Wave® S800 Z-Wave® frequency bands: 868.4 MHz Maximum transmitted radio frequency power in frequency band(s): < 25 mW Size (H × W × D): 29 x 35 x 16 ±0.5 mm / 1.11 x 1.35 x 0.63 ± 0.02 in Weight: 13 ±1 g / 0.46 ±0.04 oz Mounting: Wall bracket screw terminals Max. torque: 0.4 Nm / 3.54 lbin Conductor cross section: 0.5 to 1.5 mm²/ 20 to 16 AWG Stripped conductor length: 5 to 6 mm/0.20 to 0.24 in Housing material: Plastic Color: Light gray Ambient temperature: -20 °C to 40 °C/-5 °F to 105 °F Humidity: 30% to 70% RH Max. altitude: 2000 m / 6562 ft.
