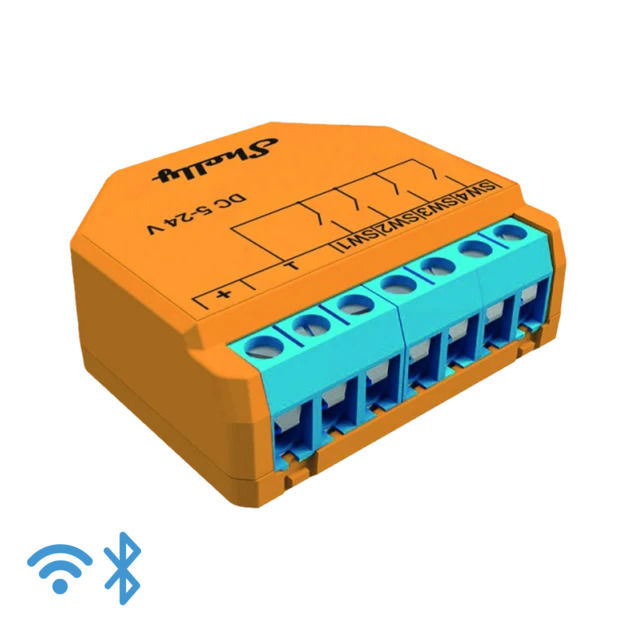

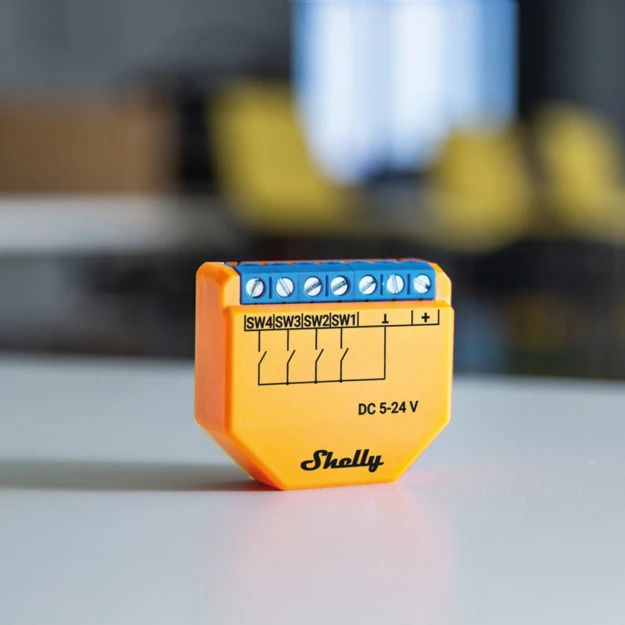

Shelly · Flush-mounted · “Plus i4 DC” · Scene activator · WLAN · BT
|
11,97 EUR |
|
|
( 14,24 EUR incl. VAT ) ≈ £10.01 | ≈ $13.23 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1994216 |
| Mfg Part No: | Shelly Plus i4 DC |
| UPC/EAN: | 3800235265543 |
| Weight: | 0.033 kg |
Product information for Shelly Shelly_Plus_i4_DC:
| General | |
| Type | Value |
| Electrical | |
| Power supply | 5-24 VDC |
| Power consumption | < 1 W |
| Environmental | |
| Ambient temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Firmware capabilities | |
| Webhooks (URL actions) | 20 with 5 URLs per hook |
| Scripting | |
| MQTT | |
| MCU | |
| CPU | ESP32-U4WDH |
| Flash | 4 MB |
| Physical | |
| Size (HxWxD) | 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in |
| Weight | 17 g / 0.6 oz |
| Mounting | Wall box |
| Screw terminals max torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Conductor stripped length | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material | Plastic |
| Color | Neon orange (Pantone 2010C) |
| Radio | |
| RF band | 2400 - 2495 MHz |
| Max. RF power | <20 dBm |
| Wi-Fi protocol | 802.11 b/g/n |
| Wi-Fi Range | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors , (Depends on local conditions) |
| Bluetooth Protocol | 4.2 |
| Bluetooth Range | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors , (Depends on local conditions) |
| Sensors, meters | |
| Internal-temperature sensor | |
