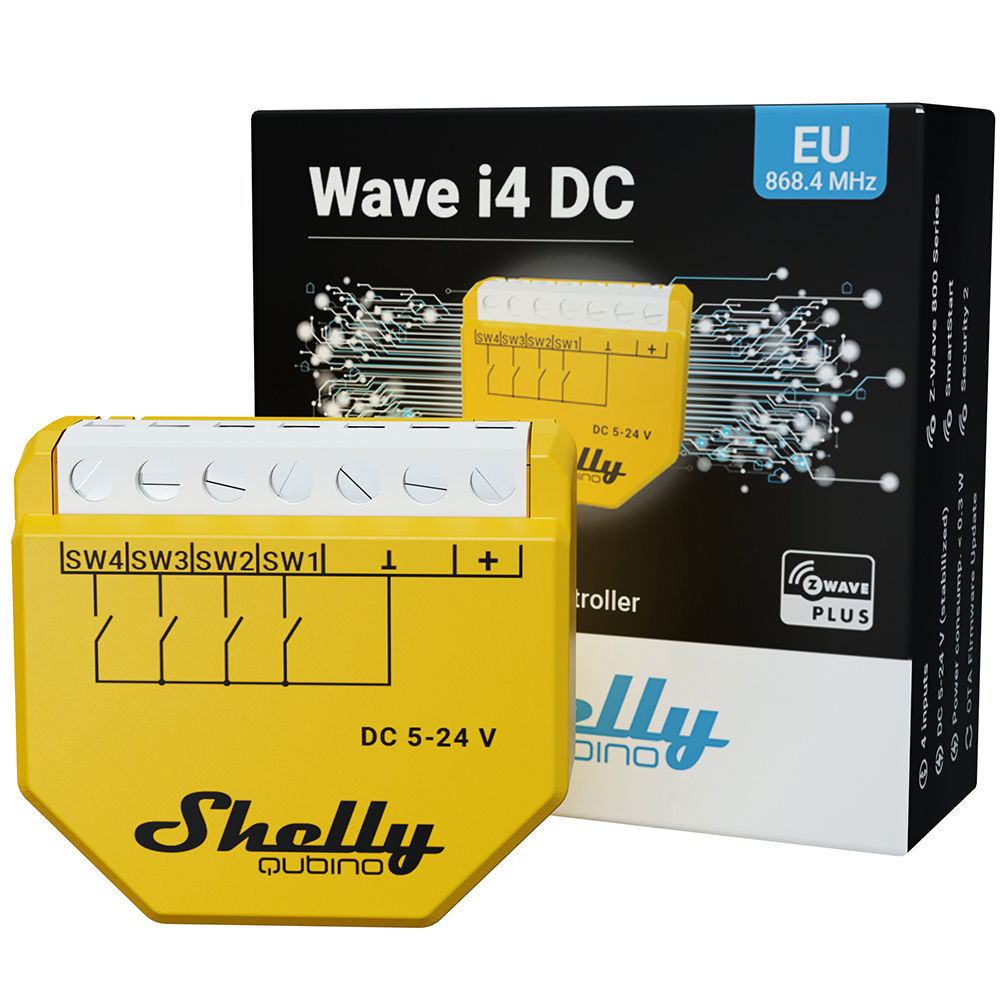

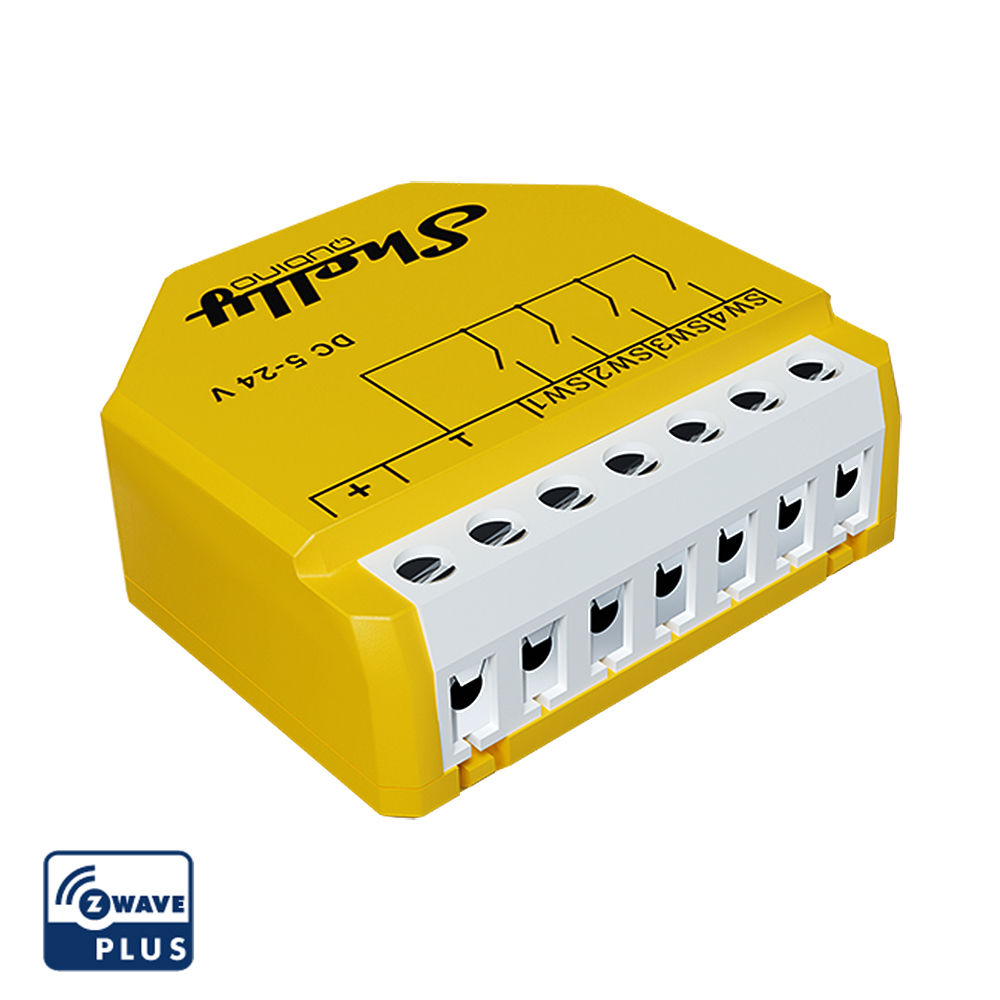

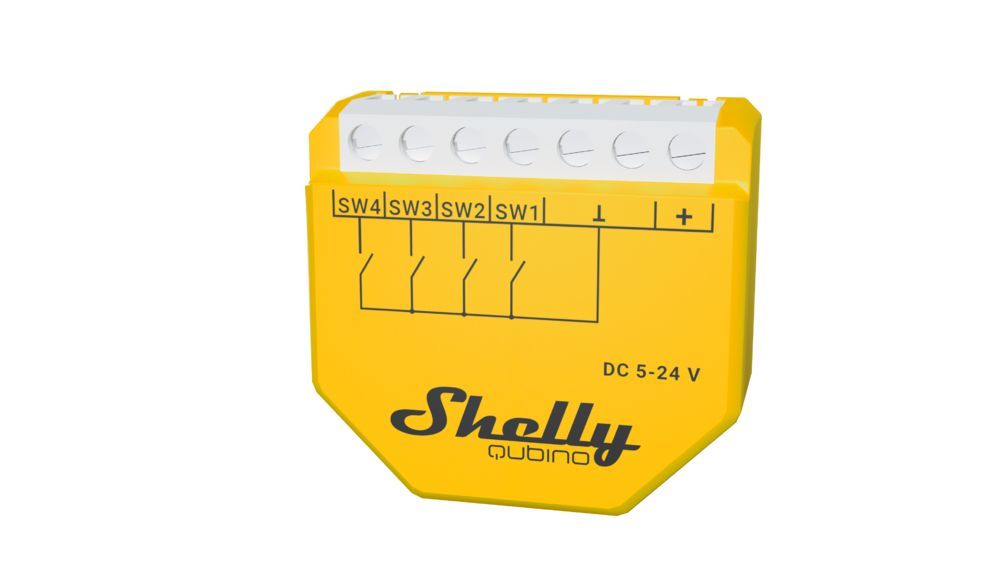

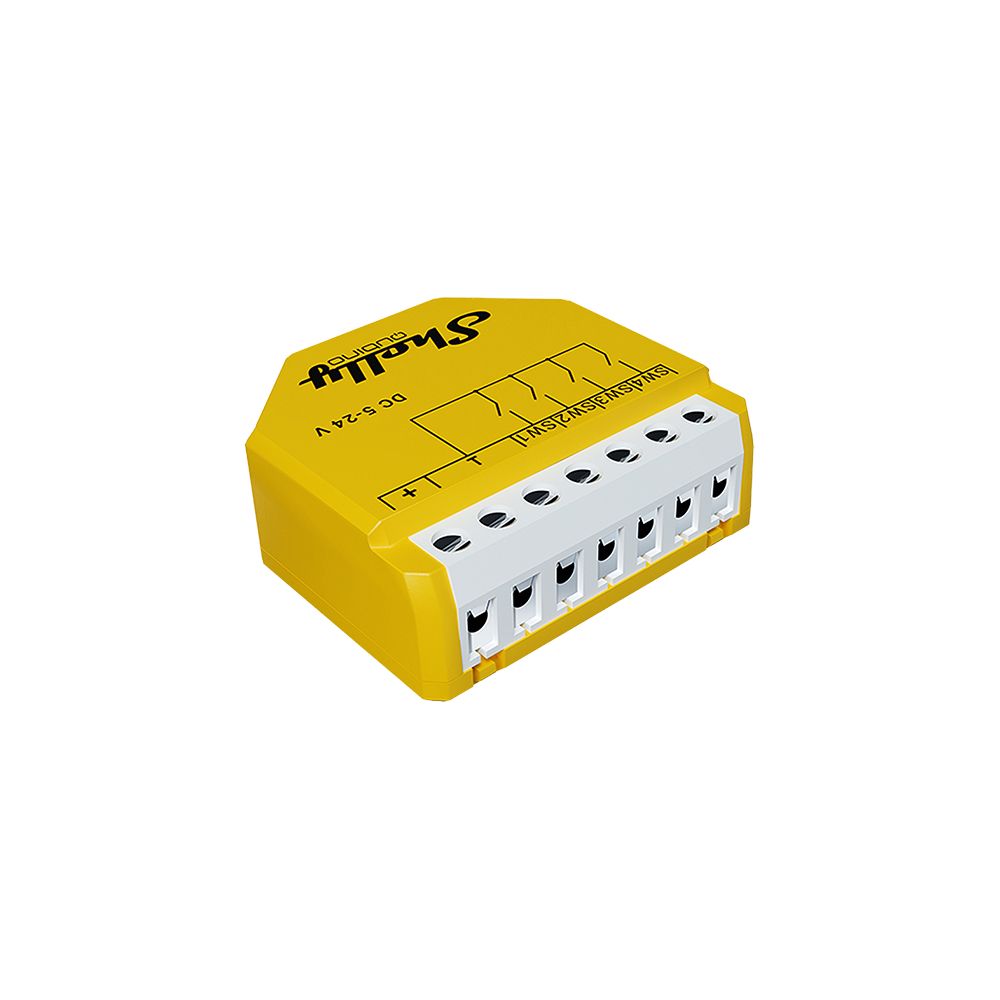

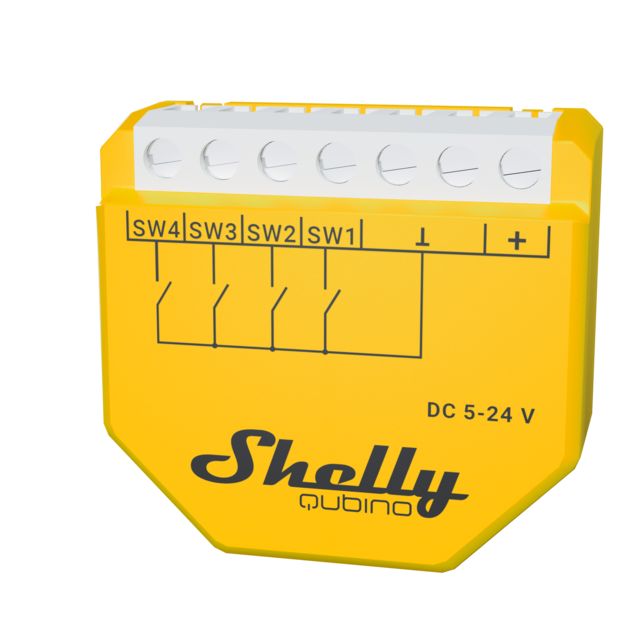

Shelly · Flush-mounted · Wave i4 DC · Scene activator · 12 actions · Z-Wave

Z-Wave™ 4-Digital Input Controller for Advanced Action Control? Manually activate or deactivate any created scene, execute synchronized actions or run complex trigger scenarios.Wave i4 DC is an input reader (it does not contain relays). Manual control of other Z-Wave devices (e.g. with a multi-button switch). Multiple clicks - activation of up to 12 actions Extremely low power consumption: WHY WAVE i4 DC? Replace one of the switches in your room and control any other installed Z-Wave device!

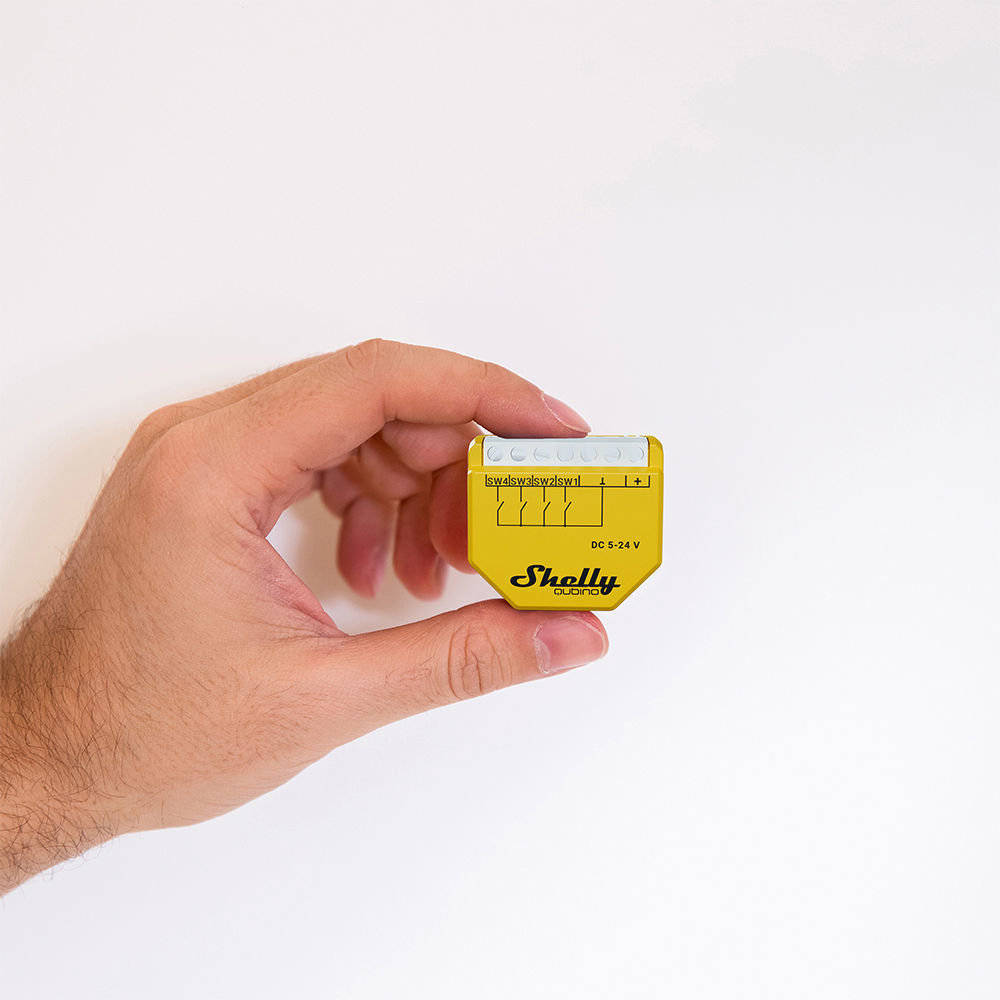

With Wave i4 DC you can manually activate or deactivate any created scene, execute synchronized actions or run complex trigger scenarios. You can use it to control other Z-Wave devices in your network with the push of a button. The retrofit design makes it small enough to fit behind any wall switch. Able to display the status and control the action of four inputs, Wave i4 offers maximum convenience by allowing all family members to manually control your smart home.Z-WAVE Shelly Qubino works with Z-Wave By using Z-Wave, smart home products can communicate seamlessly with each other, regardless of their brand or platform, thanks to a centralized smart hub! Shelly Qubino devices work with the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes worldwide.
Power supply AC No Power supply DC 5-24 V DC Power consumption < 0.3 W Overload protection No Power measurement (W) No Work without neutral No Number of inputs 4 Distance Up to 40 m indoors (131 ft.) (depending on local conditions) Z-Wave repeater Yes CPU Z-Wave S800 Z-Wave frequency bands 868.4 MHz Maximum transmitted radio frequency power in frequency band(s) < 25 mW Size (H × W × D) 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in Weight 17 g / 0.6 oz. Mounting Wall bracket Screw terminals Max. torque 0.4 Nm / 3.5 lbin Conductor cross-section 0.5 to 1.5 mm²/20 to 16 AWG Stripped conductor length 5 to 6 mm/0.20 to 0.24 in Housing material Plastic Color Yellow Ambient temperature -20 °C to 40 °C/-5 °F to 105 °F Humidity 30% to 70% RH
