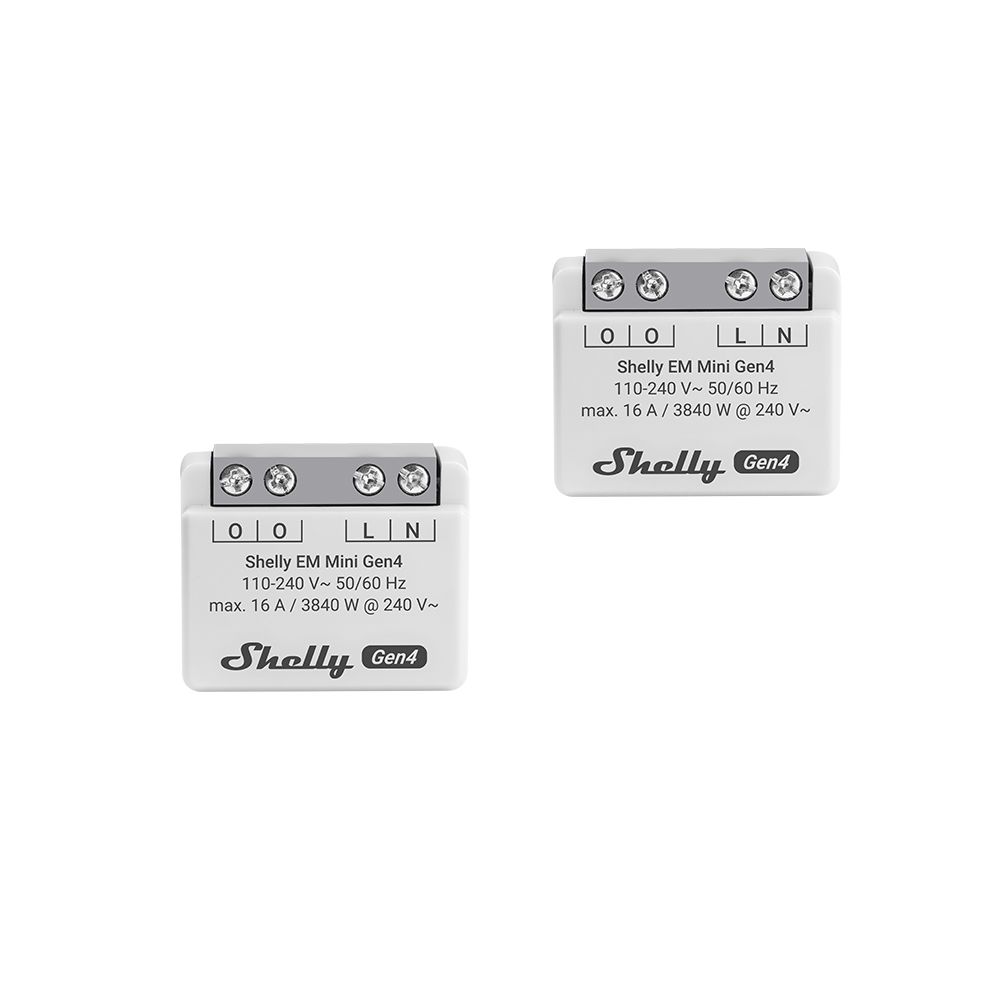

SHELLY EM Mini Gen4 2-Pack Matter WLAN Energy Meter
|
27,60 EUR |
|
|
( 32,84 EUR incl. VAT ) ≈ £23.10 | ≈ $30.88 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1005511 |
|---|---|
| Mfg Part No: | FG3800238070830 |
| UPC/EAN: | 3800238070830 |
| Weight: | 0.09 kg |
| Bluetooth | |
| Protocol (Bluetooth) | 5.0 |
| RF band (Bluetooth) | 2402 - 2480 MHz |
| Max. RF power (Bluetooth) | < 4 dBm |
| Range (Bluetooth) | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors , (Depends on local conditions) |
| Electrical | |
| Power supply | 110-240 V~ |
| Power consumption | < 1 W |
| External protection | Tripping characteristic B or C, max. 16A max. rated current, min. 6 kA interrupting rating, energy limiting class 3 |
| Environmental | |
| Ambient working temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Firmware capabilities | |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 5 URLs per hook |
| Scripting | |
| MQTT | |
| UDP | |
| Advanced schedules | |
| KVS (Key-Value Store) | |
| Microcontroller unit | |
| CPU | ESP-Shelly-C68F |
| Flash | 8MB |
| Output circuits ratings | |
| Max. measurement voltage | 240 V~ |
| Max. measurement current | 16 A |
| Max. measurement power | 3840 W |
| Power measurement | |
| Physical | |
| Size (HxWxD) | 29x34x16 mm / 1.34x1.11x0.63 inch |
| Weight | 13 g / 0.46 oz |
| Screw terminals max torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in |
| Mounting | Wall console |
| Shell material | Plastic |
| Shell color | White |
| Terminals color | Grey (Mouse Grey) |
| Sensors, meters | |
| Voltmeter (AC) | 110-240 V~ 50/60 Hz |
| Voltmeter accuracy | ±1% |
| Ammeter (AC) | 0 - 16A |
| Ammeter accuracy | ±1% |
| Power and energy meters | Active power Active energy |
| Measurement data storage | At least 10 days of 1 min data resolution |
| Data export | CSV for PQ recorded values JSON format export through RPC |
| Wi-Fi | |
| Protocol | 802.11 b/g/n/ax |
| RF band | 2412 - 2472 МHz |
| Max. RF power | < 20 dBm |
| Range | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors , (Depends on local conditions) |
| Zigbee | |
| Protocol (Zigbee) | 802.15.4 |
| RF bands | 2400 to 2483.5 MHz |
| Max. RF power (Zigbee) | < 20 dBm |
| Range (Zigbee) | Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors , (Depends on local conditions) |
