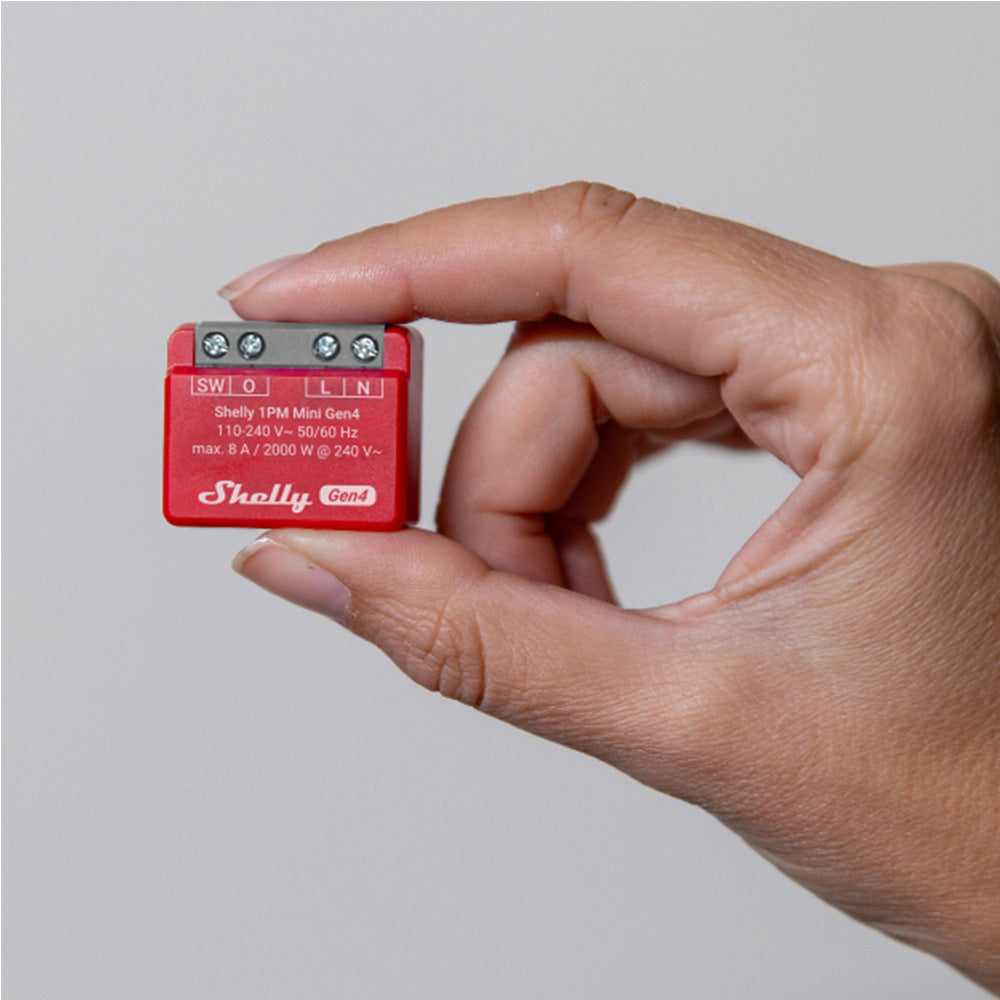

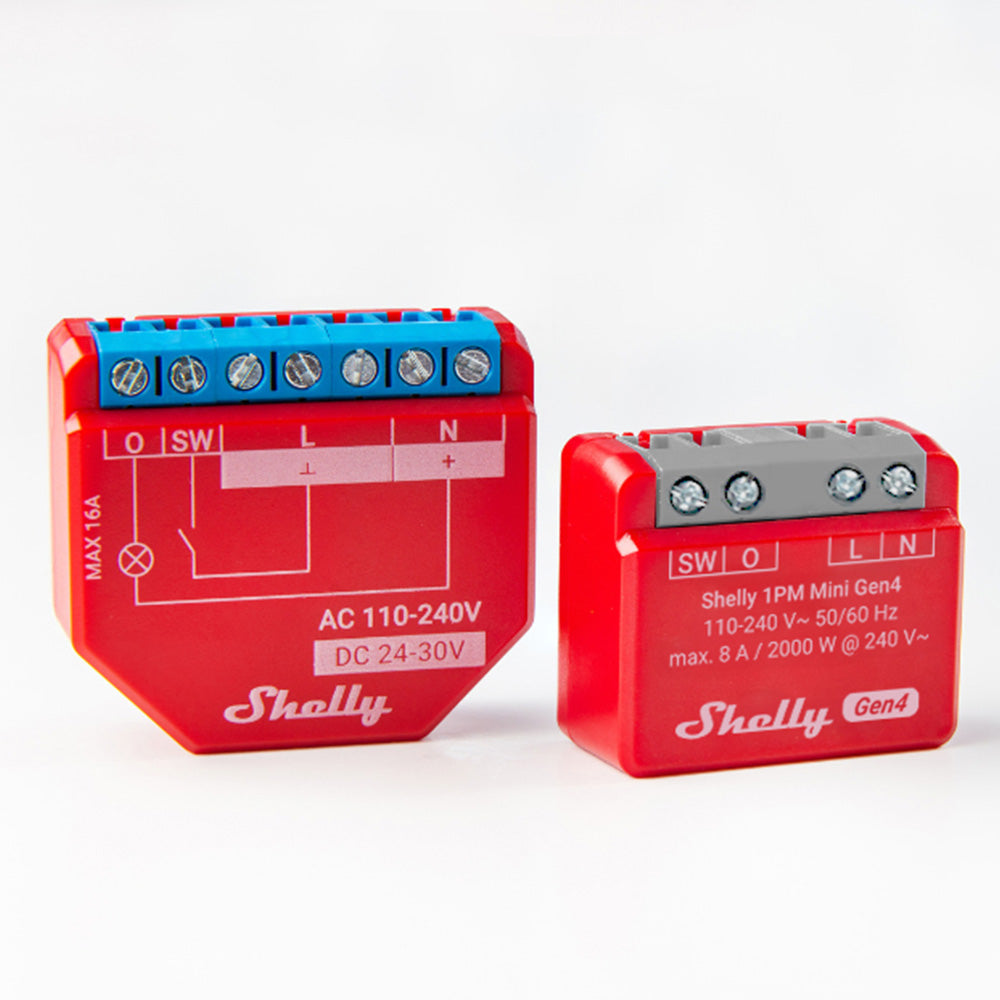

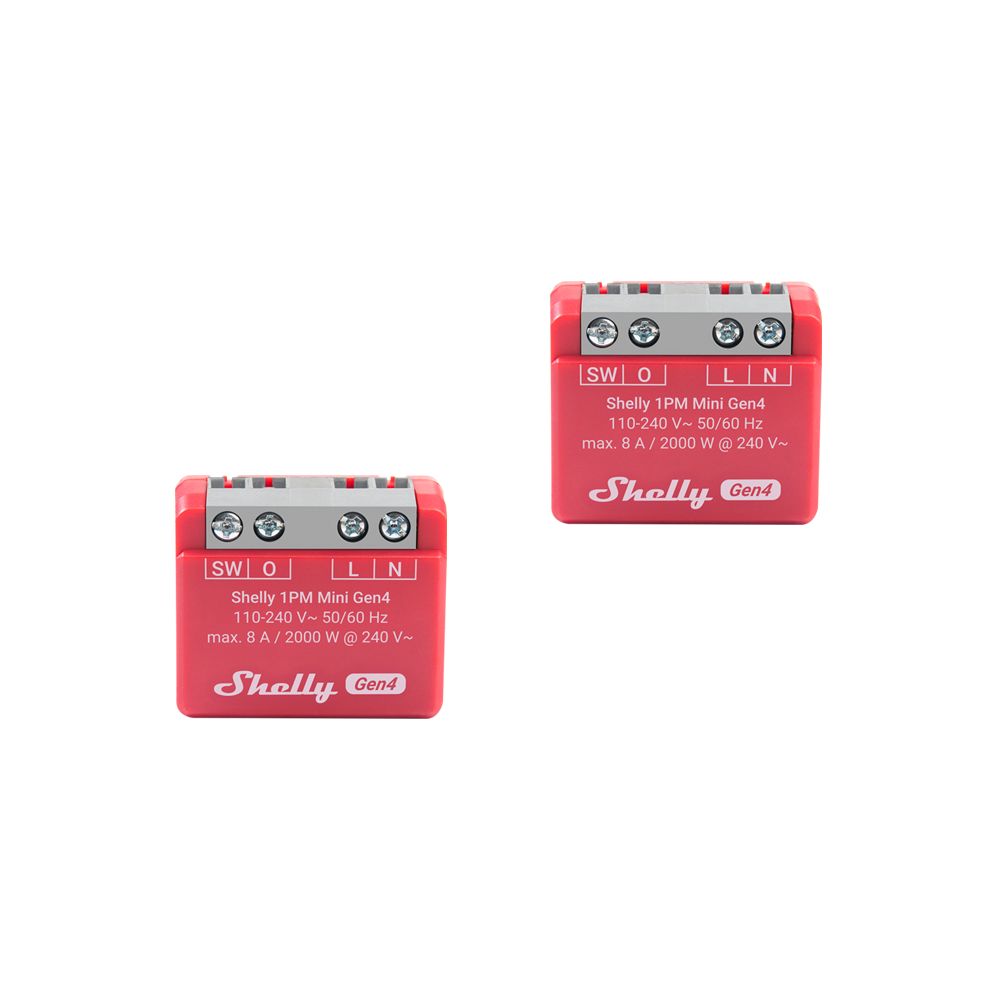

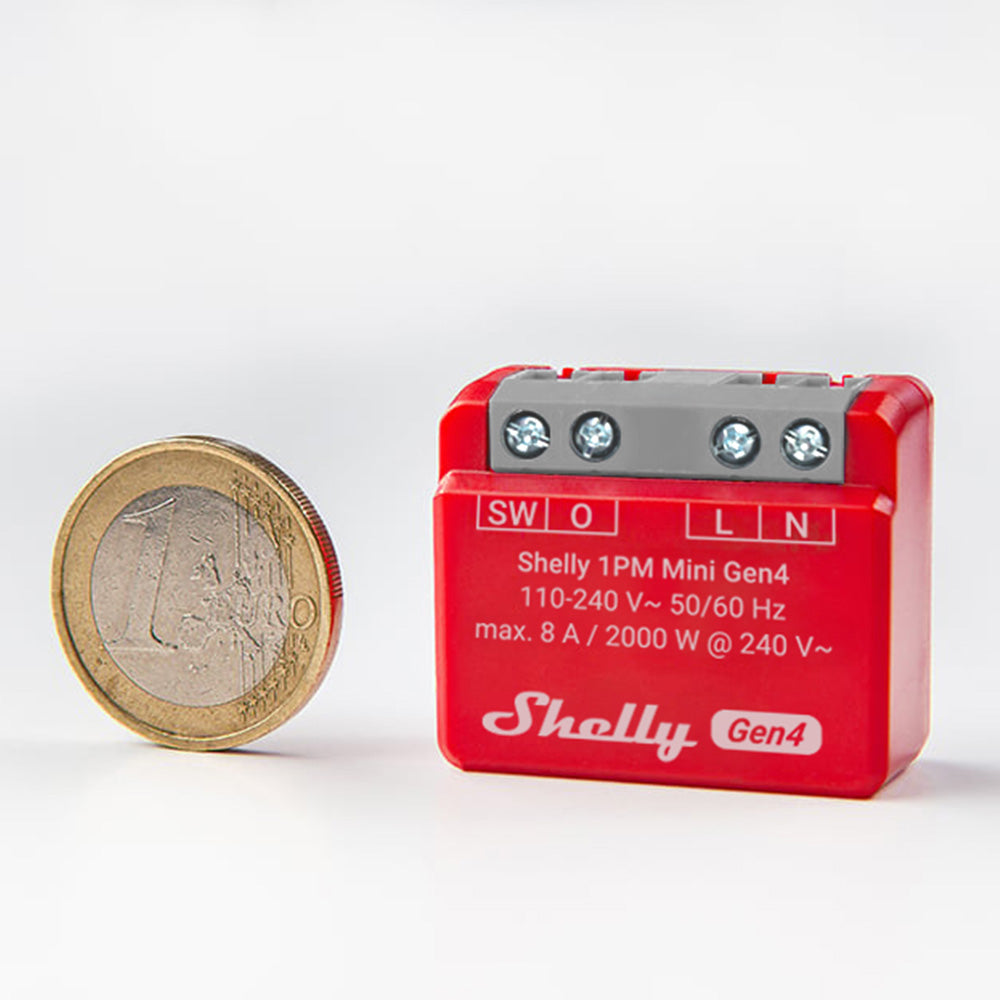

SHELLY 1PM Mini Gen4 2-Pack Matter WLAN PM Switch
|
31,87 EUR |
|
|
( 37,93 EUR incl. VAT ) ≈ £27.09 | ≈ $35.79 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Lieske Part No.: | 862716 |
|---|---|
| Mfg Part No: | FG3800238070816 |
| UPC/EAN: | 3800238070816 |
| Weight: | 0.055 kg |
| Bluetooth | |
| Protocol (Bluetooth) | 5.0 |
| RF band (Bluetooth) | 2402 - 2480 MHz |
| Max. RF power (Bluetooth) | < 4 dBm |
| Range (Bluetooth) | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors , (Depends on local conditions) |
| Electrical | |
| Power supply | 110 - 240 V~ |
| Relay | NO contact, 1-pole, µ contact |
| External protection | Tripping characteristic B or C, , max. 10A max. rated current, , min. 6 kA interrupting rating, , energy limiting class 3 |
| Environmental | |
| Ambient working temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Firmware capabilities | |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 5 URLs per hook |
| Scripting | |
| MQTT | |
| Microcontroller unit | |
| CPU | ESP-Shelly-C68F |
| Flash | 8MB |
| Output circuits ratings | |
| Max. switching voltage | 240 V~ |
| Max. switching current | 8A/240 V~ |
| Power measurement | |
| Voltage protection / Cutoff | |
| Current protection / Cutoff | |
| Max power protection / Cutoff | |
| Physical | |
| Size (HxWxD) | 29x34x16 ±0.5 mm / 1.34x1.11x0.63 ±0.02 inch |
| Weight | 18 ±1 g / 0.63 ±0.04 oz |
| Screw terminals max torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in |

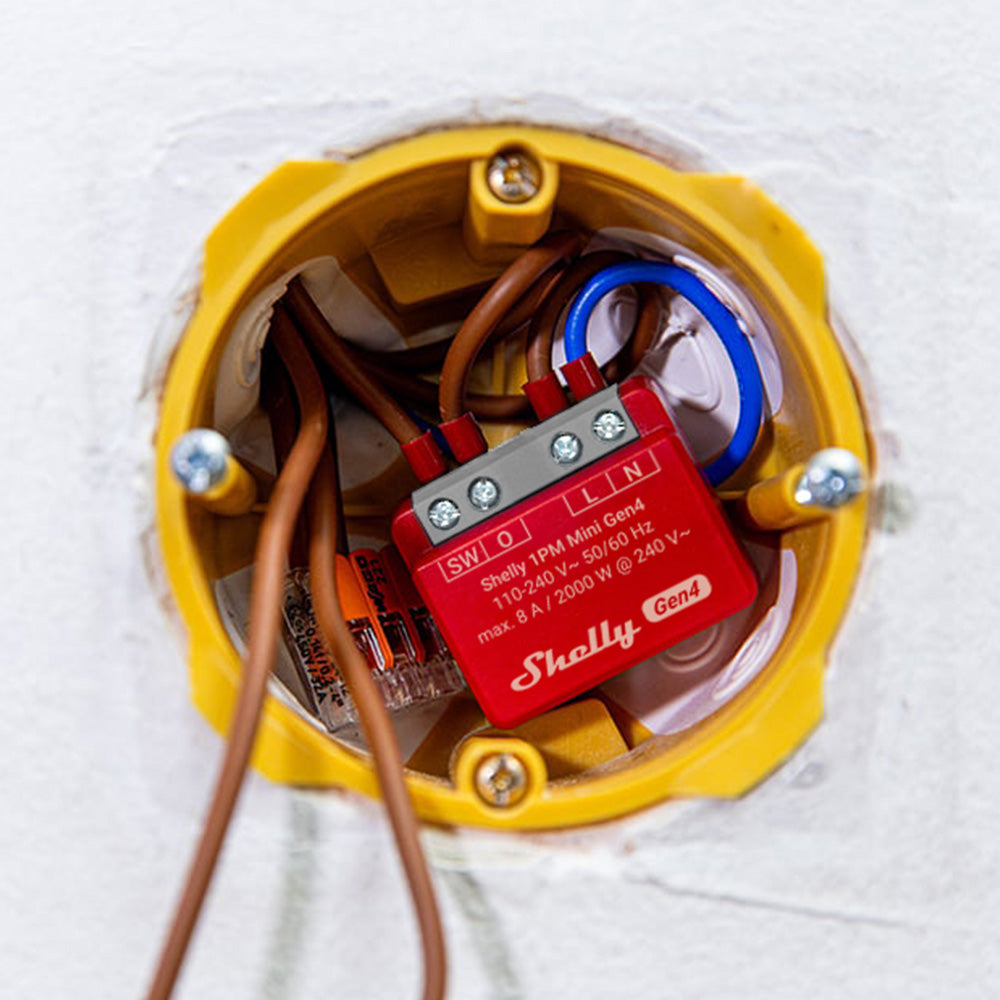

| Mounting | Wall box |
| Shell material | Plastic |
| Shell color | Red, C-3%; M-100%; Y-70%; K-12% |
| Connectors color | Grey (Mouse Grey) |
| Sensors, meters | |
| Internal-temperature sensor | |
| Wi-Fi | |
| Protocol | 802.11 b/g/n/ax |
| RF band | 2412 - 2472 МHz |
| Max. RF power | < 20 dBm |
| Range | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors , (Depends on local conditions) |
| Zigbee | |
| Protocol (Zigbee) | 802.15.4 |
| RF bands | 2400 to 2483.5 MHz |
| Max. RF power (Zigbee) | < 20 dBm |
| Range (Zigbee) | Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors , (Depends on local conditions) |
Questions & answers
What is the delivery time of SHELLY 1PM Mini Gen4 2-Pack Matter WLAN PM Switch?
The article SHELLY 1PM Mini Gen4 2-Pack Matter WLAN PM Switch is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Shelly FG3800238070816 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you SHELLY 1PM Mini Gen4 2-Pack Matter WLAN PM Switch always at the best possible price. We can give you a discount of 2% on SHELLY 1PM Mini Gen4 2-Pack Matter WLAN PM Switch if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
