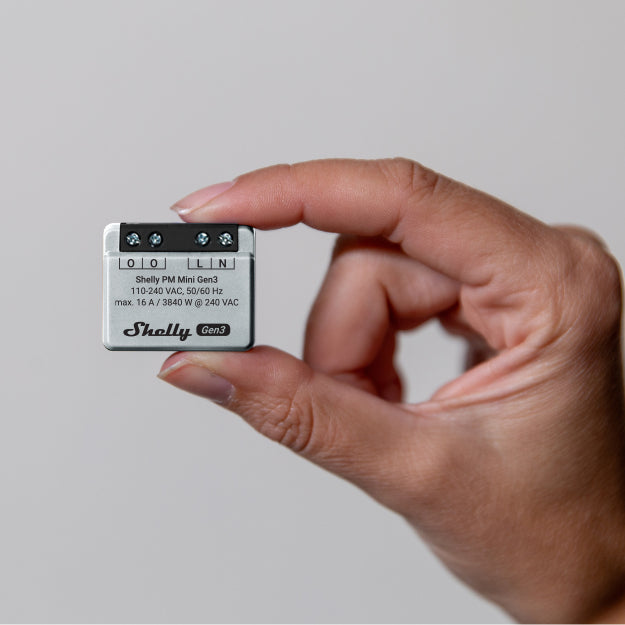

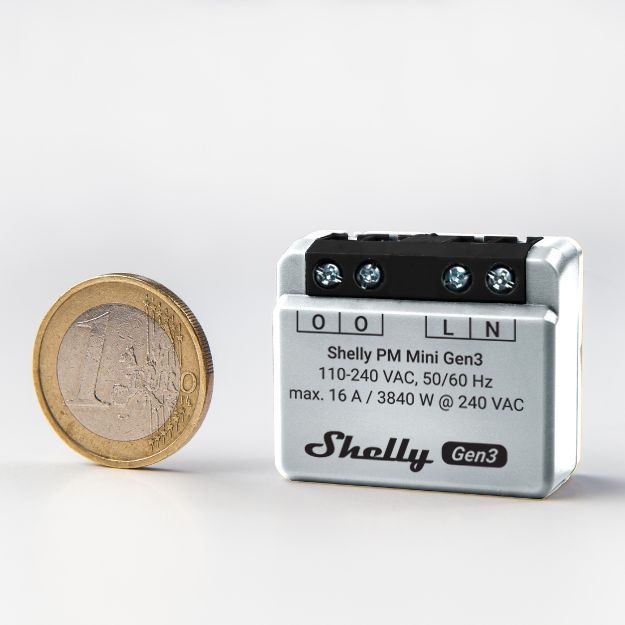

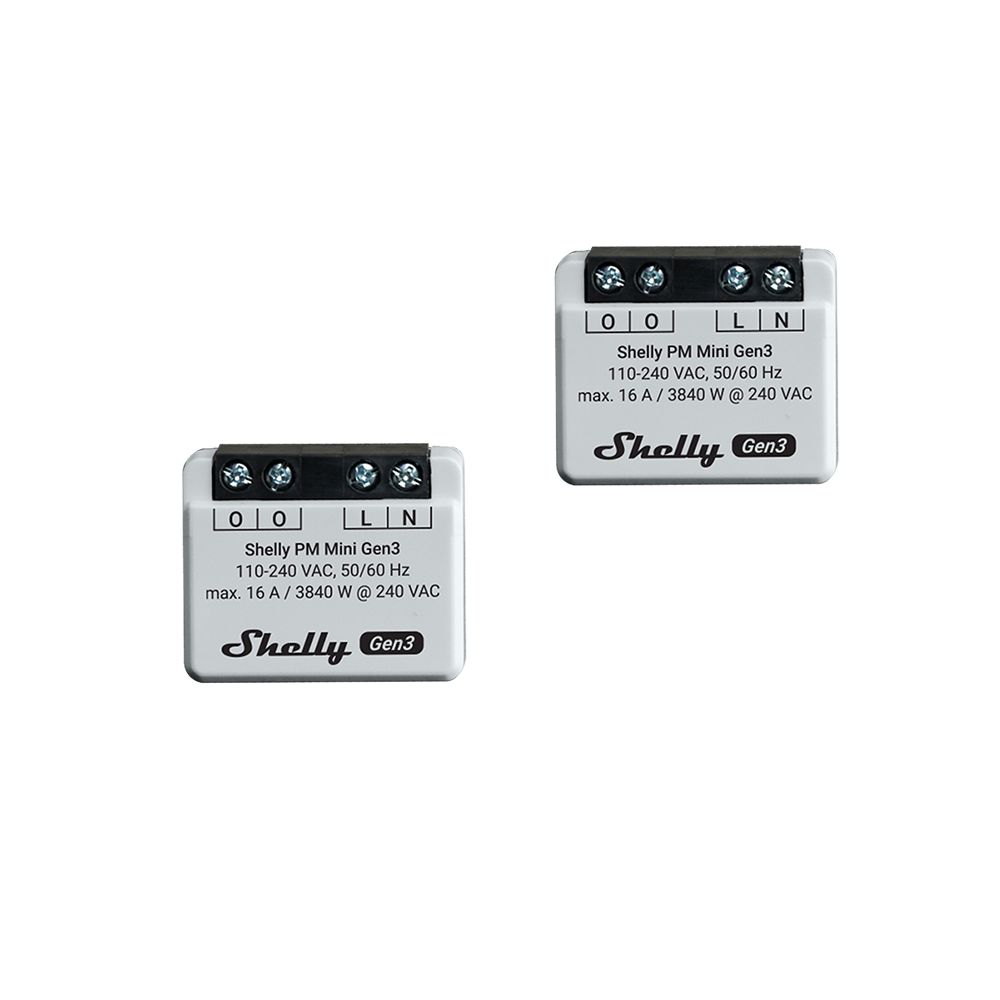

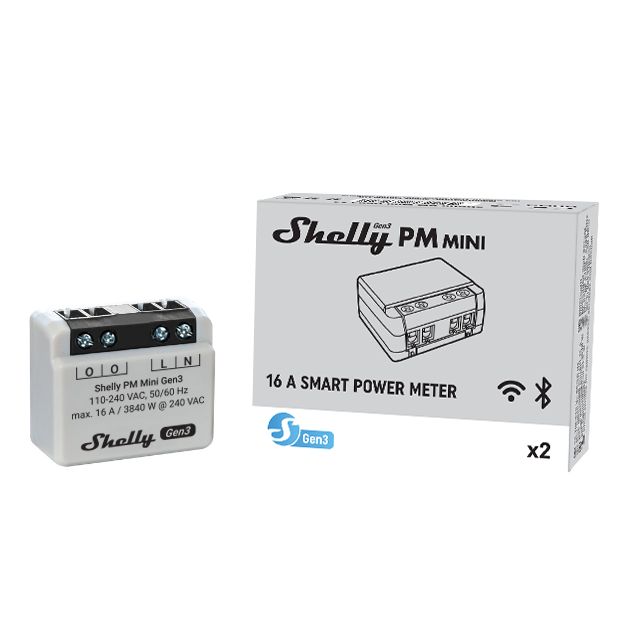

SHELLY PM Mini Gen3 2-Pack WLAN Power Meter
|
23,78 EUR |
|
|
( 28,30 EUR incl. VAT ) ≈ £20.21 | ≈ $26.70 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Lieske Part No.: | 862366 |
|---|---|
| Mfg Part No: | FG3800235261620 |
| UPC/EAN: | 3800235261620 |
| Weight: | 0.037 kg |
| Bluetooth | |
| Protocol (Bluetooth) | 4.2 |
| RF band (Bluetooth) | 2400 - 2483.5 MHz |
| Max. RF power (Bluetooth) | < 4 dBm |
| Range (Bluetooth) | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors , (Depends on local conditions) |
| Electrical | |
| Power supply | 110 - 240 VAC |
| Power consumption | < 1.2 W |
| External protection | Tripping characteristic B or C, , 16A max. rated current, , min. 6 kA interrupting rating, , energy limiting class 3 |
| Environmental | |
| Ambient working temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Firmware capabilities | |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 5 URLs per hook |
| Scripting | |
| MQTT | |
| UDP | |
| Advanced schedules | |
| KVS (Key-Value Store) | |
| Microcontroller unit | |
| CPU | ESP-Shelly-C38F |
| Flash | 8 MB |
| Output circuits ratings | |
| Max. measurement voltage | 240 VAC |
| Max. measurement current | 16 A |
| Max. measurement power | 3840 W |
| Power measurement | |
| Physical | |
| Size (HxWxD) | 29x34x16 / 1.34x1.11x0.63 in |
| Weight | 13 g / 0.46 oz |
| Screw terminals max torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in |
| Mounting | Wall box |
| Shell material | Plastic |
| Shell color | Light gray, C: 0%; M: 0%; Y: 0%; K: 20% |
| Terminal Color | Black |
| Wi-Fi | |
| Protocol | 802.11 b/g/n |
| RF band | 2401 - 2495 МHz |
| Max. RF power | < 20 dBm |
| Range | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors , (Depends on local conditions) |
Questions & answers
What is the delivery time of SHELLY PM Mini Gen3 2-Pack WLAN Power Meter?
The article SHELLY PM Mini Gen3 2-Pack WLAN Power Meter is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Shelly FG3800235261620 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you SHELLY PM Mini Gen3 2-Pack WLAN Power Meter always at the best possible price. We can give you a discount of 2% on SHELLY PM Mini Gen3 2-Pack WLAN Power Meter if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
