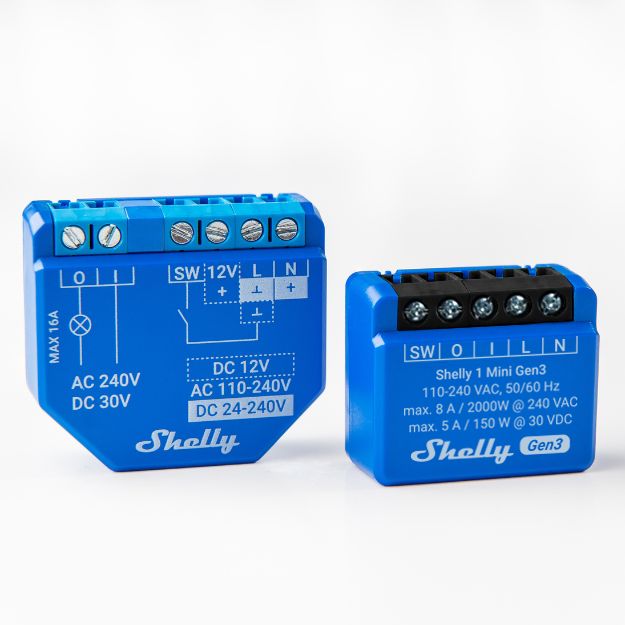

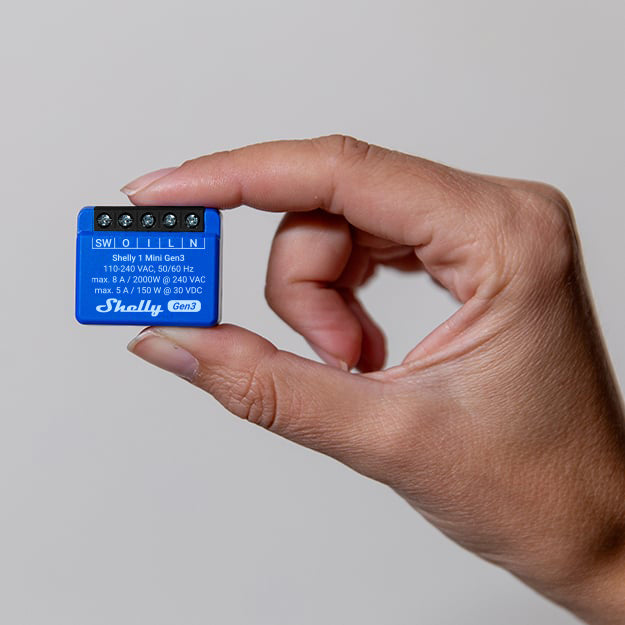

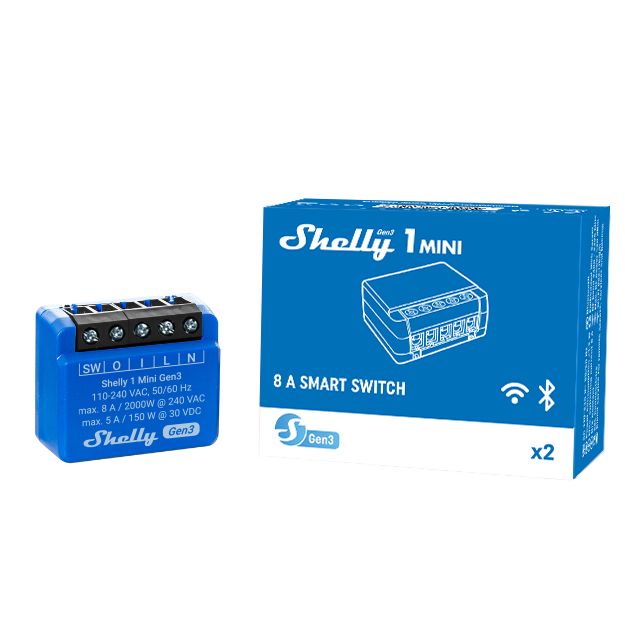

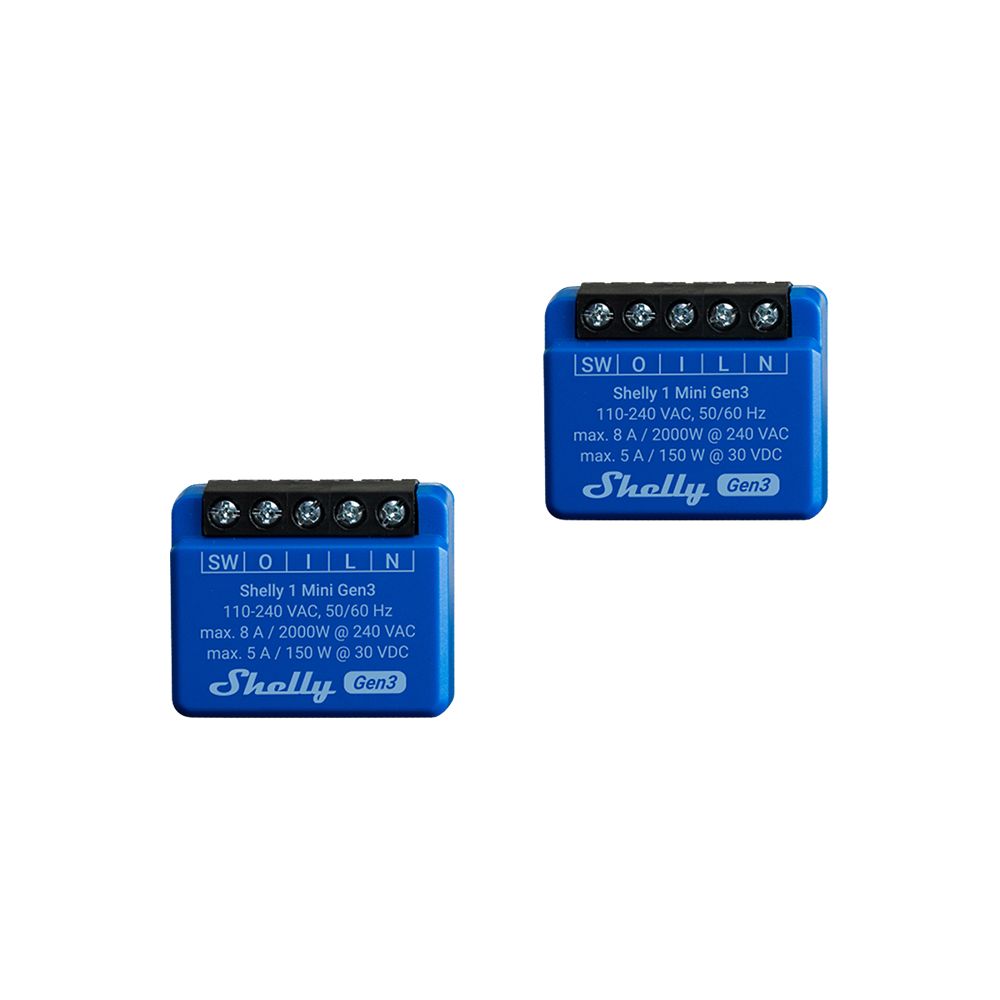

SHELLY 1 Mini Gen3 2-Pack WLAN Smart Relay
|
21,48 EUR |
|
|
( 25,56 EUR incl. VAT ) ≈ £18.26 | ≈ $24.12 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Lieske Part No.: | 862284 |
|---|---|
| Mfg Part No: | FG3800235261583 |
| UPC/EAN: | 3800235261583 |
| Weight: | 0.05 kg |
| Bluetooth | |
| Protocol (Bluetooth) | 4.2 |
| RF band (Bluetooth) | 2400 - 2483.5 MHz |
| Max. RF power (Bluetooth) | < 4 dBm |
| Range (Bluetooth) | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors , (Depends on local conditions) |
| Electrical | |
| Power supply | 110 - 240 VAC |
| Relay | Dry, NO contact, 1-pole, µ contact |
| Power consumption | < 1.2 W |
| External protection | Tripping characteristic B or C, , 10A max. rated current, , min. 6 kA interrupting rating, , energy limiting class 3 |
| Environmental | |
| Ambient working temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Firmware capabilities | |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 5 URLs per hook |
| Scripting | |
| MQTT | |
| UDP | |
| Advanced schedules | |
| KVS (Key-Value Store) | |
| Microcontroller unit | |
| CPU | ESP-Shelly-C38F |
| Flash | 8 MB |
| Output circuits ratings | |
| Max. switching voltage | 240 VAC 30 VDC |
| Max. switching current | 8 A/240 VAC 5 A/30 VDC |
| Max. output power | 2000 W/240 VAC 150 W/30 VDC |
| Voltage protection / Cutoff | |
| Current protection / Cutoff | |
| Max power protection / Cutoff | |
| Physical | |
| Size (HxWxD) | 29x34x16 ±0.5 mm / 1.34x1.11x0.63 ±0.02 in |
| Weight | 19 ±1 g / 0.65 ±0.04 oz |
| Screw terminals max torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in |
| Mounting | Wall box |
| Shell material | Plastic |
| Shell color | Blue, C-95%; M-53%; Y-0%; K-0% |
| Terminal Color | Black |
| Sensors, meters | |
| Internal-temperature sensor | |
| Wi-Fi | |
| Protocol | 802.11 b/g/n |
| RF band | 2401 - 2495 МHz |
| Max. RF power | < 20 dBm |
| Range | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors , (Depends on local conditions) |
