Ses-Sterling 08480141013 GF-DIN-SH-A7/5 50x37.5 grey wiring duct halogen-free
|
-14% 321,15 EUR 372,39 EUR |
|
|
( 382,17 EUR incl. VAT ) ≈ £268.48 | ≈ $354.87 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 20 workdaysinfo_outline | |
| Sales unit: 24 meters | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 391034 |
| Mfg Part No: | 08480141013 |
| UPC/EAN: | 3597470139073 |
| Weight: | 6.48 kg |
| Type: | GF-DIN-SH-A7/5 50x37,5 grau |
Further Service ducts LF / FB / LFS others from Ses-SterlingFurther products in category Service ducts LF / FB / LFS others
All products of Ses-Sterling
Product information for Ses-Sterling 08480141013:

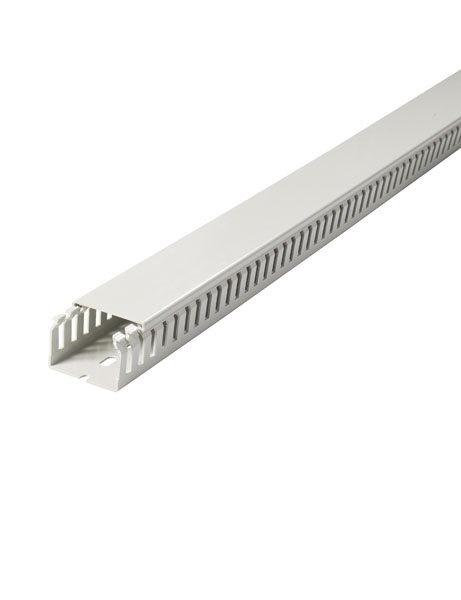

The GF-DIN-SH-A7/5 50x37.5 grey wiring channel from Ses-Sterling is an installation channel made of lead-free PPE/PS, specifically designed for the structured routing of cables and lines in technical installations. It is manufactured exclusively in the grey colour RAL7035 and is suitable for use in both indoor and outdoor environments, with an operating temperature range between -25 °C and +70 °C. The material composition of PPE/PS ensures high mechanical stability and resistance to environmental influences. The channel is halogen-free and complies with the requirements of the RoHS directive, making it suitable for environmentally conscious installations.
Wiring channel
The channel serves for the orderly routing and protection of electrical and data lines. It is designed for mounting on walls, ceilings, or in rooms with increased requirements for fire protection class. The dimensions of 50 mm width and 37.5 mm height allow for the accommodation of multiple cables simultaneously, while the constructive design ensures easy installation and maintenance. The packaging unit includes 24 metres, enabling economical and efficient handling for larger projects.
Functions and equipment in detail
The wiring channel features side slots that allow flexible mounting on various substrates. The lamellae can be easily broken out to adjust the desired opening width. Opening and closing the lid is tool-free, which accelerates installation and maintenance. The flame-retardant property according to UL94 V1 ensures increased safety in case of fire, as the material is difficult to ignite and does not propagate flame.
Technology explained simply
The material PPE/PS (Polyphenylene ether/Poly-styrene) offers an excellent combination of mechanical strength, heat resistance, and chemical resistance. The flame-retardant V1 rating according to UL94 means that the material burns no more than 25 mm when exposed to flame for 10 seconds and self-extinguishes within 30 seconds. The halogen-free composition reduces the formation of toxic gases in case of fire, increasing safety in the operating environment. The operating temperature range of -25 to +70 °C makes the channel suitable for a wide variety of environments, including industrial facilities, office buildings, and technical rooms.
Compatibility and accessories
The wiring channel is compatible with other products from the same product series, particularly for mounting elements and covers also made of PPE/PS. The side slots allow for screw or clamp mounting, with the exact choice of fastening elements varying depending on the substrate and requirements. The packaging unit of 24 metres is designed for larger projects, with the weight specification of 294 g per metre supporting transport and installation planning.
Installation and mounting
Mounting is done by securing to the substrate using the side slots, with lamellae broken out as needed. The lid is simply placed on and locked, achieving quick and secure closure. Processing requires no special tools, making installation particularly efficient for electrical and IT tradespeople. The packaging unit of 24 metres allows continuous routing without frequent cutting and joining operations.
Advantages in operation
The wiring channel offers high mechanical stability, is resistant to environmental influences, and provides secure cable routing. The flame-retardant property and halogen-free composition increase safety in use. Easy installation and maintenance reduce installation time and costs. The packaging unit of 24 metres is economically and efficiently designed for larger projects. The grey colour RAL7035 blends into most technical and architectural environments, achieving an aesthetically pleasing installation.
The item price shown refers to 24 meters Ses-Sterling 08480141013
Wiring channel
The channel serves for the orderly routing and protection of electrical and data lines. It is designed for mounting on walls, ceilings, or in rooms with increased requirements for fire protection class. The dimensions of 50 mm width and 37.5 mm height allow for the accommodation of multiple cables simultaneously, while the constructive design ensures easy installation and maintenance. The packaging unit includes 24 metres, enabling economical and efficient handling for larger projects.
Functions and equipment in detail
The wiring channel features side slots that allow flexible mounting on various substrates. The lamellae can be easily broken out to adjust the desired opening width. Opening and closing the lid is tool-free, which accelerates installation and maintenance. The flame-retardant property according to UL94 V1 ensures increased safety in case of fire, as the material is difficult to ignite and does not propagate flame.
Technology explained simply
The material PPE/PS (Polyphenylene ether/Poly-styrene) offers an excellent combination of mechanical strength, heat resistance, and chemical resistance. The flame-retardant V1 rating according to UL94 means that the material burns no more than 25 mm when exposed to flame for 10 seconds and self-extinguishes within 30 seconds. The halogen-free composition reduces the formation of toxic gases in case of fire, increasing safety in the operating environment. The operating temperature range of -25 to +70 °C makes the channel suitable for a wide variety of environments, including industrial facilities, office buildings, and technical rooms.
Compatibility and accessories
The wiring channel is compatible with other products from the same product series, particularly for mounting elements and covers also made of PPE/PS. The side slots allow for screw or clamp mounting, with the exact choice of fastening elements varying depending on the substrate and requirements. The packaging unit of 24 metres is designed for larger projects, with the weight specification of 294 g per metre supporting transport and installation planning.
Installation and mounting
Mounting is done by securing to the substrate using the side slots, with lamellae broken out as needed. The lid is simply placed on and locked, achieving quick and secure closure. Processing requires no special tools, making installation particularly efficient for electrical and IT tradespeople. The packaging unit of 24 metres allows continuous routing without frequent cutting and joining operations.
Advantages in operation
The wiring channel offers high mechanical stability, is resistant to environmental influences, and provides secure cable routing. The flame-retardant property and halogen-free composition increase safety in use. Easy installation and maintenance reduce installation time and costs. The packaging unit of 24 metres is economically and efficiently designed for larger projects. The grey colour RAL7035 blends into most technical and architectural environments, achieving an aesthetically pleasing installation.
The item price shown refers to 24 meters Ses-Sterling 08480141013
| General | |
| Colour | Grey |
Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Questions & answers
What is the delivery time of Ses-Sterling 08480141013 GF-DIN-SH-A7/5 50x37.5 grey wiring duct halogen-free ?
The article Ses-Sterling 08480141013 GF-DIN-SH-A7/5 50x37.5 grey wiring duct halogen-free is currently in stock
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Ses-Sterling 08480141013 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Ses-Sterling 08480141013 GF-DIN-SH-A7/5 50x37.5 grey wiring duct halogen-free always at the best possible price. We can give you a discount of 2% on Ses-Sterling 08480141013 GF-DIN-SH-A7/5 50x37.5 grey wiring duct halogen-free if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Ses-Sterling 08480141013 GF-DIN-SH-A7/5 50x37.5 grey wiring duct halogen-free is offered by us in a sales unit of 24 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
