Scotch 7100119486 ET 27 19 mm x 20 m x 0.18 mm white glass fiber fabric tape

Your rating:
Average rating
product review for Scotch 7100119486 ET 27 19 mm x 20 m x 0.18 mm white glass fiber fabric tape
( 4.5 / 5 ) 56 ratings
Scotch 7100119486

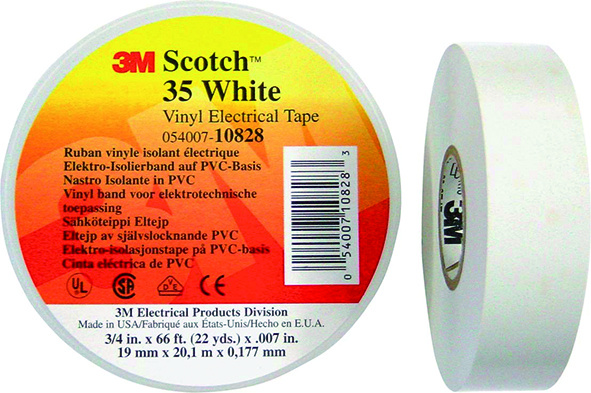

This image may differ from the desired article.
Scotch 7100119486Scotch 7100119486
-12% 22,79 EUR 25,83 EUR
( 27,12 EUR incl. VAT )
≈ £19.08  |  ≈ $25.05
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >10 pieces
1x Scotch 7100119486 ET 27 19 mm x 20 m x 0.18 mm white glass fiber fabric tape
Lieske Part No.:572777
Mfg Part No: 7100119486
UPC/EAN: 0076308622541
Weight:0.039 kg
Type:ET 27 19x20

Product information for Scotch 7100119486:

The Scotch® glass fibre fabric tape ET 27 19x20 is a specialised insulating tape for use in dry electrical applications with an operating voltage up to 600 volts. It is manufactured by 3M and designed for applications requiring high mechanical strength and resistance to elevated temperatures. The tape consists of a woven glass fibre material with a thickness of 0.18 mm and is coated with a pressure-sensitive, heat-curing rubber adhesive. This adhesive is specifically developed for corrosion protection and enables a secure, durable bond to various substrates.

Applications

The glass fibre fabric tape ET 27 is particularly suitable for insulating electrical components that generate significant heat, as well as for protective wrapping against heat radiation. It is frequently used in electric motors and other machines subjected to high mechanical loads. The high tensile and abrasion resistance ensures long-term functionality even under intensive use. The printable fabric structure allows good absorption of resins and paints, making it suitable for applications in painting and impregnation processes.

Functions and Features in Detail

The tape has a dielectric strength of 3,000 volts, making it especially safe for use in high-voltage applications within the approved operating voltage of 600 volts. The temperature resistance extends up to 130 °C, classifying it as insulation class B. These properties make it ideal for use in environments with increased thermal stress. The elasticity of the material allows optimal adaptation to different surface shapes, ensuring a tight and uniform coverage.

Technology Explained Simply

The glass fibre fabric tape consists of a woven glass fibre fabric, offering high strength and heat resistance. The heat-curing rubber adhesive enhances adhesion and prevents failure under thermal stress. The combination of glass fabric and heat-curing adhesive ensures high electrical insulation and mechanical stability. The surface is printable, which is advantageous for marking cables or components. The high abrasion resistance protects the tape from mechanical damage caused by friction or mechanical stress.

Compatibility and Accessories

The tape is designed for use in dry electrical installations and is particularly suitable for insulating cables, windings, and other electrical components in motors, transformers, and other electrical machines. It is not specifically combined with other products, but can be used in conjunction with other insulating materials or impregnating resins to enhance electrical insulation. Application typically requires no additional tools, with handling facilitated by the elasticity and adhesive strength of the adhesive.

Installation and Mounting

Installation is performed by manually winding the tape onto the components to be insulated. The elastic structure allows close adaptation to the surface, avoiding air pockets and gaps. The heat-curing property of the adhesive ensures that adhesion improves further when heated, which is particularly beneficial in applications with thermal stress. Processing typically occurs at room temperature, with final adhesion optimised through heat treatment (e.g. in an oven).

Operational Advantages

The Scotch® glass fibre fabric tape ET 27 offers high electrical insulation, mechanical strength, and heat resistance. The combination of glass fabric and heat-curing adhesive ensures long service life and reliable performance even under high loads. The printable surface allows easy marking, and the high abrasion resistance protects the tape from mechanical damage. Application is simple and requires no special tools, reducing installation time. Use in electric motors and other machines with high thermal and mechanical loads is particularly advantageous.

General
Thickness0,18 mm
Temperature resistance130 °C
Insulation classB
Adhesive typepressure-sensitive, heat-curable, rubber
MaterialFiberglass fabric
Application areaDry 600-volt applications
Featurestear- and abrasion-resistant, printable, elastic
