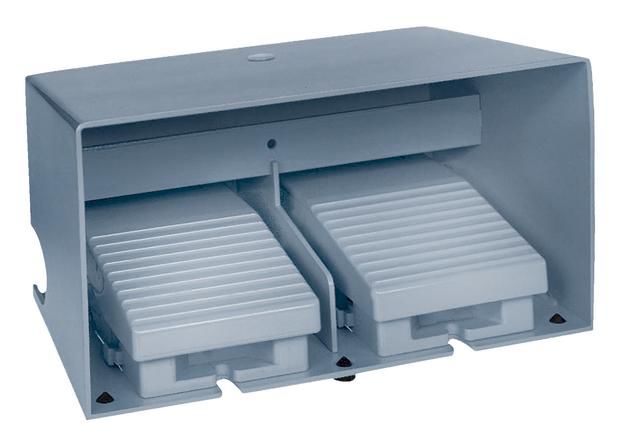

Schneider Electric XPEM3100D Safety foot switch double
|
395,20 EUR 411,84 EUR |
|||||||||||
|
( 470,29 EUR incl. VAT ) ≈ £330.78 | ≈ $434.32 plus delivery charges: 100,00 € |
|||||||||||
| Made to order · Delivery time approx. 10 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 859334 | ||||||||||
| Mfg Part No: | XPEM3100D | ||||||||||
| UPC/EAN: | 3389110094589 | ||||||||||
| Weight: | 7.06 kg | ||||||||||
| Type: | XPEM3100D | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schneider Electric XPEM3100D:
| Complementary | |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Connections - terminals | Screw clamp terminal |
| cable entry | 2 entries tapped for Pg 16 cable gland |
| Mechanical durability | 15000000 cycles |
| [Ie] rated operational current | 3 A, 240 V, AC-15, A300; 0.27 A, 250 V, DC-13, Q300 conforming to IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage | 500 V (pollution degree 3) conforming to IEC 60947-1; 500 V (pollution degree 3) conforming to NF C 20-040 group C; 500 V (pollution degree 3) conforming to VDE 0110 group C; 300 V conforming to UL 508; 300 V conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Maximum resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3; 25 MOhm conforming to NF C 93-050 method A |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1; 10 A cartridge fuse type gG conforming to VDE 0660-200 |
| Rated operational power in W | 10 W DC-13, operating rate |
| Physical characteristics | (11-12)NC; B; (13-14)NO |
| Net weight | 5.9 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
| Environment | |
| Standards | NF E 09-031 |
| Product certifications | FIMKO; CSA |
| Protective treatment | TC |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 150 gn conforming to NF E 09-031; 20 gn conforming to IEC 60068-2-27 |
| Overvoltage category | Class I conforming to IEC 61140; Class I conforming to NF C 20-030 |
| IP degree of protection | IP66 conforming to IEC 60529; IP66 conforming to IEC 60529 |
| Logistical informations | |
| Country of origin | MA |
| Main | |
| Range of product | Harmony XPE |
| Product or component type | Foot switch |
| Material | Metal |
| Foot switch type | Double foot switch |
| Device short name | XPEM |
| Provided equipment | Cover |
| Trigger mechanism | Without trigger mechanism |
| Contact operation | 1 step |
| Contacts type and composition | 2 x (1 NC + 1 NO) |
| Colour | Blue |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 19.000 cm |
| Package 1 Width | 19.500 cm |
| Package 1 Length | 47.000 cm |
| Package 1 Weight | 7.060 kg |
| Unit Type of Package 2 | S06 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 55.360 kg |
