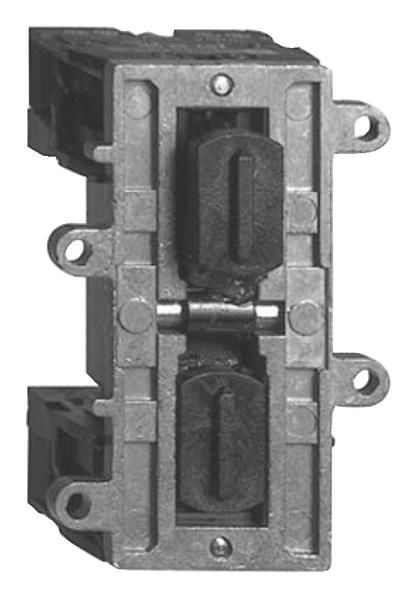

Schneider Electric XENG3791 auxiliary switch block S+Ö
|
34,63 EUR 35,84 EUR |
|||||||||||
|
( 41,21 EUR incl. VAT ) ≈ £28.99 | ≈ $38.61 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 377361 | ||||||||||
| Mfg Part No: | XENG3791 | ||||||||||
| UPC/EAN: | 3389110645880 | ||||||||||
| Weight: | 0.091 kg | ||||||||||
| Type: | XENG3791 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schneider Electric XENG3791:
| Complementary | |
| Connections - terminals | Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end; Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end |
| Mechanical durability | 1000000 cycles |
| Contact code designation | A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A; A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Maximum resistance across terminals | 25 MOhm |
| Operating force | 13 N |
| Short-circuit protection | 10 A fuse protection by cartridge fuse type gG |
| Rated operational power in W | 40 W DC-13 for 1000000 cycles, operating rate |
| Terminals description ISO n°1 | (13-14)NO; B |
| Terminals description ISO n°2 | (11-12)NC; B |
| Contractual warranty | |
| Warranty (in months) | 18 |
| Environment | |
| Standards | UL 508; IEC 60947-5-1; CSA C22.2 No 14 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Overvoltage category | Class II conforming to IEC 61140 |
| Logistical informations | |
| Country of origin | FR |
| Main | |
| Range of product | Harmony XAC |
| Product or component type | Contact block |
| Component name | XENG |
| Electrical circuit type | Control circuit |
| Contact block application | Single speed |
| Contact block type | Double |
| Type of operator | Latching |
| Product compatibility | XACA |
| Contacts type and composition | 1 NO + 1 NC |
| Mounting of block | Front mounting |
| Contact operation | Slow-break |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.0 cm |
| Package 1 Width | 4.0 cm |
| Package 1 Length | 6.0 cm |
| Package 1 Weight | 91.0 g |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 15 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 4.765 kg |
