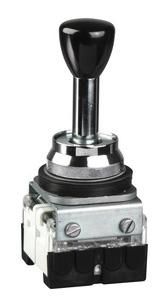

Schneider Electric XD2HL1111 control switch
|
3.217,23 EUR 3.235,85 EUR |
|||||||||||
|
( 3.828,50 EUR incl. VAT ) ≈ £2,692.82 | ≈ $3,600.08 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Sales unit: 8 pieces | |||||||||||
| Lieske Part No.: | 415063 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | XD2HL1111 | ||||||||||
| UPC/EAN: | 3389110607529 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
| Type: | XD2HL1111 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schneider Electric XD2HL1111:
The item price shown refers to 8 pieces Schneider Electric XD2HL1111
| Complementary | |
| Operator position information | All positions |
| Notch per direction | 2 |
| Operator direction information | 4 directions |
| Contacts type and composition | 2 NO for snap action |
| Short-circuit protection | 10 A gG (gl) Neozed cartridge fuse conforming to IEC 60947-5-1 |
| Connections - terminals | Captive screw clamp terminals, 2 x 1.5 mm² with or without cable end; Captive screw clamp terminals, 1 x 2.5 mm² with or without cable end |
| Electrical durability | 1000000 cycles, AC-15 at 230 V, operating rate |
| Contact code designation | A600-Q600 |
| Overvoltage category | Class I conforming to IEC 61140 |
| Mechanical durability | 1000000 cycles |
| fixing center | 120 x 120 mm |
| Return | to 0 position |
| Height | 170 mm |
| Depth | 108 mm |
| Net weight | 0.315 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
| Environment | |
| Standards | IEC 60947-5-1 |
| Protective treatment | TC |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…70 °C |
| Shock resistance | 50 gn conforming to IEC 60068-2-27 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Main | |
| Range of product | Harmony XD2 |
| Product or component type | Complete joystick controller |
| Device short name | XD2 |
| Mounting diameter | 30 mm |
| Bezel material | Chromium plated metal |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.000 cm |
| Package 1 Width | 11.500 cm |
| Package 1 Length | 16.500 cm |
| Package 1 Weight | 488.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.339 kg |
Questions & answers
What is the delivery time of Schneider Electric XD2HL1111 control switch?
The article Schneider Electric XD2HL1111 control switch is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schneider Electric XD2HL1111 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schneider Electric XD2HL1111 control switch always at the best possible price. We can give you a discount of 2% on Schneider Electric XD2HL1111 control switch if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Schneider Electric XD2HL1111 control switch we can offer you a price of 3.144,84 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Schneider Electric XD2HL1111 control switch is offered by us in a sales unit of 8 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
