Schneider Electric XCKJ10541 XCK J10541 position switch IP66 with lever content_copy

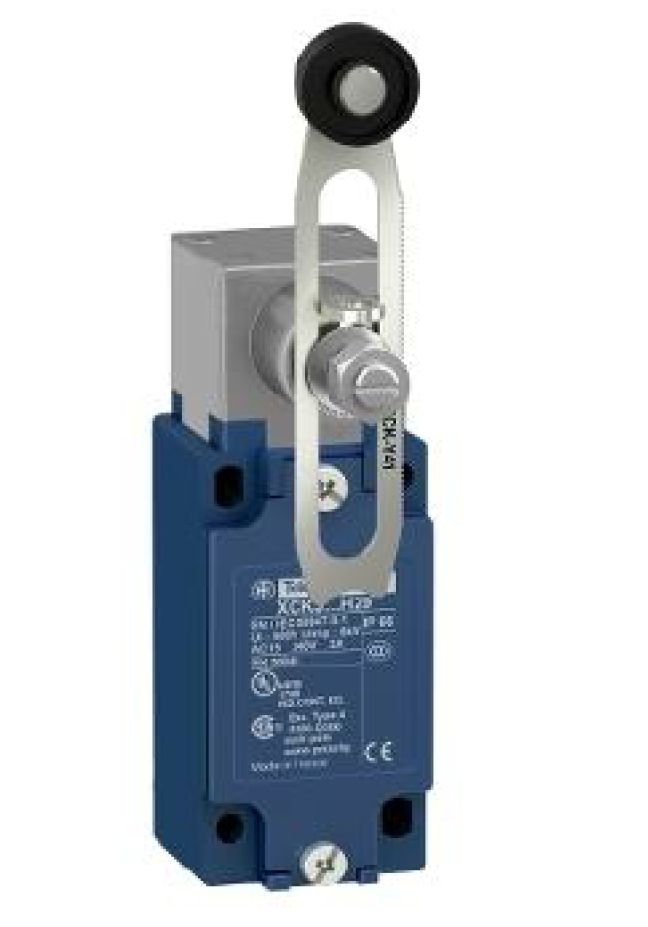

The position switch XCKJ10541 from Schneider Electric belongs to the XC Standard series and is designed for use in industrial applications where reliable mechanical position detection is required. It features a contact configuration with 1 normally open contact and 1 normally closed contact, equipped with a snap-action function to ensure fast and precise switching upon actuation. Actuation is performed via a cam with a 30° angle, realized through a plastic roller lever. This lever is adjustable in length, allowing adaptation to different actuation requirements. Resetting is achieved through a spring return mechanism, enabling automatic return to the initial position after actuation. The switch is designed for lateral approach direction and offers the option to configure 1 or 2 programmable directions, increasing flexibility during installation.

Applications
This position switch is suitable for use in machine and plant engineering, particularly in environments with high demands for mechanical durability and environmental resistance. It is used, for example, in machine tools, conveyor systems, or automation systems to monitor the position of moving parts. The IP66 protection rating ensures complete dust tightness and protection against strong splashing water, making it suitable for outdoor use or in humid industrial environments. The IK07 impact resistance protects the switch from mechanical impacts that may occur during machine operation.

Functions and Features in Detail
The switch features a metal housing made of Zamak, providing high mechanical stability and corrosion resistance. The Type A design conforms to the CENELEC EN 50041 standard, ensuring compliance with European standards for position switches. The cable entry opening is equipped with a Pg13,5 thread, allowing secure screwing of cables with an outer diameter of 9 to 12 mm. The snap-action function ensures that the contact switches quickly and clearly upon actuation, which is essential for reliable control signals in automation systems.

Technology Explained Simply
The snap-action function means that the contact does not transition gradually but switches abruptly upon actuation, ensuring clear signal transmission. The adjustable-length roller lever construction allows the actuation distance to be adapted to the specific machine design without requiring additional components. The spring return mechanism ensures that the lever automatically returns to its initial position after actuation, enhancing the reliability of the switching process. The IP66 protection rating protects the internal components of the switch against dust and water, even under heavy splashing, making it suitable for harsh industrial environments.

Compatibility and Accessories
Various accessories are available for this position switch to extend its functionality. These include the actuator ZCE-05, which provides an alternative actuation method, and the indicator modules ZCKZ020 and ZCKZ021, each integrating 1 or 2 LEDs for visual status indication. These modules are designed for a supply voltage of 24 VDC and are delivered with a cover. Additionally, the spacers XCMZ07 are available, enabling angled head positioning with an adjustable lever. These accessories can be mounted as needed depending on the application requirements.

Mounting and Installation
Mounting is performed via the lateral approach direction, with programmable directions allowing flexible adaptation to machine construction. The cable entry with Pg13,5 thread enables a secure and tight connection to the supply cable. The adjustable-length roller lever construction simplifies installation, as the actuation distance can be individually adjusted. It is important to ensure that the cable has the specified outer diameter of 9 to 12 mm to guarantee a secure screw connection.

Operational Advantages
The position switch offers a high mechanical life of 30,000,000 switching operations, enabling long-term operation without maintenance. The combination of Zamak housing, IP66 protection rating, and IK07 impact resistance ensures high robustness in demanding environments. The snap-action function and spring return mechanism guarantee reliable and precise switching operations. The adjustable-length lever construction increases flexibility during installation and adaptation to different machine designs.

Scope of Delivery
The delivery includes the position switch XCKJ10541 in the described configuration. Accessories such as actuators, indicator modules, or spacers are not included and must be ordered separately.
