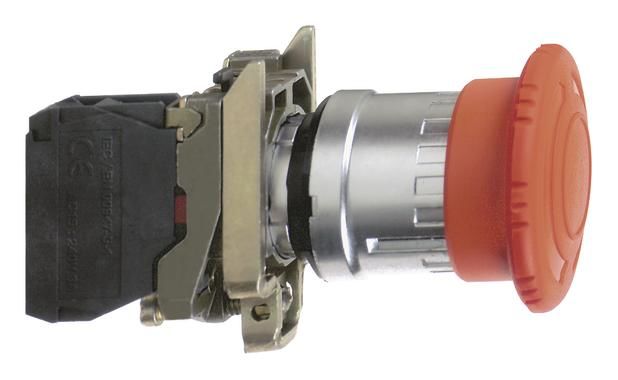

Schneider Electric XB4BS8442 emergency stop overload switch complete 1NC

Your rating:
Average rating
product review for Schneider Electric XB4BS8442 emergency stop overload switch complete 1NC
( 4.4 / 5 ) 12 ratings
38,90 EUR 40,22 EUR
( 46,29 EUR incl. VAT )
≈ £32.52  |  ≈ $42.75
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 8 workdaysinfo_outline
1x Schneider Electric XB4BS8442 emergency stop overload switch complete 1NC
Datasheet:file_download Download
Lieske Part No.:179043
Mfg Part No: XB4BS8442
UPC/EAN: 3606480625053
Weight:0.124 kg
Type:XB4BS8442
Graduated prices net
From piecesPrice per pieces
1036,86 EUR
2534,82 EUR
5032,77 EUR
7530,73 EUR

Product information for Schneider Electric XB4BS8442:

The Harmony XB4 metal series offers a wide range of 22mm complete devices such as push buttons, indicator lights and selector switches through to emergency stop switches. In addition, the modular design of the devices makes it possible to purchase all components as individual elements and optionally also for 30mm installation dimensions. Due to their quality, flexibility and extreme robustness (protection classes up to IP69K), the devices are ideal for most applications in industry and in buildings. This emergency stop switch has 1 opener. This emergency stop switch is unlocked by twisting to release it. Mounted in a 22mm hole, the device is connected using screw terminals on the back of the product. Suitable for international use due to the large number of existing product standards and certifications. Thanks to the Green Premium eco-label, you can receive detailed information on material content, environmental impact and circular economy that supports your sustainability goals.

Complementary
Height47 mm
Width40 mm
Depth82 mm
Terminals description ISO n°1(21-22)NC
Net weight0.118 kg
Resistance to high pressure washer7000000 Pa at 55 °C, distance : 0.1 m
Contacts type and composition1 NC
Contacts usageStandard contacts
Positive openingWith conforming to IEC 60947-5-1 appendix K
Operating travel1.5 mm (NC changing electrical state); 4.3 mm (total travel)
Mechanical durability300000 cycles
Tightening torque0.8…1.2 N.m conforming to IEC 60947-1
Shape of screw headCross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver
Contacts materialSilver alloy (Ag/Ni)
Short-circuit protection10 A cartridge fuse type gG conforming to IEC 60947-5-1
[Ith] conventional free air thermal current10 A conforming to IEC 60947-5-1
[Ui] rated insulation voltage600 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
[Ie] rated operational current3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1; 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1; 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1; 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
Electrical durability1000000 cycles, AC-15, 2 A at 230 V, operating rate
Electrical reliabilityΛ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4; Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4
Device presentationComplete product
Contractual warranty
Warranty (in months)18
Environment
Protective treatmentTH
Ambient air temperature for storage-40…70 °C
Ambient air temperature for operation-40…70 °C
Electrical shock protection classClass I conforming to IEC 60536
IP degree of protectionIP66 conforming to IEC 60529; IP67; IP69; IP69K
Enclosure TypeUL type 4X/13
IK degree of protectionIK06 conforming to IEC 50102
StandardsIEC 60947-5-1; UL 508; CSA C22.2 No 14; ISO 13850; IEC 60947-5-5; JIS C8201-5-1; IEC 60947-1; IEC 60947-5-4; IEC 60204-1; IEC 60364-5-53; JIS C8201-1
Product certificationsCSA; LROS (Lloyds register of shipping); BV; UL listed; DNV
Vibration resistance5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Logistical informations
Country of originCZ
Main
Range of productHarmony XB4
Product or component typeEmergency switching off push-button; Emergency stop push-button
Device short nameXB4
Bezel materialChromium plated metal
Fixing collar materialZamak
Mounting diameter22.5 mm
Sale per indivisible quantity1
Shape of signaling unit headRound
Type of operatortrigger action and mechanical latching
Head typeStandard
ResetTurn to release
Operator profileRed mushroom Ø 40 mm, unmarked
Contact operationSlow-break
Connections - terminalsScrew clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height4.500 cm
Package 1 Width5.400 cm
Package 1 Length8.800 cm
Package 1 Weight124.000 g
Unit Type of Package 2S03
Number of Units in Package 280
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight10.410 kg
Unit Type of Package 3P06
Number of Units in Package 3640
Package 3 Height75.000 cm
Package 3 Width60.000 cm
Package 3 Length80.000 cm
Package 3 Weight93.564 kg


Product data sheet
Datasheet for Schneider Electric XB4BS8442, EAN: 3606480625053

Questions & answers

What is the delivery time of Schneider Electric XB4BS8442 emergency stop overload switch complete 1NC?

The article Schneider Electric XB4BS8442 emergency stop overload switch complete 1NC is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schneider Electric XB4BS8442 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Schneider Electric XB4BS8442 emergency stop overload switch complete 1NC always at the best possible price. We can give you a discount of 2% on Schneider Electric XB4BS8442 emergency stop overload switch complete 1NC if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Schneider Electric XB4BS8442 emergency stop overload switch complete 1NC we can offer you a price of 36,86 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
