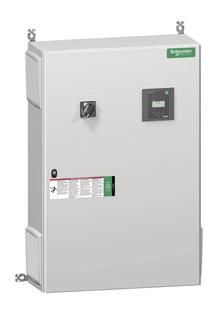

Schneider Electric VLVAW2N03510AK
Schneider VAESET COMPENSATION SYSTEM 150KVAR TOP E content_copy

The low-voltage reactive power compensation from the PowerLogic PFC family helps to avoid contractual penalties from energy suppliers. Save energy, reduce operating costs and reduce CO² emissions through reactive power compensation of inductive loads. This hardware is compatible with the power management software to take advantage of the benefits of digital power supply and enable seamless integration into EcoStruxture Power. Intelligent monitoring and measurement functions are available for safe operation. To optimize operation and maintenance in a wide range of applications, both in commercial and industrial areas. This version, suitable for mains voltage 400V 50Hz, delivers reactive power up to 150kvar. The compensation is automatically set by the reactive power controller of the PowerLogic PFC controller family. It is designed for mains harmonic voltages up to 4% or mains harmonic currents up to 10%, where the mains is defined as a low harmonic load network. The PowerLogic PFC Capacitor Banks IEC range is certified to CE, IEC 61921, IEC 61439 Part 1 and IEC61439 Part 2. It contains long life capacitors from the PFC capacitor family, designed to IEC831 Part 1 and IEC831 Part 2. And includes an intelligent controller with Modbus communication RS485. The RAL7035 enclosure is a wall mounted system with a bottom entry protected by a circuit breaker. The external dimensions of the enclosure are 800mm width, 300mm depth, 1200mm height and a maximum product weight of 131kg. As standard, the enclosures are IP31. Optional kits are available to easily convert them to IP31. This product is particularly suitable for reactive power compensation applications with variable or unstable loads.
Type: VLVAW2N03510AK
