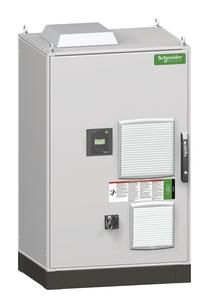

Schneider Electric VLVAF2P03510AG Schneider VarSet compensation system auto 150kvar

The low-voltage reactive power compensation from the PowerLogic PFC family helps to avoid contractual penalties from energy suppliers. Energy savings, lower operating costs and reduce CO² emissions through reactive power compensation of inductive loads. This hardware is compatible with the power management software to take advantage of the benefits of digital power supply and enable seamless integration into EcoStruxture Power. Intelligent monitoring and measurement functions are available for safe operation. To optimize operation and maintenance in a wide range of applications, both in commercial and industrial areas. This version, suitable for mains voltage 400 V 50 Hz, delivers reactive power up to 150 kvar with a detuning factor of 14%. The compensation is automatically set by the reactive power controller of the PowerLogic PFC controller family. It is designed for mains harmonic voltages up to 7% or mains harmonic currents up to 20%, where the mains is defined as a polluted harmonic network. The PowerLogic PFC Capacitor Banks IEC range is certified to CE, IEC 61921, IEC 61439 Part 1 and IEC61439 Part 2. It contains high life expectancy capacitors from the PFC capacitor family designed to IEC831 Part 1 and IEC831 Part 2. And contain an intelligent controller with Modbus communication RS485. The RAL7035 enclosure is a floor standing system with a connection coming from below. The external dimensions of the enclosure are 800mm width, 600mm depth, 1400mm height and a maximum product weight of 350kg. As standard the enclosures are IP31. Optional kits are available to easily convert them to IP31. This product is particularly suitable for reactive power compensation applications with variable or unstable loads.
Type: VLVAF2P03510AG
