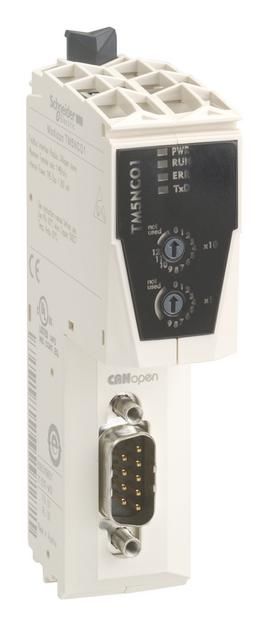

Schneider Electric TM5NCO1K Schneider set of I/O (TM5NCO1) terminal block (TM5ACTB12pS) + base (TM5ACBN

This product is part of the Modicon TM5 range, an offer of modules for modular IP20 I/O systems. The CANopen communication module offers an isolated serial connection, a 9-pin D-Sub (DE-09) CANopen connector, 10kbps, 20kbps, 50kbps, 125kbps, 250kbps, 500kbps, 800kbps, 1000kbps and auto-detected integrated connectors. It is a communication module with a current consumption of 300mA and a maximum power dissipation of 1.5W. This product is part of a flexible and scalable I/O configuration for automation solutions. It is equipped with a removable spring terminal block for electrical connection. It is an IP20 product. The color of the housing is white. It weighs 0.12 kg. The Modicon TM5 meets the typical requirements of production and packaging machines as well as material handling and assembly systems. This product is certified by CE, C-Tick, CSA, GOST-R and CULus. It complies with CSA C22.2 No. 213, UL 508, IEC 61131-2 and CSA C22.2 No. 142 standards. This product is compatible with the Modicon LMC058 motion controller and the Modicon M258 logic controller. The kit includes the TM5ACBN1 bus connection plate, the TM5ACTB12PS terminal block, the TM5NCO1 CANopen module and the TM5SPS3 power supply. This modular IP20 IO system offers a flexible and scalable configuration of extensions/distributed I/O islands. This is possible by connecting to Modicon controllers (TM5 bus) or via CANopen bus/Sercos bus for Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Type: TM5NCO1K
