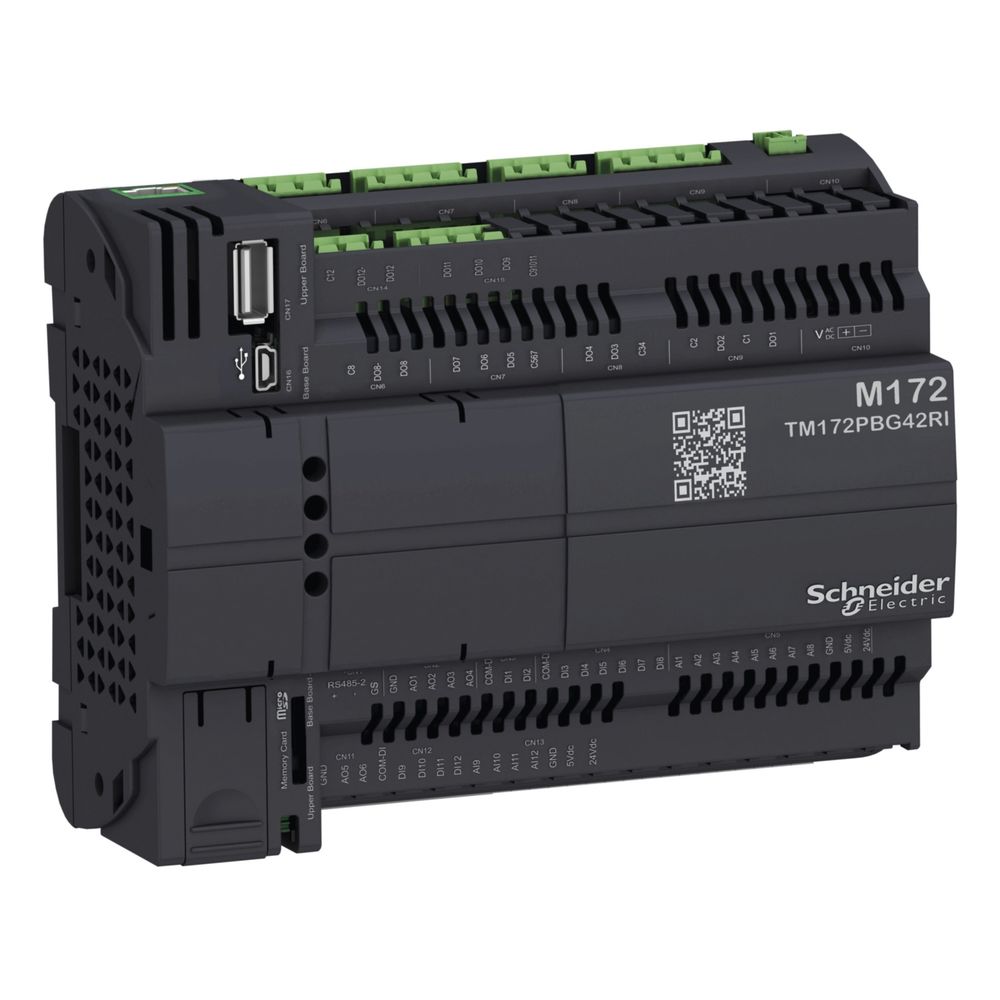

Schneider Electric TM172PBG42RI Schneider PLC control, Modicon M172 Performance, 42 I/O, Ethernet

The Modicon M172 PLC controller in performance version is designed for any size of application in the field of HVAC machines and pump automation. Integrated and optional communication interfaces as well as Ethernet services offer extensive networking options. The controller has a total of 42 integrated I/Os, of which 12 are digital (potential-free / HSC 2 kHz) and 12 configurable (U/I/T/R) analog inputs, 12 digital &, 8 configurable (U/I/PWM) analog outputs. Integrated are two RS485 interfaces for Modbus SL Master/Slave (only 1 master) or 1 BACnet MS/TP (B-AAC profile), as well as an Ethernet interface for Modbus TCP Master/Slave &, BACnet IP (B-AAC profile), Ethernet (WebVisu, FTP, etc.). Program download possible via USB-A or Modbus SL. Available Ethernet services are remote access, HTTP web server (Webvisu), FTP client/server, SNPT. Slot for micro SD card on the front of the device for use for data recording and web server storage. Program transfer via memory stick via USB-A interface. Possibility of programming with PC via USB Mini-B interface. The power supply is via 24 VAC / 24 VDC. The digital outputs are designed as relays (3A). The power supply and RS485 interface(s) are electrically isolated. The connections are made using removable screw terminal blocks (not included in delivery). Mounting on 35 mm top hat rail or mounting plate with fastening accessories. Is programmed with free EcoStruxure Machine Expert - HVAC software. Certified according to CE, cURus (UL recognized), CSA, EAC, RCM, RoHS China, BACnet BTL.
Type: TM172PBG42RI
