Schneider Electric SH30701P02A1000
Schneider servo motor 1
|
1.415,88 EUR 1.477,44 EUR |
|
|
( 1.684,90 EUR incl. VAT ) ≈ £1,214.83 | ≈ $1,641.00 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 1855911 |
|---|---|
| Mfg Part No: | SH30701P02A1000 |
| UPC/EAN: | 3606485295718 |
| Weight: | 0.123 kg |
Product information for Schneider Electric SH30701P02A1000:

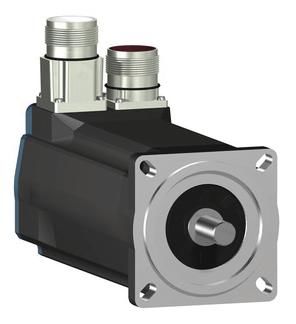

Lexium SH3 servo motor. This SH3 series of AC servo motors has a low rotor moment of inertia, which enables high acceleration capability for dynamic applications. Thanks to the winding technology, a higher power density is achieved in a compact design. This servo has a nominal continuous stall torque of 1.4 Nm and achieves a peak torque of 3.5 Nm. Its nominal speed is up to 7200 rpm depending on the supply voltage. This results in a voltage-dependent nominal power of up to 950 W. The built-in encoder is designed as a multiturn with 128 periods/revolution (128x1024x4096) as SinCos Hiperface. The electrical connection is made via 2x M23 connectors in a straight design. The motor flange is 70 mm for fastening. The drive shaft has a diameter of 11 mm. The shaft end is smooth and corresponds to protection class IP54. The motor housing has protection class IP54. There is no holding brake. The servo amplifiers from the Lexium series Lexium 52 & Lexium 62 are recommended for operating the synchronous motor.
Type: SH30701P02A1000
Type: SH30701P02A1000
Questions & answers
What is the delivery time of Schneider Electric SH30701P02A1000 Schneider servo motor 1?
The article Schneider Electric SH30701P02A1000 Schneider servo motor 1 is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schneider Electric SH30701P02A1000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schneider Electric SH30701P02A1000 Schneider servo motor 1 always at the best possible price. We can give you a discount of 2% on Schneider Electric SH30701P02A1000 Schneider servo motor 1 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
