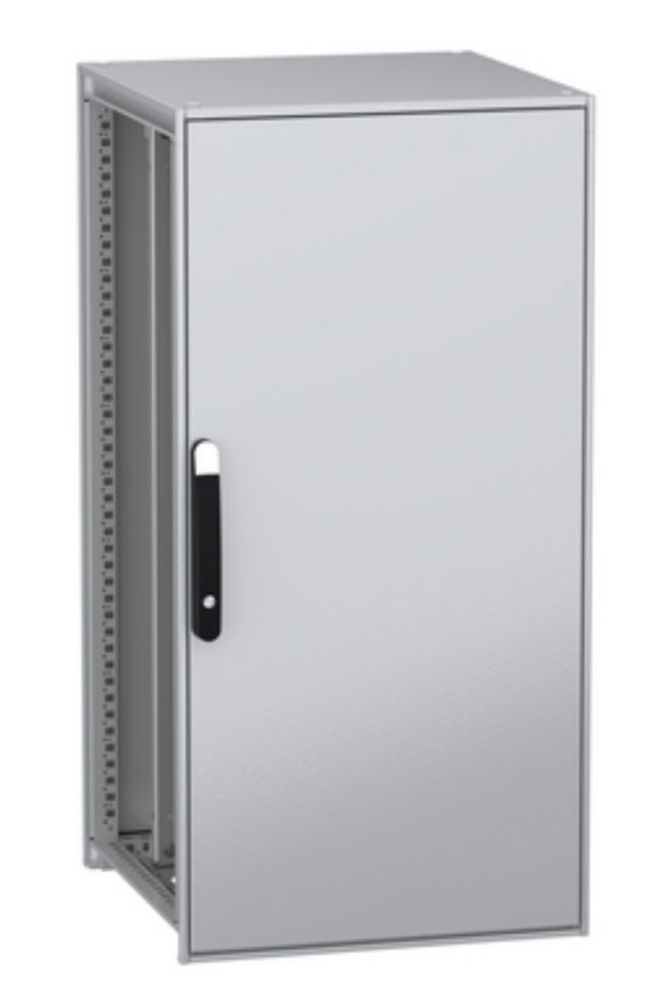

Schneider Electric NSYSFN12660P stand enclosure for PanelSeT SFN made of decarburized steel
|
-6% 591,74 EUR 631,81 EUR |
|
|
( 704,17 EUR incl. VAT ) ≈ £500.02 | ≈ $661.57 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 872801 |
|---|---|
| Mfg Part No: | NSYSFN12660P |
| UPC/EAN: | 3606486102503 |
| Weight: | 73.9 kg |
| Type: | NSYSFN12660P |
Further Switchboard-Systems from Schneider ElectricFurther products in category Switchboard-Systems
All products of Schneider Electric
Product information for Schneider Electric NSYSFN12660P:
The Schneider Electric PanelSeT SFN with manufacturer's number NSYSFN12660P is a floor-standing enclosure made of decarbonized steel, designed for versatile industrial applications. It features a nominal height of 1200 mm, a width of 600 mm, and a depth of 600 mm. The enclosure is constructed with galvanized steel for the frame and supports, ensuring high corrosion resistance and long service life. The door and panels are made of steel sheet, while the handle is made of polyamide 6 with 30% glass fibers. The surface is coated with an epoxy-polyester powder coating, providing a uniform, robust appearance. The enclosure color is grey (RAL 7035), and the handle is black (RAL 9005). The enclosure is equipped with a single, closed door that can be opened up to 120 degrees and is reversible, allowing access from both sides. The door is fitted with a four-point lock and a handle with a 5-mm double bar, ensuring secure and stable locking.
Applications
PanelSeT SFN is suitable for multi-purpose industrial applications, particularly in environments requiring protection against dust, splashing water, and oil. It is ideal for use in production facilities, automation systems, and other industrial environments where robust and secure protection for electrical components is required. The IP55 protection rating ensures the enclosure is protected against dust ingress and splashing water from any direction. Additionally, the enclosure has an IK10 rating, meaning it is resistant to mechanical impacts such as shocks and vibrations up to a certain energy level.
Features and Equipment in Detail
The enclosure includes a simple door, a rear panel, a roof, two sliding rails, and an assembly kit with quick-mounting brackets. The mounting plate is already integrated, simplifying the installation of electrical components such as contactors, relays, or frequency converters. Accessibility is from the front, back, and sides, making the installation, maintenance, and inspection of installed components convenient. The door is equipped with a four-point lock, ensuring secure locking and preventing unauthorized access.
Technology Explained Simply
The IP55 protection rating means the enclosure is dust-tight and protected against splashing water from any direction. This makes it suitable for use in humid or dusty environments, such as those found in many production halls or outdoor applications. The IK10 rating refers to mechanical impact resistance, ensuring the enclosure can withstand impacts up to a specified energy level, making it suitable for industrial conditions. The use of decarbonized steel, made from recycled material and produced using renewable energy, reduces CO2 emissions during the manufacturing process and contributes to sustainability.
Compatibility and Accessories
PanelSeT SFN is compatible with various accessories that extend the functionality and adaptability of the enclosure. These include, for example, bases for the side and front (e.g., NSYSPS6200, NSYSPF6200), cable entry plates (NSYEC66), intermediate panels (NSYSIMP12), rain roofs (NSYSC660), mounting plates (NSYMP126), floor mounting brackets (NSYSGF), system mounting rails (NSYTVR12), as well as busbar chambers (NSYTBCCN366) and side walls (NSY2SPN126). Additionally, safety systems such as padlock systems (NSYBLKHN123) or climate controllers like the ClimaSys thermostat (NSYCCOTHO) or the thermo- and hygrostat (NSYCCOHYT230VID) can be integrated. Compatibility with frequency converters such as the ATV340D30N4E enables use in drive systems.
Installation and Mounting

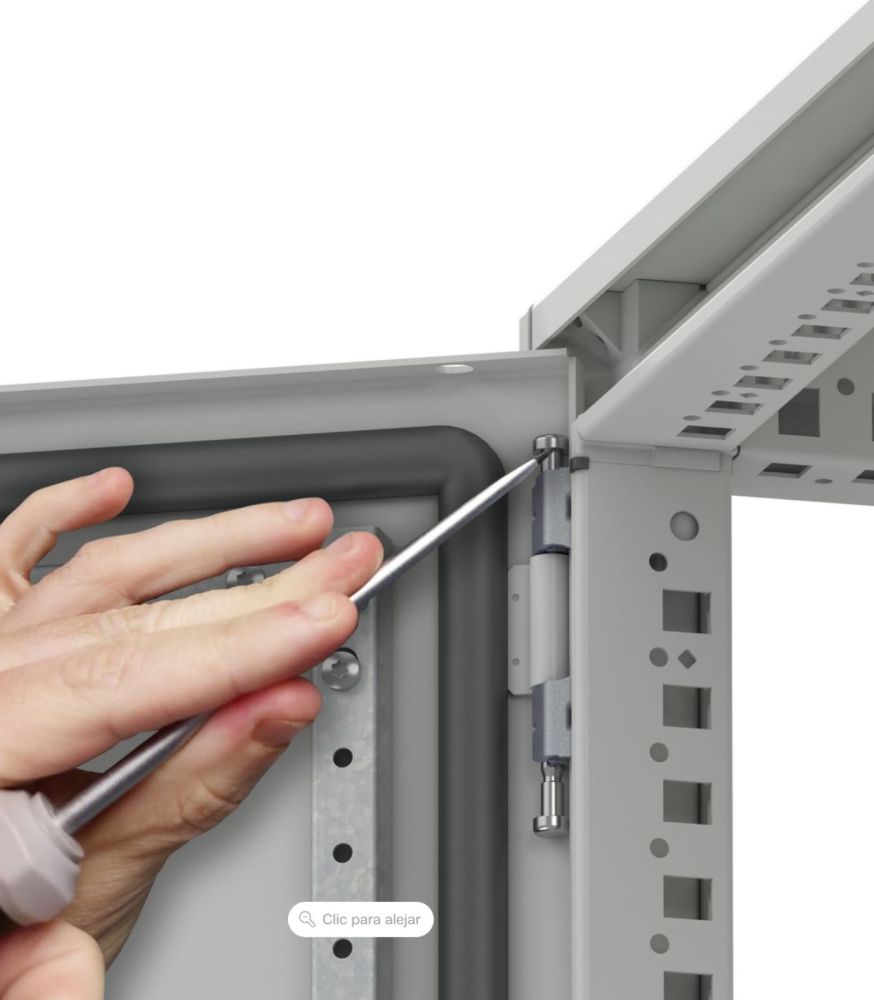

Mounting is done via integrated sliding rails and quick-mounting brackets, allowing easy and secure installation of electrical components. The mounting plate simplifies the installation of contactors, relays, or other components. Floor mounting is achieved using integrated brackets (NSYSGF) or additional mounting accessories. The reversible door and accessibility from multiple sides facilitate installation and maintenance.
Operational Advantages
The enclosure offers high mechanical and chemical resistance due to the use of galvanized steel and the robust powder coating. The IP55 protection rating and IK10 rating ensure reliable protection in demanding environments. The integrated mounting plate and quick-mounting brackets reduce installation time. The use of decarbonized steel contributes to reducing environmental impact. Accessibility from multiple sides and the reversible door simplify maintenance and inspection.
Applications
PanelSeT SFN is suitable for multi-purpose industrial applications, particularly in environments requiring protection against dust, splashing water, and oil. It is ideal for use in production facilities, automation systems, and other industrial environments where robust and secure protection for electrical components is required. The IP55 protection rating ensures the enclosure is protected against dust ingress and splashing water from any direction. Additionally, the enclosure has an IK10 rating, meaning it is resistant to mechanical impacts such as shocks and vibrations up to a certain energy level.
Features and Equipment in Detail
The enclosure includes a simple door, a rear panel, a roof, two sliding rails, and an assembly kit with quick-mounting brackets. The mounting plate is already integrated, simplifying the installation of electrical components such as contactors, relays, or frequency converters. Accessibility is from the front, back, and sides, making the installation, maintenance, and inspection of installed components convenient. The door is equipped with a four-point lock, ensuring secure locking and preventing unauthorized access.
Technology Explained Simply
The IP55 protection rating means the enclosure is dust-tight and protected against splashing water from any direction. This makes it suitable for use in humid or dusty environments, such as those found in many production halls or outdoor applications. The IK10 rating refers to mechanical impact resistance, ensuring the enclosure can withstand impacts up to a specified energy level, making it suitable for industrial conditions. The use of decarbonized steel, made from recycled material and produced using renewable energy, reduces CO2 emissions during the manufacturing process and contributes to sustainability.
Compatibility and Accessories
PanelSeT SFN is compatible with various accessories that extend the functionality and adaptability of the enclosure. These include, for example, bases for the side and front (e.g., NSYSPS6200, NSYSPF6200), cable entry plates (NSYEC66), intermediate panels (NSYSIMP12), rain roofs (NSYSC660), mounting plates (NSYMP126), floor mounting brackets (NSYSGF), system mounting rails (NSYTVR12), as well as busbar chambers (NSYTBCCN366) and side walls (NSY2SPN126). Additionally, safety systems such as padlock systems (NSYBLKHN123) or climate controllers like the ClimaSys thermostat (NSYCCOTHO) or the thermo- and hygrostat (NSYCCOHYT230VID) can be integrated. Compatibility with frequency converters such as the ATV340D30N4E enables use in drive systems.
Installation and Mounting
Mounting is done via integrated sliding rails and quick-mounting brackets, allowing easy and secure installation of electrical components. The mounting plate simplifies the installation of contactors, relays, or other components. Floor mounting is achieved using integrated brackets (NSYSGF) or additional mounting accessories. The reversible door and accessibility from multiple sides facilitate installation and maintenance.
Operational Advantages
The enclosure offers high mechanical and chemical resistance due to the use of galvanized steel and the robust powder coating. The IP55 protection rating and IK10 rating ensure reliable protection in demanding environments. The integrated mounting plate and quick-mounting brackets reduce installation time. The use of decarbonized steel contributes to reducing environmental impact. Accessibility from multiple sides and the reversible door simplify maintenance and inspection.
Questions & answers
What is the delivery time of Schneider Electric NSYSFN12660P stand enclosure for PanelSeT SFN made of decarburized steel?
The article Schneider Electric NSYSFN12660P stand enclosure for PanelSeT SFN made of decarburized steel is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schneider Electric NSYSFN12660P to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schneider Electric NSYSFN12660P stand enclosure for PanelSeT SFN made of decarburized steel always at the best possible price. We can give you a discount of 2% on Schneider Electric NSYSFN12660P stand enclosure for PanelSeT SFN made of decarburized steel if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
