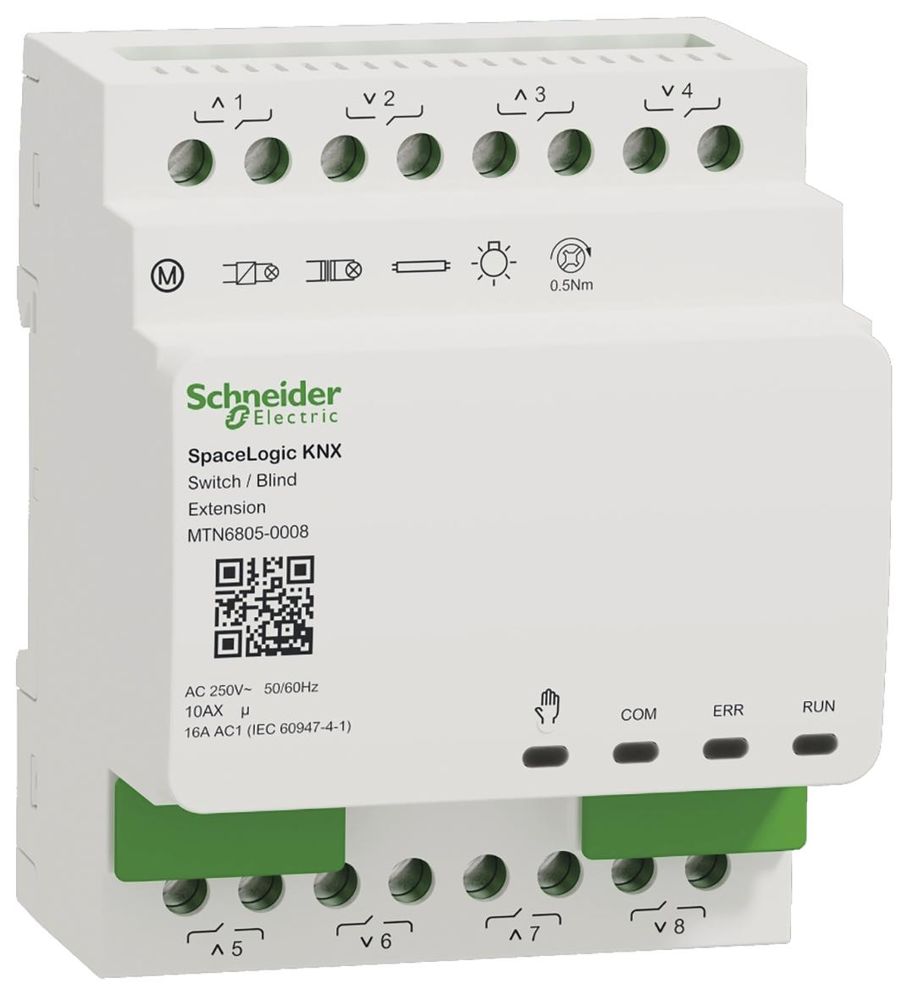

Schneider Electric MTN6805-0008
Schneider SpaceLogic KNX extension switch/blind

Combined switching and blind actuator 8 to 24-way, 16 A, REG, extension SpaceLogic KNX switching blind, 8-way extension 8 switching outputs 4 blind outputs: The function of the blind or switching channels is freely configurable. All blind switching outputs can be operated manually using buttons. The ETS programming is carried out in the ETS application of the master. The master controls the function of the extension, the power supply and the communication with the KNX bus. A maximum of 2 extensions can be connected to the master (MTN6705-0008), so that up to -24 loads can be switched or -12 blind drives can be controlled. Supply voltage via the master: KNX bus, approx. 6.5 mA (master), approx. 9 mA (master + 1 extension), approx. 12.5 mA (master + 2 extensions). All outputs can be operated manually using the master's keypad. On the extension, a green LED indicates that the device is ready for operation, and a red manual operation LED indicates whether the extension is being controlled manually. For mounting on TH35 DIN rails in accordance with EN 60715. The connection to the master or another extension is made either via a module connection or via a cable connection. Functions of the KNX software: The functions are set in the master's KNX application. General KNX software functions: Energy saving, device security, device status, manual operation, PIN code for firmware update. In the event of a defect, the extension can be replaced with a new device without having to reprogram the device using the ETS. Functions of the blind/roller shutter actuator: -Running time -Idle time -Step interval -Lock function -Movement area limits -Weather alarm -8-bit positioning for height and slats -16 scenes. Status and feedback function per channel. Functions of the switching actuator: -Operation as a normally closed/normally closed contact -programmable behavior for download -delay functions for each channel -staircase lighting time function with/without manual OFF function. Switch-off warning for staircase lighting time function -16 scenes per channel, central function, blocking function, linking or forced operation, feedback function for each channel. Nominal voltage: AC 250 V, 50-60 Hz Nominal current: 16 A AC-1, IEC 60947-4-1 / 10 A, IEC 60669-2-5For each blind roller shutter channel: -Motor load 1000 VAFor each switching output nominal load: -Incandescent lamps: 2300 W-Halogen lamps: 2300 W. LED: 200 W -Capacitive load: 10 AX, max. 140 µF -Inductive load: 10 A, cosf 0.6 Relay data -Inrush current: max. 800 A/200 µs, max. 165 A/20 ms. Device width: 4 HP (72 mm) Accessories: SpaceLogic KNX switch/blind extension MTN6805-0008. Contents: With bus connection terminal.
Type: MTN6805-0008
