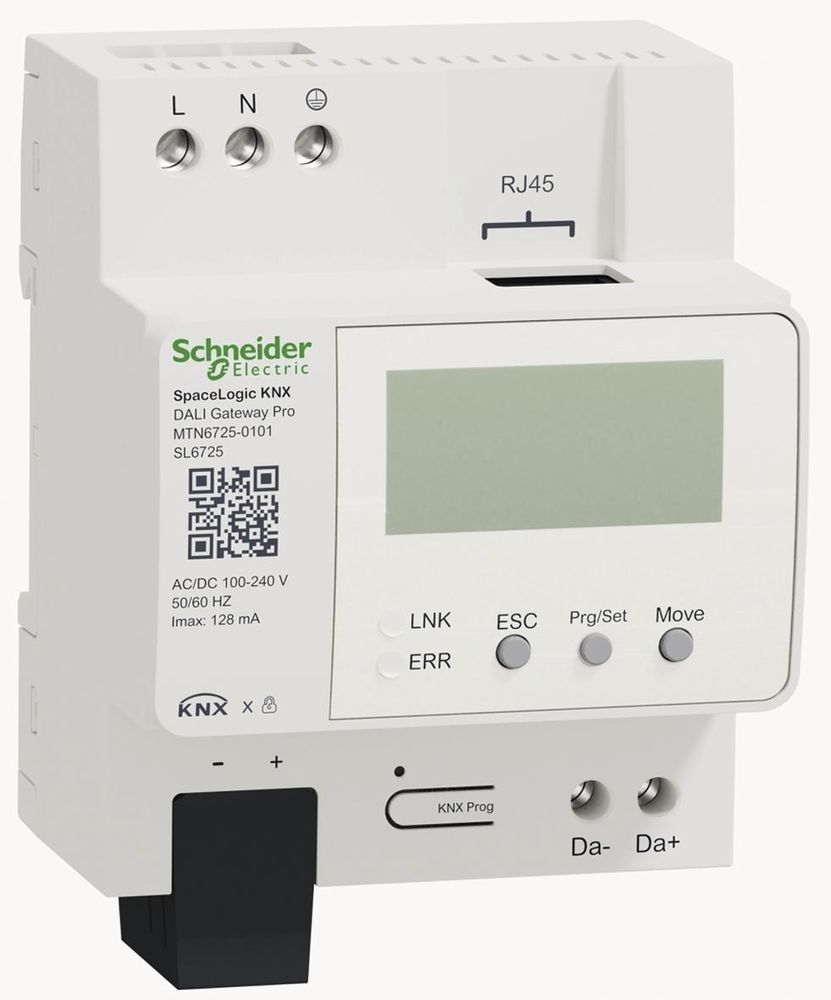

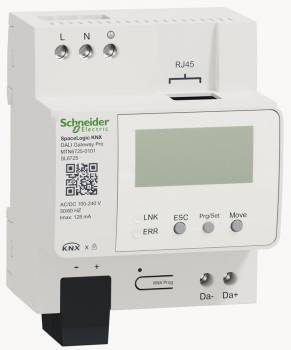

Schneider Electric MTN6725-0101
Schneider SpaceLogic KNX DALI Gateway Pro 1ch DALI 2.0

DALI Gateway Pro, REG,. SpaceLogic KNX DALI Gateway Pro 2.0. The SpaceLogic KNX DALI Gateway Pro controls electronic ballasts with DALI interface via the KNX installation bus. The gateway is DALI 2.0 Multi-Master certified. The gateway supports KNX longframe communication and is compatible with KNX security telegrams/devices and can be activated in the ETS 5 software. In addition, access to the device itself (e.g. for a download) is protected by KNX Secure. It supports ballasts according to EN 62386-102 ed1 (DALI1), devices according to EN 62386-102 ed2 (DALI2), as well as DALI2 motion detectors and light sensors according to EN 62386-303 and EN 62386-304. The gateway has a DALI output that can control up to 64 electronic ballasts. In addition, up to 8 DALI2 motion detectors or light sensors can be connected. Multi-master operation according to EN 62386-103 ed2 is permitted. The required power supply for the connected electronic ballasts and motion detectors is provided directly by the device. Additional DALI power supplies are not required. The electronic ballasts can be controlled in 16 groups per DALI gateway. In addition to group control, the gateway also enables individual control (individual addressability) of up to 64 electronic ballasts. In addition, the gateway enables the operation of self-contained emergency lights (EN 62386-202). Emergency lighting systems with central batteries are also supported. DALI commissioning and configuration as well as group assignment and scene setting can be carried out via the gateway. With integrated bus coupler. For mounting on DIN rails TH35 according to EN 60715. The bus connection is made via a bus connection terminal, a data rail is not required.
Type: MTN6725-0101
