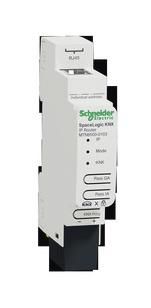

Schneider Electric MTN6500-0103 Schneider SpaceLogic KNX IP router DIN rail

Spacelogic KNX IP Router DIN rail. The Spacelogic KNX IP Router enables the forwarding of telegrams between different lines via a LAN (IP) as a fast backbone. In addition, this KNX IP router is suitable for connecting a PC to the KNX network, e.g. for ETS programming. The KNX IP Router supports KNX Security, which can be activated in the ETS. As a secure router, the device enables the coupling of unsecured communication on KNX TP to a secure IP backbone. For the interface functionality (tunneling), KNX security prevents unauthorized access. The router supports up to 8 tunneling channels. A separate individual address must be configured for each tunneling channel. The IP address can be obtained via a DHCP server or by manual configuration (ETS). This KNX IP Router works according to the KNXnet/IP specification and uses the core, device management, tunneling and routing part. The Spacelogic KNX IP router has an extended filter table for the main group 0 to 31 and can buffer up to 150 telegrams. The router is powered via the KNX bus. An additional power supply is not required. With 2 integrated push buttons for test purposes and 3 status LEDs. For mounting on a TH35 top hat rail according to EN 60715. The bus is connected via a bus connection terminal. The connection to the LAN network is via the RJ45 socket. Device width - 1 module approx. 18 mm. Note - This application requires ETS 5 or higher. Contents - With bus connection terminal and cable cover.
Type: MTN6500-0103
