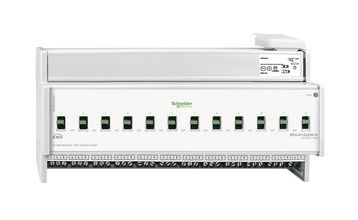

Schneider Electric MTN648493 Schneider switching actuator REG-K/12x230/16 with manual operation lgr

Schneider Electric KNX. For independent switching of 12 consumers via normally open contacts. All 230 V switching outputs can be operated manually with hand switches. With integrated bus coupler. The power connection is via screw terminals, with two of the L connections bridged internally. A green LED indicates that the application is ready for operation after loading. For mounting on TH35 top hat rails in accordance with EN 60715. The bus connection is via a bus connection terminal, a data rail is not required. Nominal voltage: AC 230 V, 50-60 Hz. Per switching contact:. Switching current: 16 A, cos Phi 0.6 AC1 operation: max 16 A AC3 operation: max 10 A AC5 operation: max 16 A Max direct current: 16 A/ 24V DC. Life expectancy of output: mechanical: >106 AC1/AC3/AC5 operation: >3x104. 230V, 1A ohmic: >8x105. Incandescent lamps: AC 230 V, max. 3600 W. Halogen lamps: AC 230 V, max 2500 W Fluorescent lamps: AC 230 V, max 2500 VA. Capacitive load: AC 230 V, 16 A, ma 200 uF Minimum switching capacity: 100 mA/12V AC/DC Maximum inrush current: 150us: 600 A 250us: 480 A 600us: 300 A, Device width: 12 HP corresponds to approx. 216 mm. Scope of delivery: With bus connection terminal and cable cover.
Type: MTN648493
