Schneider Electric METSEPM8240
Schneider measuring device for front installation, intermediate measurement

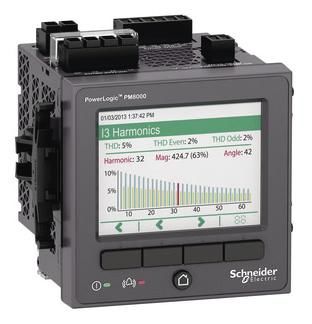

The PowerLogic PM8240 is a 96 x 96 mm front panel power analyzer for low and medium voltage applications with integrated display and AC/DC control voltage. It is designed to ensure the availability and efficiency of your energy-critical systems. It creates energy transparency and provides actionable data on complex power quality conditions. The modular, flexible and powerful ION technology allows individual applications to be created for each measuring device. It has high accuracy, multiple communication ports, a web-based user interface and a graphical color display. This power analyzer also has integrated power quality analysis and patented fault direction detection. Certified by independent laboratories for Class 0.2S accuracy for active energy (IEC62052-11, IEC62053-24, IEC62053-22). Also certified for power quality (IEC62586-2, IEC61000-4-30 Class S). Cybersecurity features include secure protocols (HTTPs, sFTP, Secure ION), security event logging, Syslog protocol. Ability to enable/disable communication ports and support for 50 configurable user accounts to manage access. With 512MB memory for up to 50 data logs (800 channels), 50+ user definable alarms, waveform recordings up to 256 samples/cycle, 1/2 cycle root mean square (RMS) logging. Memory can also be used for custom web pages, min/max logs, energy trends and run hours. Time stamping for events with +/-1ms accuracy using time synchronization. Time synchronization methods that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time setting function. 3 digital inputs and one digital output, plus the ability to add up to 4 option modules. The input/output option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs. Wide control voltage from 90-415 VAC / 110-415 VDC. Operating environment from -25 to +70°C, humidity from 5% to 95% and operating altitude up to 3000 m.
Type: METSEPM8240
