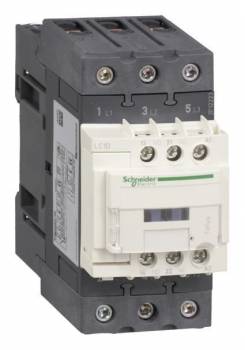

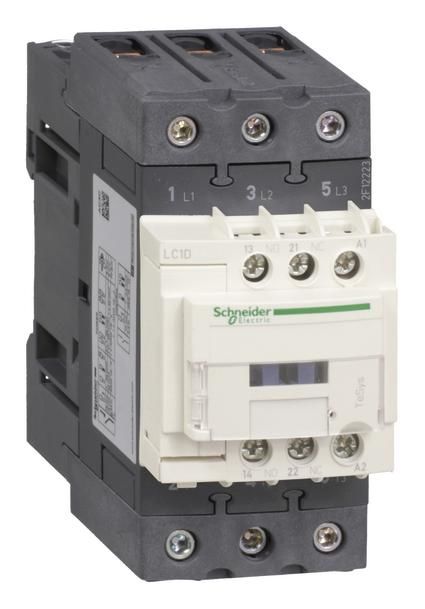

Product information for Schneider Electric LC1D40AX7:
Contactor TeSys LC1D, 3p, AC-3 440 V AC. Series: TeSys - Product name: TeSys D - Product or component type: Contactor - Device abbreviation: LC1D - Contactor application: Motor control, resistive load - Utilization category: AC-1, AC-3 - Description of poles: 3P - Number of pole contacts: 3 NO - Rated operating voltage Ue: <= 300 V DC for main circuit, <= 690 V AC 25...400 Hz for main circuit - Rated operating current Ie: 40 A (<= 60 °C) at <= 440 V AC AC-3 for main circuit, 60 A (<= 60 °C) at <= 440 V AC AC-1 for main circuit - Motor power (kW): 11 kW at 220...230 V AC 50/60 Hz, 18.5 kW at 380...400 V AC 50/60 Hz, 22 kW at 415...440 V AC 50/60 Hz, 22 kW at 500 V AC 50/60 Hz, 30 kW at 660...690 V AC 50/60 Hz - Motor power (HP): 10 hp at 200/208 V AC 50/60 Hz for 3 phase motor, 10 hp at 230/240 V AC 50/60 Hz for 3 phase motor, 3 hp at 115 V AC 50/60 Hz for 1 phase motor, 30 hp at 460/480 V AC 50/60 Hz for 3 phase motor, 30 hp at 575/600 V AC 50/60 Hz for 3 phase motor, 5 hp at 230/240 V AC 50/60 Hz for 1 phase motor - Auxiliary contact structure: 1 NO + 1 NC - Overvoltage category: III - Conventional free air thermal current (Ith): 10 A at <= 60 °C for signal circuit, 60 A at <= 60 °C for main circuit - Irms rated making power: 140 A AC for signal circuit according to IEC 60947-5-1, 250 A DC for signal circuit according to IEC 60947-5-1, 800 A at 440 V for main circuit according to IEC 60947 - Rated short-time withstand current Icw: 100 A 1 s signal circuit, 120 A 500 ms signal circuit, 140 A 100 ms signal circuit, 165 A <= 40 °C 1 min. main circuit, 320 A <= 40 °C 10 s main circuit, 72 A <= 40 °C 10 min. main circuit, 720 A <= 40 °C 1 s main circuit - associated fuse protection: 10 A gG for signal circuit according to IEC 60947-5-1, 80 A gG at <= 690 V coordination type 1 for main circuit, 80 A gG at <= 690 V coordination type 2 for main circuit - nominal insulation voltage Ui: 600 V for main circuit certifications CSA, 600 V for main circuit certifications UL, 600 V for signal circuit certifications CSA, 600 V for signal circuit certifications UL, 690 V for main circuit according to IEC 60947-4-1, 690 V for signal circuit according to IEC 60947-1 - electrical endurance: 1.4 Mcycles 60 A AC-1 at Ue <= 440 V, 1.5 Mcycles 40 A AC-3 at Ue <= 440 V - Power loss per pole: 2.4 W AC-3, 5.4 W AC-1 - Protective cover: with - Mounting bracket: plate, rail - Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508 - Product certifications: CCC, CSA, GOST, UL - Connections - Terminals: Main circuit : EverLink BTR screw connector 1 cable 1...35 mm¿ - Cable strength: flexible - with cable end, Main circuit : EverLink BTR screw connector 1 cable 1...35 mm¿ - Cable strength: flexible - without cable end, Main circuit : EverLink BTR screw connector 1 cable 1...35 mm¿ - Cable strength:rigid - without cable end, main circuit : EverLink BTR screw connector 2 cables 1...25 mm¿ - cable strength: rigid - without cable end, main circuit : EverLink BTR screw connector 2 cables 1...25 mm¿ - cable strength: flexible - with cable end, main circuit : EverLink BTR screw connector 2 cables 1...25 mm¿ - cable strength: flexible - without cable end, control circuit : terminals with screw clamp 1 cable 1-4 mm¿ - cable strength: flexible - with cable end, control circuit : terminals with screw clamp 1 cable 1-4 mm¿ - cable strength: flexible - without cable end, control circuit : terminals with screw clamp 1 cable 1-4 mm¿ - cable strength: rigid - without cable end, control circuit : terminals with screw clamp 2 cables 1...2.5 mm¿ - cable strength: flexible - with cable end, Control circuit: screw terminals 2 cables 1-4 mm¿ - cable strength: flexible - without cable end, Control circuit: screw terminals 2 cables 1-4 mm¿ - cable strength: rigid - without cable end - tightening torque: main circuit: 5 Nm - on EverLink BTR screw connector
Type: LC1D40AX7
Questions & answers
What is the delivery time of Schneider Electric LC1D40AX7 Schneider contactor TeSys 3p AC3 440VAC?
The article Schneider Electric LC1D40AX7 Schneider contactor TeSys 3p AC3 440VAC is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Schneider Electric LC1D40AX7 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schneider Electric LC1D40AX7 Schneider contactor TeSys 3p AC3 440VAC always at the best possible price. We can give you a discount of 2% on
Schneider Electric LC1D40AX7 Schneider contactor TeSys 3p AC3 440VAC if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Schneider Electric LC1D40AX7 Schneider contactor TeSys 3p AC3 440VAC we can offer you a price of 167,92 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Schneider Electric LC1D40AX7 Schneider contactor TeSys 3p AC3 440VAC via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
