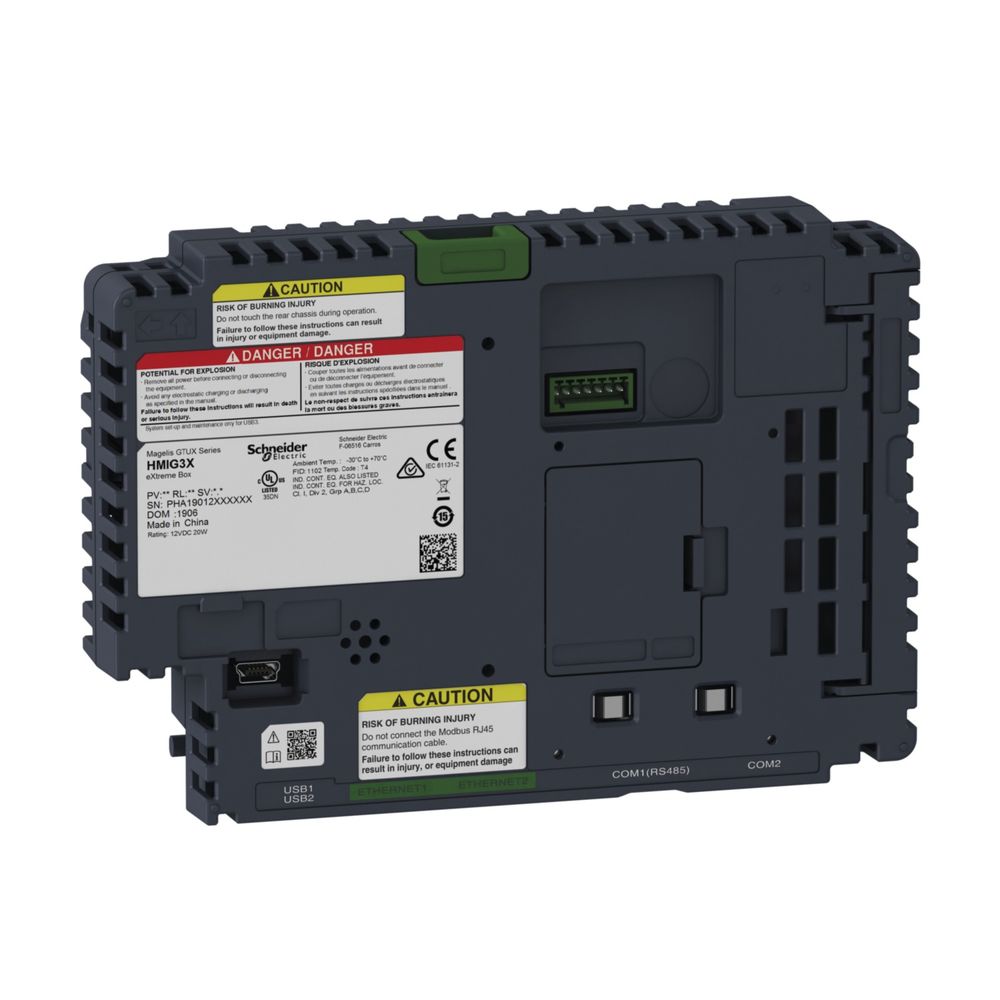

Schneider Electric HMIG3X
Schneider HMI GTU OUTDOOR BOX content_copy

The Hamrony GTUX Outdoor Box is to be used in combination with the GTUX displays HMIDT35X, HMIDT65X and HMIDT75X. With its stainless steel front and an extra bright display, this product range was developed for use outdoors and in extreme environmental conditions. The focus here is on connectivity for secure remote maintenance via EcoStruxure Secure Connect Advisor and exchangeable memory and components for quick and easy maintenance. Specially designed for outdoor use, the display has a high brightness, an extended temperature range of -30-70 °C and defies shock (40G) and vibration (2G). The user interface on the HMI is configured using the Vijeo Designer software. Optimal connectivity is guaranteed thanks to the diverse interfaces (2 x Ethernet, 2 x serial COM, 2 x USB Type A, 1 x USB Type Mini-B) as well as 2 x SD card slots and 1 x speaker and 1 x AUX output. The external dimensions of the outdoor box are 188 mm (width) x 131 mm (height) x 35 mm (depth). It also complies with the following certifications: CE, RCM, KC, EAC, UL cUL Class 1 Div2, ATEX/IECEx Zone 2/22.
Type: HMIG3X
