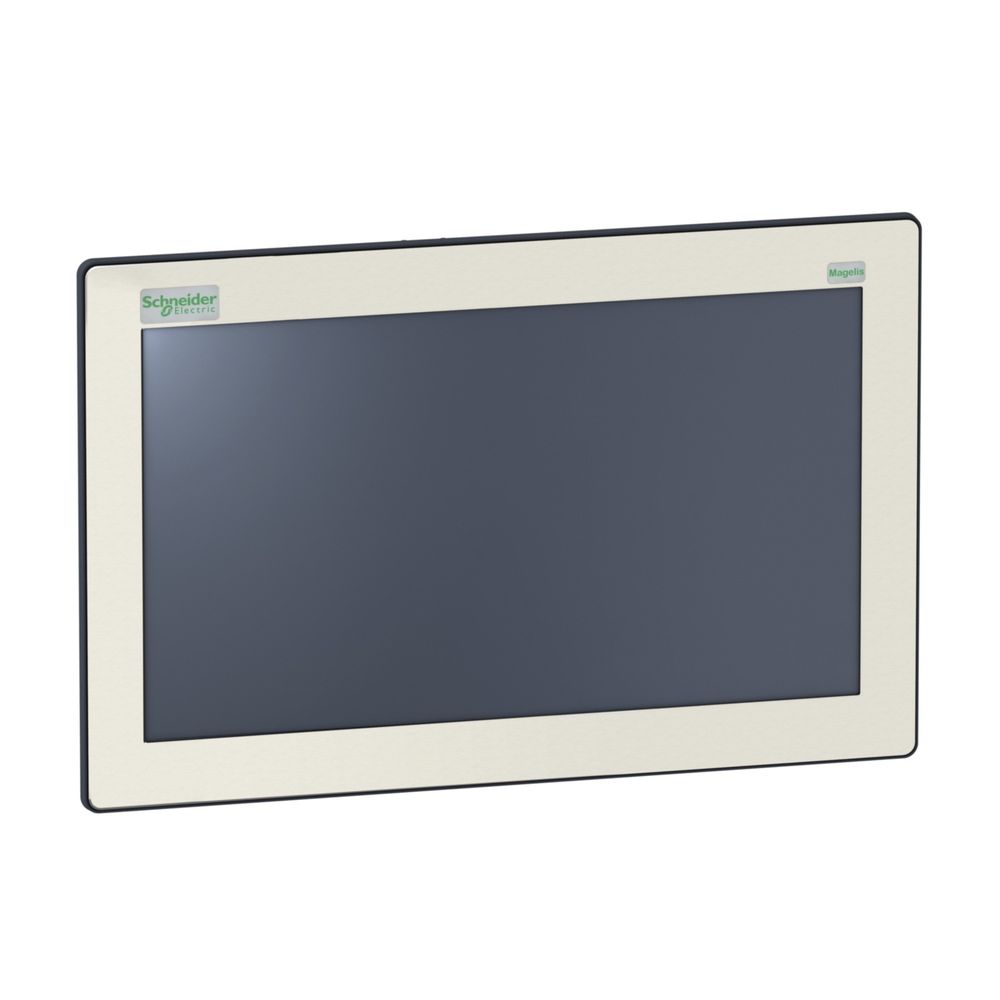

Schneider Electric HMIDT75X Schneider 15´ OUTDOOR GTUX content_copy

The Harmony GTUX display is to be used in combination with the GTUX Outdoor Box HMIG3X. This product range, with its stainless steel front and an extra bright display, was developed for use outdoors and in extreme environmental conditions. The focus here is on connectivity for secure remote maintenance via EcoStruxure Secure Connect Advisor and exchangeable memory and components for quick and easy maintenance. The resistive single-touch display in 15 inch wide screen with 262k colors and a resolution of 1366x768 pixels is used for visualization, operation and status display of your applications. Specially designed for outdoor use, the display has a high brightness, an extended temperature range of -20-60 °C and defies shock (40G) and vibration (2G). The user interface on the HMI is configured using the Vijeo Designer software. The external dimensions of the display are 408 mm (width) x 264 mm (height) x 68 mm (depth) with a panel cut-out of 394 mm x 250 mm and a panel thickness of 1.6 to 5 mm. The product is rated to IP66F, IP66F, Type 4X (indoor and outdoor), Type 12, Type 13 (on the front when properly installed in an enclosure). It also complies with the following certifications, CE, RCM, KC, EAC, UL cUL Class 1 Div2, ATEX/IECEx Zone 2/22.
Type: HMIDT75X
