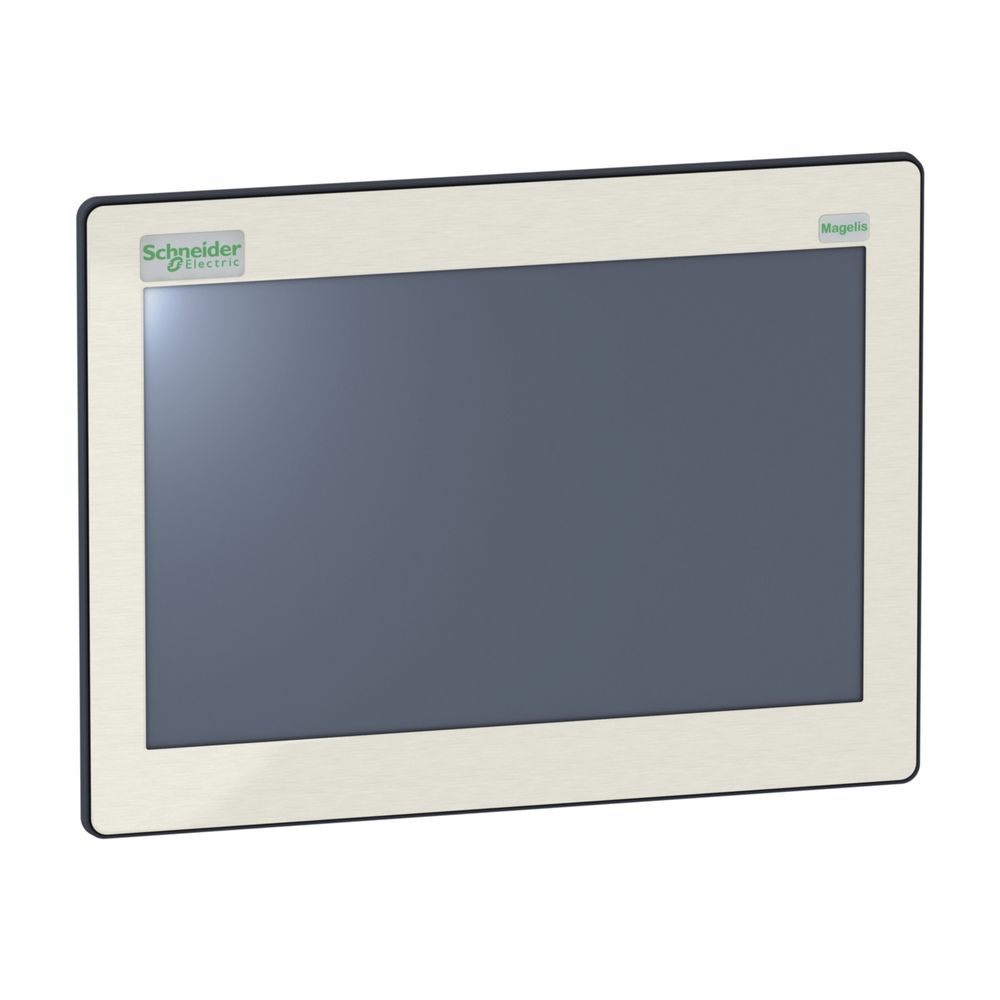

Schneider Electric HMIDT65XFH Schneider 12´ OUTDOOR GTUX HARSH ENVIRONMENT content_copy

The Harmony GTUX display with a protective coating in accordance with IEC/EN 60721-3-3 Class 3C3 is to be used in combination with the GTUX Outdoor Box HMIG3XFH. This product range, with its stainless steel front and an extra bright display, was developed for use outdoors and under extreme environmental conditions. The focus here is on connectivity for secure remote maintenance via EcoStruxure Secure Connect Advisor and exchangeable memory and components for quick and easy maintenance. The resistive single-touch display in 12 inch wide screen with 262k colors and a resolution of 1280x800 pixels is used for visualization, operation and status display of your applications. Specially designed for outdoor use, the display has a high brightness, an extended temperature range of -30-70 °C and defies shock (40G) and vibration (2G). The user interface on the HMI is configured using the Vijeo Designer software. The external dimensions of the display are 308 mm (width) x 230.5 mm (height) x 68 mm (depth) with a panel cut-out of 295 mm x 217 mm and a panel thickness of 1.6 to 5 mm. The product is rated to IP66F, IP66F, Type 4X (indoor and outdoor), Type 12, Type 13 (on the front when properly installed in an enclosure). It also complies with the following certifications, CE, RCM, KC, EAC, UL cUL Class 1 Div2, ATEX/IECEx Zone 2/22.
Type: HMIDT65XFH
