Schneider Electric EVB3S22NCB
Schneider EVlink Pro AC 22kW-T2 Cable-B-EV content_copy

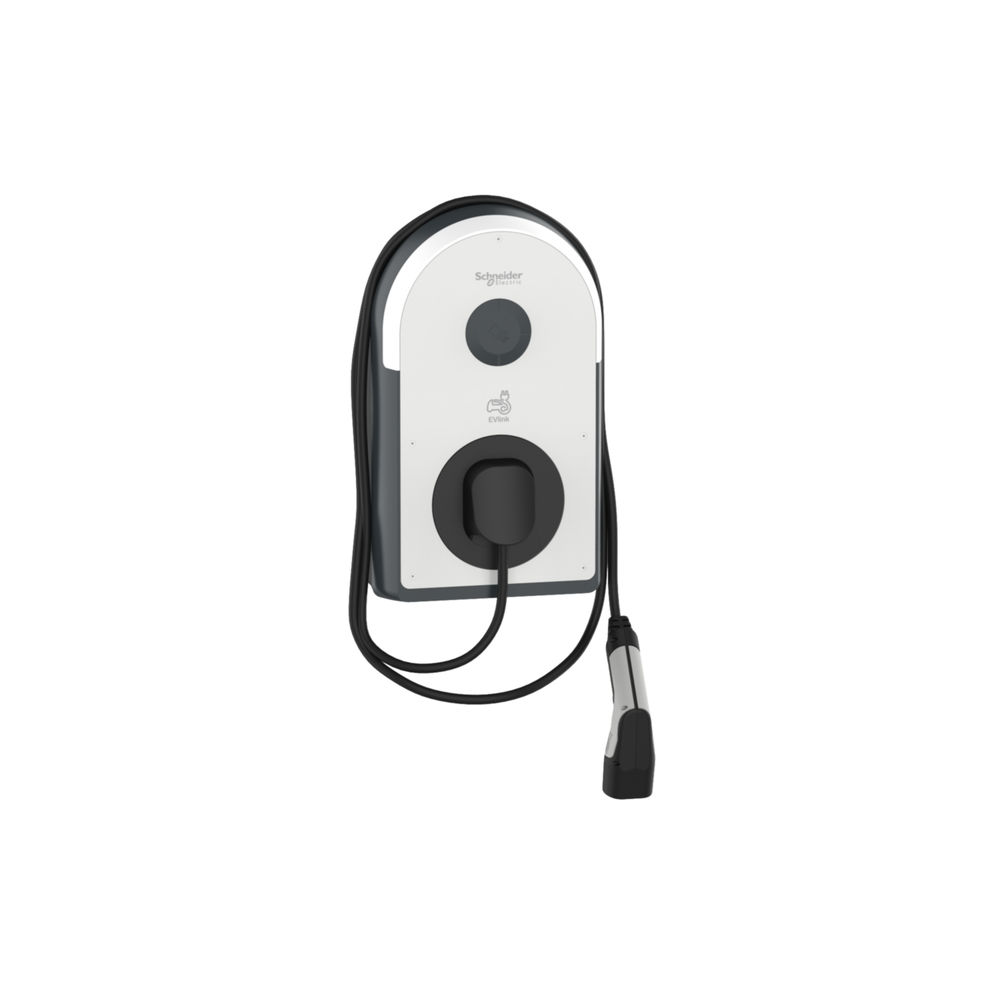

EVlink Pro AC wallbox with 5m type 2 charging cable with shutters. For use in semi-public garages or parking lots, for indoor or outdoor installation on the wall, on the EVlink stele (EVA1PBS1 / EVA1PBS2) or in the metal kit (EVA1RWKS1 / EVA1RFKS1 / EVA1RFKS2). Mode 3 charging in accordance with IEC 61851-1, 3-phase with a maximum charging power of 22 kW, 5m type 2 charging cable. With integrated FI type B-EV and iMNx undervoltage release for shutdown in the event of contact welding in accordance with EV Ready requirements. Digital inputs: 1 for temporary current limitation, 1 for postponed/suspended charging, 1 for EV presence detection. Access controller via NFC / RFID reader. NFC reader 13.56 MHz compatible with type 1, 2, 4 and 5 badges, RFID reader: Complies with the protocols ISO/CEI 14443 A &, B and ISO/CEI 15693, Compatible with Mifare Ultralight, Mifare Classic, Mifare Plus. User information and status message via a clearly visible LED arch, commissioning of the wallbox via eSetup app via Bluetooth. Communication standards: Bluetooth, Ethernet 2 connections (1 for daisy chain), Modbus serial, Modbus TCP, OCPP 1.6J for connection to a backend and the load management system EcoStruxure EV Charging Expert. Optional accessories: WiFi module (EVA1MW), modem module (EVA1MM), ISO 15118 module (EVA1M8), can be plugged into the charging controller. Color of the charging station: Body: dark gray RAL 7016 and black RAL 9005, front cover: white RAL 9003. Dimensions WxHxD: 317x529x183mm, weight: 10 kg, material: UV-treated polycarbonate. Shock resistance IK10, protection class IP55, operating temperature -30 to 50°C, storage temperature -40 to 80°C, operating altitude max. 2000m without derating, relative humidity 5 to 95%, own consumption up to 10W. Earthing system: TT, TN(S) or TN(C)(S), IT compatible with additional isolation transformer in the power supply. Norms and standards: CE, EV Ready, IEC/EN 61851-1 Ed 3.0, IEC/EN 62196-1 Ed 2.0, IEC/EN 62196-2 Ed 1.0, EN 61000-6-2: 2019, EN 61000-6-3:2007 + A1:2011, IEC 60884-1 and NF-C 61314.
Type: EVB3S22NCB
