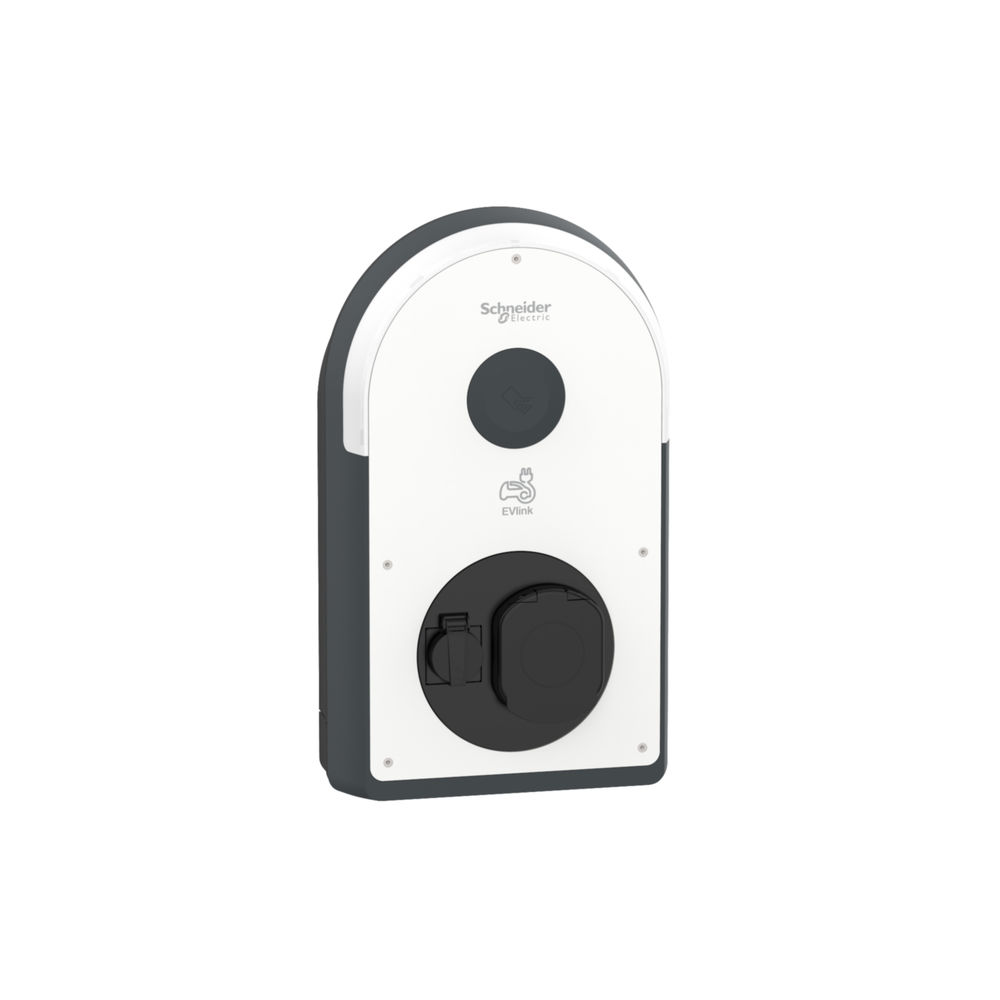

EVlink Pro AC wallbox with type 2 socket with shutters and type F Schuko socket. For use in semi-public garages or parking lots, for indoor or outdoor installation on the wall, on the EVlink stele (EVA1PBS1 / EVA1PBS2) or in the metal kit (EVA1RWKS1 / EVA1RFKS1 / EVA1RFKS2). Mode 3 charging according to IEC 61851-1, 3-phase with a maximum charging power of 22 kW, type 2 socket, type F Schuko socket up to 2.3 kW 1-phase. With integrated FI type B-EV and iMNx undervoltage release for shutdown in the event of contact welding in accordance with EV Ready requirements. Digital inputs: 1 for temporary current limitation, 1 for postponed/suspended charging, 1 for EV presence detection. Access controller via NFC / RFID reader. NFC reader 13.56 MHz compatible with type 1, 2, 4 and 5 badges, RFID reader: Complies with the protocols ISO/CEI 14443 A &, B and ISO/CEI 15693, Compatible with Mifare Ultralight, Mifare Classic, Mifare Plus. User information and status message via a clearly visible LED arch, commissioning of the wallbox via eSetup app via Bluetooth. Communication standards: Bluetooth, Ethernet 2 connections (1 for daisy chain), Modbus serial, Modbus TCP, OCPP 1.6J for connection to a backend and the load management system EcoStruxure EV Charging Expert. Optional accessories: WiFi module (EVA1MW), modem module (EVA1MM), ISO 15118 module (EVA1M8), can be plugged into the charging controller. Color of the charging station: Body: dark gray RAL 7016 and black RAL 9005, front cover: white RAL 9003. Dimensions WxHxD: 317x529x158mm, weight: 7.5 kg, material: UV-treated polycarbonate. Shock resistance IK10, protection class
IP54, operating temperature -30 to 50°C, storage temperature -40 to 80°C, operating altitude max. 2000m without derating, relative humidity 5 to 95%, own consumption up to 10W. Earthing system: TT, TN(S) or TN(C)(S), IT compatible with additional isolation transformer in the power supply. Norms and standards: CE, EV Ready, IEC/EN 61851-1 Ed 3.0, IEC/EN 62196-1 Ed 2.0, IEC/EN 62196-2 Ed 1.0, EN 61000-6-2: 2019, EN 61000-6-3:2007 + A1:2011, IEC 60884-1 and NF-C 61314.
Type:
EVB3S22N4FB
Questions & answers
What is the delivery time of Schneider Electric EVB3S22N4FB Schneider EVlink Pro AC 22kW-T2S & TF-B-EV?
The article Schneider Electric EVB3S22N4FB Schneider EVlink Pro AC 22kW-T2S & TF-B-EV is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Schneider Electric EVB3S22N4FB to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schneider Electric EVB3S22N4FB Schneider EVlink Pro AC 22kW-T2S & TF-B-EV always at the best possible price. We can give you a discount of 2% on
Schneider Electric EVB3S22N4FB Schneider EVlink Pro AC 22kW-T2S & TF-B-EV if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of Schneider Electric EVB3S22N4FB Schneider EVlink Pro AC 22kW-T2S & TF-B-EV we can offer you a price of 1.642,11 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
