Schneider Electric EVB3I22NC0M
Schneider Pro AC Wallbox, 22kW, T2 cable, 6mA, IP55, IK10
|
1.767,00 EUR 1.841,40 EUR |
|
|
( 2.102,73 EUR incl. VAT ) ≈ £1,516.09 | ≈ $2,047.95 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 2051674 |
|---|---|
| Mfg Part No: | EVB3I22NC0M |
| UPC/EAN: | 3606486078525 |
| Weight: | 0.123 kg |
Product information for Schneider Electric EVB3I22NC0M:

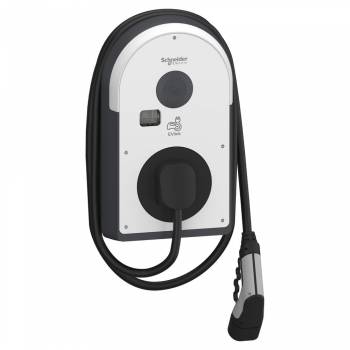

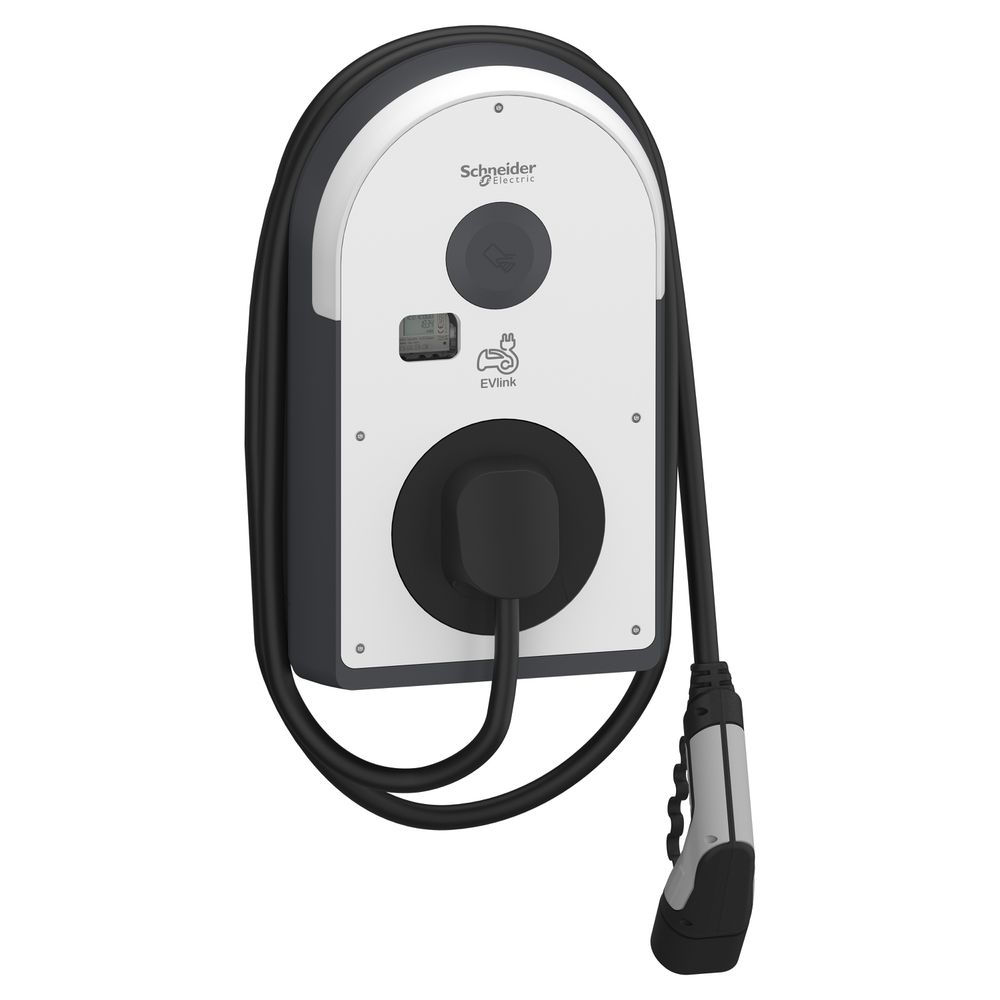

EVlink Pro AC Wallbox in legal metrology-compliant design with 5m type 2 charging cable with shutters. For use in public garages or parking lots, for indoor or outdoor installation on the wall, on the EVlink stele (EVA1PBS1 / EVA1PBS2) or in the metal kit (EVA1RWKS1 / EVA1RFKS1 / EVA1RFKS2). Mode 3 charging in accordance with IEC 61851-1, 3-phase with a maximum of 22 kW charging power, 5m type 2 charging cable with an integrated legal metrology-compliant meter, 6mA DC residual current detection (enables the use of a type A residual current device). Digital inputs: 1 for temporary current limitation, 1 for postponed/suspended charging, 1 for EV presence detection. Access controller via NFC / RFID reader. NFC reader 13.56 MHz compatible with type 1, 2, 4 and 5 badges, RFID reader: Complies with the protocols ISO/CEI 14443 A &, B and ISO/CEI 15693, Compatible with Mifare Ultralight, Mifare Classic, Mifare Plus. User information and status message via a clearly visible LED arch, commissioning of the wallbox via eSetup app via Bluetooth. Communication standards: Bluetooth, Ethernet 2 ports (1 for daisy chain), Modbus serial, Modbus TCP, OCPP 1.6J for connection to a backend and the load management system EcoStruxure EV Charging Expert. Optional accessories: WiFi module (EVA1MW), modem module (EVA1MS &, EVA1MM), ISO 15118 module (EVA1M8), can be plugged into the charging controller. Color of the charging station: Body: dark gray RAL 7016 and black RAL 9005, front cover: white RAL 9003. Dimensions WxHxD: 317x529x153mm, weight: 7.5 kg, material: UV-treated polycarbonate. Shock resistance IK10, protection class IP55, operating temperature -25 to 40°C, storage temperature -40 to 80°C, operating altitude max. 2000m without derating, relative humidity 5 to 95%, own consumption <10W. Earthing system: TT, TN(S) or TN(C)(S), IT compatible with additional isolation transformer in the power supply. Norms and standards: CE, EV Ready, IEC/EN 61851-1 Ed 3.0, IEC/EN 62196-1 Ed 2.0, IEC/EN 62196-2 Ed 1.0, EN 61000-6-2: 2019, EN 61000-6-3:2007 + A1:2011, IEC 60884-1 and NF-C 61314.
Type: EVB3I22NC0M
Type: EVB3I22NC0M
Questions & answers
What is the delivery time of Schneider Electric EVB3I22NC0M Schneider Pro AC Wallbox, 22kW, T2 cable, 6mA, IP55, IK10?
The article Schneider Electric EVB3I22NC0M Schneider Pro AC Wallbox, 22kW, T2 cable, 6mA, IP55, IK10 is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schneider Electric EVB3I22NC0M to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schneider Electric EVB3I22NC0M Schneider Pro AC Wallbox, 22kW, T2 cable, 6mA, IP55, IK10 always at the best possible price. We can give you a discount of 2% on Schneider Electric EVB3I22NC0M Schneider Pro AC Wallbox, 22kW, T2 cable, 6mA, IP55, IK10 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
