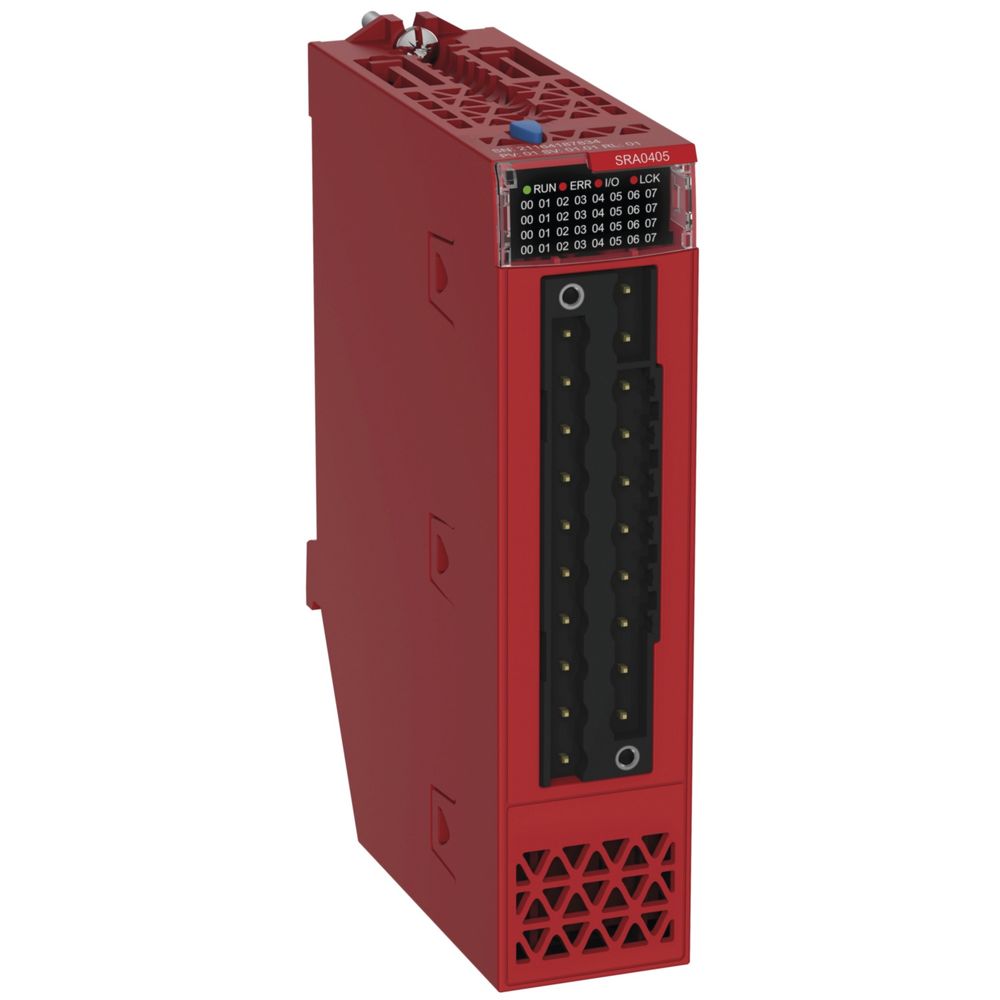

Schneider Electric BMXSRA0405 Schneider M580S 4DO RELAY ISOL, SIL2CAT,2/PLC

This discrete safety relay output module is part of the Modicon X80 range, a range of common input/output and communication modules, power supplies and subracks for Modicon M340 and Modicon M580. This product consists of 4 non-isolated output channels and is powered by 24 to 230 V AC/24 V DC. This safety module can be used in harsher environments and operates in an extended temperature range of -25°C to +60°C and requires the Modicon M580 Safety Processor. Modicon X80 modules provide a unified environment for the use of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product has an IP20 protection class and offers an MTBF of 624,145 hours. This module is certified by TÜV Rheinland up to SIL2/SIL3 according to IEC 61508/61511 for processes. It has been certified up to SILCL3 according to IEC 62061 and up to Cat. 4/Ple according to ISO 13849 for machinery and up to SIL4 according to EN 50126/502128/50129 for rail. This product is certified by CE, UL, CSA, RCM, EAC, UKCA and Merchant Navy and complies with EN 61000-6-5, EN 61850-3 and EN 61131-2. This module is compatible with Safety PLCs with a 20-pin cage, screw terminal or removable spring terminal block. The height of the I/O module is greater than the height of a standard rack (Ethernet or X-Bus) and should be taken into account before installing the rack. The product must be installed in the module carrier and secured with 2 screws.
Type: BMXSRA0405
