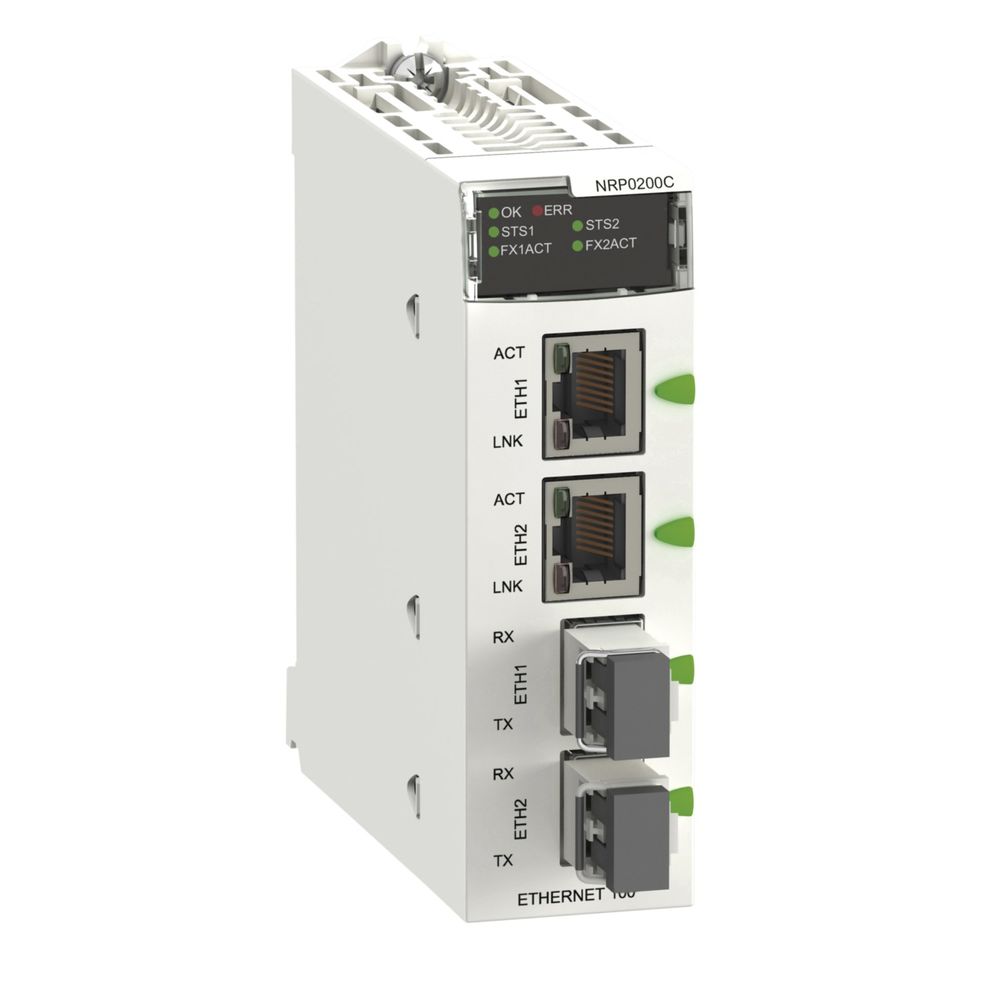

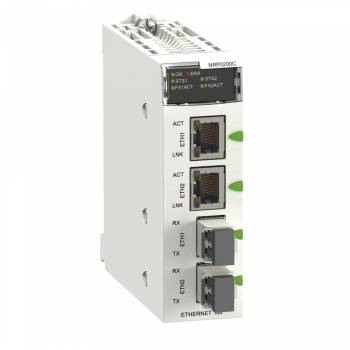

Schneider Electric BMXNRP0200C Schneider FIBER CONVERTER MM/LC 2CH 100MB CC

This fiber optic converter is part of the Modicon X80 range, a common input/output offering for Modicon M340 and Modicon M580. This fiber optic repeater is equipped with 2 RJ45 EtherNet ports and 2 fiber optic Ethernet ports. It is a fiber optic repeater with a current of 200mA and a nominal voltage of 24V. It offers a wavelength of 1310nm. Modicon X80 modules provide a unified environment for the use of I/O modules in automation architectures by reducing the costs of spare parts inventory, maintenance and training. Thanks to a protective coating on the circuit board, this product can be used in harsh environments with a temperature range of -25°C to +60°C/-13°F to 140°F. The optical repeater has 2 RJ45 with 100BASE-TX port, 2 fiber optic with 100BASE-FX port Ethernet ports with 0m to 2000m operating range. It is an IP20 certified product. This product complies with CE, UL, CSA, RCM and EAC standards and is certified for power generation, merchant marine, railway and hazardous area applications. This product is compatible with the full range of Modicon controllers. The repeater is connected to the CRA drop adapters via Ethernet interlink cables. The product must be installed in the module carrier and secured with 2 screws. Modicon X80 modules provide a unified environment for the use of I/O modules in automation architectures by reducing the costs of spare parts inventory, maintenance and training.
Type: BMXNRP0200C
