Schneider Electric BMI1002P02A
Schneider motor 3-pole 70mm IP54 1.9kW NKY encoder MLT 128 content_copy

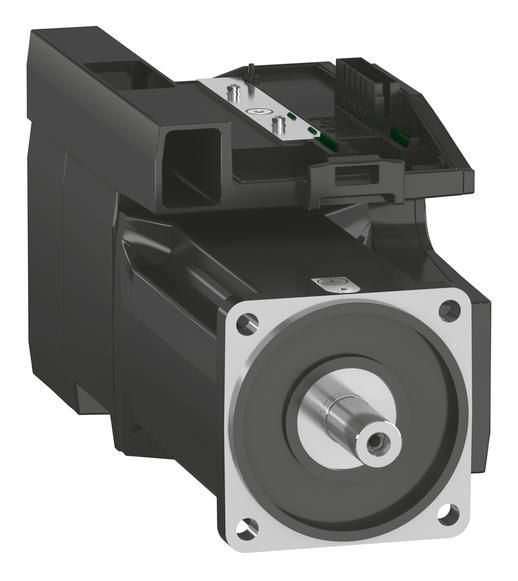

Drive unit of the integrated servo drive Lexium 32i. This integrated servo drive offers you a modular concept of drive unit, control unit and connection modules, which are plugged together according to the respective application. This BMI drive unit consists of the actual servo motor and the associated power level. The maximum standstill torque of the servo motor is 4.99 Nm. A three-phase mains connection with 208-480 VAC supplies the servo, for which the mains connection module VW3M9003 is required. The dimensions of the motor flange for fastening are 100 mm. The end of the motor shaft is smooth and is designed for protection class IP54, while the motor housing is designed for IP54. The servo motor is made up of 2 power levels. The built-in Sin/Cos Hiperface absolute encoder is designed as a multiturn with 128 periods per revolution (131072 points/rev x 4096 revolutions). There is no holding brake. Thanks to the Green Premium ecolabel, you can get detailed information on material content, environmental impact and circular economy that supports your sustainability goals.
Type: BMI1002P02A
