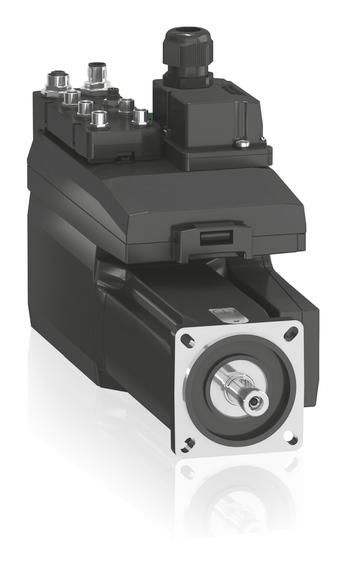

Schneider Electric BMI0703P17A
Schneider motor 3-pole 70mm IP54 860W KEY encoder MLT 16 content_copy

Drive unit of the integrated servo drive Lexium 32i. This integrated servo drive offers you a modular concept of drive unit, control unit and connection modules, which are plugged together according to the respective application. This BMI drive unit consists of the actual servo motor and the associated power level. The maximum standstill torque of the servo motor is 2.96 Nm. A three-phase mains connection with 208-480 VAC supplies the servo, for which the mains connection module VW3M9003 is required. The dimensions of the motor flange for fastening are 70 mm. The end of the motor shaft has a feather key and is designed for protection class IP54, while the motor housing is designed for IP54. The servo motor is made up of 3 power levels. The built-in Sin/Cos Hiperface absolute encoder is designed as a multiturn with 16 periods per revolution (32768 points/rev x 4096 revolutions). There is no holding brake. Thanks to the Green Premium ecolabel, you can get detailed information on material content, environmental impact and circular economy that supports your sustainability goals.
Type: BMI0703P17A
